About Masimo SpO2 Sensors, Patient Cables and Capnography
Shop Masimo by family

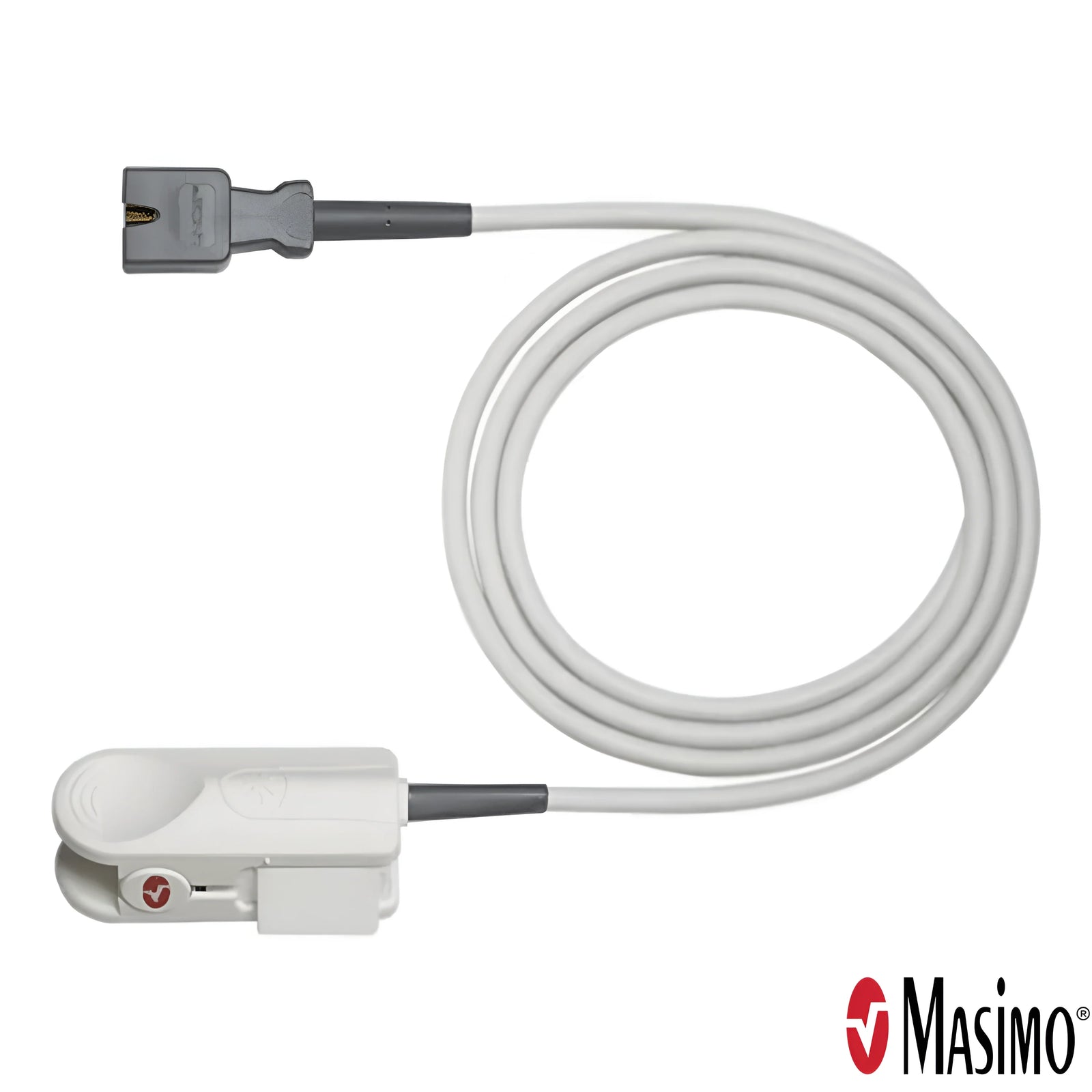

- Masimo LNCS sensors: 9-pin, for LNC patient cables
- Masimo M-LNCS sensors: 15-pin, for M-LNC and rainbow RC cables

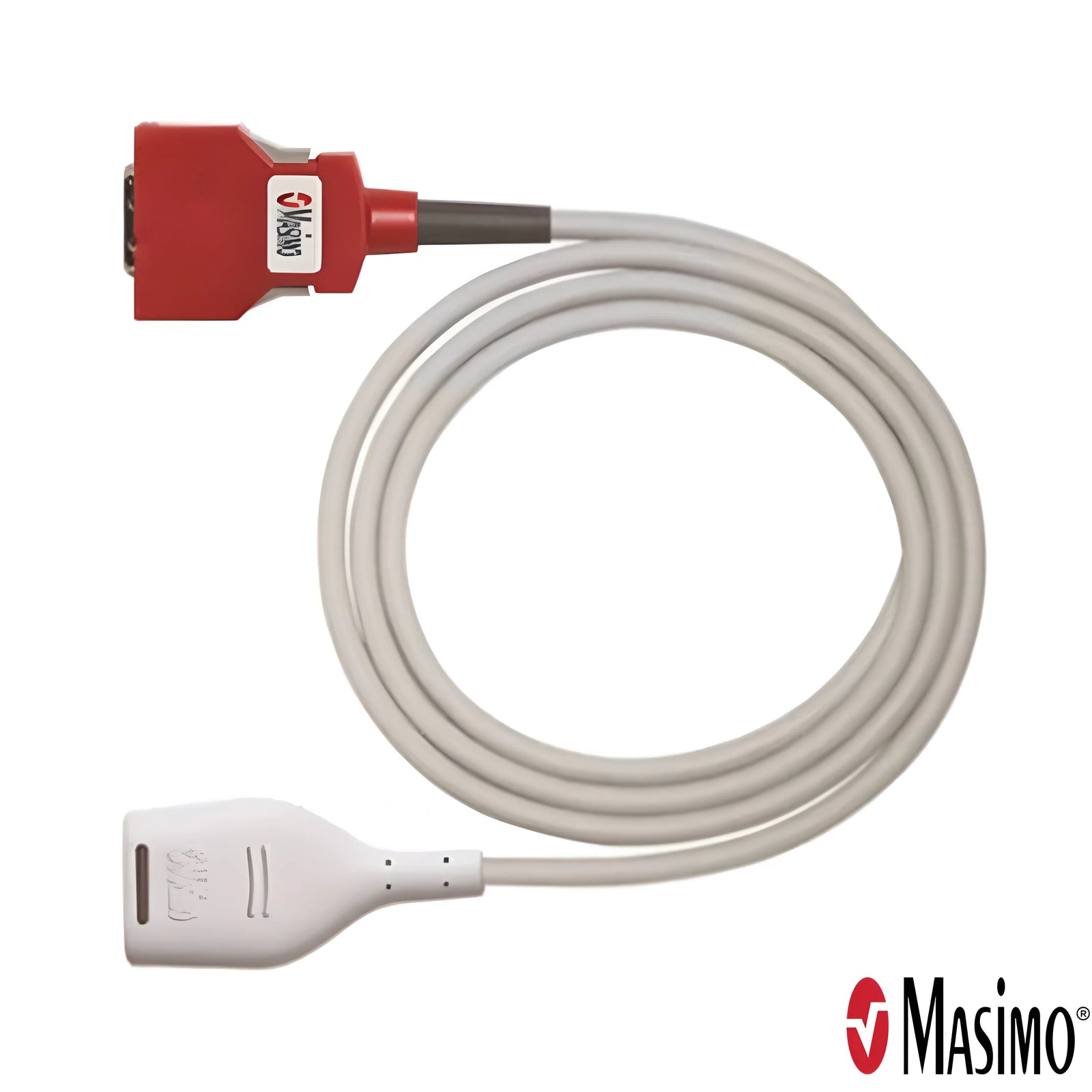

- Masimo RD SET sensors: for RD patient cables
- Masimo rainbow sensors: SpO2 with SpCO and SpMet
- Masimo patient cables and adapter cables

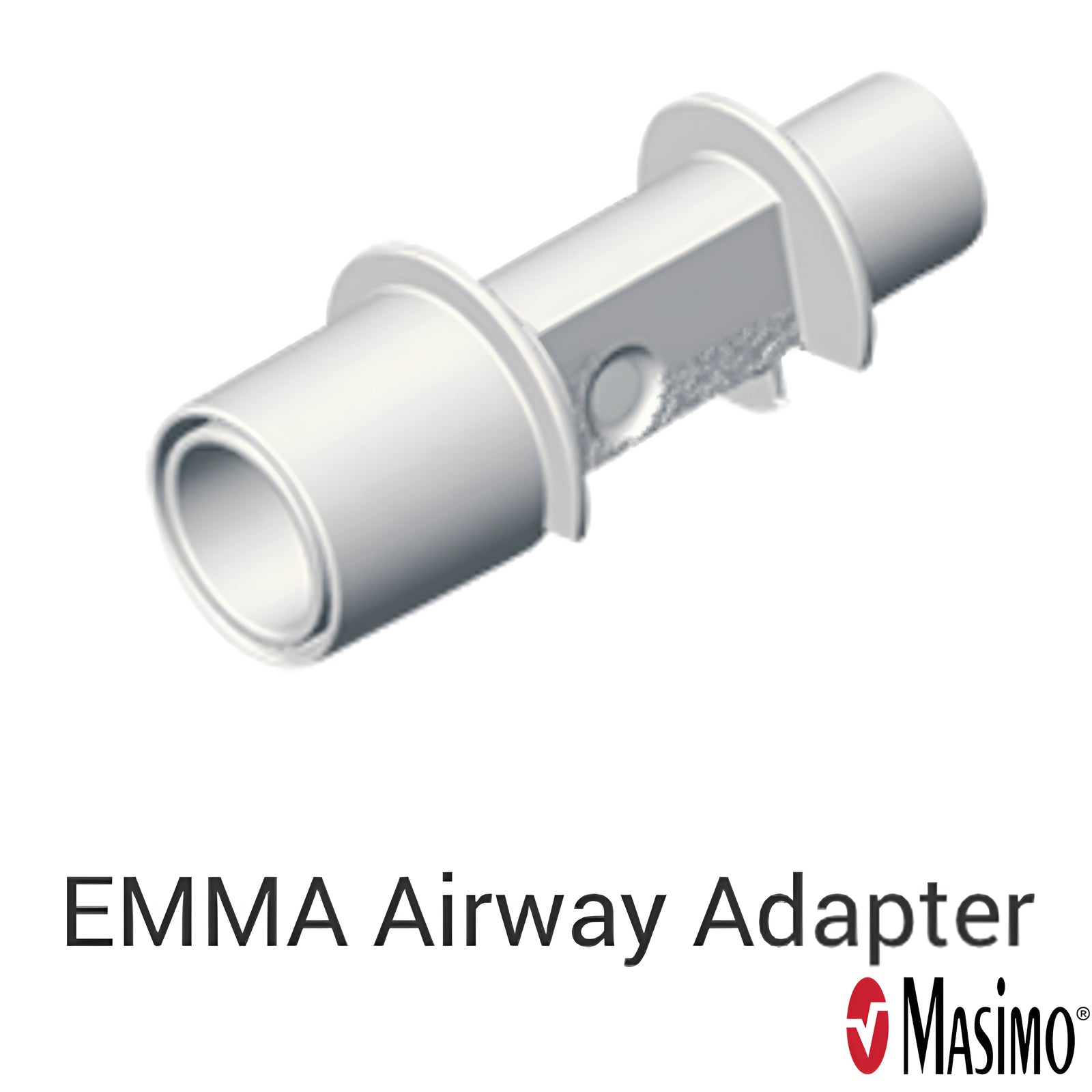

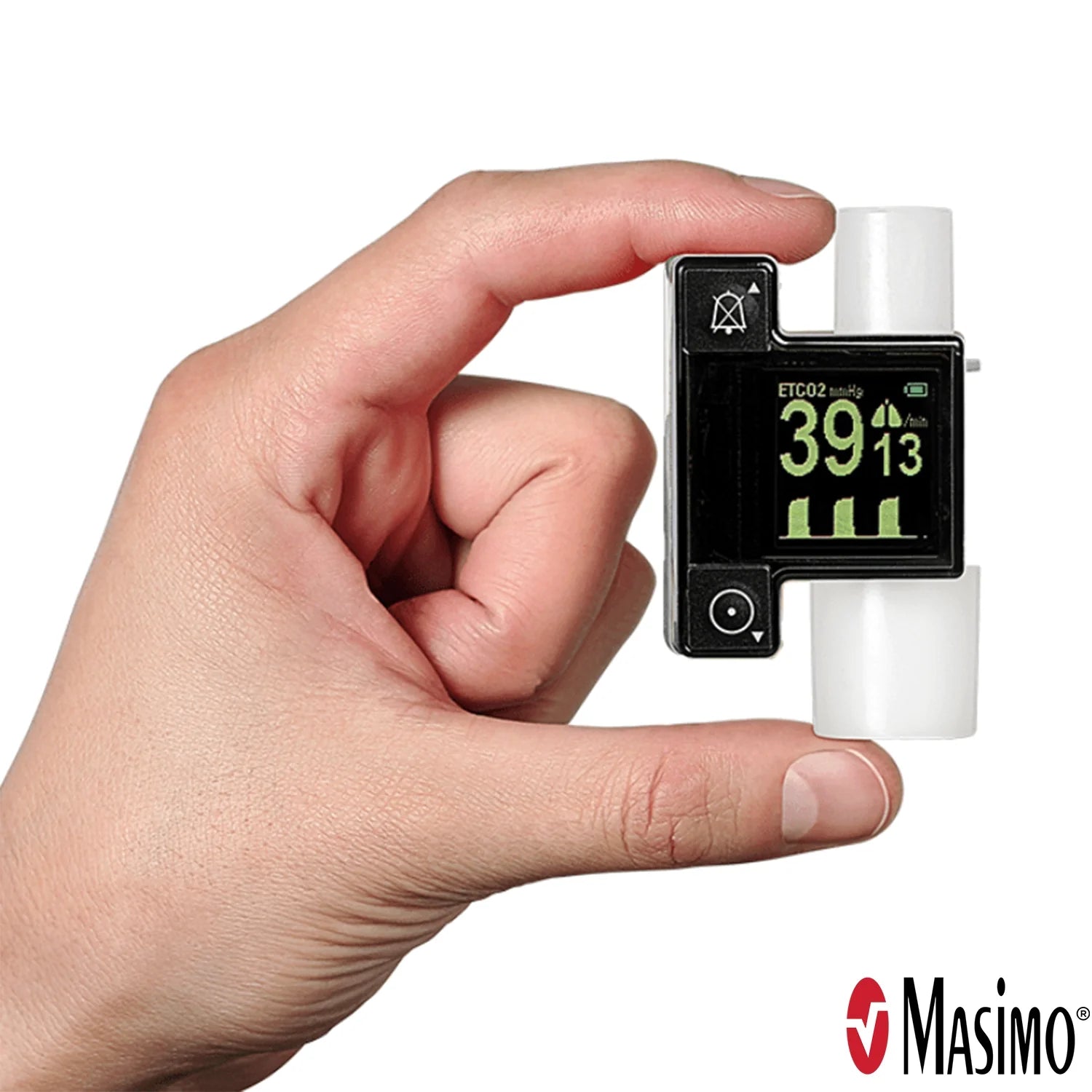

- Masimo EMMA capnometers and airway adapters

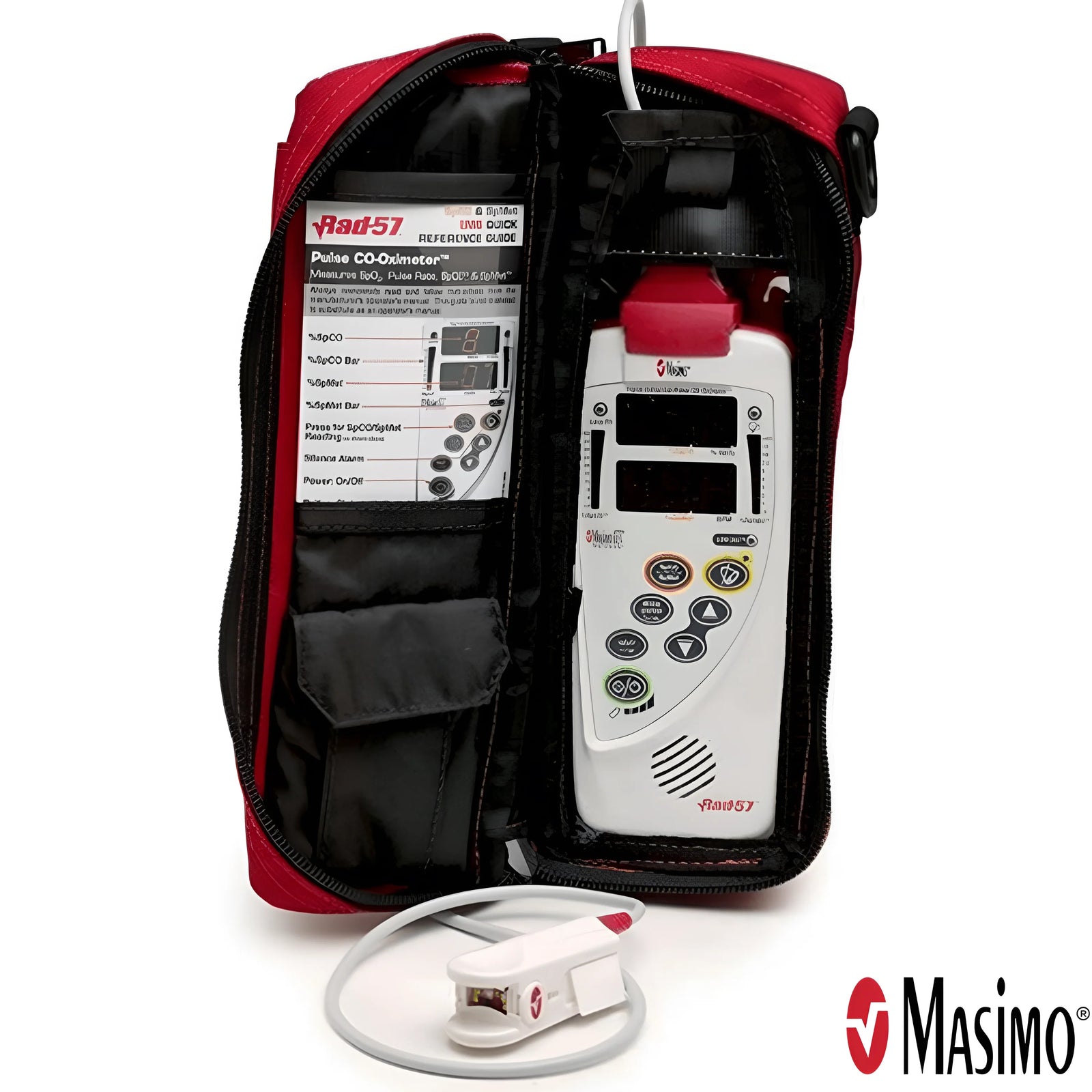

- Masimo Rad-57 and MightySat pulse oximeters
Pacific Biomedical supplies genuine Masimo sensors, cables and monitoring devices to EMS agencies, fire departments, alternate care sites and flight teams. Authorized Masimo Distributor (USA).
Masimo SET, LNCS, M-LNCS, RD SET and rainbow
Masimo SET is Masimo's pulse oximetry technology, and the sensor families differ mainly by connector. LNCS sensors have a 9-pin plug for LNC patient cables; M-LNCS sensors have a 15-pin plug for M-LNC or rainbow RC cables; RD SET sensors use RD patient cables, or LNC cables through the 4105 RD to LNC adapter. rainbow sensors add SpCO (carboxyhemoglobin) and SpMet (methemoglobin) to SpO2 on monitors equipped for them.
How to pick a Masimo sensor
- Patient weight: each sensor lists its range, such as adult (over 30 kg) or pediatric (10 to 50 kg).
- Adhesive or reusable: adhesive sensors are single-patient use and boxed; reusable sensors are sold individually.
- Connector: match the sensor to the patient cable you already use.
- Length: sensor leads run 18 in or 3 ft; patient cables run 1 ft to 14 ft.
Masimo parts by monitor
The right sensor and cable depend on your monitor's SpO2 connector. Start from your monitor: LIFEPAK 15 and 35, LIFEPAK 20e, 20 and 12, Zoll X Series and Propaq MD, Philips Tempus Pro and IntelliVue or Rad-57. Have a Stryker or Zoll part number? Use the Masimo part number cross-reference.
Masimo ear sensors

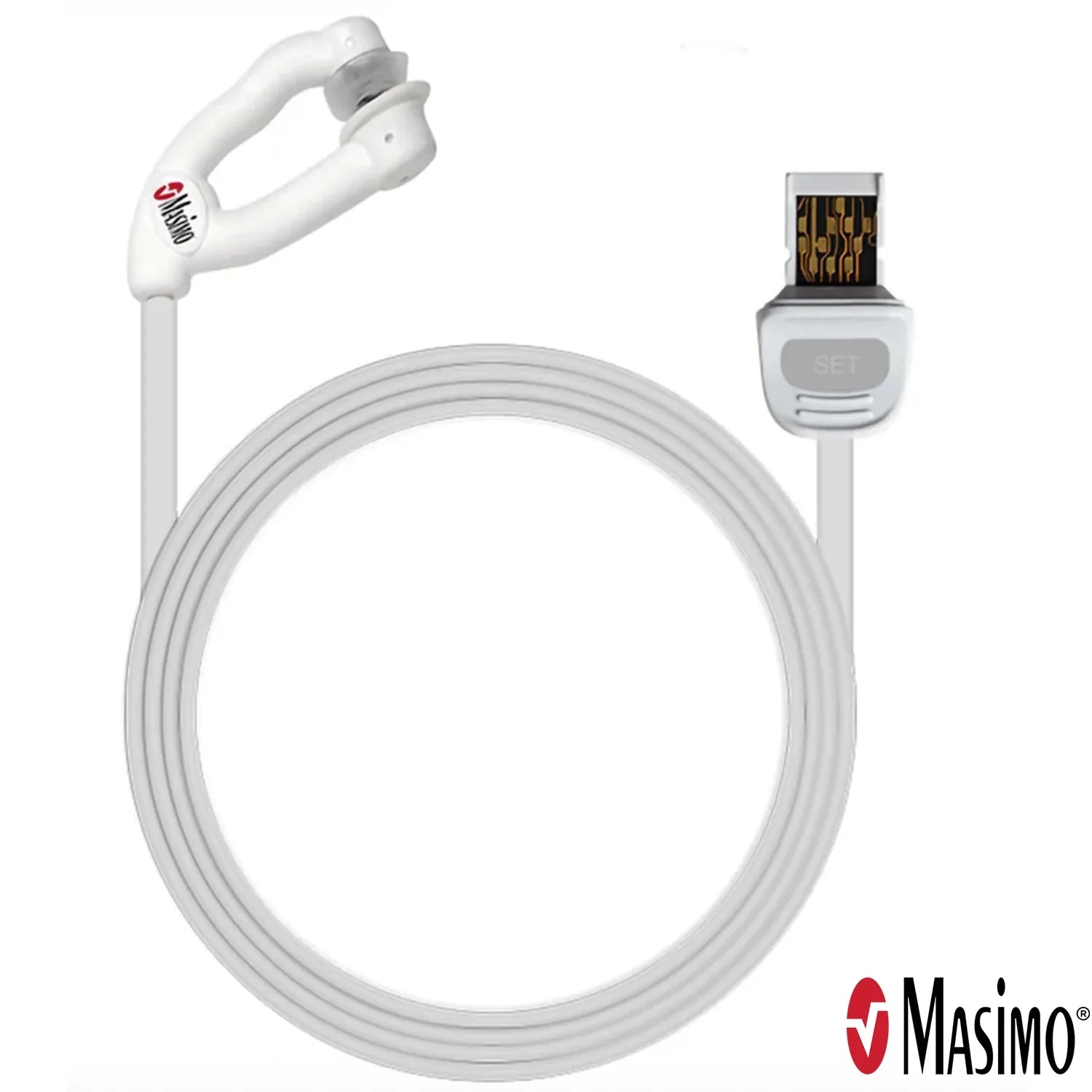

For adults over 30 kg. LNCS: 1895 TC-I ear clip and 2918 E1 disposable ear sensor (box of 10). M-LNCS: 2503 TC-I reusable ear sensor and 2919 E1 disposable ear sensor (box of 10). RD SET: 4015 E1 ear adhesive sensor (box of 10) and the 4053 TC-I ear clip.
Masimo forehead sensors
3858 LNCS TFA-1 forehead sensor for patients over 10 kg (box of 10), 4055 RD SET reusable forehead sensor for adults over 30 kg, and the 1608 headband for TF-I forehead sensors.
Masimo direct-connect sensors

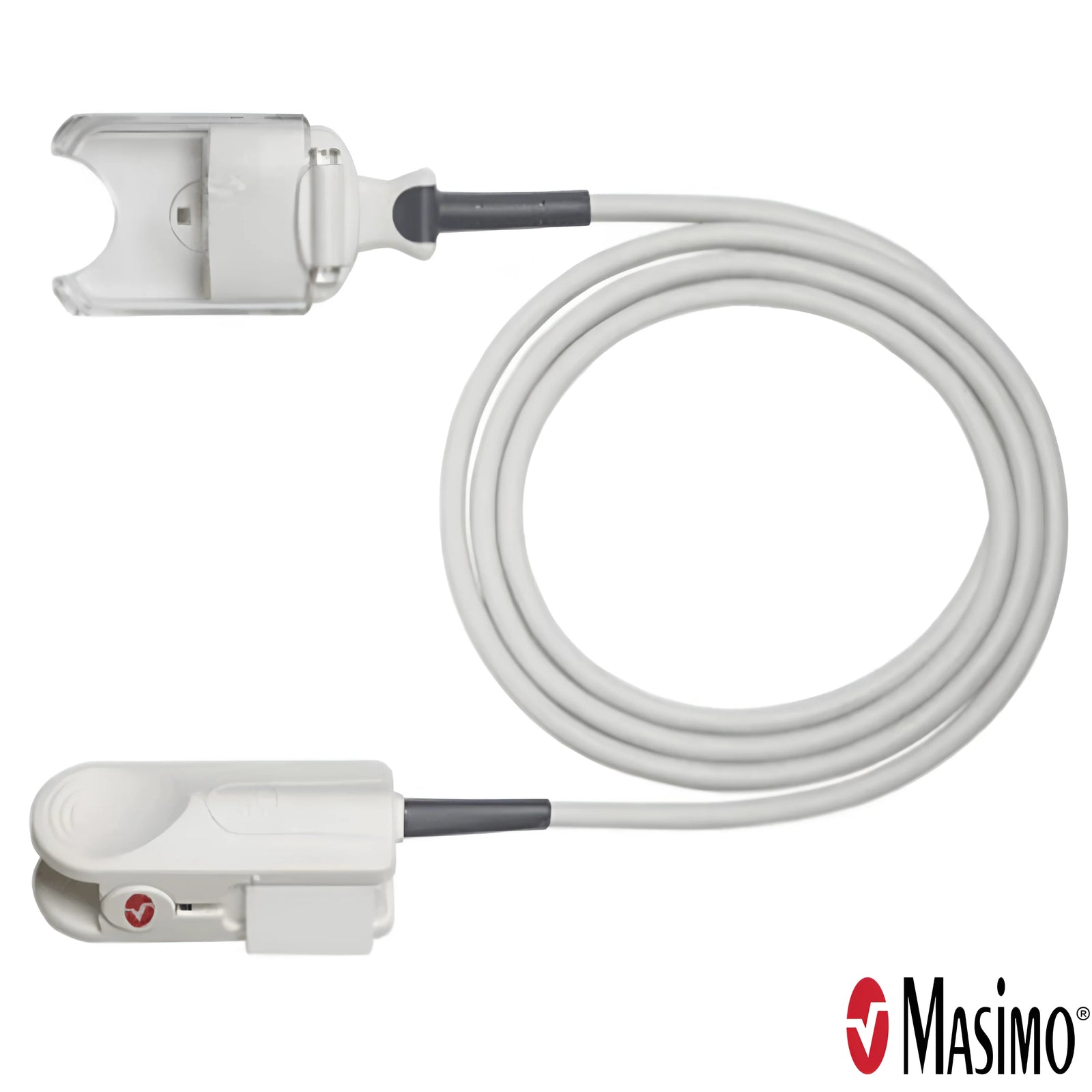

These reusable SpO2 sensors plug straight into the monitor with no patient cable. Masimo's Rad-57 manual lists the 2053 Red DCI-dc3 (adult, 3 ft) and 2256 Red DCIP-dc3 (pediatric, 3 ft). Stryker's LIFEPAK 15 guide and Zoll's X Series list include those two and the 2644 Red DBI-dc8 (adult soft, 8 ft). Also available: 2054 (12 ft) and 2652 DBI-dc8 (8 ft). rainbow direct-connect models are in the rainbow collection.
Masimo accessories and thermometers
2308 replacement tape for LNCS Neo and Neo-3 sensors (102 per box), 1602 YI foam wraps, 3923 YI multisite clips, 2815 rainbow ambient shield, 2208 carrying case, the TIR-1 Bluetooth infrared thermometer and its 300757 carry case, the 4301 non-contact infrared thermometer, the 2063 Rad-57 data transfer cable, the 2296 SpCO parameter upgrade and the 1025 LNOP Pdt pediatric adhesive sensor.
Unused, unopened items in original packaging are returnable within 30 days of delivery with an RMA; single-use and patient-contact devices, and Rx devices once dispensed, are not returnable (refund policy).
Order online, or set up an agency account. EMS agencies register at EMS registration; hospitals and clinics at facility registration. Repeat part numbers go fastest through the Quick Order Form. Purchase order or tax-exempt questions: contact Pacific Biomedical.
What is the difference between Masimo LNCS, M-LNCS, RD SET and rainbow sensors?
The connector and the cable they use. LNCS sensors have a 9-pin plug for LNC patient cables, M-LNCS sensors a 15-pin plug for M-LNC or rainbow RC cables, and RD SET sensors run on RD patient cables. rainbow sensors add SpCO and SpMet to SpO2 on monitors equipped for those parameters.
Which Masimo sensor fits my monitor?
It depends on the monitor's SpO2 connector. Start from the cable you already use, or open the monitor pages above for the LIFEPAK 15 and 35, LIFEPAK 20e, 20 and 12, Zoll X Series and Propaq MD, Philips Tempus Pro and IntelliVue, and Rad-57, which list the matching part numbers.
Are these genuine Masimo sensors?
Yes. Every product in this collection is made by Masimo Corporation and sold by Pacific Biomedical, Authorized Masimo Distributor (USA).
