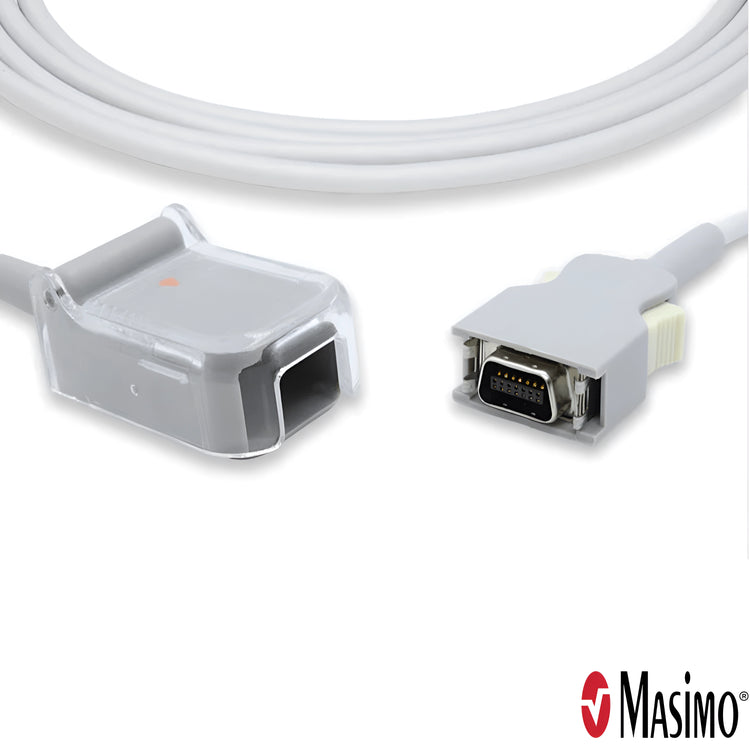

Masimo 1814 LNC 10 ft patient cable for LNCS sensors, looped cable with both end connectors

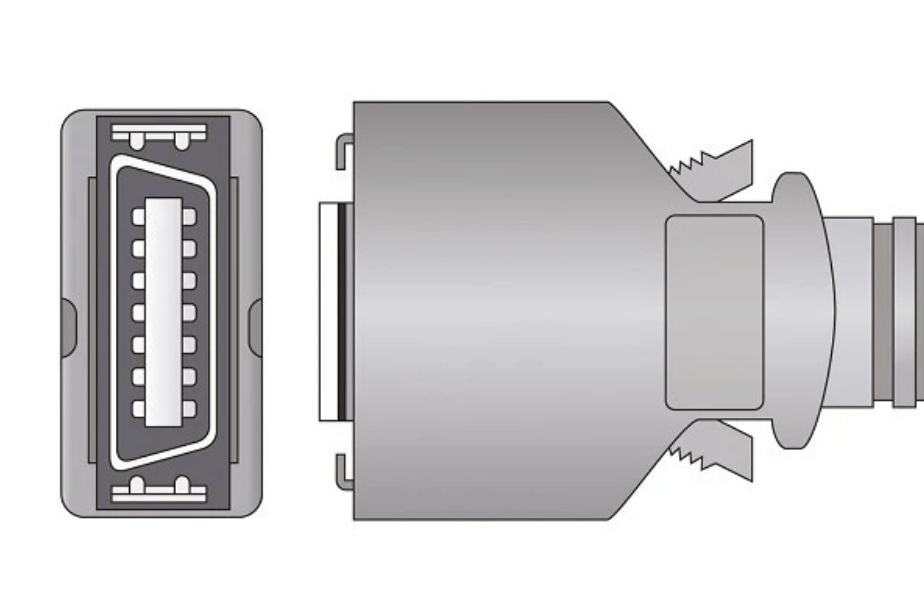

Masimo 1814 LNC 10 ft patient cable, monitor-end connector, face and side views

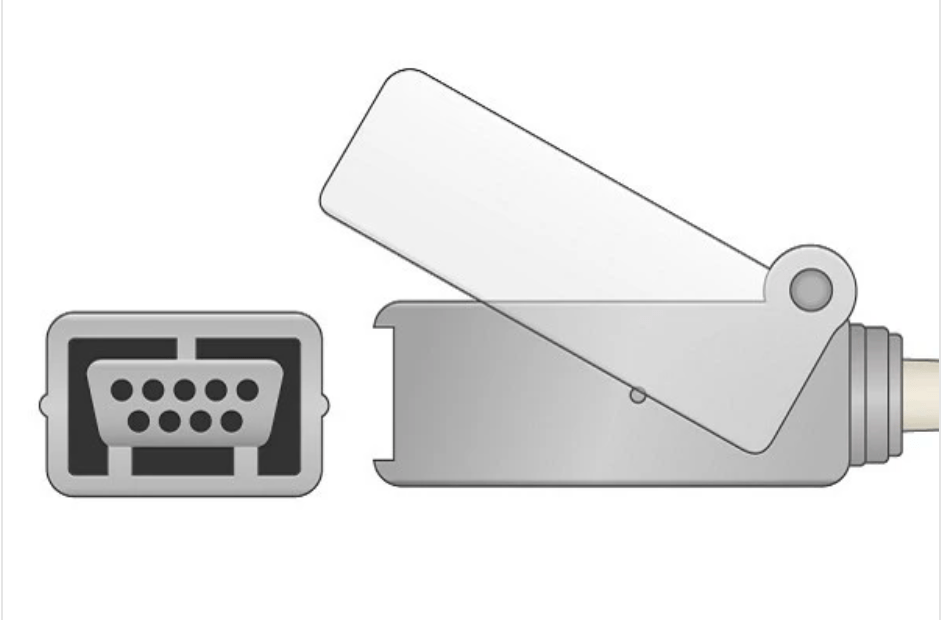

Masimo 1814 LNC 10 ft patient cable, LNCS 9-pin sensor connector, face and side views, cover open
Masimo 1814 LNC 10 ft patient cable for LNCS sensors, looped cable with both end connectors
Masimo 1814 LNC 10 ft patient cable, monitor-end connector, face and side views
Masimo 1814 LNC 10 ft patient cable, LNCS 9-pin sensor connector, face and side views, cover open

Masimo 1814 LNC-10 SpO2 Patient Cable, 14-Pin, 10 ft

SKU: MAS-1814

Masimo Corporation

The Masimo 1814 LNC-10 is a reusable 10 ft patient cable that connects Masimo LNCS sensors, for adult, pediatric, infant and neonatal patients, to a monitor's 14-pin LNC SpO2 port to measure SpO2 and pulse rate.12 It is the LIFEPAK 20e 10 ft LNCS patient cable3 and Zoll's 10 ft LNCS reusable SpO2 cable for the E Series and R Series.4 The Stryker/Physio-Control number is 11171-000016 and the Zoll number is 8000-0293.34 We supply the genuine Masimo 1814.

Also listed as the 14-pin LNC-10 or LNC 10 ft.

Works With:

Sensors LNCS sensors, reusable and single-patient-use:
1863 DCI adult, 1864 DCIP pediatric, 1859 Adtx adult adhesive
All: Masimo LNCS sensors
M-LNCS, rainbow and RD SET sensors do not plug in.5
Monitor Connector Sensor end: DB9 LNCS receptacle with a protective cover16
Monitor end: Masimo 14-pin LNC plug2
Monitors LIFEPAK 20e: Stryker lists the 10 ft LNCS patient cable, 11171-0000163
LIFEPAK 20 and LIFEPAK 12: the operating instructions list LNCS patient (extension) cables, with no part numbers78
Zoll E Series and R Series: the item field for 8000-02934
Masimo Rad-5: the monitor Masimo validated the LNC series on1
Not Listed For LIFEPAK 15: Stryker lists the 20-pin Red LNC, the 20569
Zoll X Series and Propaq: Zoll lists the Red LNC-10, 8000-033110
LIFEPAK 35: Stryker's guide lists no straight LNC cable11
Stryker / Physio-Control Number 11171-000016 (10 ft)3
Zoll Number 8000-0293 (10 ft)4
Cross-Reference See the Masimo 1814 row in the Masimo Part Number Cross-Reference

Product Highlights:

  • Plug decides fit: The 1814 has the 14-pin LNC plug, and the red 20-pin Red LNC, 25-pin Red 25 LNC and M20 cables carry the same LNCS sensor socket on other plugs.2
  • Lengths: The 14-pin LNC comes in 1 ft (2364), 4 ft (2017), 10 ft (this cable) and 14 ft (2013); Stryker numbers the 4, 10 and 14 ft as 11171-000024, -000016 and -000025.2312
  • Sensors: LNCS sensors only, sized from preterm (NeoPt, under 1 kg) to adult (Adtx, over 30 kg).135
  • Cable life: X-Cal technology provides up to 17,520 hours of patient monitoring time, equal to two years of round-the-clock use.1
  • Reusable: Wipe the cable with a 70% isopropyl alcohol pad and let it dry; do not soak or sterilize it.1

Specifications:

Masimo Part Number 1814
SKU MAS-1814
Product Family LNC series patient cable (MasimoSET LNC-10 LNCS Series Patient Cable)14
Cable Type LNC patient cable for LNCS sensors
Cable Length 10 ft
Connector Sensor end: DB9 LNCS receptacle with protective cover. Monitor end: 14-pin LNC plug.12
Use Reusable14
Natural Rubber Latex Not made with natural rubber latex1
Sterility Non-sterile1
GTIN 00843997000512
Directions for Use Masimo LAB-3490L1

Who Uses This:

  • Fire Departments: Fire-based EMS crews on a LIFEPAK 20e run LNCS sensors through the 10 ft cable so the monitor can sit away from the patient.3
  • EMS Agencies: EMS agencies with LIFEPAK 20 or 20e monitors carry the 10 ft LNC when the 4 ft Masimo 2017 is too short for the monitor position.37
  • Flight and Critical Care Transport: Transport teams on a LIFEPAK 20e pair it with LNCS sensors sized from preterm (NeoPt, under 1 kg) to adult (Adtx, over 30 kg).13
  • Clinics and Urgent Care: Clinics and urgent care sites with a Masimo SET monitor that has a 14-pin LNC port use it for continuous SpO2 with LNCS sensors.1

Related Products:

Frequently Asked Questions:

Which monitors does the Masimo 1814 LNC-10 fit?

Monitors with a 14-pin LNC SpO2 port that the maker lists for LNCS sensors. Stryker lists 11171-000016 for the LIFEPAK 20e,3 Zoll's item field for 8000-0293 reads E Series and R Series,4 and Masimo validated the LNC series with the Rad-5.1 Each device maker decides which cables it accepts, so check your monitor's accessory list.1

Does the Masimo 1814 work on a LIFEPAK 15 or a Zoll X Series?

No. Both makers list the Red LNC, the 20-pin cable, for LNCS sensors, and the 1814 has a 14-pin plug.2 Stryker's LIFEPAK 15 guide lists 11996-000323 (4 ft) and 11996-000324 (10 ft),9 and Zoll lists 8000-0330 and 8000-0331 for the Propaq, X Series and X Series Advanced.10 For the 10 ft, order the Masimo 2056.

Masimo 1814 or Masimo 2056: which 10 ft LNCS cable do I need?

Count the pins on the monitor port. The 1814 has the 14-pin LNC plug and the 2056 the red 20-pin plug, and both take the same DB9 LNCS sensors.26 Stryker numbers them 11171-000016 and 11996-000324,39 and Zoll numbers them 8000-0293 and 8000-0331.410 Send us a photo of the cable end through the contact page if unsure.

What are the Stryker/Physio-Control and Zoll numbers for the Masimo 1814?

Stryker lists the 10 ft LNCS patient cable as 11171-000016, beside the 4 ft 11171-000024 and the 14 ft 11171-000025.3 Zoll lists the 10 ft LNCS reusable SpO2 patient cable as 8000-0293.4 Neither maker prints the Masimo number, so the match rests on the name and the 10 ft length.15

Is the Masimo 1814 a patient cable or an extension cable?

A patient cable. It plugs into the monitor at one end and takes the LNCS sensor at the other, and Masimo's LNC page lists it separately from the LNC Ext extension, the Masimo 2021.216 Masimo's LNC directions warn against using the LNC-10 or LNC-14 with the PXC2-30 extension cable.1

Does the Masimo 1814 read SpCO or SpMet?

No. LNCS sensors on an LNC cable report SpO2 and pulse rate, and PVi and RRp are available on Masimo MX boards from software 7.1 and 7.9.5 SpCO and SpMet need a rainbow sensor on a rainbow cable, such as the Masimo 4481 RC-4 EMS, on a monitor with those parameters enabled.5

How do I clean the Masimo 1814, and can I soak or sterilize it?

Wipe it with a 70% isopropyl alcohol pad and let it dry thoroughly. Do not soak or immerse the cable in any liquid, and do not sterilize it.1 Discard it if you find cracks, discoloration or frayed wires.1

How long does a Masimo 1814 last, and when do I replace it?

The cable carries X-Cal technology for up to 17,520 hours of patient monitoring time. Replace it when the monitor shows a replace cable message, or when a low SIQ message keeps appearing across consecutive patients after the low SIQ steps in the monitor's manual.1 Some legacy monitors cannot tell the cable from the sensor.1

Is the Masimo 1814 the cable for a Philips IntelliVue?

No. Masimo's LNC MP series is the LNCS cable for Philips modules with Masimo SET technology and for Philips FAST-SpO2 devices, and its directions caution never to force a cable into the module because similar connectors differ in color and keying.17

Is this a genuine Masimo 1814?

Yes. We are an authorized Masimo distributor. Every Masimo 1814 ships new in its original Masimo packaging.

How fast does the Masimo 1814 ship?

Most orders ship within 1 to 2 business days. Expedited and overnight shipping are available at checkout.

How do I order the Masimo 1814 or request a quote?

Add it to your cart on this page, or contact CustomerService@pacificbiomedical.com or 844.436.3526 with SKU MAS-1814. We support net terms for agencies and hospitals and ship to all 50 states.

References
  1. Masimo. Directions for Use, LNCS Patient Cables, LNC Series. LAB-3490L. techdocs.masimo.com.
  2. Masimo. LNC Patient Cables product page (German site, PLM-10132B-0916): LNC (14-pin), Red LNC (20-pin) and Red 25 LNC (25-pin) cables with their lengths, and the LNC Ext extension cable. masimo.de.
  3. Stryker. LIFEPAK 20e genuine accessories guide, Masimo LNC reusable patient cables. GDR 3300292_K, 2021. stryker.com.
  4. Zoll Medical. Zoll web store, LNCS Reusable SpO2 Patient Cable (10 ft), item 8000-0293, compatibility E Series, R Series, reviewed October 2026.
  5. Masimo. SET and rainbow Sensor and Cable Compatibility, with minimum software requirements. PLM-10747D, 2023. masimo.fr.
  6. Masimo. LNCS Sensors product page (LNCS, Low Noise Cabled Sensors; DB9 connector for LNC patient cables). masimo.co.uk.
  7. Physio-Control. LIFEPAK 20 defibrillator/monitor operating instructions, accessories list, page 7-13. stryker.com.
  8. Physio-Control. LIFEPAK 12 defibrillator/monitor operating instructions, Table 8-4 accessories, page 8-15. stryker.com.
  9. Stryker. LIFEPAK 15 monitor/defibrillator accessories guide, pulse oximetry monitoring accessories, 02/2025. stryker.com.
  10. Zoll Medical. Zoll web store, X Series and Propaq MD/M pulse oximetry accessories: Red LNC-4, 4 ft Reusable Patient Cable, item 8000-0330, and Red LNC-10, 10 ft, item 8000-0331 (compatibility: Propaq, X Series, X Series Advanced; connects to LNCS single-use and reusable sensors), reviewed October 2026.
  11. Stryker. LIFEPAK 35 accessories guide, pulse oximetry monitoring accessories, 12/2025. stryker.com.
  12. U.S. Food and Drug Administration. Global Unique Device Identification Database (GUDID), Masimo model 2013, MasimoSET LNC-14 LNCS Series Patient Cable, DI 00843997000543. accessgudid.nlm.nih.gov.
  13. Masimo. Directions for Use, M-LNCS Series, LNCS Series adult, pediatric, infant, neonatal and preterm SpO2 adhesive sensors. LAB-6698J. techdocs.masimo.com.
  14. U.S. Food and Drug Administration. Global Unique Device Identification Database (GUDID), Masimo model 1814, MasimoSET LNC-10 LNCS Series Patient Cable, DI 00843997000512. accessgudid.nlm.nih.gov.
  15. Masimo. Sensor Cross Reference (Stryker/Physio-Control and Zoll catalog numbers), rev. January 2025, with Stryker and Zoll catalog checks, reviewed October 2026.
  16. Masimo. LNC Patient Cables product page, LNC Adapter and Extension Cables: LNC Ext, LNC Extension Cable, 4 ft. masimo.co.uk.
  17. Masimo. Directions for Use, LNC MP Series patient cables, for Philips modules with Masimo SET technology and Philips FAST-SpO2 devices. LAB-4223K. techdocs.masimo.com.
