About Test Lungs
Test lungs, also called lung simulators, stand in for the patient so a ventilator and circuit can be checked, demonstrated and used for training before clinical use. We supply neonatal, infant, pediatric and adult test lungs from Respiralogics, Bio-Med Devices and IMT Analytics, matched to the patient size your ventilator serves.

Which Test Lung Do I Need?

Patient size Test lung Volume Connection

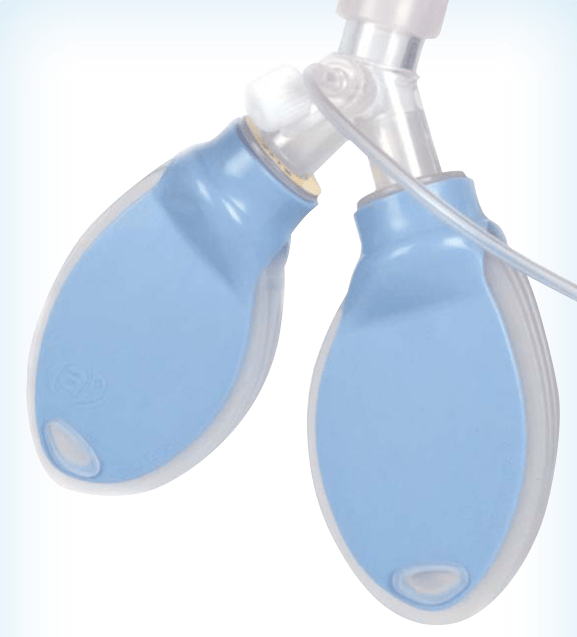

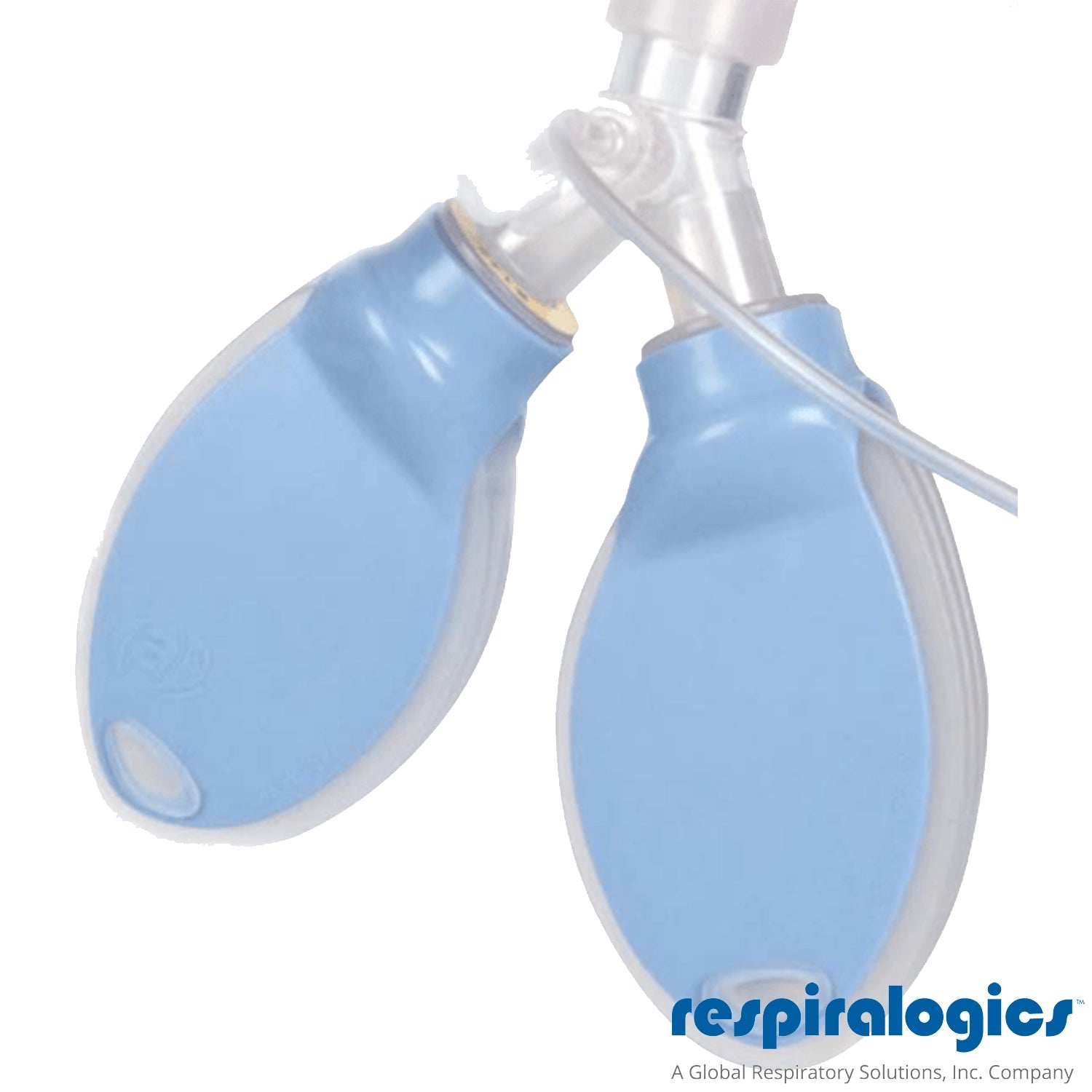

Neonatal and infant Babi.Plus nTest Lung R300 25 mL per bag, 50 mL total Y connector, 15/10 mm port
Neonatal and infant Babi.Plus nTest Lung Kit, R90 to R600 Four nTest Lungs, 50 mL each Y connector, 15/10 mm port

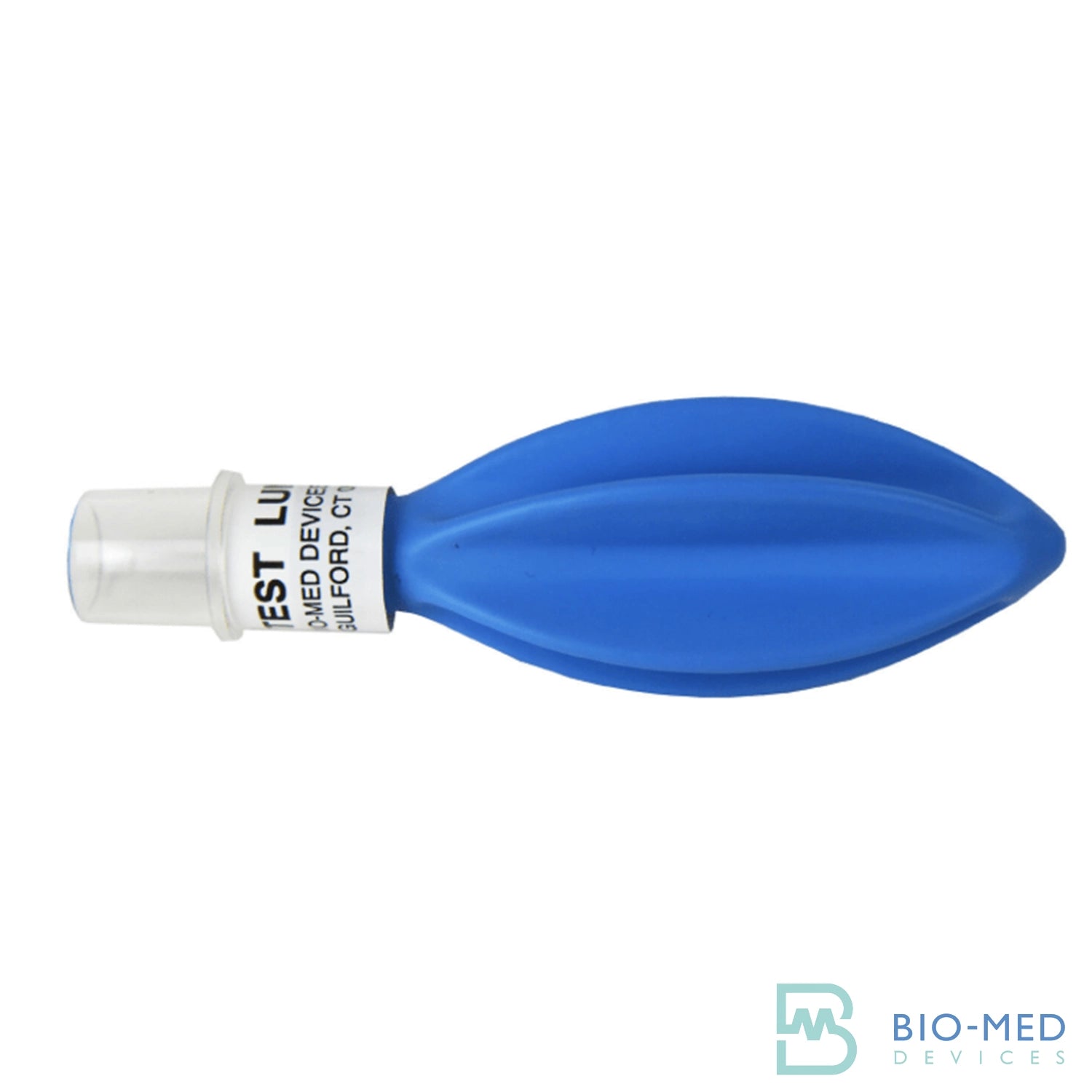

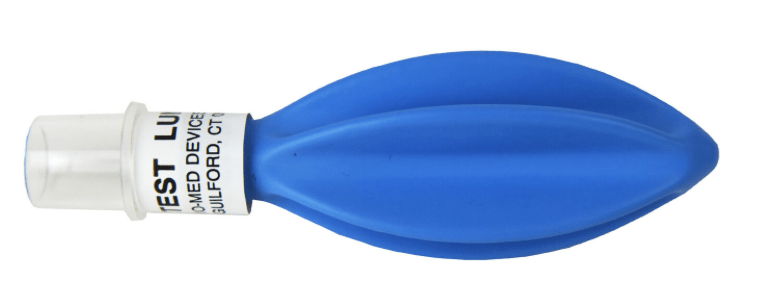

Infant Bio-Med Devices Infant Test Lung, PN 1021 64 mL 15 mm male
Pediatric Venti.Plus Test Lung 0.5 L 0 to 400 mL ISO 15 mm

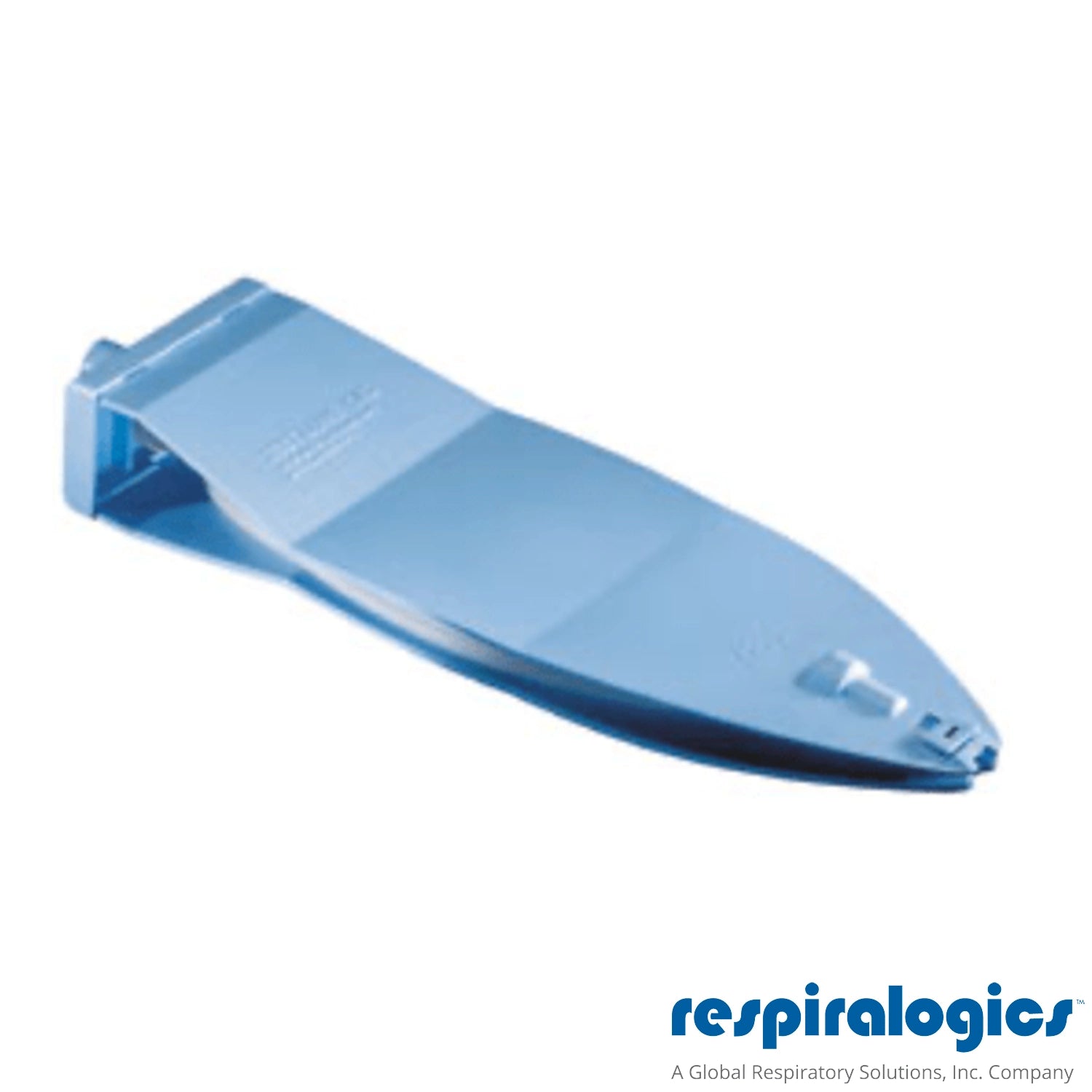

Adult Venti.Plus Test Lung 1.0 L 0 to 600 mL ISO 15 mm

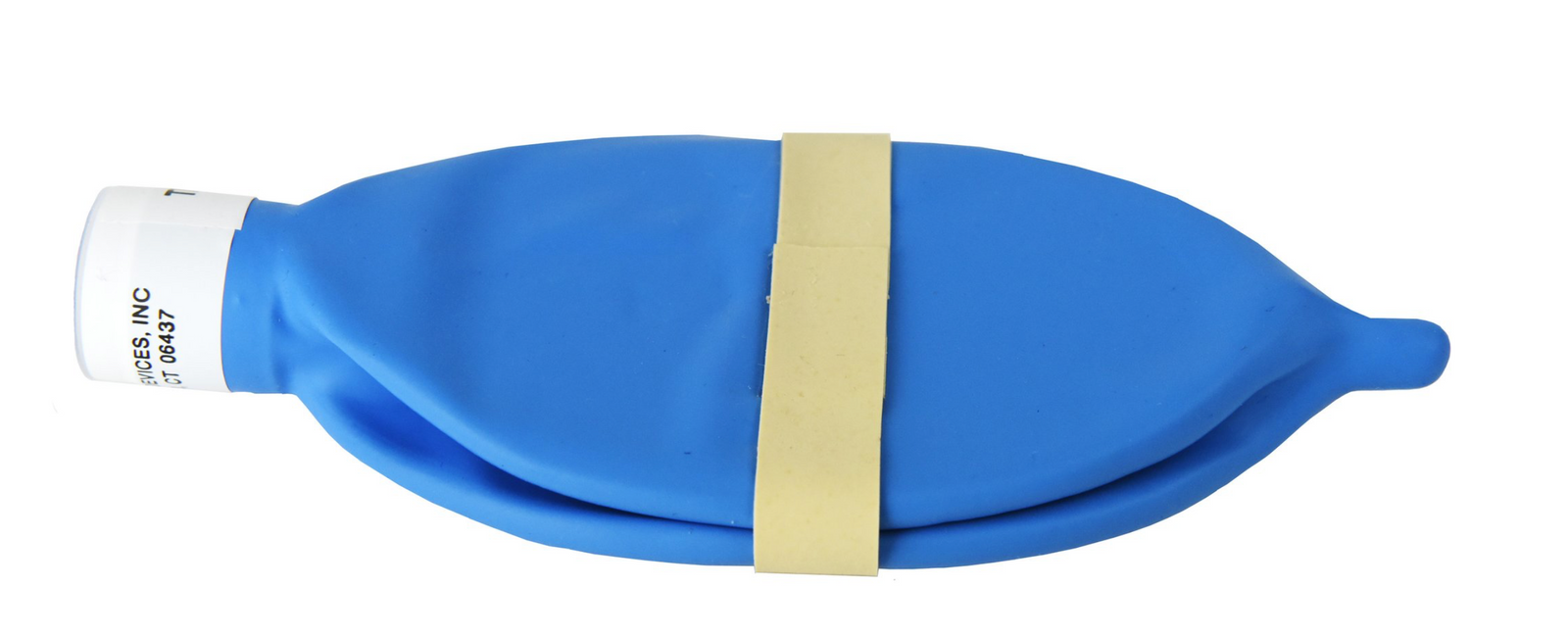

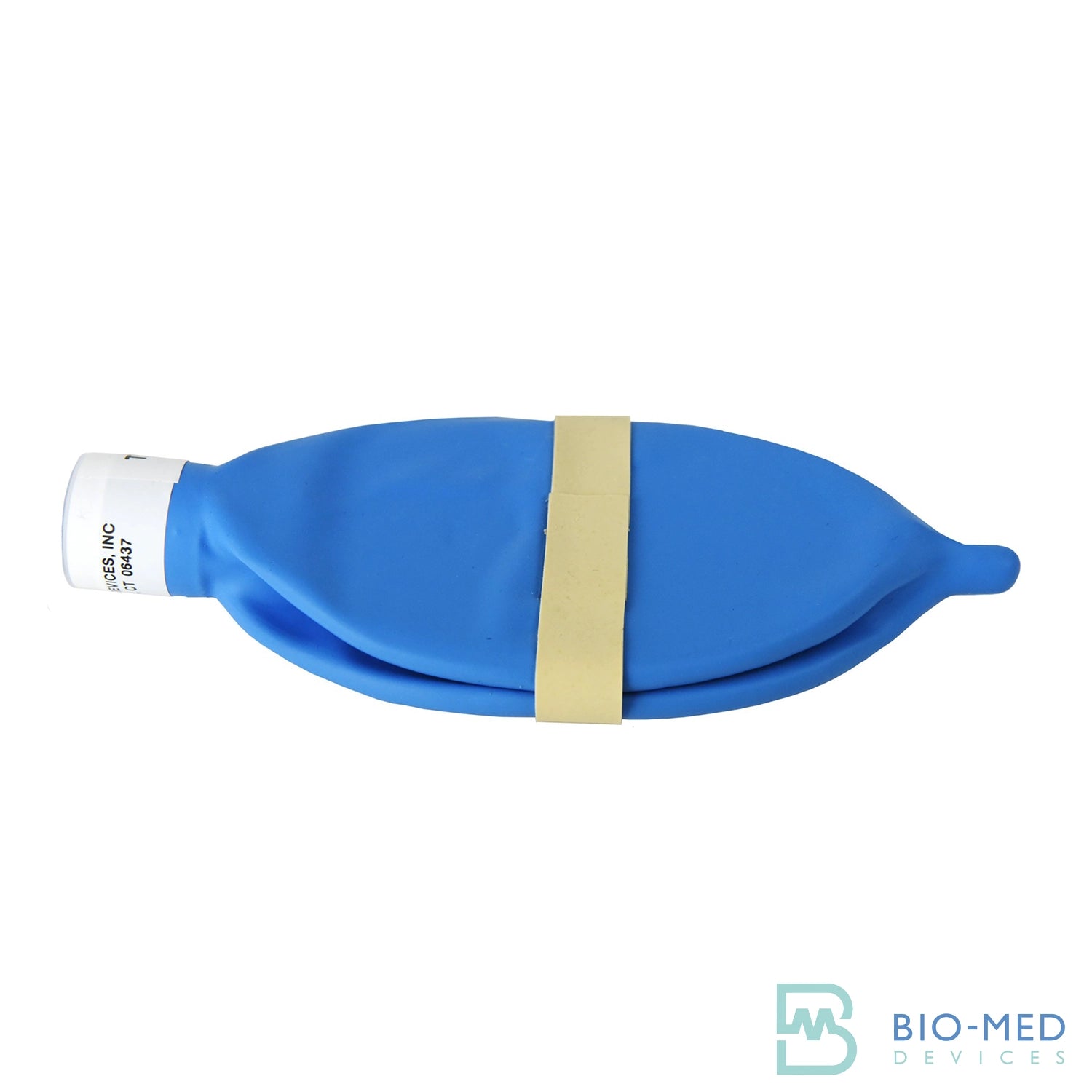

Adult Bio-Med Devices Adult Test Lung, PN 1020 1 Liter 22 mm female

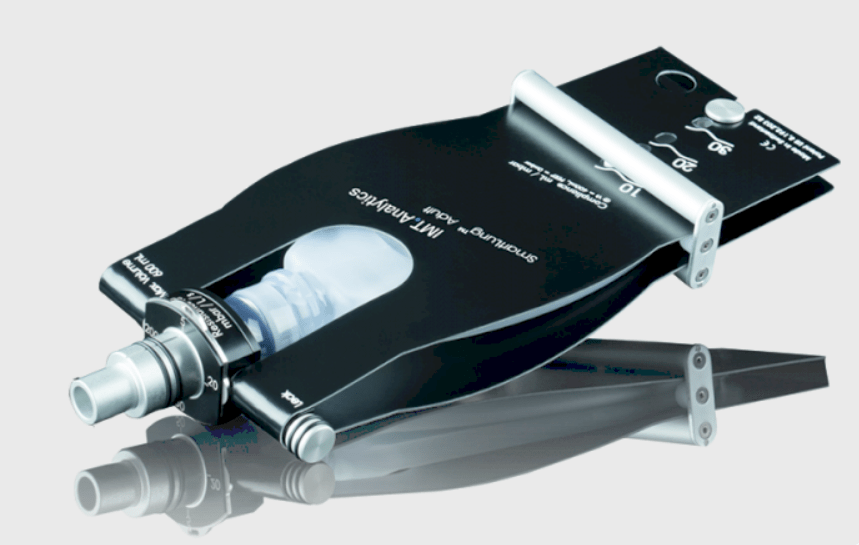

Adult IMT Analytics SmartLung Adult Test Lung Kit Adjustable compliance, resistance and leakage See product page

Frequently Asked Questions:

What is a test lung?

A test lung, or lung simulator, is connected to a ventilator in place of a patient for ventilator verification testing, pre-use circuit checks, demonstration and staff training.

Which test lung do I need for infant, pediatric or adult ventilators?

Match the test lung to the patient size: the Babi.Plus nTest Lung or Bio-Med Infant Test Lung for neonatal and infant ventilators, the Venti.Plus 0.5 L for pediatric, and the Venti.Plus 1.0 L or Bio-Med Adult Test Lung for adult.

What do compliance and resistance mean on a test lung?

Compliance is the volume the test lung takes in for each cm H2O of pressure. Resistance is the pressure drop across its airway for each liter per second of flow. The nTest Lung Kit covers four neonatal resistances, R90 to R600, in one set.

Can I get a test lung for ventilator training?

Yes. Every test lung on this page is used for training and demonstration as well as ventilator checks.

How do I order by purchase order or get facility pricing?

Add items to your cart, or contact CustomerService@pacificbiomedical.com or 844.436.3526 for a purchase order or facility pricing.
