Babi.Plus nTest Neonatal Test Lung Kit, R90, R145, R300, R600
Babi.Plus nTest Lung Kit, Neonatal Test Lungs R90, R145, R300 and R600 (MPN 2010K)
Product Highlights:
- Four resistances in one kit: One nTest Lung set each at R90, R145, R300 and R600.1

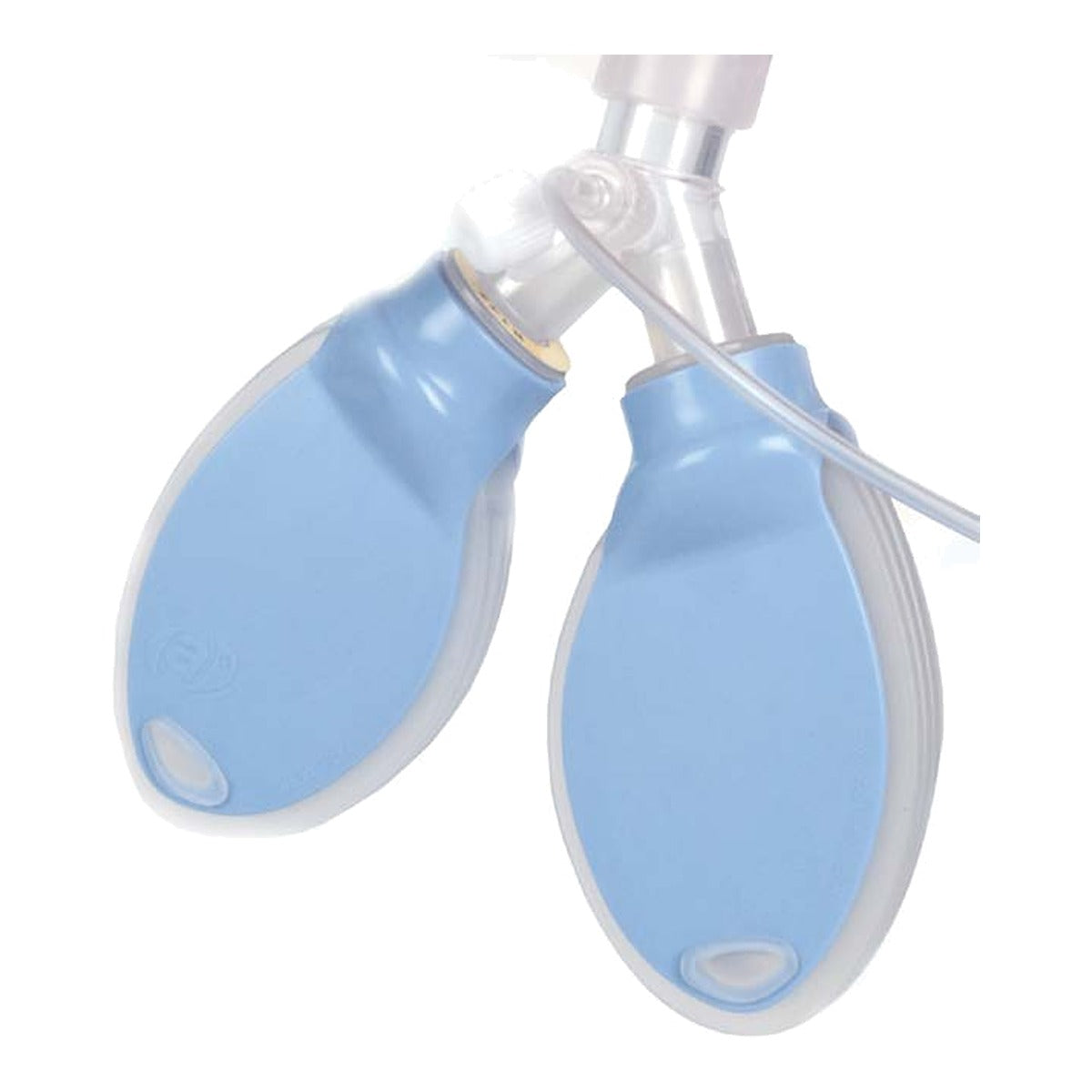

- Two lungs on a Y connector: Two individual silicone lungs on a Y connector mimic anatomical design.1

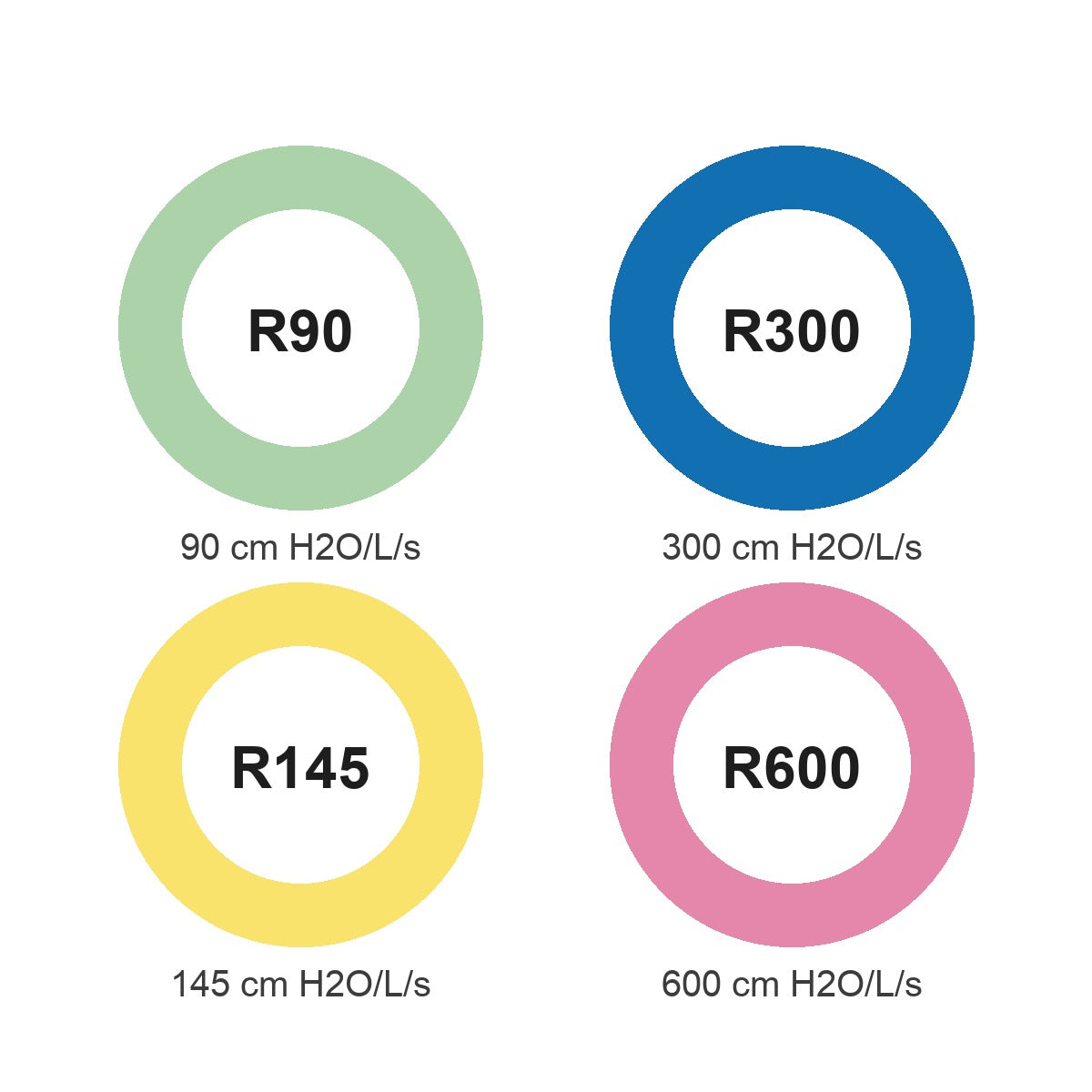

- Color coded by resistance: Each test lung is color coded around the neck, so the individual lung resistance is easy to identify: R90 green, R145 yellow, R300 blue and R600 pink.12
- Neonatal volumes: 25 mL per silicone bag, 50 mL total, with compliance of approximately 2.0 mL/cm H2O.12
- Standard ISO connections: The Y connector has a 15/10 mm port, the straight connector is 10 mm OD, and the pressure monitoring port is 4.3 mm ID.12
- Light and portable: The nTest Lung weighs approximately 43 grams.12
What's Included:
- 1 x Babi.Plus nTest Lung, R90 (90 cm H2O/L/s)12
- 1 x Babi.Plus nTest Lung, R145 (145 cm H2O/L/s)12
- 1 x Babi.Plus nTest Lung, R300 (300 cm H2O/L/s)12
- 1 x Babi.Plus nTest Lung, R600 (600 cm H2O/L/s)12
Resistance Chart:
| nTest Lung | Resistance at 1 L/s2 | Inner diameter2 | Color2 |
|---|---|---|---|
| R90 | 90 cm H2O/L/s | 3.5 mm | Green |
| R145 | 145 cm H2O/L/s | 3.0 mm | Yellow |
| R300 | 300 cm H2O/L/s | 2.5 mm | Blue |
| R600 | 600 cm H2O/L/s | 2.0 mm | Pink |
Specifications:
| Brand | Babi.Plus, a registered trademark of GaleMed Corporation1 |
|---|---|
| Supplier | Respiralogics, a Global Respiratory Solutions, Inc. company, Reno NV1 |
| Manufacturer part number (MPN) | 2010K1 |
| Pacific Biomedical SKU | RL-2010K |
| Product | Neonatal lung simulator kit, four nTest Lungs1 |
| Resistances | 90, 145, 300 and 600 cm H2O/L/s at 1 L/s flow2 |
| Tidal volume | 25 mL each silicone bag, 50 mL total12 |
| Compliance | Approximately 1.0 mL/cm H2O per bag (2.0 mL/cm H2O for the two-lung set)12 |
| Interface connector | Y connector with 15/10 mm port12 |
| Straight connector | 10 mm OD12 |
| Pressure monitoring port | 4.3 mm ID12 |
| Lung material | Silicone1 |
| Weight | Approximately 43 grams12 |

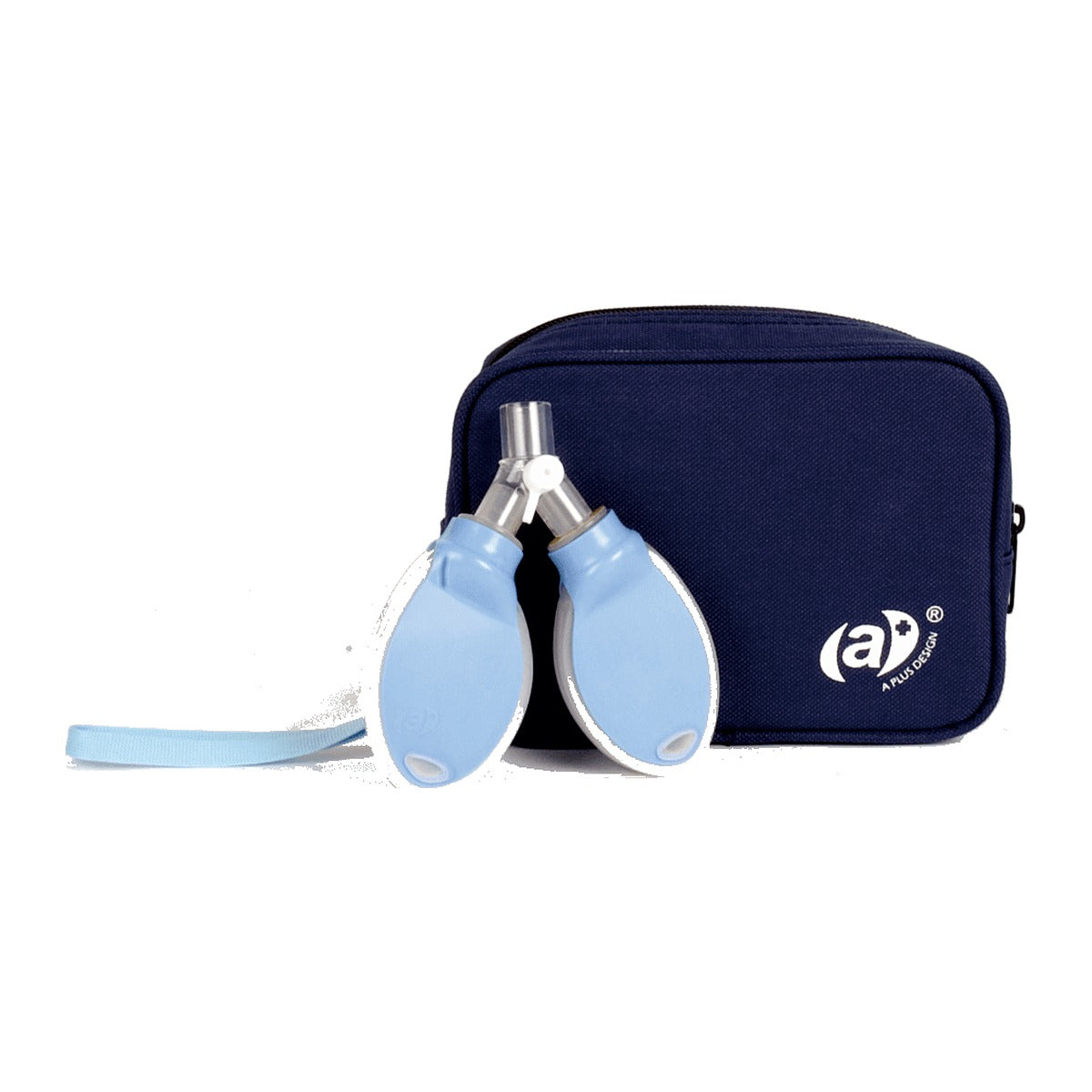

| Storage | nTest Lung line packaged in a zippered canvas bag1 |
Use Cases:
- Ventilator verification testing on infant and neonatal ventilator support devices1
- Training and product demonstration with infant and neonatal ventilator support devices1
- Showing how one ventilator setting behaves across four different airway resistances
Related products:
- Babi.Plus nTest Lung, Neonatal, R300 Resistance (single)
- Babi.Plus Bubble PAP Valve, 0 to 10 cm H2O
- Venti.Plus Test Lung, 0.5 L, Pediatric
- Venti.Plus Test Lung, 1.0 L, Adult
- All test lungs
Frequently Asked Questions:
What is in the Babi.Plus nTest Lung Kit?
Four nTest Lungs, one at each resistance: R90, R145, R300 and R600.1 Each nTest Lung is two silicone lungs on a Y connector.1
What do R90, R145, R300 and R600 mean?
They are the airway resistance of each test lung in cm H2O/L/s at 1 L/s flow: 90, 145, 300 and 600.2 Each value is set by a different inner diameter, from 3.5 mm on the R90 to 2.0 mm on the R600.2
How do I tell the four test lungs apart?
Each test lung is color coded around the neck.1 R90 is green, R145 is yellow, R300 is blue and R600 is pink.2
What is the tidal volume and compliance of the nTest Lung?
25 mL per silicone bag, 50 mL total, with compliance of approximately 2.0 mL/cm H2O for the two-lung set.1 That is 1.0 mL/cm H2O per bag.2 Compliance is the volume the test lung takes in for each cm H2O of pressure applied.
What is a test lung?
A test lung is a lung simulator connected to a ventilator in place of a patient, for training, demonstration and ventilator verification testing. The nTest Lung is a neonatal lung simulator built for infant and neonatal ventilator support devices.1
What is a neonatal test lung used for?
Training, demonstration and ventilator verification testing with infant and neonatal ventilator support devices.1
What is test lung resistance?
Resistance is the pressure drop across the test lung airway for each liter per second of flow, stated in cm H2O/L/s. The nTest Lung sets it by inner diameter, from 90 cm H2O/L/s on the R90 to 600 cm H2O/L/s on the R600.2
How do I connect a test lung to a ventilator?

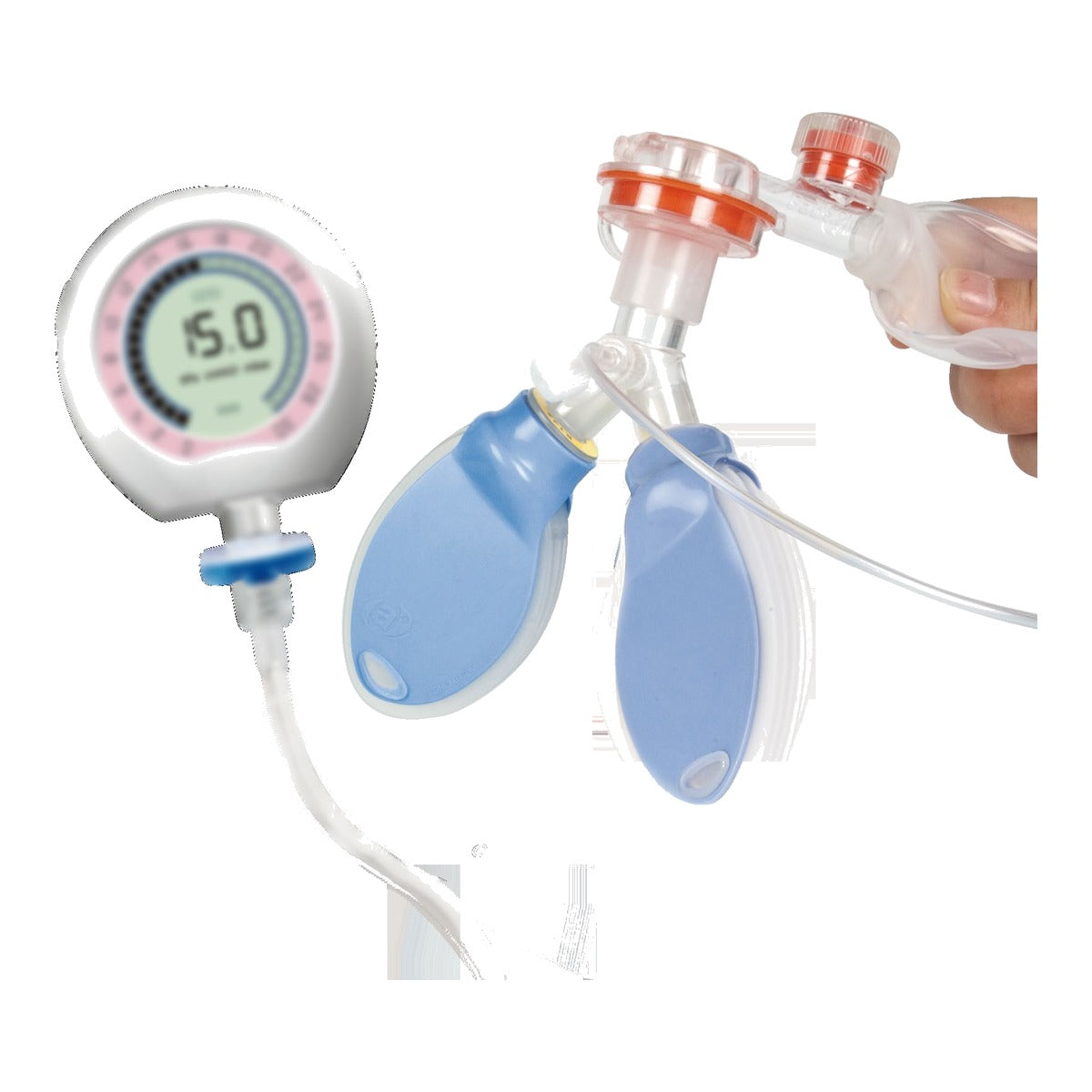

The nTest Lung interface is a Y connector with a 15/10 mm port, and a 4.3 mm ID port allows pressure monitoring at the test lung.1 Follow the ventilator's test procedure and your facility's policy.
Which test lung do I need for infant, pediatric or adult ventilators?
For infant and neonatal ventilator support devices, the nTest Lung, 50 mL total across two bags.1 For a pediatric lung, the Venti.Plus Test Lung 0.5 L, and for an adult lung, the Venti.Plus Test Lung 1.0 L.3
How is the kit different from the single R300 nTest Lung?
The single nTest Lung is one R300 test lung, part 2010.1 The kit adds R90, R145 and R600, so all four resistances are on hand.1
Who is behind the Babi.Plus brand?
Babi.Plus is a registered trademark of GaleMed Corporation. Respiralogics, a Global Respiratory Solutions, Inc. company in Reno, Nevada, publishes the nTest Lung product page and catalog sheet C2010.5.1
How do I order by purchase order or get facility pricing?
Add it to your cart on this page, or contact CustomerService@pacificbiomedical.com or 844.436.3526 for a purchase order or facility pricing.
References
- Respiralogics, a Global Respiratory Solutions, Inc. company. Babi.Plus nTest Lung product page and catalog sheet C2010.5 (neonatal lung simulator, two silicone lungs and a Y connector, color coded around the neck by resistance, training, demonstration and ventilator verification testing, features, specifications, ordering information including 2010K nTest Lung Kit with one test lung set each R90, R145, R300 and R600, Babi.Plus trademark of GaleMed Corporation). respiralogics.com.
- GaleMed Corporation. Babi.Plus nTest Lung brochure, 2025 (resistance values 90, 145, 300 and 600 cm H2O/L/s at 1 L/s set by inner diameters 3.5, 3.0, 2.5 and 2.0 mm, color rings by resistance, compliance 1.0 mL/cm H2O per bag, 25 mL per bag). galemed.com.
- Respiralogics, a Global Respiratory Solutions, Inc. company. Venti.Plus Test Lung product page (1.0 L silicone bag simulates an adult lung, 0.5 L silicone bag simulates a pediatric lung, training, demonstration and ventilator verification testing). respiralogics.com.
Use the nTest Lung for training, demonstration and ventilator verification testing. Follow the ventilator's test procedure and your facility's policy.
