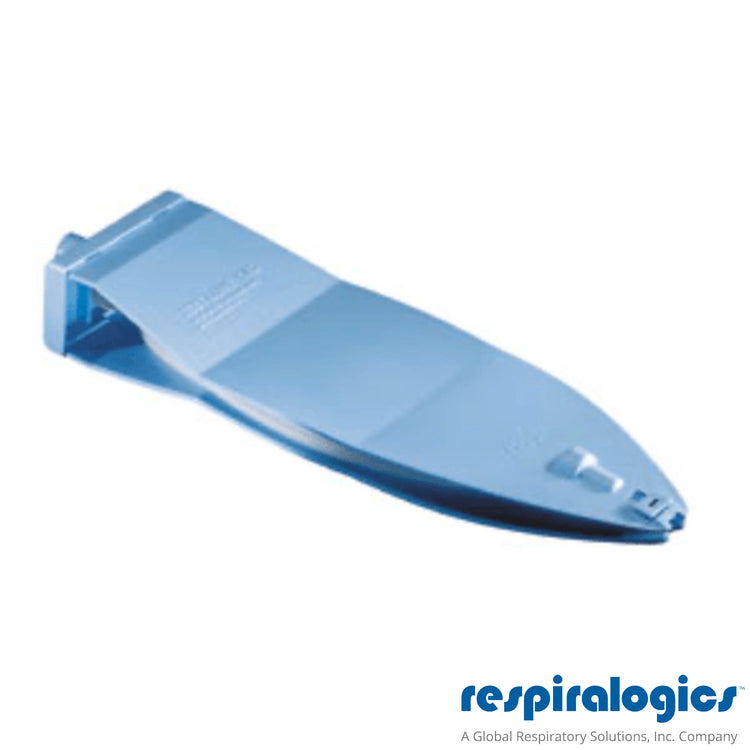

Venti.Plus Test Lung 1.0 L, Adult Silicone Bag, 2000

SKU: RL-2000
Respiralogics lists the Venti Plus test lung, adult, part 2000, as the Venti.Plus Test Lung 1.0 Liter, packaged with a 1.0 liter latex-free silicone bag to simulate an adult lung.1 Official specifications list compliance of 0.02 L/cm H2O, volume 0 to 600 ml, an ISO-compliant 15 mm connection port, and a package of 1 each.1

Product Highlights:

  • 1.0 L adult bag: Packaged with a 1.0 liter latex-free silicone bag.1
  • Compliance 0.02 L/cm H2O: Official adult specification.1
  • ISO 15 mm port: ISO-compliant 15 mm connection port.1
  • Turn-and-lock base: A turn-and-lock design at the base allows cleaning and decontamination of the silicone bag, per the catalog.1
  • 1 each: Official ordering quantity is 1 each.1

What Is in the Box:

  • Venti.Plus Test Lung 1.0 L, packaged with a 1.0 liter latex-free silicone bag, in a reusable container, per the catalog.

Specifications:

Maker (catalog) GaleMed Corporation (Venti.Plus); listed by Respiralogics1
Part number 20001
Size 1.0 liter (adult)1
Bag 1.0 liter latex-free silicone bag1
Compliance 0.02 L/cm H2O1
Resistance Rp5 (reference)1
Volume 0 to 600 ml1
Weight 230 grams1
Port ISO-compliant 15 mm connection port1
Package 1 each1

Size and Compatibility:

The same catalog lists 2005 as the 0.5 liter pediatric test lung. The catalog says each test lung is calibrated for accuracy and validated for resistance and compliance in the application range.1

Related Products:

Product Guides and Documents:

Frequently Asked Questions:

What is the volume of the 2000 test lung?

1.0 liter, packaged with a 1.0 liter latex-free silicone bag. Official volume range is 0 to 600 ml.1

What is the compliance rating?

0.02 L/cm H2O for the adult (2000) lung.1

Is the silicone bag latex-free?

Yes. The official catalog describes a latex-free silicone bag.1

Is this a patient lung-function test?

No. The official catalog describes a tool to simulate the respiratory system, demonstrate mechanical ventilator applications, and perform ventilator circuit testing before clinical use, plus training and demonstration.1

When does this item ship?

Orders received and prepaid before 12:00 PM Arizona time (MST) typically leave the same business day when the item is available. Other orders placed Monday to Friday usually leave in 1 to 2 business days. Shipping cost is calculated at checkout. We ship by UPS to the 50 United States and do not ship directly internationally.2

Manufacturer Sources
  1. Respiralogics. Venti.Plus Test Lungs catalog (2000 and 2005) (accessed 2026-11-10). respiralogics.com.
  2. Shipping policy, last updated June 22, 2026 (accessed 2026-11-10). Shipping policy page.

Specifications are from Respiralogics records. Use only as directed in Respiralogics and GaleMed labeling.1
