Disposable CPAP Circuits and EMS CPAP Devices
About Disposable CPAP Circuits and EMS CPAP Devices
How to Choose a Disposable CPAP:
| System | PEEP and Nebulizer | Flow and Run Time |
|---|---|---|

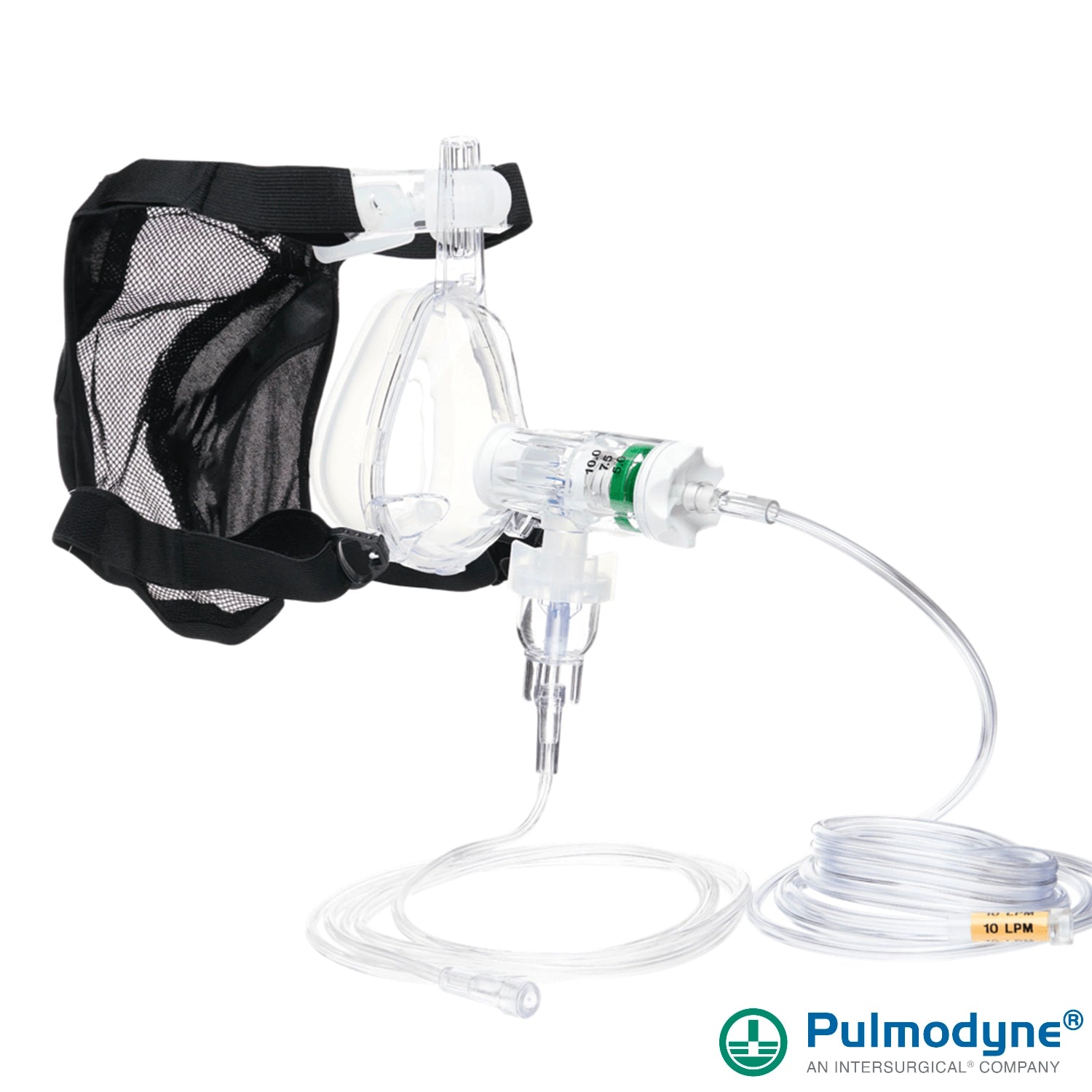

| Pulmodyne GO-PAP One flow, one PEEP dial; adults over 30 kg1 |
Dial on the generator: 5, 7.5 or 10 cmH2O.3 Nebulizer in N and NC kits; the Neb-Connect runs it from the same cylinder.4 | 10 LPM oxygen, about 90 LPM to the patient, about 40 minutes per D cylinder14 |

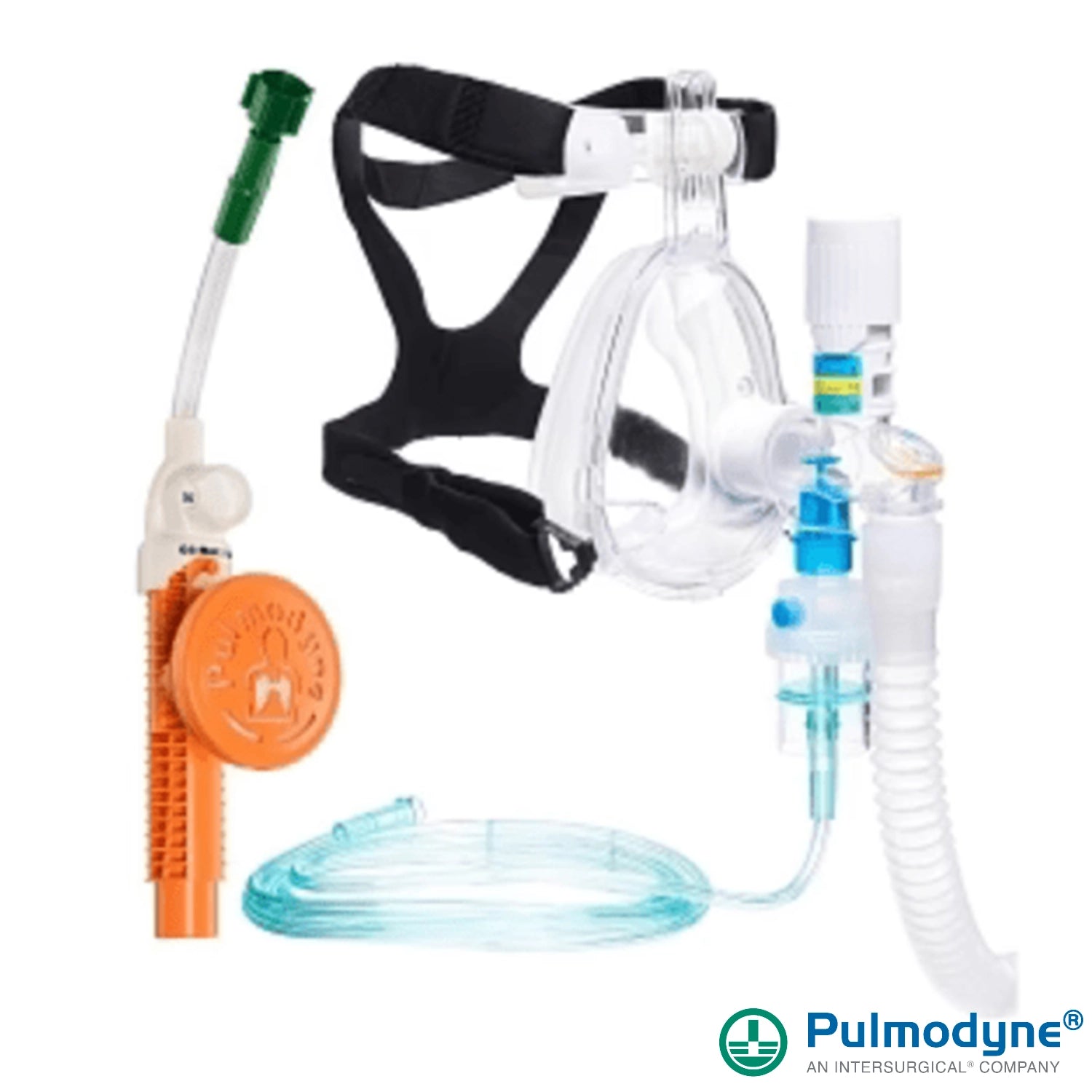

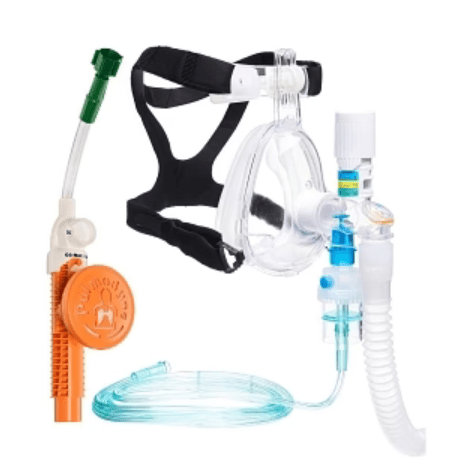

| Pulmodyne O2-MAX Higher flow, built-in filtration, 30, 60 or 90% FiO2 with the Trio adapter5 |
3-SET (5 to 10) or 5-SET (5 to 15 cmH2O) PEEP valve. Integrated nebulizer kits.5 | Up to 140 LPM of total flow to the patient5 |

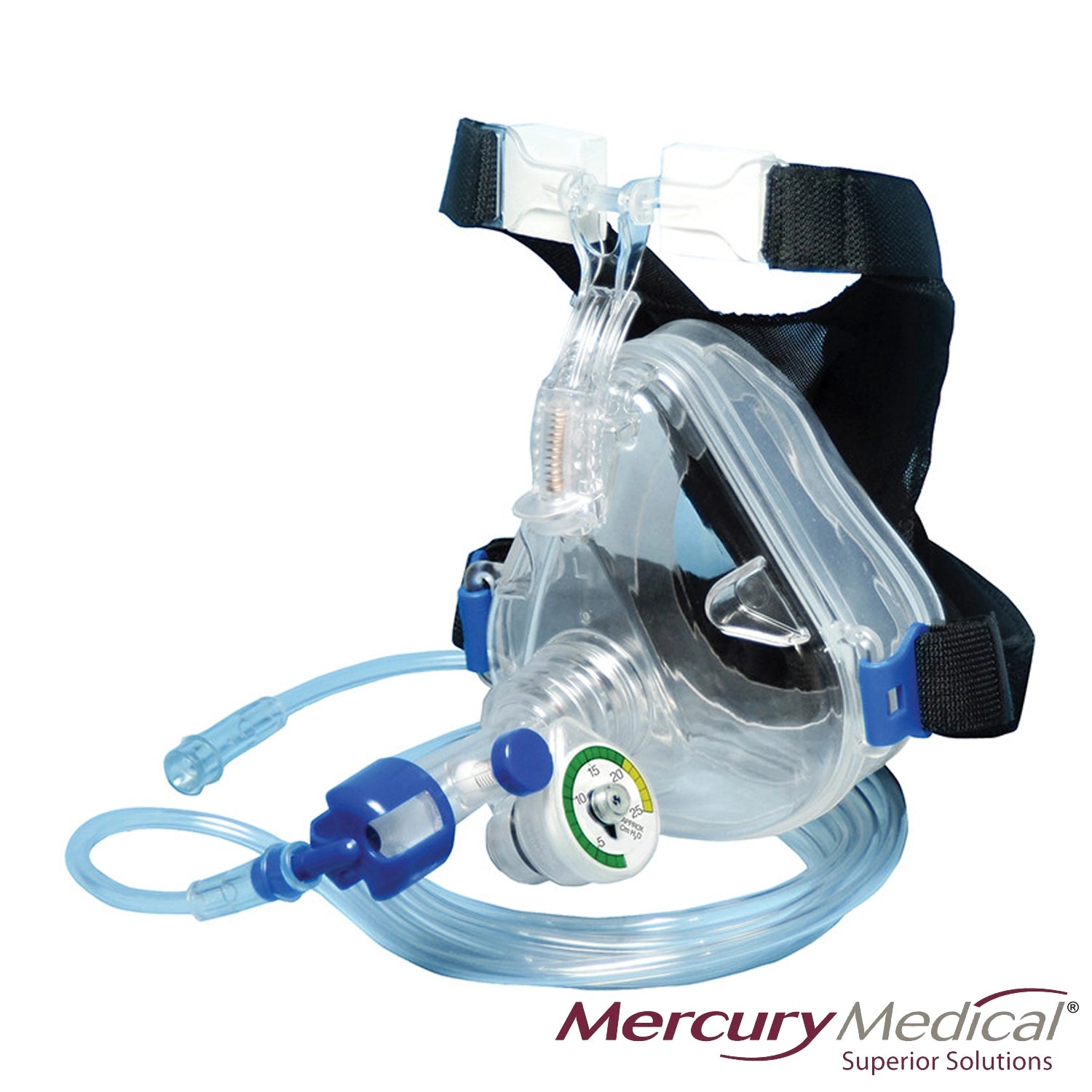

| Flow-set disposable CPAP PEEP and FiO2 change with oxygen flow |

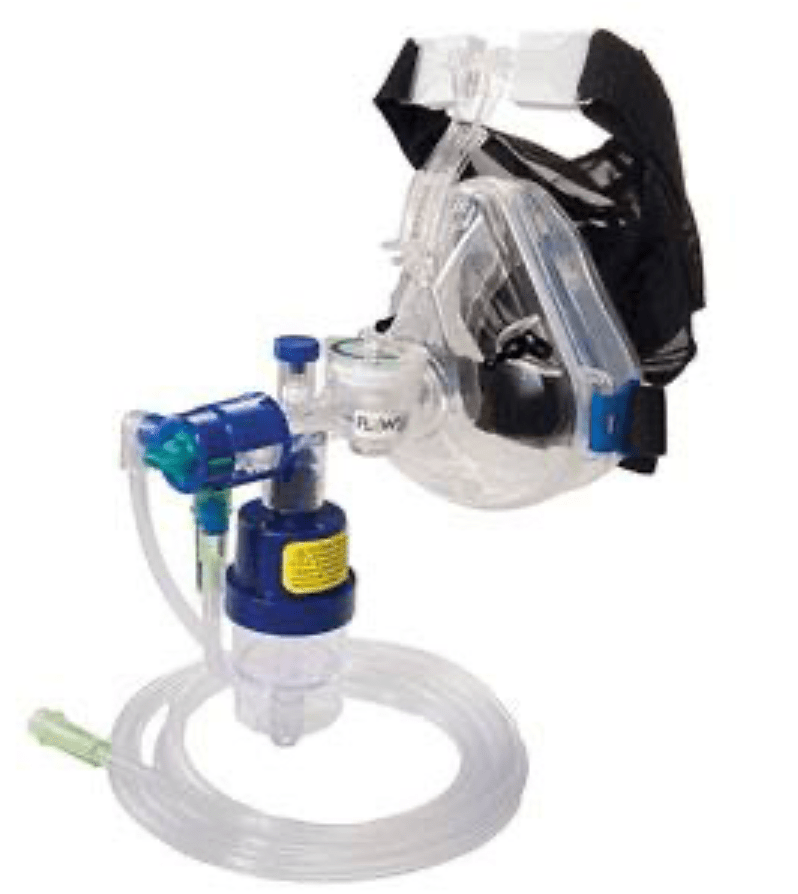

Oxygen flow on the flowmeter, read on a built-in manometer. In-line or integrated nebulizer, by version. | About 8 to 14 LPM of oxygen for 5 to 10 cmH2O |
CPAP for EMS, EMTs and BLS Crews:
A fixed-flow CPAP has one oxygen setting. The GO-PAP runs on 10 LPM, PEEP is chosen on the generator and holds independent of flow, a D cylinder lasts about 40 minutes, and the N and NC kits nebulize in-line. Its label limits use to thoroughly trained personnel.341 The 2019 National EMS Scope of Practice Model places CPAP devices at the EMT level; each state sets its own scope.6
CPAP in the Emergency Department and PACU:
GO-PAP and O2-MAX kits are labeled for hospital use as well as EMS, for spontaneously breathing adults over 30 kg. The GO-PAP runs from a metered oxygen supply and the O2-MAX from a 50 psi oxygen source, and neither needs a ventilator. Use in the ED, PACU or other hospital units follows facility protocol.12
Frequently Asked Questions:
What is a CPAP circuit?
A CPAP circuit is the patient side of continuous positive airway pressure: the mask, headgear, tubing and the valve or generator that holds pressure through inspiration and exhalation. A disposable EMS CPAP such as the Pulmodyne GO-PAP combines them in one single-patient-use kit that runs from a metered oxygen supply.1
What oxygen flow rate does EMS CPAP need?
The Pulmodyne GO-PAP runs on a fixed 10 LPM of oxygen; a flow-set disposable CPAP runs on about 8 to 14 LPM for 5 to 10 cmH2O, and more when its integrated nebulizer runs.1 The O2-MAX connects to a 50 psi oxygen source, not a flowmeter, and generates up to 140 LPM of total flow.52
What PEEP settings do disposable EMS CPAP systems use?
PEEP range depends on the design. The GO-PAP offers 5, 7.5 and 10 cmH2O on its generator. The O2-MAX takes a 3-SET valve (5, 7.5, 10) or a 5-SET valve up to 15 cmH2O. Local protocol sets the starting PEEP.45
Which disposable CPAP systems include a nebulizer?
The GO-PAP N and NC kits and the O2-MAX nebulizer kits include one, and some flow-set disposable CPAPs come in an integrated-nebulizer version. GO-PAP NC kits add the Neb-Connect, which runs the nebulizer from the same oxygen cylinder at 6 to 8 LPM.435
Can EMTs and BLS crews use CPAP?
Yes, where the state scope of practice and local protocol include CPAP at the EMT level. The GO-PAP has one oxygen setting, 10 LPM, and PEEP is chosen on the generator; its label limits use to thoroughly trained personnel.13 The 2019 National EMS Scope of Practice Model places CPAP devices at the EMT level; each state sets its own scope.6
Can a disposable CPAP be used in the ED and PACU?
Yes, where facility protocol allows. The GO-PAP and the O2-MAX are both labeled for spontaneously breathing adults over 30 kg in the hospital and prehospital (EMS) environment, so use in the ED, PACU or other hospital units follows facility protocol.12
References
- Pulmodyne Inc. GO-PAP System Directions for Use, 2518D (2022). pulmodyne.com.
- Pulmodyne Inc. O2-MAX Fixed System With Nebulizer, Directions for Use, 2764G (2022). pulmodyne.com.
- Pulmodyne Inc. GO-PAP Disposable Emergency CPAP product page (Neb-Connect, Omni Clip, run time). pulmodyne.com.
- Pulmodyne Inc. GO-PAP Disposable CPAP Device brochure and ordering guide, 2503F (2022). pulmodyne.com.
- Pulmodyne Inc. O2-MAX Disposable CPAP System brochure (Trio adapter, PEEP valves, flow). pulmodyne.com.
- National Highway Traffic Safety Administration. National EMS Scope of Practice Model 2019 (CPAP devices at the EMT level). ems.gov.
