Masimo Patient Cables, 9, 15 & 20-Pin

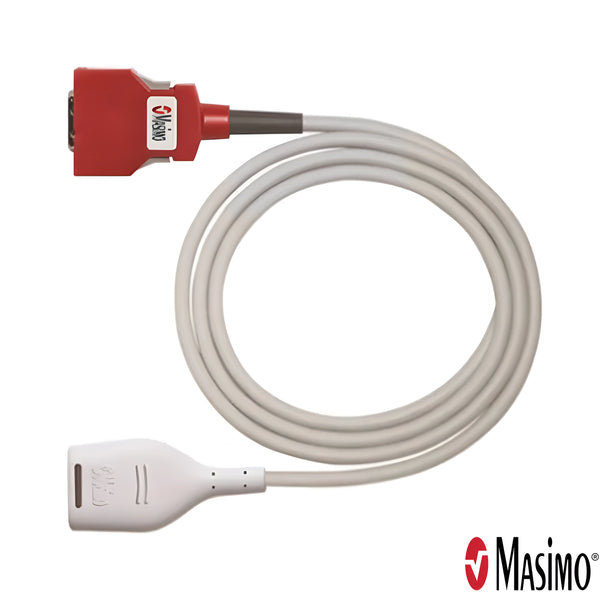

Masimo 4103 RD SET MD20-05 Patient Cable, 5 ft $172.00

Masimo 4481 Rainbow RC-4 EMS 20-Pin Kevlar Patient Cable, 4 ft $250.00

Masimo 4105 RD to LNC Adapter Cable, 1.5 ft $33.78

Masimo 4485 Rainbow RC25-4RA 4 ft Kevlar Patient Cable $276.96

Masimo 4253 Red LNC M20-10 Patient Cable, 10 ft $218.40

Masimo 4072 RD Rainbow SET MD20-05 Patient Cable, 5 ft $195.90

Masimo 4798 RD Rainbow SET RA25-04 EMS Patient Cable, 4 ft $325.00

Masimo 3776 SET M15 Tester for M-LNC and Rainbow RC Cables $455.00

Masimo 2406 Rainbow RC-04 20-pin, 4 ft Patient Cable $102.00

Masimo 2055 20-Pin Red LNC-04, 4 ft Patient Cable $140.00

Masimo 1814 LNC 10ft Patient Cable $156.00

Masimo 4792 RD Rainbow SET MD20-04 EMS Kevlar Patient Cable, 4 ft $250.00

Masimo 4073 RD Rainbow SET MD20-12 Patient Cable, 12 ft $258.00

Masimo 4108 RD SET MD14-08 Patient Cable, 8 ft $371.53

Masimo 4080 RD SET MD14-05 Patient Cable, 5 ft $178.33

Masimo 4078 RD Rainbow SET R25-12 Patient Cable, 12 ft $371.53

Masimo 4076 RD Rainbow SET R25-05 Patient Cable, 5 ft $166.40

Masimo 3630 Red 25 LNC-4 Patient Cable, 4 ft $303.98

Masimo 3345 Red 25 LNC-10 LNCS Patient Cable, 10 ft $371.53

Masimo 2526 M-LNCS, 14 ft Patient Cable $249.94

Masimo 2525 M-LNCS 10 ft Patient Cable $194.54

Masimo 2524 M-LNCS 4ft Patient Cable $175.63

Masimo 2523 M-LNCS-1, 1 ft Patient Cable $143.21

Masimo 2405 Rainbow RC-1 20-Pin Patient Cable, 1 ft $101.25

Masimo 2404 Rainbow RC-12 20-pin 12 ft. Patient Cable $189.14

Masimo 2367 9-Pin SET Tester for LNC Patient Cables $462.04

Masimo 2365 Red LNC-01 20-Pin Patient Cable, 1 ft $143.10

Masimo 2364 LNCS 1 ft. Patient Cable $143.21

Masimo 2056 20-Pin Red LNC, 10 ft Patient Cable $149.00

Masimo 2021 LNCS 4 ft Patient Extension Cable $172.93

Masimo 2017 LNCS LNC-4 Reusable Patient Cable, 4 ft $136.50

About Masimo Patient Cables and Adapter Cables

Masimo patient cables connect a Masimo sensor to the monitor. Choose by the sensor family on one end and your monitor's connector on the other. Pacific Biomedical stocks genuine Masimo LNC, M-LNC, rainbow RC and RD cables for EMS agencies, fire departments, alternate care sites and flight teams. Authorized Masimo Distributor (USA).

Masimo cable families

LNC cables for 9-pin LNCS sensors: 2364 (1 ft), 2017 (4 ft), 1814 (10 ft) and the 2021 4 ft extension; Red LNC 2365 (1 ft), 2055 (4 ft) and 2056 (10 ft); Red 25 LNC 3630 (4 ft) and 3345 (10 ft); Red LNC M20 4253 (10 ft).
M-LNC cables for 15-pin M-LNCS sensors: 2523 (1 ft), 2524 (4 ft), 2525 (10 ft) and 2526 (14 ft).
rainbow RC cables (20-pin) for rainbow and M-LNCS sensors: 2405 RC-1, 2406 RC-4, 2404 RC-12, 4481 RC-4 EMS and 4485 RC25-4RA.
RD SET cables for RD SET sensors: 4103 MD20-05, 4080 MD14-05 and 4108 MD14-08.
RD rainbow SET cables for RD rainbow sensors: 4072 MD20-05, 4073 MD20-12, 4792 MD20-04 EMS, 4076 R25-05, 4078 R25-12 and the 4798 RA25-04 EMS cable.
Adapter and testers: the 4105 RD to LNC adapter (1.5 ft), the 2367 tester for LNC cables and the 3776 tester for M-LNC and rainbow RC cables.

Stryker and Zoll print the cable numbers for their monitors. The LIFEPAK 15 and 35, LIFEPAK 20e, 20 and 12, Zoll X Series and Propaq MD and Rad-57 pages match them to Masimo parts.

Popular Masimo cables

Masimo 4103 RD SET MD20-05: 5 ft RD SET patient cable; our top-selling Masimo cable over the past year.
Masimo 4481 rainbow RC-4 EMS: 4 ft rainbow RC cable for rainbow and M-LNCS sensors (Physio-Control 11171-000082).
Masimo 2055 Red LNC-04: 4 ft Red LNC cable for LNCS sensors, listed by Stryker for the LIFEPAK 15.

Unused, unopened items in original packaging are returnable within 30 days of delivery with an RMA; single-use and patient-contact devices are not returnable (refund policy).

Order online, or set up an agency account. EMS agencies register at EMS registration; hospitals and clinics at facility registration. Repeat part numbers go fastest through the Quick Order Form. Purchase order or tax-exempt questions: contact Pacific Biomedical.

How do I tell a 9-pin, 15-pin and 20-pin Masimo connector apart?

Look at the sensor plug. LNCS sensors end in a 9-pin plug for LNC cables, M-LNCS sensors in a 15-pin plug for M-LNC or rainbow RC cables, and rainbow sensors in a 20-pin plug for rainbow RC cables. Direct-connect sensors carry a Red 20-pin plug that goes straight into the monitor.

What does the Masimo 4105 RD to LNC adapter cable do?

Masimo's directions for use describe the 4105 as letting RD SET sensors be used with LNC series patient cables on Masimo SET devices. It is 1.5 ft long.

What are the Masimo 2367 and 3776 cable testers for?

Both are Masimo SET testers for patient cables: the 2367 for 9-pin LNC cables and the 3776 for M-LNC and rainbow RC cables.

Can our department order Masimo sensors on a purchase order?

Yes. Register your agency or facility using the links above, then order online or send the part numbers through the Quick Order Form. Contact Pacific Biomedical for purchase order and tax-exempt paperwork.
