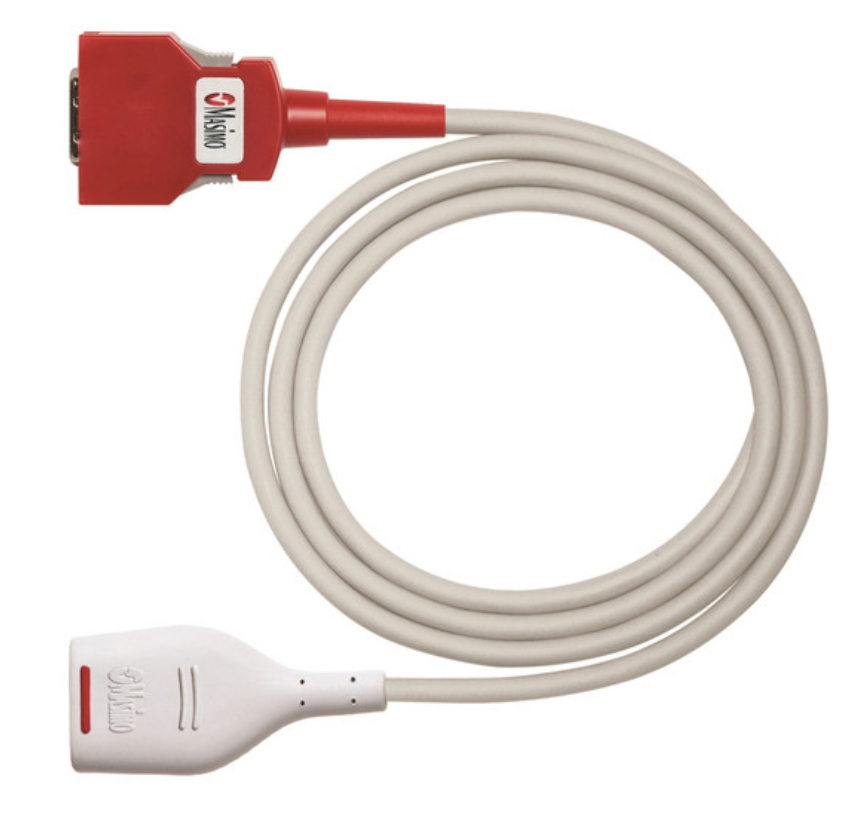

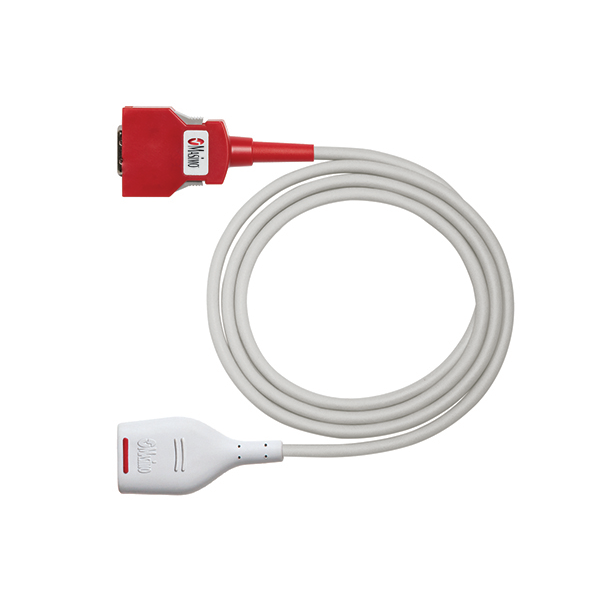

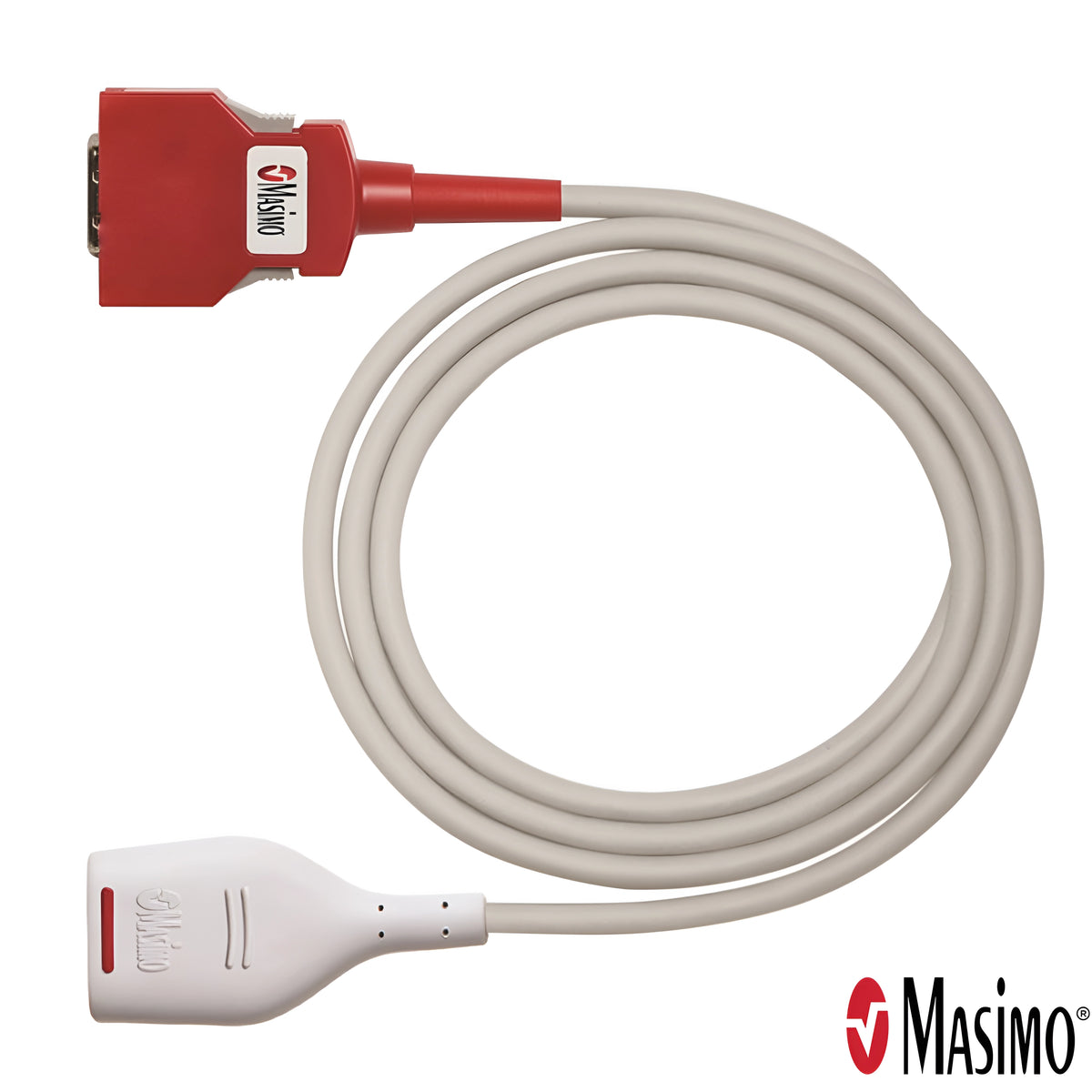

Masimo 4073 RD rainbow SET MD20-12 Patient Cable, 12 ft
In MD20-12, the 20 is the pin count of the monitor port and the 12 is the length in feet. The M20-12 (Masimo 4257) is a separate cable in the M20 series (ask us for the 4257); this page is the MD20-12.56
Works With:
| Sensors | RD SET sensors, such as the 4050; RD rainbow 8λ SpCO sensors, such as the 4037; LNCS-II rainbow 8λ SpCO sensors, such as the 4067 and 4068.17 Rainbow R-series, rainbow DCI and M-LNCS sensors do not fit; they need an RC cable.1 Browse rainbow sensors. |
|---|---|
| Monitor Connector | Monitor end: 20-pin MD20 connector. Sensor end: RD15 connector for RD SET and RD rainbow sensors.21 |
| Monitors | 20-pin port: LIFEPAK 15, Zoll X Series and X Series Advanced.34 |
| Stryker / Physio-Control Number | 11996-000511 (12 ft, LIFEPAK 15)38 |
| Zoll Number | 8000-001702 (RD Rainbow SET MD20-12, 12 ft; X Series and X Series Advanced)4 |
| Not Listed For | LIFEPAK 35: Stryker's LIFEPAK 35 guide does not list 11996-000511; its RD EMS cable is the 25-pin right-angle 4798 (Stryker 11997-000298).9 |
| Cross-Reference | See the Masimo 4073 row in the Masimo Part Number Cross-Reference |
Product Highlights:
- Rainbow parameters: SpCO and SpMet need an RD rainbow 8λ SpCO or LNCS-II rainbow 8λ SpCO sensor on a monitor with rainbow SET 7.1 or higher and those parameters enabled; RD SET sensors read SpO2 and pulse rate.217
- MD20 lengths: The 5 ft version is the 4072 and the 4 ft EMS version is the 4792.10
- Cable life: X-Cal technology provides up to 17,520 hours of patient monitoring time, equal to two years of round-the-clock use.2
- Reusable: Wipe all cable surfaces with a 70% isopropyl alcohol pad, then with a cloth or gauze pad wetted with sterile or distilled water; do not immerse the connectors.2
Specifications:
| Masimo Part Number | 4073 |
|---|---|
| SKU | MAS-4073 |
| Product Family | RD rainbow SET MD20 Series Patient Cables2 |
| Cable Type | RD rainbow SET MD20-12 patient cable25 |
| Parameters | SpO2, pulse rate, SpCO and SpMet with RD rainbow 8λ SpCO and LNCS-II rainbow 8λ SpCO sensors; SpO2 and pulse rate with RD SET sensors17 |
| Cable Length | 12 ft56 |
| Connector | 20-pin monitor end; RD15 sensor end for RD SET and RD rainbow sensors21 |
| Use | Reusable25 |
| Natural Rubber Latex | Not made with natural rubber latex25 |
| Sterility | Non-sterile; do not sterilize by irradiation, steam, autoclave or ethylene oxide25 |
| GTIN | 00843997009744 |
| Directions for Use | Masimo LAB-9000G2 |
Who Uses This:
- Fire Departments: Fire-based EMS crews on a LIFEPAK 15 or Zoll X Series use the 12 ft 4073 when the monitor sits away from the patient, reading SpCO and SpMet for carbon monoxide screening at rehab.17
- EMS Agencies: Ambulance crews on a LIFEPAK 15 or Zoll X Series stock the 4073 beside the 5 ft 4072 and the 4 ft EMS 4792 for patients who sit farther from the monitor.34
- Flight and Critical Care Transport: Transport teams on a LIFEPAK 15 or Zoll X Series pair the 12 ft cable with the RD rainbow Pdt 8λ SpCO sensor for pediatric SpO2, SpCO and SpMet.7
- Clinics and Urgent Care: Clinics and urgent care sites with a rainbow SET monitor that has a 20-pin MD20 port use the 4073 with RD SET sensors to read SpO2 and pulse rate from a chair or bed across the room.2
Related Products:
- Masimo 4067 LNCS-II rainbow DCI 8λ Adult Reusable SpCO Sensor, 3 ft
- Masimo 4050 RD SET DCI Adult Reusable Finger SpO2 Sensor, 3 ft
- Masimo 4072 RD rainbow SET MD20-05 Patient Cable, 5 ft
- Masimo 4792 RD rainbow SET MD20-04 EMS Patient Cable, 4 ft
- Masimo 4798 RD rainbow SET RA25-04 EMS Patient Cable, 4 ft
- Masimo RD Patient Cables
Frequently Asked Questions:
Is the Masimo 4073 a LIFEPAK 15 or Zoll X Series SpO2 cable?
Yes. Stryker sells it as 11996-000511 for the LIFEPAK 15, and Zoll sells it as 8000-001702 for the X Series and X Series Advanced.34 The UPC on Stryker's store listing, 00843997009744, is the 4073's device identifier, which ties the Stryker number to this Masimo part.85
Which sensors work with the Masimo 4073 MD20-12 cable?
Any sensor with the RD15 connector: RD SET, RD rainbow SET-2, RD rainbow 4λ, RD rainbow 8λ SpCO and LNCS-II rainbow 8λ SpCO.1 The 8λ SpCO sensors, such as the 4037 and 4067, add SpCO and SpMet; an RD SET sensor such as the 4050 reads SpO2 and pulse rate.71 Sensors with the M15 connector, including rainbow R-series and M-LNCS, need an RC cable such as the 4481.1
Is the Masimo MD20-12 (4073) the same cable as the M20-12 (4257)?
No. The 4073 is the RD rainbow SET MD20-12 and the 4257 is the RD Rainbow SET M20-12, each in its own series.5 The MD20 and the M20 are separate 20-pin rainbow cable series, each in 5 ft and 12 ft.6 Read the model number on the box before you order; this page is the 4073.
Can I use the Masimo 4073 on a LIFEPAK 35?
As listed, no. Stryker's LIFEPAK 35 guide does not carry 11996-000511; it lists the RD patient cables 11996-000458 (5 ft) and 11996-000457 (12 ft) and the RD EMS cable 11997-000298 (4 ft).9 The 4798 is that EMS cable, a 25-pin right-angle RA25-04.910
Does the Masimo 4073 show SpCO and SpMet on a LIFEPAK 15?
Yes, when an RD rainbow 8λ SpCO or LNCS-II rainbow 8λ SpCO sensor is on the cable, the monitor has rainbow SET 7.1 or higher and SpCO and SpMet are enabled.21 Stryker's 02/2025 LIFEPAK 15 guide lists 11996-000511 beside the rainbow sensors 11996-000515 to -000520.3 An RD SET sensor on the same cable reads SpO2 and pulse rate only.
Is there an extension cable for the Masimo 4073, or should I buy the 12 ft length?
Masimo makes the RD SET EXT-4 extension for RD and RD rainbow SET cables, and the sensor, cable and extension together must not exceed 15 ft.11 A 12 ft cable with a 3 ft sensor already reaches 15 ft, and the length table lists no 6 ft sensor with a 12 ft cable.12 The 4073 is the reach option; shorter cables leave room for an extension.
When should I replace the Masimo 4073?
Replace it when the monitor shows a replace cable message, when a low SIQ message keeps appearing across consecutive patients after the monitor's low SIQ steps, or when the 17,520 hours of X-Cal monitoring time are used up.213 On some older monitors a replace sensor message can point to the cable.2
Is this a genuine Masimo 4073?
Yes. We are an authorized Masimo distributor. Every Masimo 4073 ships new in its original Masimo packaging.
How fast does the Masimo 4073 ship?
Most orders ship within 1 to 2 business days. Expedited and overnight shipping are available at checkout.
How do I order the Masimo 4073 or request a quote?
Add it to your cart on this page, or contact CustomerService@pacificbiomedical.com or 844.436.3526 with SKU MAS-4073. We support net terms for agencies and hospitals and ship to all 50 states.
References
- Masimo. SET and rainbow Sensor and Cable Compatibility, with minimum software requirements. PLM-10747D, 2023. masimo.fr.
- Masimo. Directions for Use, RD rainbow SET Series patient cables. LAB-9000G. techdocs.masimo.com.
- Stryker. LIFEPAK 15 monitor/defibrillator accessories guide, pulse oximetry monitoring accessories, 02/2025. stryker.com.
- Zoll. Zoll web store, item 8000-001702, RD Rainbow SET MD20 - 12, Patient Cable, 12 FT, compatibility X Series, X Series Advanced, reviewed October 2026.
- U.S. Food and Drug Administration. Global Unique Device Identification Database (GUDID), Masimo model 4073, RD rainbow SET MD20-12 RD rainbow SET Series Patient Cable, DI 00843997009744; model 4257, RD Rainbow SET M20-12, DI 00843997011679. accessgudid.nlm.nih.gov.
- Masimo. RD rainbow SET and RD SET patient cables, adapter and extension cables (product page, masimo.co.uk). masimo.co.uk.
- Masimo. Directions for Use, RD rainbow 8λ SpCO adhesive Pulse CO-Oximetry sensors. LAB-9373E. techdocs.masimo.com.
- Stryker. Online store listing, Masimo RD rainbow SET MD20-12, 20-pin Patient Cable, 12 ft, catalog number 11996-000511, UPC 00843997009744, reviewed October 2026.
- Stryker. LIFEPAK 35 monitor/defibrillator accessories guide, pulse oximetry monitoring accessories, 12/2025. stryker.com.
- Masimo Sensor Cross Reference (Stryker/Physio-Control and Zoll catalog numbers), rev. January 2025, with Stryker and Zoll catalog checks, reviewed October 2026.
- Masimo. Directions for Use, RD SET Adapter Cable Series, including the RD SET EXT-4 extension cable. LAB-9147G. techdocs.masimo.com.
- Masimo. Directions for Use, RD rainbow SET EMS patient cables. LAB-10825C. techdocs.masimo.com.
- Masimo. X-Cal technology bulletin, expected active monitoring times for sensors and cables. PLM-10083A, 2016. masimo.fr.
