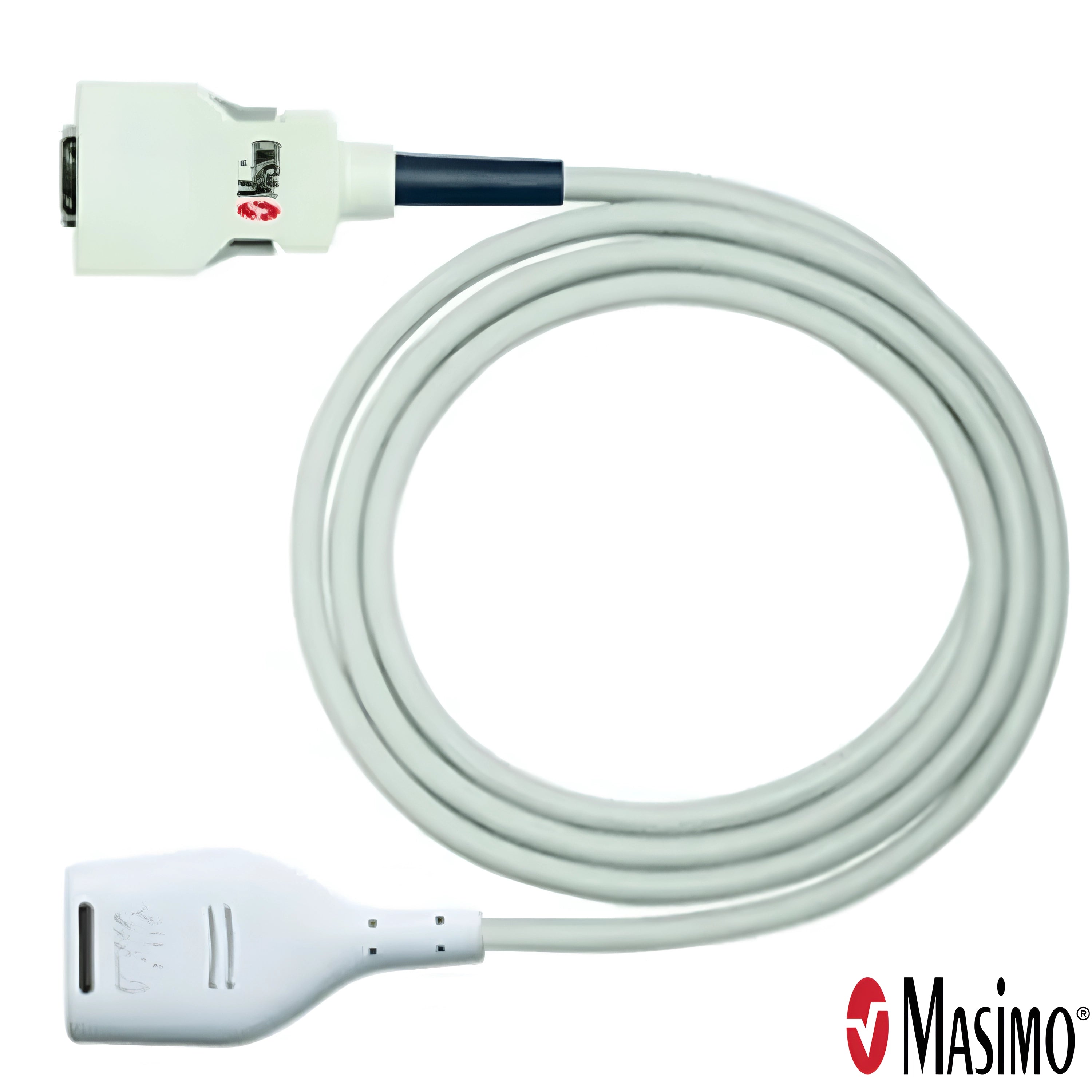

Masimo 4080 RD SET MD14-05 Patient Cable, 14-Pin, 5 ft
In MD14-05, the 14 is the pin count of the monitor port and the 05 is the length in feet.34
Works With:
| Sensors | RD SET sensors, such as the 4003, 4050 and 4051.1 RD rainbow sensors connect but read SET parameters only.5 LNCS, M-LNCS and LNOP sensors need an adapter cable.6 Browse RD SET sensors. |
|---|---|
| Monitor Connector | Monitor end: 14-pin MD14 connector. Sensor end: RD15 connector for RD SET sensors.45 |
| Monitors | Zoll R Series: Zoll lists the 5 ft MD14-05 for the R Series.2 |
| Stryker / Physio-Control Number | None listed for the 4080.7 |
| Zoll Number | 8000-001142 (RD SET MD14-05, Patient Cable, 5 FT; R Series). Zoll prints no Masimo number, so the match rests on the MD14-05 name and the 5 ft length.23 |
| Not Listed For | LIFEPAK 15 and Zoll X Series: Stryker's LIFEPAK 15 guide lists only the 20-pin MD20 cables (4072, 4073 and 4792), and Zoll lists 20-pin MD20 cables for the X Series.89 |
| Cross-Reference | See the Masimo 4080 row in the Masimo Part Number Cross-Reference |
Product Highlights:
- 14-pin plug: MD14 is the 14-pin monitor connector; the 20-pin version is the MD20, such as the 5 ft 4103.43
- SET parameters: The cable carries SpO2 and pulse rate from RD SET sensors; SpCO and SpMet need an RD rainbow SET cable.15
- Lengths: The 8 ft MD14-08 is the 4108 and the 12 ft MD14-12 is the Masimo 4081 (ask us for the 4081).3
- Cable life: X-Cal technology provides up to 17,520 hours of patient monitoring time, equal to two years of round-the-clock use.1
- Reusable: Wipe the cable with a 70% isopropyl alcohol pad or mild detergent; do not immerse the connector or sterilize it.1
Specifications:
| Masimo Part Number | 4080 |
|---|---|
| SKU | MAS-4080 |
| Product Family | RD SET Series Patient Cables13 |
| Cable Type | RD SET MD14-05 patient cable13 |
| Parameters | SpO2 and pulse rate with RD SET sensors1 |
| Cable Length | 5 ft34 |

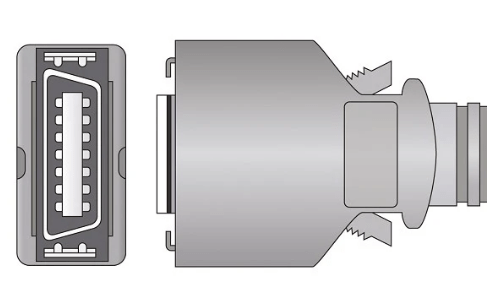

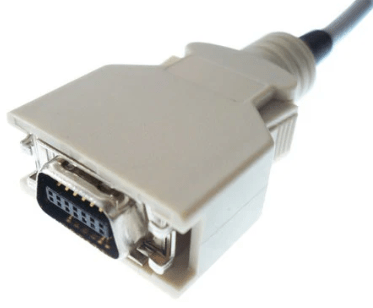

| Connector | 14-pin monitor end; RD15 sensor end for RD SET sensors45 |
| Use | Reusable13 |
| Natural Rubber Latex | Not made with natural rubber latex13 |
| Sterility | Non-sterile; do not sterilize by irradiation, steam, autoclave or ethylene oxide13 |
| GTIN | 00843997009751 |
| Directions for Use | Masimo LAB-9002G1 |
Who Uses This:
- Fire Departments: Fire departments with a Zoll R Series use the 4080 with RD SET sensors for SpO2 and pulse rate on engine and rescue runs.21
- EMS Agencies: Ambulance crews on a Zoll R Series use the 5 ft 4080 to read SpO2 and pulse rate with RD SET sensors.21
- Flight and Critical Care Transport: Transport teams carrying a Zoll R Series use the 4080 to read SpO2 and pulse rate with the RD SET sensor sized to the patient, from the 4003 neonatal/adult adhesive to the 4050 adult finger clip.21
- Clinics and Urgent Care: Clinics and urgent care sites with a Masimo SET monitor that has a 14-pin RD SET port use the 4080 with RD SET sensors for SpO2 spot checks.1
Related Products:
- Masimo 4050 RD SET DCI Adult Reusable Finger SpO2 Sensor, 3 ft
- Masimo 4003 RD SET Neo Neonatal/Adult Adhesive SpO2 Sensor, 20/Box
- Masimo 4108 RD SET MD14-08 Patient Cable, 14-Pin, 8 ft
- Masimo 4103 RD SET MD20-05 Patient Cable, 20-Pin, 5 ft
- Masimo 4105 RD to LNC Adapter Cable, 1.5 ft
- Masimo RD Patient Cables
Frequently Asked Questions:
Which monitors does the Masimo 4080 plug into?
Zoll lists the RD SET MD14-05 (8000-001142) for the R Series, and the cable fits Masimo SET devices with a 14-pin RD SET port.21 The LIFEPAK 15 and Zoll X Series list 20-pin MD20 cables, not this one.89 Zoll prints no Masimo number; the match rests on the MD14-05 name and the 5 ft length.2
MD14 or MD20: which RD SET cable do I need?
Match the pin count of the monitor's port. MD14 cables end in a 14-pin connector and MD20 cables in a 20-pin one, and both take the same RD SET sensors.41 The 4080 is the 14-pin 5 ft cable; the 20-pin 5 ft version is the 4103.
What other lengths does the RD SET MD14 cable come in?
The MD14 family has three lengths on file with FDA: the MD14-05 (this 4080), the 8 ft MD14-08 (4108) and the 12 ft MD14-12 (Masimo 4081).3 Zoll sells the 5 ft and 12 ft as 8000-001142 and 8000-001143 for the R Series, and Masimo's cable page shows the MD14 in 5 ft and 12 ft.24 The number after MD14 is the length in feet.
Will RD rainbow sensors read SpCO and SpMet on the Masimo 4080?
No. An RD rainbow sensor connects to the RD15 end, but on an RD SET cable it reads SET parameters only. SpCO and SpMet need an RD rainbow SET cable, such as the 20-pin 4072, on a monitor with rainbow SET 7.1 or higher.5 The 4080 gives you SpO2 and pulse rate.
Which RD SET sensors fit the Masimo 4080?
Any RD SET sensor: adhesives such as the 4003 and the CS-2 4470, reusables such as the 4050 DCI and 4051 DCI-P, and the 4053 TC-I ear clip.1 All end in the RD15 connector.5
Is the Masimo 4080 an adapter cable or a patient cable?
A patient cable. The 4080 is an RD SET Series patient cable that runs from the RD SET sensor to the 14-pin monitor port.34 Adapters are separate parts, such as the RD to LNC adapter 4105, which lets RD SET sensors run on an LNC cable.10
Why does the monitor say replace cable, or show no reading, with the 4080?
Seat the cable connector in the monitor port and push the sensor connector in until it locks; a poor connection at either end gives intermittent readings, inaccurate results or no reading.1 Replace the cable when the monitor shows a replace cable message, when a low SIQ message persists across consecutive patients, or when the cable is cracked, discolored or frayed.1
Is this a genuine Masimo 4080?
Yes. We are an authorized Masimo distributor. Every Masimo 4080 ships new in its original Masimo packaging.
How fast does the Masimo 4080 ship?
Most orders ship within 1 to 2 business days. Expedited and overnight shipping are available at checkout.
How do I order the Masimo 4080 or request a quote?
Add it to your cart on this page, or contact CustomerService@pacificbiomedical.com or 844.436.3526 with SKU MAS-4080. We support net terms for agencies and hospitals and ship to all 50 states.
