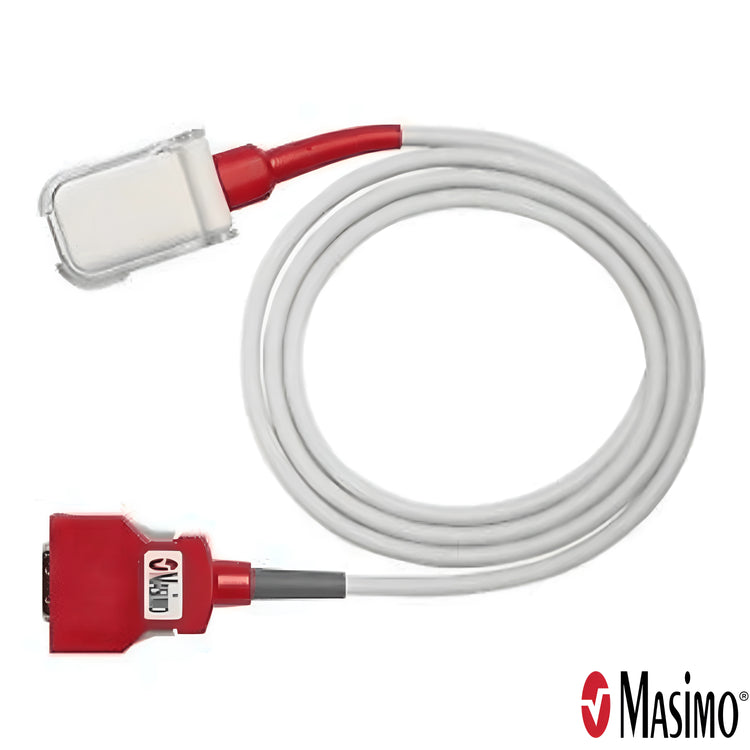

Masimo 2365 Red LNC patient cable, white LNCS sensor receptacle and red 20-pin monitor connector

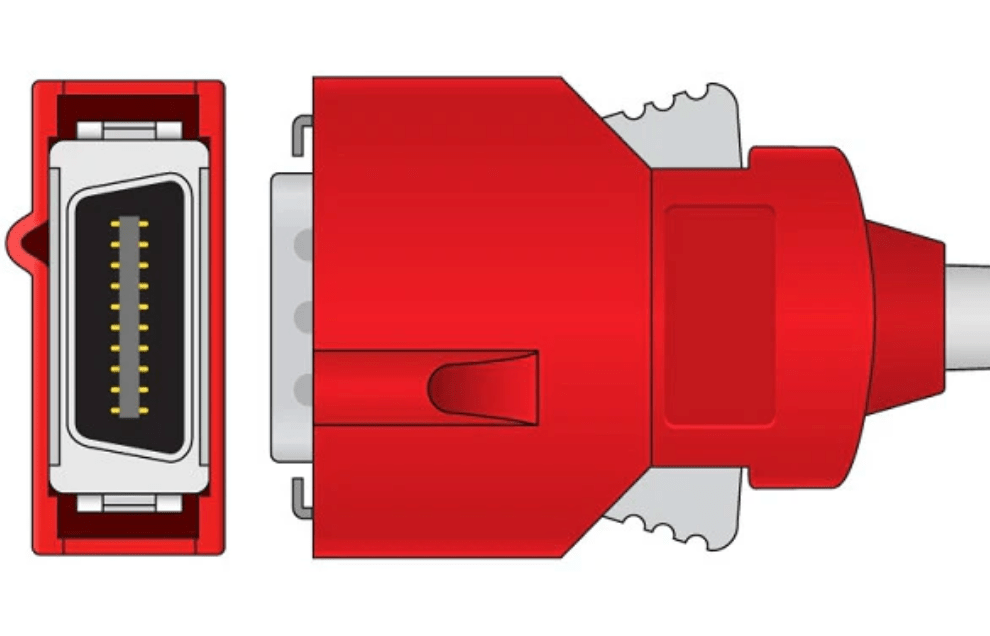

Masimo 2365 Red LNC-01 patient cable, red 20-pin monitor connector, face and side views

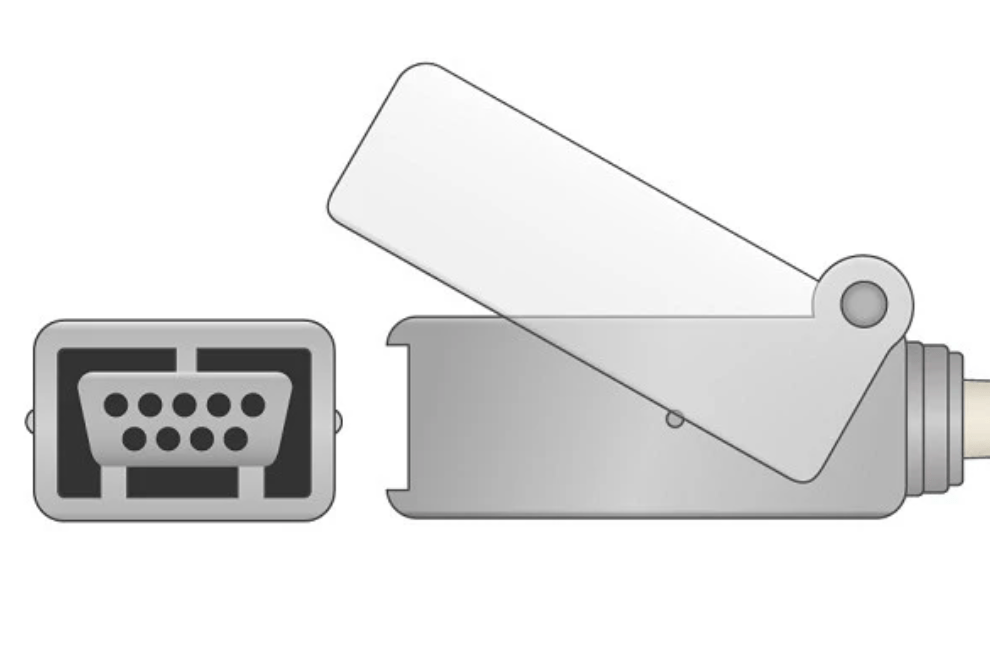

Masimo 2365 Red LNC-01 patient cable, LNCS sensor connector, face and side views, cover open
Masimo 2365 Red LNC patient cable, white LNCS sensor receptacle and red 20-pin monitor connector
Masimo 2365 Red LNC-01 patient cable, red 20-pin monitor connector, face and side views
Masimo 2365 Red LNC-01 patient cable, LNCS sensor connector, face and side views, cover open

Masimo 2365 Red LNC-01 SpO2 Patient Cable, 20-Pin, 1 ft

SKU: MAS-2365

Masimo Corporation

The Masimo 2365 Red LNC-01 is a reusable 1 ft patient cable that connects Masimo LNCS sensors, for adult, pediatric, infant and neonatal patients, to a monitor's red 20-pin SpO2 port to measure SpO2 and pulse rate.12 It is used with the Masimo Rad-57, which takes LNCS sensors on Red LNC cables.3 We supply the genuine Masimo 2365.

Looking for the rainbow RC-1 patient cable? See Masimo 2405 rainbow RC-1 (1 ft).

Masimo makes the red 20-pin Red LNC in 1 ft (this cable), 4 ft (2055), 10 ft (2056) and 14 ft. The 14-pin 1 ft is the 2364, so match the plug on your monitor.2

Works With:

Sensors LNCS sensors, reusable and single-patient-use:
1863 DCI adult, 1864 DCIP pediatric, 1859 Adtx adult adhesive
All: Masimo LNCS sensors
M-LNCS, rainbow and RD SET sensors do not plug in.4
Monitor Connector Sensor end: DB9 LNCS receptacle with a clear locking cover15
Monitor end: red Masimo 20-pin2
Monitors Masimo Rad-57: LNCS sensors run on Red LNC cables3
No monitor maker lists the 2365 by number; send us your monitor model through the contact page.
Not Listed For LIFEPAK 15 and Zoll X Series: the makers list the 4 ft and 10 ft Red LNC, not the 1 ft67
Stryker / Physio-Control Number None listed for the 2365.
Zoll Number None listed for the 2365.
Cross-Reference See the Masimo 2365 row in the Masimo Part Number Cross-Reference

Product Highlights:

  • Lengths: The Red LNC comes in 1 ft (this cable), 4 ft (2055), 10 ft (2056) and 14 ft, so with the 1 ft the sensor lead supplies most of the reach.2
  • Rad-57 pairing: The Rad-57 manual puts LNCS reusable and adhesive sensors on Red LNC cables.3
  • SpO2 and pulse rate: LNCS sensors on a Red LNC cable report SpO2 and pulse rate; SpCO and SpMet need rainbow sensors on a rainbow cable.4
  • Cable life: X-Cal technology provides up to 17,520 hours of patient monitoring time, equal to two years of round-the-clock use.1
  • Reusable: Wipe the cable with a 70% isopropyl alcohol pad and then a pad with sterile or distilled water; do not immerse the connectors.1

Specifications:

Masimo Part Number 2365
SKU MAS-2365
Product Family Red LNC series patient cable (MasimoSET Red LNC-01 LNCS Patient Cable)8
Cable Type Red LNC patient cable for LNCS sensors
Cable Length 1 ft
Connector Sensor end: DB9 LNCS receptacle with clear locking cover. Monitor end: red 20-pin.12
Use Reusable8
Natural Rubber Latex Not made with natural rubber latex1
Sterility Non-sterile1
GTIN 00843997001557
Directions for Use Masimo LAB-3569P1

Who Uses This:

  • Fire Departments: Fire-based EMS crews doing a rehab-sector SpO2 check hold the Rad-57 in hand and run an LNCS reusable such as the 1863 on the 1 ft cable.3
  • EMS Agencies: EMS agencies that carry the Rad-57 use the 1 ft cable when the sensor sits close to the unit and extra cable would only hang loose.3
  • Flight and Critical Care Transport: Transport teams with a Rad-57 run an LNCS adhesive such as the 1859 on the 1 ft Red LNC when the handheld sits on the stretcher beside the patient.3
  • Clinics and Urgent Care: Clinics and urgent care sites with a Rad-57 pair it with an LNCS reusable sensor such as the 1863 for adult SpO2 checks.3

Related Products:

Frequently Asked Questions:

Which monitors does the Masimo 2365 Red LNC-01 fit?

Monitors with a red 20-pin Red LNC port. The Masimo Rad-57 manual pairs LNCS sensors with Red LNC cables,3 but it names the cable type, not part 2365. Stryker lists the 4 ft and 10 ft Red LNC for the LIFEPAK 15 and Zoll lists them for the X Series and Propaq, and neither lists a 1 ft.67

Does the Masimo 2365 have a Stryker/Physio-Control or Zoll number?

None is listed. Stryker and Zoll list the Red LNC at 4 ft (11996-000323, 8000-0330) and 10 ft (11996-000324, 8000-0331), and Masimo's cross-reference sheet shows no number for the 1 ft.679 Order the 2365 by Masimo part number or by GTIN 00843997001557.8

Masimo 2365 or Masimo 2364: which 1 ft LNCS cable do I need?

Match the plug on the monitor port. The 2365 has the red 20-pin plug, and the 2364 has the 14-pin LNC plug.2 Both take the same DB9 LNCS sensors, and the Rad-57 manual pairs LNCS sensors with Red LNC cables, so the 2365 is the Rad-57 choice.3

What does Red LNC-01 mean on the Masimo 2365?

Red LNC is Masimo's Red series cable for LNCS sensors, and 01 is the length in feet.1 The model name is MasimoSET Red LNC-01 LNCS Patient Cable.8 Masimo's earlier LNC page lists the 1 ft, and the current U.S. page shows the Red LNC at 4 ft and 10 ft.210

Will the Masimo 2365 work on a LIFEPAK 15 or a Zoll X Series?

It has the same red 20-pin plug as the Red LNC cables those makers list, but neither maker lists a 1 ft length.267 Their listed parts are the 4 ft 2055 and the 10 ft 2056. Send us your monitor and module numbers before you order the 1 ft.

Can I read SpCO or SpMet through the Masimo 2365?

No. LNCS sensors on a Red LNC cable give SpO2 and pulse rate. SpCO and SpMet need a rainbow sensor on a rainbow patient cable and a monitor with those parameters enabled, which on a Rad-57 means an RC cable such as the Masimo 4481.43

Is the Masimo 2365 reusable, sterile and latex free?

It is reusable and supplied non-sterile, and it is not made with natural rubber latex.18 Between patients, clean it with an alcohol pad and a water-dampened pad as the Red cable cleaning steps describe, and do not sterilize it by irradiation, steam, autoclave or ethylene oxide.1

Is this a genuine Masimo 2365?

Yes. We are an authorized Masimo distributor. Every Masimo 2365 ships new in its original Masimo packaging.

How fast does the Masimo 2365 ship?

Most orders ship within 1 to 2 business days. Expedited and overnight shipping are available at checkout.

How do I order the Masimo 2365 or request a quote?

Add it to your cart on this page, or contact CustomerService@pacificbiomedical.com or 844.436.3526 with SKU MAS-2365. We support net terms for agencies and hospitals and ship to all 50 states.

References
  1. Masimo. Directions for Use, Red patient cables (Red LNC and Red PC). LAB-3569P. techdocs.masimo.com.
  2. Masimo. LNC Patient Cables product page (German site, PLM-10132B-0916): LNC (14-pin), Red LNC (20-pin) and Red 25 LNC (25-pin) cables with their lengths, and the LNC Ext extension cable. masimo.de.
  3. Masimo. Rad-57 Operator's Manual, sensors and patient cables. LAB-9204A. techdocs.masimo.com.
  4. Masimo. SET and rainbow Sensor and Cable Compatibility, with minimum software requirements. PLM-10747D, 2023. masimo.fr.
  5. Masimo. LNCS Sensors product page (LNCS, Low Noise Cabled Sensors; DB9 connector for LNC patient cables). masimo.co.uk.
  6. Stryker. LIFEPAK 15 monitor/defibrillator accessories guide, pulse oximetry monitoring accessories, 02/2025. stryker.com.
  7. Zoll Medical. Zoll web store, X Series and Propaq MD/M pulse oximetry accessories: Red LNC-4, 4 ft Reusable Patient Cable, item 8000-0330, and Red LNC-10, 10 ft, item 8000-0331 (compatibility: Propaq, X Series, X Series Advanced; connects to LNCS single-use and reusable sensors), reviewed October 2026.
  8. U.S. Food and Drug Administration. Global Unique Device Identification Database (GUDID), Masimo model 2365, MasimoSET Red LNC-01 LNCS Patient Cable, DI 00843997001557. accessgudid.nlm.nih.gov.
  9. Masimo. Sensor Cross Reference (Stryker/Physio-Control and Zoll catalog numbers), rev. January 2025, with Stryker and Zoll catalog checks, reviewed October 2026.
  10. Masimo. LNC Patient Cables product page, U.S. site (PLM-10025D-1120): 14-pin LNC and Red LNC at 4 ft and 10 ft. masimo.com.
