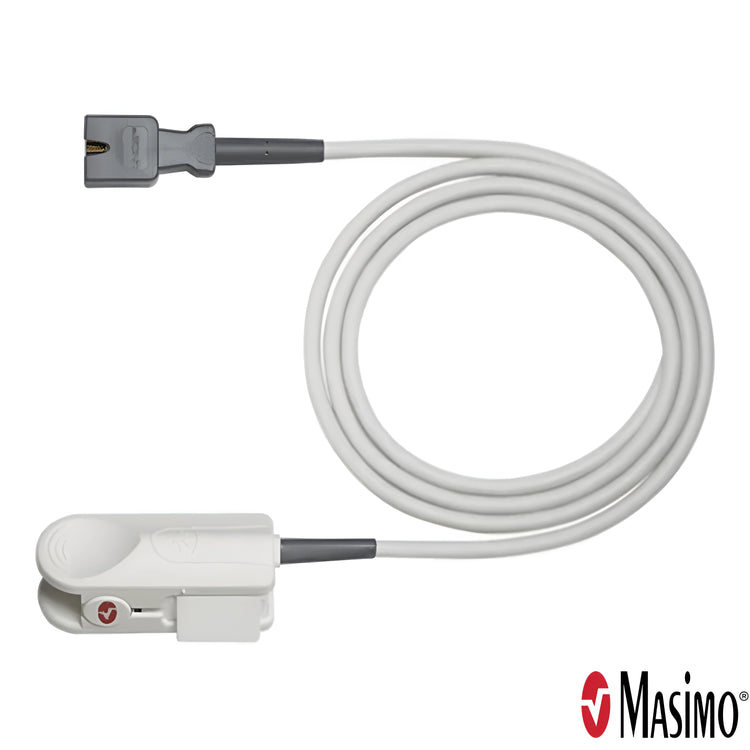

Masimo 1863 LNCS DCI Adult Reusable Finger SpO2 Sensor, 3 ft
The 1863 is a genuine Masimo part: a reusable LNCS sensor for the adult finger, used with LNC and Red LNC patient cables.3 The cross-reference lists its parameters as SpO2, Pulse Rate.3 Listed patient weight: over 30 kg.3 Listed cable length: 3 ft.3 Listed patient cables: LNC-4 (2017), LNC-10 (1814), Red LNC-04 (2055), Red LNC-10 (2056).3 LNCS (Low Noise Cabled Sensors) are intended for use with Masimo SET pulse oximeters and LNC patient cables.1 See the Masimo part number cross-reference for Stryker/Physio-Control and Zoll numbers on Masimo sensors and patient cables.3
Product Highlights:
- Parameters: SpO2, Pulse Rate.3
- Patient weight: over 30 kg.3
- Cable length: 3 ft.3
- Stryker / Physio-Control number: 11171-000017.3
- Zoll number: 8000-0294.3
- Listed patient cables: LNC-4 (2017), LNC-10 (1814), Red LNC-04 (2055), Red LNC-10 (2056).3
Specifications:
| Brand | Masimo1 |
|---|---|
| Manufacturer | Masimo Corporation1 |
| Manufacturer address | 52 Discovery, Irvine, CA 926181 |
| Part number | 18633 |
| Parameters | SpO2, Pulse Rate3 |
| Patient weight | over 30 kg3 |
| Cable length | 3 ft3 |
| Stryker / Physio-Control | 11171-0000173 |
| Zoll | 8000-02943 |
| Patient cables (chart) | LNC-4 (2017), LNC-10 (1814), Red LNC-04 (2055), Red LNC-10 (2056)3 |
| Platform | LNCS (Low Noise Cabled Sensors)1 |
| Sensor type | Adult reusable finger sensor (DCI)3 |
Frequently Asked Questions:
What is masimo lncs?
Masimo says LNCS, or Low Noise Cabled Sensors, are available in many designs and are intended for hospitals that use Masimo SET pulse oximetry. LNCS sensors use a DB9 connector and are compatible with LNC patient cables.1
What is a masimo device?
Masimo sells pulse oximetry and Pulse CO-Oximetry devices, sensors, and patient cables, including LNCS, RD SET, and rainbow lines.2
What is Masimo used for?
Masimo publishes pulse oximetry and Pulse CO-Oximetry platforms (including Masimo SET and rainbow) and a range of sensors and patient cables for those devices.27
What is a Masimo 1863 sensor?
The cross-reference lists Masimo 1863 as the LNCS DCI adult reusable finger sensor, with parameters SpO2 and pulse rate, patient weight over 30 kg, and a 3 ft cable.3
What is a Masimo ® 1863 adult finger clip sensor?
Masimo 1863 is listed as the LNCS DCI adult reusable finger sensor (over 30 kg, 3 ft).3 Masimo describes LNCS digit clip sensors (DCI, DCIP, DBI) as finger sensors for spot-check or continuous measurements.1
What is Masimo 1863?
Masimo 1863 is the LNCS DCI adult reusable finger sensor on the Masimo part number cross-reference.3
What is a new Masimo LNCS DCI adult reusable sensor, Masimo 1863?
Masimo 1863 is listed as the LNCS DCI adult reusable finger sensor, over 30 kg, 3 ft, for LNC-series patient cables.3
Which patient cable does this reusable LNCS sensor use?
An LNC or Red LNC patient cable. The cross-reference lists LNC-4 (2017), LNC-10 (1814), Red LNC-04 (2055) and Red LNC-10 (2056).3 For rainbow RC cables, the adult reusable finger sensor is the M-LNCS DCI (2501).
