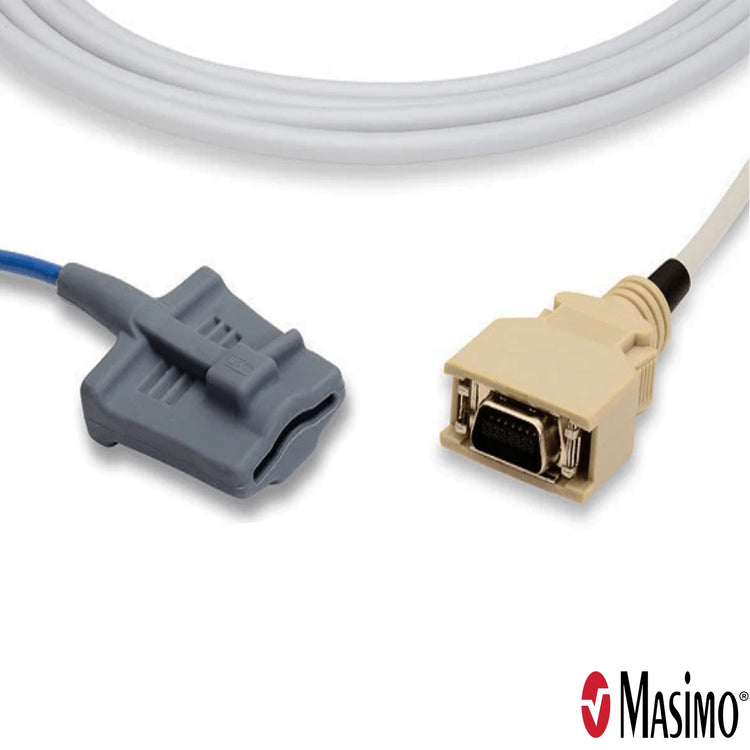

Masimo 2652 DBI-dc8 Adult Soft Reusable Direct Connect SpO2 Sensor, 8 ft
The 2652 is the DBI-dc8 soft finger probe without Red in its model name. No Stryker, Zoll or Masimo document prints the number 2652 against a monitor. Stryker's LIFEPAK 20e guide lists a direct connect reusable soft sensor, 11171-000051, with no Masimo number, and the cross-reference page shows that Stryker number against the Red DBI-dc3 (2643), so match by the REF on the box.5
Works With:
| Patient Cable | None needed: the monitor plug is built into the 8 ft sensor cable.12 |
|---|---|
| Monitors | None listed. No monitor maker lists the 2652 by number; send us your monitor model. |
| Not Listed For | LIFEPAK 15, Zoll X Series and X Series Advanced: they list the Red DBI-dc8, the 2644 (Stryker 11171-000053, Zoll 8000-0377).34 Masimo Rad-57: its Red sensor table lists the Red DCI and DCIP, not the DBI; confirm your Rad-57 with us before choosing the 2053.6 LIFEPAK 35: its guide lists no direct connect sensors.7 |
| Stryker / Physio-Control Number | None listed for the 2652. Stryker's LIFEPAK 20e number 11171-000051 carries no Masimo number in Stryker's guide.5 |
| Zoll Number | None listed for the 2652. Zoll lists only the Red Dbi-Dc8, 8000-0377, for the X Series and X Series Advanced.8 |
| Cross-Reference | See the Masimo 2652 row in the Masimo Part Number Cross-Reference |
Product Highlights:
- Match the plug: The 2652 is the DBI-dc8 and the 2644 is the Red DBI-dc8, two separate models; the DBI Series covers a Direct Connect and a Red Direct Connect version.291
- Accuracy: With no motion, SpO2 is within 2% Arms and pulse rate within 3 bpm; the low perfusion figures are 2% and 3 bpm, and none is given for motion.1
- At rest only: Indicated for adults during no motion conditions and contraindicated for active patients and prolonged use. Inspect the site at least every 4 hours, and assess it as often as every hour, moving the sensor if skin integrity or circulation is lost.1
- Sensor life: X-Cal provides up to 8,760 hours of patient monitoring time before replacement.1
- Cleaning: Wipe clean; do not soak or immerse the sensor. A 70% isopropyl alcohol pad cleans it between patients.1
Specifications:
| Masimo Part Number | 2652 |
|---|---|
| SKU | MAS-2652 |
| Product Family | DBI-dc8, DBI Series12 |
| Sensor Type | Reusable direct-connect soft finger sensor12 |
| Parameters | SpO2 and pulse rate1 |
| Patient Weight | Adult, over 30 kg1 |
| Cable Length | 8 ft (the 8 in the model name DBI-dc8)2 |

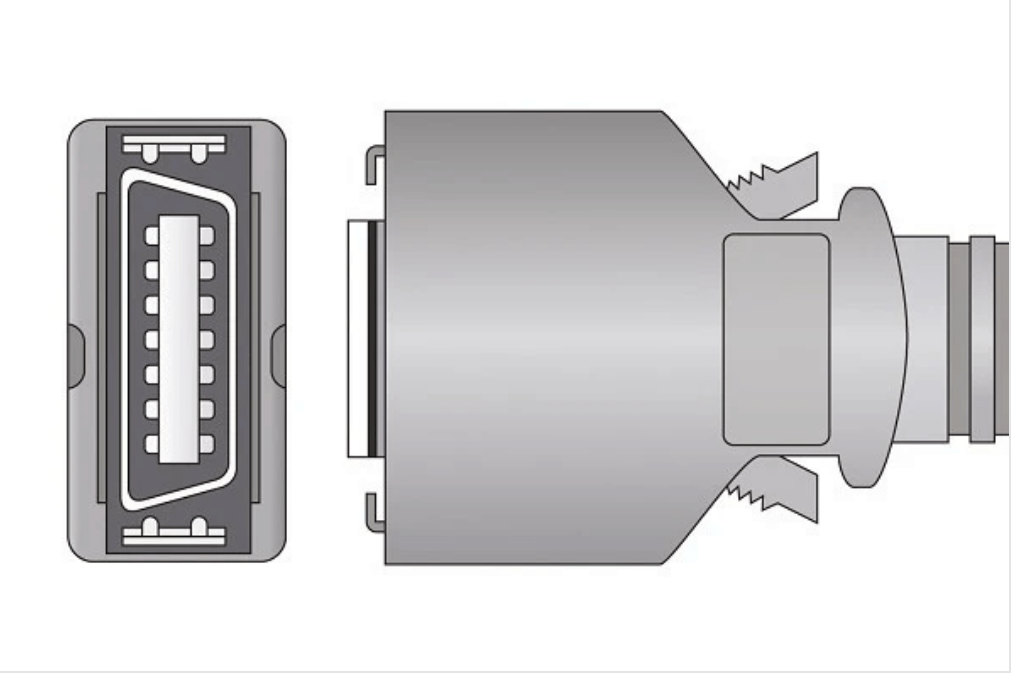

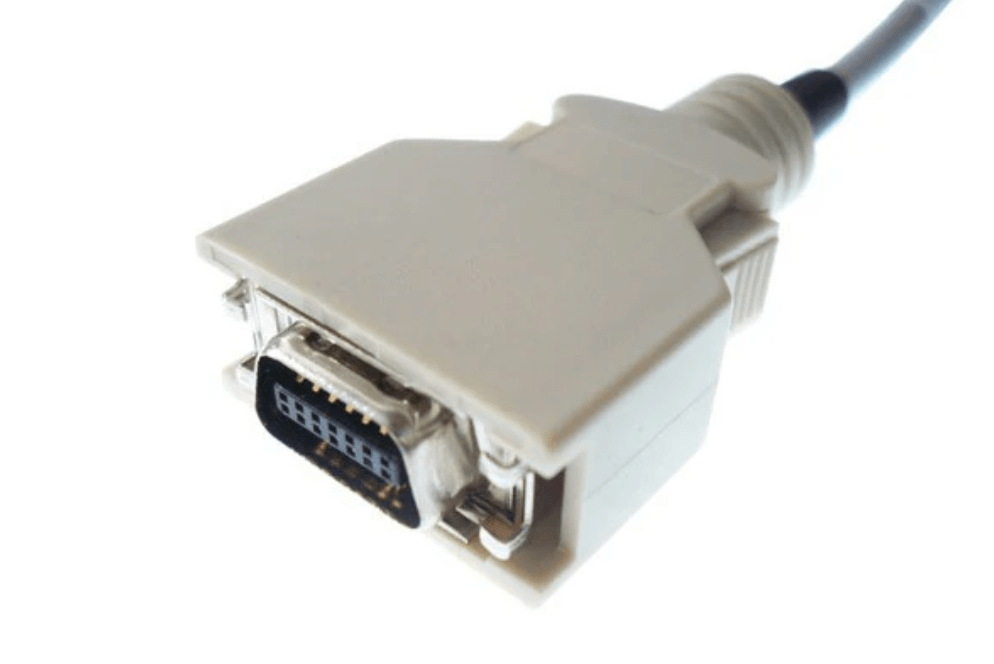

| Connector | Direct connect: the monitor plug is built into the sensor cable1 |
| Use | Reusable; wipe with 70% isopropyl alcohol between patients1 |
| Natural Rubber Latex | Not made with natural rubber latex12 |
| Sterility | Non-sterile12 |
| GTIN | 00843997003063 |
| Directions for Use | Masimo LAB-6684C1 |
Who Uses This:
- Fire Departments: Crews at a rehab sector use the soft sensor, which opens by pressing its sides rather than a hinged clip, for SpO2 and pulse rate checks on seated, still adults.1
- EMS Agencies: Crews whose monitor takes this plug carry the 8 ft soft sensor with no patient cable and use it for SpO2 checks on still adult patients.1
- Flight and Critical Care Transport: Transport teams use it, since the DBI is indicated for no motion conditions, for adult SpO2 checks at rest on a monitor that takes this plug.1
- Clinics and Urgent Care: Clinics and urgent care sites wipe the sensor with a 70% isopropyl alcohol pad between patients and run adult exam-room spot checks.1
Related Products:
- Masimo 2644 Red DBI-dc8 Adult Soft Reusable Direct Connect SpO2 Sensor, 8 ft
- Masimo 2653 LNCS DBI Adult Soft Reusable Finger SpO2 Sensor, 3 ft
- Masimo 2053 Red DCI-dc3 Adult Reusable Direct Connect SpO2 Sensor, 3 ft
- Masimo SpO2 Sensors
Frequently Asked Questions:
What is the difference between the Masimo 2652 DBI-dc8 and the 2644 Red DBI-dc8?
The 2652 is the DBI-dc8; the 2644 adds Red to the name, and they are separate models.29 Stryker's LIFEPAK 15 guide and Zoll's X Series listing carry the Red one, 11171-000053 and 8000-0377, and neither carries the 2652.34 Both are 8 ft soft sensors for patients over 30 kg under one set of directions.1
Which monitors does the Masimo 2652 fit?
Neither Stryker nor Zoll prints the number 2652 against a monitor. Each sensor works only on the pulse oximetry systems of the original device maker, so verify the monitor, cable and sensor before use.1 Stryker's LIFEPAK 20e guide lists a direct connect reusable soft sensor, 11171-000051, without a Masimo number.5
Will the Masimo 2652 work on a LIFEPAK 15, Zoll X Series or Rad-57?
Not as listed. Stryker's LIFEPAK 15 guide and Zoll's X Series listing carry the Red DBI-dc8, the 2644, and the Rad-57 manual's Red sensor table lists the Red DCI and DCIP.346 Order the 2644 for the LIFEPAK 15 or X Series and the 2053 for the Propaq;10 for a Rad-57, confirm your monitor with us first.6
Is Stryker 11171-000051 the Masimo 2652?
Not confirmed. Stryker prints no Masimo number for 11171-000051; its LIFEPAK 20e guide lists it as an adult direct connect reusable soft sensor.5 The 2652 is the DBI-dc8 adult reusable sensor, and no Stryker number is listed for it.2
What is the difference between the Masimo 2652 and the LNCS DBI 2653?
The 2652 has its monitor plug built into the 8 ft lead. The 2653 LNCS DBI ends in an LNCS connector and plugs into an LNC or Red LNC patient cable; Stryker lists it as 11171-000052 for the LIFEPAK 20e and LIFEPAK 15.153
Can the Masimo 2652 be used on a moving patient or during transport?
Not on an active patient: the DBI Series is contraindicated for active patients and prolonged use, and it is indicated for no motion conditions.1 Inspect the site at least every 4 hours, assess it as often as every hour, and move the sensor if skin integrity or circulation is lost.1
How long does the Masimo 2652 last, and when do I replace it?
X-Cal provides up to 8,760 hours of patient monitoring time.1 Replace the sensor on a replace-sensor message, when Low SIQ keeps showing on consecutive patients after troubleshooting, or when it is discolored, damaged or shows exposed circuitry.1
Does the Masimo 2652 read SpCO or SpMet?
No. It reads SpO2 and pulse rate, and high carboxyhemoglobin or methemoglobin can occur with a seemingly normal SpO2, so suspected cases call for laboratory CO-oximetry of a blood sample.1 A rainbow sensor such as the 2407 adds SpCO and SpMet on a rainbow monitor with those parameters enabled.3
Is this a genuine Masimo 2652?
Yes. We are an authorized Masimo distributor. Every Masimo 2652 ships new in its original Masimo packaging.
How fast does the Masimo 2652 ship?
Most orders ship within 1 to 2 business days. Expedited and overnight shipping are available at checkout.
How do I order the Masimo 2652 or request a quote?
Add it to your cart on this page, or contact CustomerService@pacificbiomedical.com or 844.436.3526 with SKU MAS-2652. We support net terms for agencies and hospitals and ship to all 50 states.
References
- Masimo. Directions for Use, DBI Series LNCS and direct connect reusable soft sensors. LAB-6684C. techdocs.masimo.com.
- U.S. Food and Drug Administration. Global Unique Device Identification Database (GUDID), Masimo model 2652 record (device identifier 00843997003063). accessgudid.nlm.nih.gov.
- Stryker. LIFEPAK 15 accessories guide, pulse oximetry accessories (02/2025), pages 8 and 9. stryker.com.
- Zoll. X Series and Propaq MD/M pulse oximetry accessories, Zoll web store, item 8000-0377, Red Dbi-Dc8, 8' Reusable Direct Connect Sensor (compatibility field: X Series, X Series Advanced). Reviewed October 2026.
- Stryker. LIFEPAK 20e genuine accessories, GDR 3300292_K, page 7. stryker.com.
- Masimo. Rad-57 Signal Extraction Pulse CO-Oximeter Operator's Manual, sensor tables and troubleshooting. LAB-9204A. techdocs.masimo.com.
- Stryker. LIFEPAK 35 accessories guide, pulse oximetry accessories (12/2025). stryker.com.
- Zoll. Zoll web store searches for Red DCI, DC12, DBI and direct connect: the direct connect sensors are the 3 ft Red DCI-DC3 (8000-0332), the 3 ft Red DCIp-DC3 (8000-0333) and the Red Dbi-Dc8 (8000-0377); there is no 12 ft Red DCI item and no other DBI-dc8 item. Reviewed October 2026.
- U.S. Food and Drug Administration. Global Unique Device Identification Database (GUDID), Masimo model 2644 record (device identifier 00843997003087). accessgudid.nlm.nih.gov.
- Zoll. X Series and Propaq MD/M pulse oximetry accessories, Zoll web store, item 8000-0332, Red DCI-DC3, 3 ft Adult Reusable Patient Cable/Sensor (compatibility field: Propaq, X Series, X Series Advanced). Reviewed October 2026.
