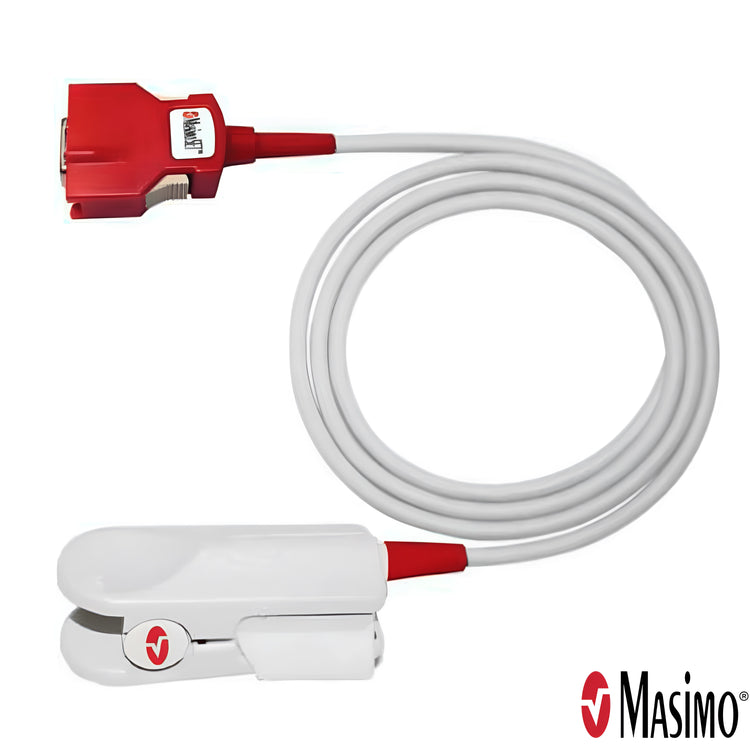

Masimo 2407 20-Pin 8ft Rainbow Direct Connect SpO2 Sensor
$620.00
SKU:
MAS-2407
The Masimo 2407 is a 8ft direct-connect SpO2 sensor for adult (>30 kg) patients. The 20-pin direct connector plugs straight into the monitor — no separate patient cable required. Ideal for streamlined EMS deployments.
Product Highlights
- Masimo SET® Measure-through Motion and Low Perfusion™ pulse oximetry
- Direct-connect 20-pin — no separate patient cable needed
- 8ft cable for adult (>30 kg) patients
- Parameters: SpO2, SpCO, SpMet, plus PR and Pi
- 1/box, non-sterile
- Not made with natural rubber latex
Parameters Measured
SpO2SpCOSpMetPulse Rate (PR)Perfusion Index (Pi)
OEM Cross Reference
| Manufacturer | Part Number |
|---|---|
| Masimo | 2407 |
| Stryker / Physio-Control | 11171-000032 |
| Zoll | 8000-0343 |
Specifications & Compatibility
| Sensor Type | Direct-connect (20-pin) |
|---|---|
| Patient Weight | Adult (>30 kg) |
| Cable Length | 8ft |
| Parameters | SpO2, SpCO, SpMet, PR, Pi |
| Distal Connector | Rainbow direct connect, 20-pin (direct to device) |
| Packaging | 1/box, non-sterile |
| Latex | Not made with natural rubber latex |
Who Uses This
Ground & Flight EMSRuggedized for ambulance bags and rotor-wing transport. Standard on paramedic and critical-care transport rigs.
Fire-Based EMSFast setup for first-arriving engines and squad units. Works in strobe-light and sunlight conditions typical of scene work.
Hospital & EDSpot-check and continuous monitoring in emergency departments, ICUs, and procedural areas.
Dental, Clinic & Urgent CareConscious sedation monitoring, pre-op assessment, and general oxygenation checks for outpatient practices.
Frequently Asked Questions
What does 'direct connect' mean?
The sensor has a 20-pin Masimo connector built into the distal end, so it plugs directly into the monitor without a separate patient cable. Fewer connections, fewer points of failure.
Which monitors accept the 2407?
Monitors with a Masimo Rainbow direct connect input, including the LIFEPAK 15 and Zoll X Series.
Is this Rainbow (SpCO/SpMet) capable?
Yes — measures SpO2, SpCO, and SpMet from one sensor when connected to a Rainbow SET device.
Are these genuine Masimo products?
Yes. All items ship new in original Masimo packaging with full manufacturer warranty.
How quickly does this ship?
Most in-stock items ship within 1–2 business days from our warehouse. Expedited and overnight options are available at checkout.
How do I place an order or request a quote?
Email CustomerService@pacificbiomedical.com or call us at (844) 436-3526. We support net terms for agencies and hospitals, and we ship to all 50 states.
