Masimo 2053 Red DCI-dc3 Adult Reusable Direct Connect SpO2 Sensor, 3 ft

This item requires a clinical attestation, confirmed in your cart.

SKU: MAS-2053

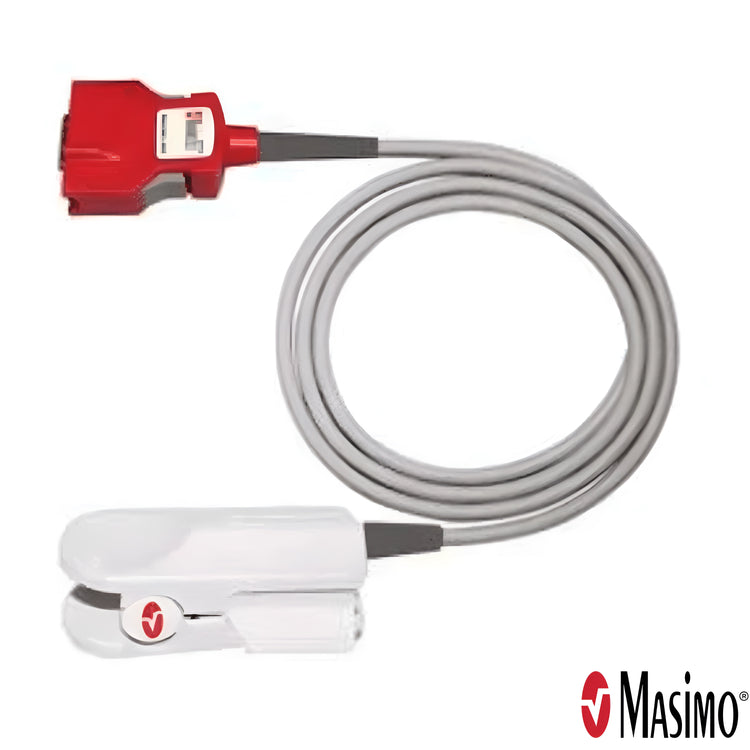

The Masimo 2053 Red DCI-dc3 is a reusable direct-connect finger clip sensor for adult patients over 30 kg that measures SpO2 and pulse rate.12 The 2053 is a Masimo Red DCI-dc3 sensor, an adult direct connect clip with the monitor plug built in.12 Its 3 ft lead plugs straight into the monitor, so no patient cable is needed, on the LIFEPAK 15 and the Zoll Propaq, X Series and X Series Advanced.34 The Stryker/Physio-Control number is 11996-000331 and the Zoll number is 8000-0332.34 We supply the genuine Masimo 2053.

The 2053 is the 3 ft Masimo finger probe in the Red line, and a Red sensor reads SpO2 and pulse rate only.3 The rainbow version that adds SpCO and SpMet is the 2201 rainbow DCI-dc3, the 12 ft Red clip is the 2054, and the pediatric Red clip is the 2256.

Works With:

Patient Cable None needed: the monitor plug is built into the 3 ft sensor cable.35
Monitors LIFEPAK 15: adult reusable direct connect sensor, 3 ft3
Zoll Propaq, X Series and X Series Advanced: Zoll item "Red DCI-DC3, 3 ft Adult Reusable Patient Cable/Sensor"4
Masimo Rad-57: the Red DCI is in its sensor table; confirm your Rad-57 with us before ordering.5
Not Listed For LIFEPAK 35: its guide lists no direct connect sensors, so use the 4050 on an RD cable.6
LIFEPAK 20e: its guide lists the LNCS 1863 (11171-000017) on LNC cables.7
Stryker / Physio-Control Number 11996-000331 (adult, 3 ft)38
Zoll Number 8000-0332 (Red DCI-DC3, 3 ft)4
Cross-Reference See the Masimo 2053 row in the Masimo Part Number Cross-Reference

Product Highlights:

  • Accuracy: With Masimo rainbow SET, SpO2 (70 to 100%) is within 2% Arms with no motion, 3% with motion and 2% in low perfusion; pulse rate is within 3 bpm with no motion, 5 bpm with motion and 3 bpm in low perfusion.1
  • Pick by size: The 2053 is for patients over 30 kg; the 2256 is the Red DCIP-dc3 clip for 10 to 50 kg.1
  • Red means SpO2 only: Elevated carboxyhemoglobin or methemoglobin can make SpO2 inaccurate, so add a rainbow sensor such as the 2407 on a monitor with SpCO and SpMet enabled.1
  • Short windows on still patients: The clip is contraindicated for mobile patients and prolonged use, so move it to a new site at least every 4 hours.1

Specifications:

Masimo Part Number 2053
SKU MAS-2053
Product Family Red DCI-dc312
Sensor Type Reusable direct-connect finger clip12
Parameters SpO2 and pulse rate1
Patient Weight Adult, over 30 kg1
Cable Length 3 ft34

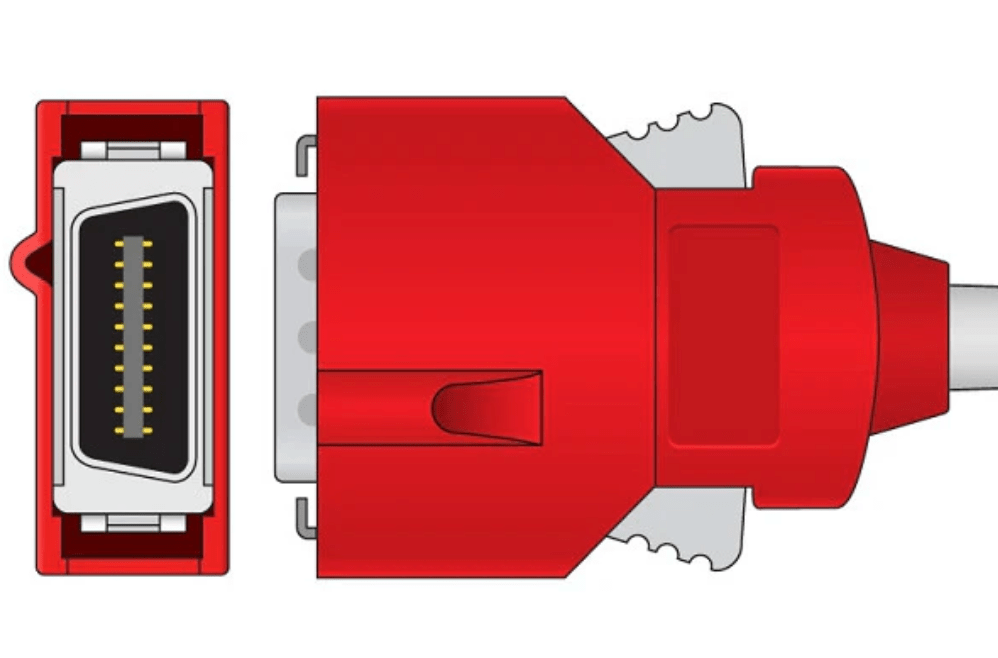

Connector Red direct connect: the monitor plug is built into the sensor cable53
Use Reusable; wipe with 70% isopropyl alcohol between patients1
Natural Rubber Latex Not made with natural rubber latex12
Sterility Non-sterile2
GTIN 00843997001236
Directions for Use Masimo LAB-4116J1

Who Uses This:

  • Fire Departments: Engine and rescue companies on a LIFEPAK 15 carry the 2053 with no cable to pack and use it for rehab and on-scene SpO2 and pulse rate checks on adults.3
  • EMS Agencies: Crews on a Zoll Propaq, X Series or X Series Advanced use it as the adult reusable clip for spot checks and short monitoring windows.41
  • Flight and Critical Care Transport: Transport teams with a LIFEPAK 15 or Zoll monitor keep the 3 ft clip for adult checks and step up to the 2054 when the monitor sits farther from the patient.8
  • Clinics and Urgent Care: Clinics and urgent care sites with a Zoll Propaq or X Series wipe one clip clean between patients and run exam-room SpO2 spot checks on adults.41

Related Products:

Frequently Asked Questions:

Does the Masimo 2053 work on a LIFEPAK 15, a Zoll X Series or a Rad-57?

Yes on the LIFEPAK 15 and the Zoll Propaq, X Series and X Series Advanced, with no patient cable: Stryker lists the adult reusable direct connect sensor 11996-000331 (3 ft),3 and Zoll lists 8000-0332.4 On a Rad-57, the manual's sensor table lists the Red DCI; confirm your Rad-57 with us before ordering.5

What is the difference between the Masimo 2053 Red DCI-dc3 and the rainbow DCI-dc3 (2201)?

The 2053 reads SpO2 and pulse rate only; the 2201 adds SpCO and SpMet on a monitor with those parameters enabled. Stryker files them apart: 11996-000331 under direct connect SpO2 only sensors and 11996-000335 under direct connect rainbow SpO2, SpCO, SpMet sensors.3

Should I buy the 3 ft Masimo 2053 or the 12 ft 2054?

Only the lead differs: both are the Red DCI adult clip for patients over 30 kg with the same accuracy.1 Pick by the distance from the monitor to the patient's hand. Stryker lists 3 ft as 11996-000331 and 12 ft as 11996-000332, the 2054, and Zoll lists only the 3 ft.89

Is the Masimo 2053 the same as the Masimo 2651?

No. The 2053 is the Red DCI-dc3, a hinged clip,12 and the 2651 is the DBI-dc3, a soft sensor.1011 Check the model number on the box, and order the 2053 for Stryker 11996-000331 or Zoll 8000-0332.34

What replaces the Masimo 2053 on a LIFEPAK 35 or a LIFEPAK 20e?

The LIFEPAK 35 guide lists no direct connect sensors; it lists the adult RD SET DCI, 11996-000456 (the 4050), on RD patient cables.6 The LIFEPAK 20e guide lists the LNCS DCI, 11171-000017 (the 1863), on LNC patient cables.7

How do I clean the Masimo 2053 between patients?

Disconnect it, wipe it with a 70% isopropyl alcohol pad and let it dry before the next patient.1 Do not soak or immerse it, and do not sterilize it by irradiation, steam, autoclave or ethylene oxide.1 It is reusable and non-sterile.2

Why does my Masimo 2053 show SEn OFF, Low SIQ or no reading?

On a Rad-57, SEn OFF means the sensor is off the patient: reattach it and verify placement.5 A flashing Low SIQ means rule out occlusion of blood flow, such as a blood pressure cuff, and verify placement; INCSeN means the sensor is not recognized.5 Remove nail polish, cover the detector window fully and do not tape the clip.1

Which finger does the Masimo 2053 go on, and can it go on a toe?

The ring or middle finger of the non-dominant hand is preferred.1 The great toe or the long toe next to it may be used on restrained patients or when the hands are unavailable.1 Press the hinge tabs to open the clip, cover the detector window in the lower half with the fleshiest part of the digit and touch the raised digit stop.1

Is this a genuine Masimo 2053?

Yes. We are an authorized Masimo distributor. Every Masimo 2053 ships new in its original Masimo packaging.

How fast does the Masimo 2053 ship?

Most orders ship within 1 to 2 business days. Expedited and overnight shipping are available at checkout.

How do I order the Masimo 2053 or request a quote?

Add it to your cart on this page, or contact CustomerService@pacificbiomedical.com or 844.436.3526 with SKU MAS-2053. We support net terms for agencies and hospitals and ship to all 50 states.

References
  1. Masimo. Directions for Use, Red DCI and DCI-P adult and pediatric reusable SpO2 sensors. LAB-4116J. techdocs.masimo.com.
  2. U.S. Food and Drug Administration. Global Unique Device Identification Database (GUDID), Masimo model 2053 record (device identifier 00843997001236). accessgudid.nlm.nih.gov.
  3. Stryker. LIFEPAK 15 accessories guide, pulse oximetry accessories (02/2025), pages 8 and 9. stryker.com.
  4. Zoll. X Series and Propaq MD/M pulse oximetry accessories, Zoll web store, item 8000-0332, Red DCI-DC3, 3 ft Adult Reusable Patient Cable/Sensor (compatibility field: Propaq, X Series, X Series Advanced). Reviewed October 2026.
  5. Masimo. Rad-57 Signal Extraction Pulse CO-Oximeter Operator's Manual, sensor tables and troubleshooting. LAB-9204A. techdocs.masimo.com.
  6. Stryker. LIFEPAK 35 accessories guide, pulse oximetry accessories (12/2025). stryker.com.
  7. Stryker. LIFEPAK 20e genuine accessories, GDR 3300292_K, page 7. stryker.com.
  8. Stryker. Masimo sensor selection guide for SpO2 and rainbow (SpO2, SpCO, SpMet), for use with LIFEPAK 15 monitor/defibrillators. GDR 3308460_H, 2019. stryker.com.
  9. Zoll. Zoll web store searches for Red DCI, DC12, DBI and direct connect: the direct connect sensors are the 3 ft Red DCI-DC3 (8000-0332), the 3 ft Red DCIp-DC3 (8000-0333) and the Red Dbi-Dc8 (8000-0377); there is no 12 ft Red DCI item and no other DBI-dc8 item. Reviewed October 2026.
  10. Masimo. Directions for Use, DBI Series LNCS and direct connect reusable soft sensors. LAB-6684C. techdocs.masimo.com.
  11. U.S. Food and Drug Administration. Global Unique Device Identification Database (GUDID), Masimo model 2651 record (device identifier 00843997010764). accessgudid.nlm.nih.gov.
