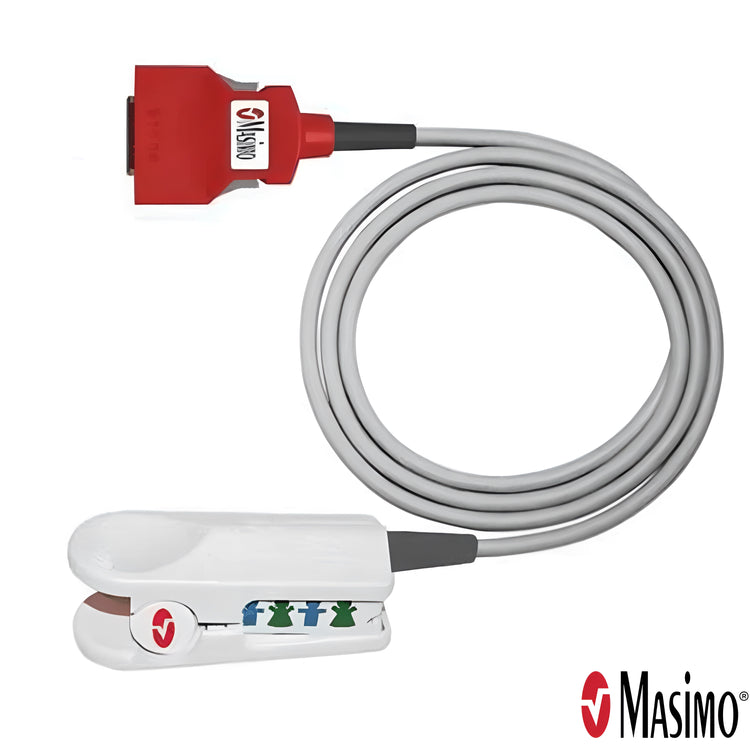

Masimo 2256 Red DCIP-dc3 Pediatric Reusable Direct Connect SpO2 Sensor, 3 ft
This item requires a clinical attestation, confirmed in your cart.
The 2256 is the pediatric Masimo finger probe in the Red line, and a Red sensor reads SpO2 and pulse rate only.3 For a child over 30 kg the adult Red clip is the 2053, and the rainbow pediatric clip that adds SpCO and SpMet is the 2069.
Works With:
| Patient Cable | None needed: the monitor plug is built into the 3 ft sensor cable.35 |
|---|---|
| Monitors |
LIFEPAK 15: pediatric reusable direct connect sensor, 3 ft3 Zoll Propaq, X Series and X Series Advanced: Zoll item "Red DCIp-DC3, 3 ft Pediatric Reusable Patient Cable/Sensor"4 Masimo Rad-57: the Red DCIP, 10 to 50 kg, is in its sensor table; confirm your Rad-57 with us before ordering.5 |
| Not Listed For | LIFEPAK 35: its guide lists no direct connect sensors, so use the 4051 on an RD cable.6 LIFEPAK 20e: its guide lists the LNCS 1864 (11171-000018) on LNC cables.7 |
| Stryker / Physio-Control Number | 11996-000333 (pediatric, 3 ft)38 |
| Zoll Number | 8000-0333 (Red DCIp-DC3, 3 ft)4 |
| Cross-Reference | See the Masimo 2256 row in the Masimo Part Number Cross-Reference |
Product Highlights:
- Accuracy: With Masimo rainbow SET, SpO2 (70 to 100%) is within 2% Arms with no motion, 3% with motion and 2% in low perfusion; pulse rate is within 3 bpm with no motion, 5 bpm with motion and 3 bpm in low perfusion.1
- Pick by size: The 2256 covers 10 to 50 kg; the adult 2053 covers over 30 kg, so a patient between 30 and 50 kg can use either.1
- Fit the window: Choose a digit that completely covers the detector window, because a misapplied or partly dislodged sensor reads high or low.1
- Short windows on still patients: The clip is contraindicated for mobile patients and prolonged use, so move it to a new site at least every 4 hours.1
Specifications:
| Masimo Part Number | 2256 |
|---|---|
| SKU | MAS-2256 |
| Product Family | Red DCIP-dc312 |
| Sensor Type | Reusable direct-connect finger clip12 |
| Parameters | SpO2 and pulse rate1 |
| Patient Weight | Pediatric, 10 to 50 kg1 |
| Cable Length | 3 ft34 |

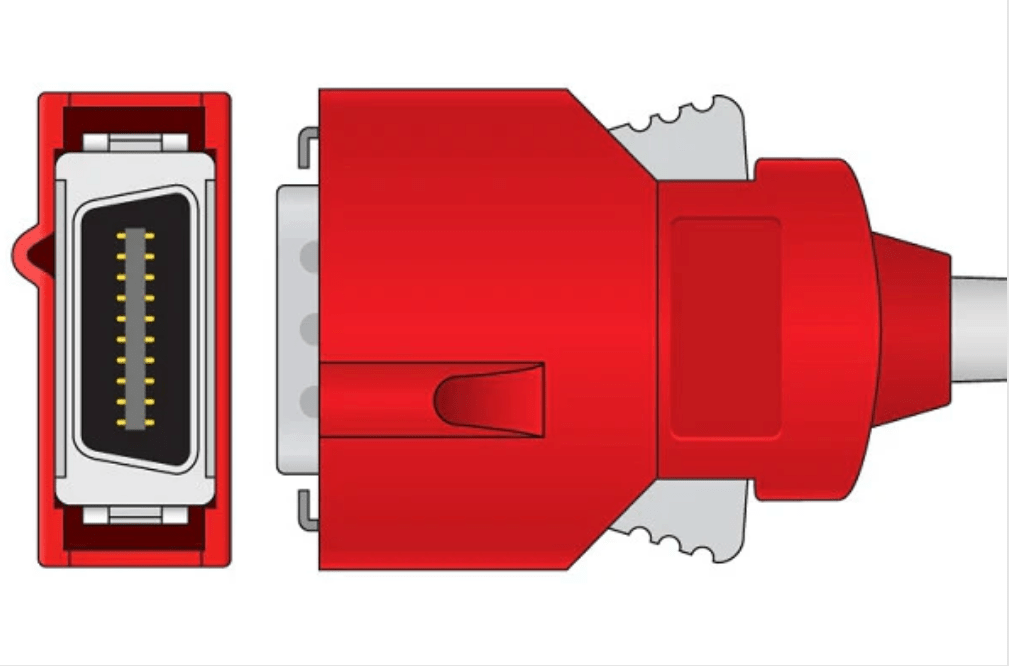

| Connector | Red direct connect: the monitor plug is built into the sensor cable53 |
| Use | Reusable; wipe with 70% isopropyl alcohol between patients1 |
| Natural Rubber Latex | Not made with natural rubber latex12 |
| Sterility | Non-sterile2 |
| GTIN | 00843997001311 |
| Directions for Use | Masimo LAB-4116J1 |
Who Uses This:
- Fire Departments: Engine and rescue companies on a LIFEPAK 15 add the 2256 so that a child of 10 to 50 kg gets a clip sized to the finger, and use it for rehab-area and scene SpO2 checks.31
- EMS Agencies: Crews on a Zoll Propaq, X Series or X Series Advanced use it as the reusable clip on pediatric calls for children of 10 to 50 kg.41
- Flight and Critical Care Transport: Transport teams with a LIFEPAK 15 or Zoll monitor carry it for pediatric SpO2 spot checks between 10 and 50 kg, since patients under 10 kg fall outside its range.31
- Clinics and Urgent Care: Clinics and urgent care sites with a Zoll Propaq or X Series wipe one clip clean between children and run pediatric exam-room spot checks.41
Related Products:
- Masimo 2053 Red DCI-dc3 Adult Reusable Direct Connect SpO2 Sensor, 3 ft
- Masimo 2069 rainbow DCIP-dc3 Pediatric Direct Connect SpCO Sensor, 3 ft
- Masimo 2644 Red DBI-dc8 Adult Soft Reusable Direct Connect SpO2 Sensor, 8 ft
- Masimo 1864 LNCS DCI-P Pediatric Reusable Finger SpO2 Sensor, 3 ft
- Masimo SpO2 Sensors
Frequently Asked Questions:
What size child is the Masimo 2256 Red DCIP-dc3 for?
Children from 10 to 50 kg (about 22 to 110 lb), on a finger.1 Patients under 10 kg are outside that range. Between 30 and 50 kg the adult 2053 also applies, so use the clip whose detector window the finger covers completely.1
Does the Masimo 2256 work on a LIFEPAK 15, Zoll X Series or Rad-57?
Yes, with no patient cable. For the LIFEPAK 15, Stryker's pediatric reusable direct connect sensor is 11996-000333 (3 ft); for the Zoll Propaq, X Series and X Series Advanced, Zoll lists 8000-0333.34 On a Rad-57, the manual's sensor table lists the Red DCIP at 10 to 50 kg; confirm your Rad-57 with us before ordering.5
Does the Masimo 2256 read SpCO or SpMet, and is there a rainbow pediatric option?
No: it reads SpO2 and pulse rate only, and Stryker files it under direct connect SpO2 only sensors.3 The rainbow pediatric direct connect clip that adds SpCO and SpMet is the 2069, Stryker 11996-000337, 3 ft, on a monitor with those parameters enabled.8
Do I need the pediatric Masimo 2256 or the adult 2053?
Choose by patient size and finger. The 2256 is for 10 to 50 kg and the 2053 for over 30 kg, both Red direct connect clips with a 3 ft lead.1 A clip that does not fit the digit can read high or low.1
Should I buy the 3 ft Masimo 2256 or the 12 ft Red DCIP-dc12?
The 12 ft Red DCIP-dc12 is the 2257, Stryker 11996-000334; the 2256 is 3 ft, Stryker 11996-000333 and Zoll 8000-0333.84 Zoll lists no 12 ft Red DCI-P.9 Ask us for the 2257.
Can the Masimo 2256 stay on a child for continuous monitoring or a move?
Use it on a calm child for spot checks or short monitoring: the clip is contraindicated for mobile patients and prolonged use.1 Re-site it at least every 4 hours, assess the site at least every 2 hours when perfusion is poor, and look for skin erosion or pressure necrosis under the clip.1 Tape is not a fix for a clip that will not stay on, because it can restrict blood flow.1
Why does my Masimo 2256 drop out or read low on a child?
A misapplied or partly dislodged clip can read high or low.1 Check that the digit covers the detector window, remove nail polish, avoid a limb with a blood pressure cuff and keep the sensor from hanging below heart level.1 On a Rad-57, a flashing Low SIQ means rule out occlusion of blood flow and verify placement.5
Does the Masimo 2256 work on a LIFEPAK 35?
No. The LIFEPAK 35 guide lists no direct connect sensors.6 For a child on that monitor it lists the pediatric RD SET DCI-P, 11996-000455 (the 4051), on RD patient cables.6
Is this a genuine Masimo 2256?
Yes. We are an authorized Masimo distributor. Every Masimo 2256 ships new in its original Masimo packaging.
How fast does the Masimo 2256 ship?
Most orders ship within 1 to 2 business days. Expedited and overnight shipping are available at checkout.
How do I order the Masimo 2256 or request a quote?
Add it to your cart on this page, or contact CustomerService@pacificbiomedical.com or 844.436.3526 with SKU MAS-2256. We support net terms for agencies and hospitals and ship to all 50 states.
References
- Masimo. Directions for Use, Red DCI and DCI-P adult and pediatric reusable SpO2 sensors. LAB-4116J. techdocs.masimo.com.
- U.S. Food and Drug Administration. Global Unique Device Identification Database (GUDID), Masimo model 2256 record (device identifier 00843997001311). accessgudid.nlm.nih.gov.
- Stryker. LIFEPAK 15 accessories guide, pulse oximetry accessories (02/2025), pages 8 and 9. stryker.com.
- Zoll. X Series and Propaq MD/M pulse oximetry accessories, Zoll web store, item 8000-0333, Red DCIp-DC3, 3 ft Pediatric Reusable Patient Cable/Sensor (compatibility field: Propaq, X Series, X Series Advanced). Reviewed October 2026.
- Masimo. Rad-57 Signal Extraction Pulse CO-Oximeter Operator's Manual, sensor tables and troubleshooting. LAB-9204A. techdocs.masimo.com.
- Stryker. LIFEPAK 35 accessories guide, pulse oximetry accessories (12/2025). stryker.com.
- Stryker. LIFEPAK 20e genuine accessories, GDR 3300292_K, page 7. stryker.com.
- Stryker. Masimo sensor selection guide for SpO2 and rainbow (SpO2, SpCO, SpMet), for use with LIFEPAK 15 monitor/defibrillators. GDR 3308460_H, 2019. stryker.com.
- Zoll. Zoll web store searches for Red DCI, DC12, DBI and direct connect: the direct connect sensors are the 3 ft Red DCI-DC3 (8000-0332), the 3 ft Red DCIp-DC3 (8000-0333) and the Red Dbi-Dc8 (8000-0377); there is no 12 ft Red DCI item and no other DBI-dc8 item. Reviewed October 2026.
