Masimo 2069 rainbow DCIP-dc3 Pediatric Direct Connect SpCO Sensor, 3 ft
This item requires a clinical attestation, confirmed in your cart.
The 2069 is the pediatric finger probe with the monitor plug built in. The adult 3 ft direct-connect sensor is the 2201. A pediatric clip on a separate cable is the 2697 for rainbow RC cables or the 4068 for RD rainbow SET cables.
Works With:
| Patient Cable | None needed: the monitor plug is built into the 3 ft sensor cable.3 |
|---|---|
| Monitors |
LIFEPAK 15: pediatric direct connect rainbow sensor, 3 ft, in Stryker's 2019 guide3 Masimo Rad-57: the manual gives the pediatric rainbow direct connect sensor SpO2 and SpMet accuracy, no SpCO; for SpCO use the 2697 on an RC cable.7 Stryker's 02/2025 LIFEPAK 15 guide lists only the 8 ft pediatric direct connect sensor, 11171-000033 (Masimo 2640; ask us for the 2640).42 |
| Not Listed For | LIFEPAK 35: its 12/2025 guide lists no direct connect sensors, so use the 4068 on an RD cable.5 |
| Stryker / Physio-Control Number | 11996-00033723 |
| Zoll Number | None listed for the 2069. Zoll's web store lists only the 8 ft pediatric DCIp-8, 8000-0345.62 |
| Cross-Reference | See the Masimo 2069 row in the Masimo Part Number Cross-Reference |
Product Highlights:
- Pediatric size: 10 to 50 kg; the model is a pediatric/slender digit sensor.21
- No patient cable: The monitor plug is built into the 3 ft lead, so the sensor needs no cable and no RC or RD pairing.3
- Which Stryker guide: The 2019 guide lists the 3 ft pediatric sensor as 11996-000337; the 02/2025 guide lists the 8 ft, 11171-000033.34
- Spot checks and short monitoring: The cabled rainbow DCI-P directions contraindicate mobile patients and prolonged use and add that a poorly perfused child's site can need assessment as often as every hour.8 Otherwise reposition a reusable sensor at least every 4 hours unless its directions say otherwise.7
Specifications:
| Masimo Part Number | 2069 |
|---|---|
| SKU | MAS-2069 |
| Product Family | rainbow DCIP-dc31 |
| Sensor Type | Reusable direct-connect finger clip1 |
| Parameters | SpO2, SpCO, SpMet, pulse rate12 |
| Patient Weight | Pediatric and slender-digit adult, 10 to 50 kg21 |
| Cable Length | 3 ft3 |

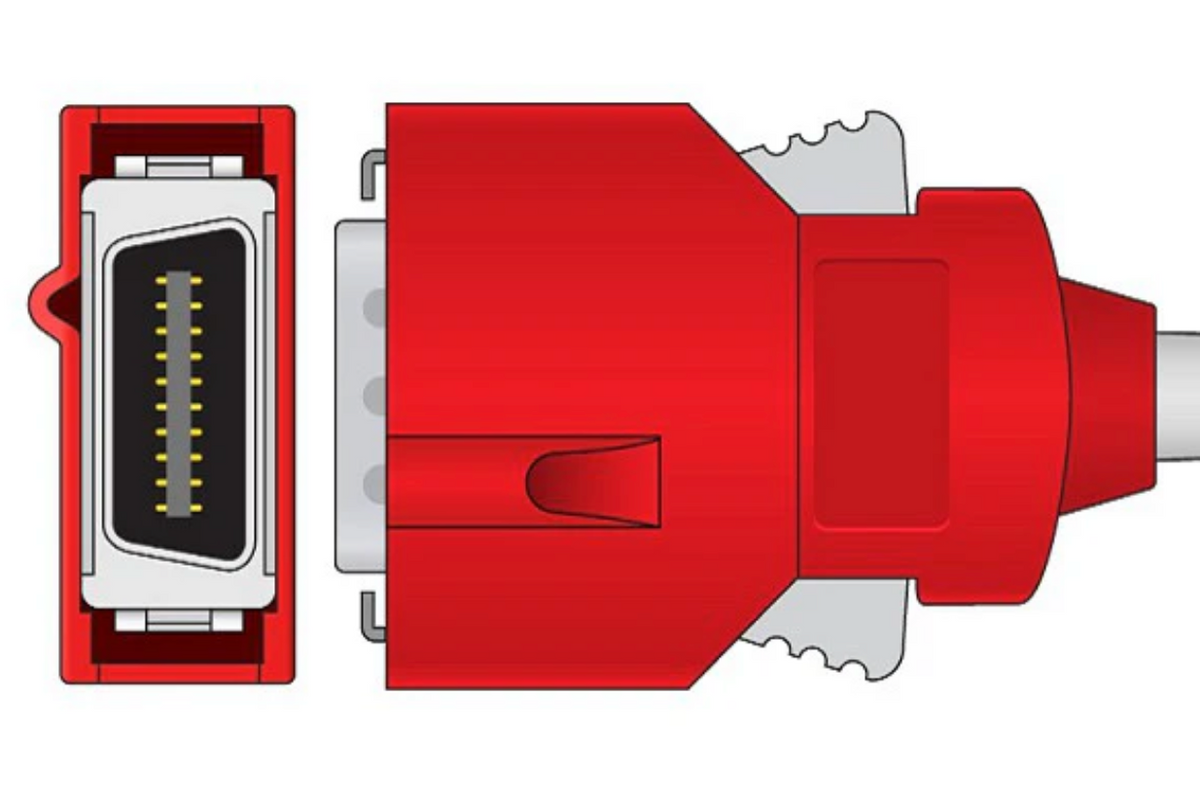

| Connector | Direct connect: the monitor plug is built into the sensor cable3 |
| Use | Reusable; wipe with 70% isopropyl alcohol between patients7 |
| Natural Rubber Latex | Not made with natural rubber latex1 |
| Sterility | Non-sterile1 |
| GTIN | 00843997001700 |
Who Uses This:
- Fire Departments: Headache, nausea, vomiting, drowsiness and flushed skin signal a mild carbon monoxide exposure,9 and a LIFEPAK 15 crew uses the 2069 to add an SpCO value to a child showing those signs.3
- EMS Agencies: LIFEPAK 15 crews use the 2069 as the 3 ft pediatric direct connect sensor beside the adult 2201.3
- Flight and Critical Care Transport: Pediatric transport teams on a LIFEPAK 15 use the 2069 for SpCO and SpMet spot checks of children from 10 kg.32
- Clinics and Urgent Care: Pediatric clinic and urgent care staff screen a child over 10 kg after possible CO exposure with the 2069.3
Related Products:
- Masimo 2201 rainbow DCI-dc3 Adult Direct Connect SpCO Sensor, 3 ft
- Masimo 2697 rainbow DCI-P Pediatric Reusable SpCO Sensor, 3 ft
- Masimo 4068 LNCS-II rainbow DCIP 8λ Pediatric Reusable SpCO Sensor, 3 ft
- Masimo 2220 rainbow R20-L Infant Adhesive SpCO Sensor, 10/Box
- Masimo rainbow Sensors (SpO2, SpCO, SpMet)
Frequently Asked Questions:
Is the Masimo 2069 still the LIFEPAK 15 pediatric direct connect sensor, or is it the 8 ft 2640?
Stryker's 2019 sensor guide lists both: the 3 ft pediatric (11996-000337, this 2069) and the 8 ft (11171-000033, the Masimo 2640). Its 02/2025 LIFEPAK 15 guide lists only the 8 ft.342 If your crew needs the 3 ft lead, order the 2069; if you follow the current Stryker guide, check the lead length on your last sensor.
Which monitors is the Masimo 2069 listed for, and is there a Zoll number?
The LIFEPAK 15, through Stryker 11996-000337 in its 2019 guide.3 Zoll's web store carries no 3 ft rainbow direct connect sensor; its pediatric item is the 8 ft DCIp-8, 8000-0345, for the Propaq, X Series and X Series Advanced.6 The LIFEPAK 35 guide lists no direct connect sensors.5
What size patient is the Masimo 2069 for, and can an adult with slender fingers use it?
It is a pediatric/slender digit sensor for 10 to 50 kg, which puts a slender-fingered adult over 30 kg inside its range.12 A child under 10 kg needs an adhesive sensor: the R20-L (2220) covers 3 to 30 kg on an RC cable.7
What is the difference between the Masimo 2069 and the 2697?
Both are 10 to 50 kg pediatric finger clips for SpO2, SpCO and SpMet with a 3 ft lead. The 2069 plugs into the monitor; the 2697 ends in an M15 connector and needs an RC cable (RC-1, RC-4 or RC-4 EMS).18 Stryker lists them as 11996-000337 and 11171-000050.3
Is the Masimo 2069 the same as the Red DCIP-dc3?
No. The Red DCIP-dc3 reads SpO2 only; Stryker files it under direct connect SpO2 only sensors (11996-000333) and Zoll sells it as 8000-0333.46 The rainbow 2069 adds SpCO and SpMet on a monitor with those parameters enabled.1
Can the Masimo 2069 stay on a child for a long transport?
It suits spot checks and short monitoring, not a long transport: the cabled rainbow DCI-P directions contraindicate mobile patients and prolonged use.8 If it stays on, reposition a reusable sensor at least every 4 hours unless its directions say otherwise, and move it if circulation or skin integrity is compromised.7 A poorly perfused child's site can need assessment as often as every hour;8 for low perfusion an adhesive sensor such as the R20 (2222) suits better.7
How do I clean the Masimo 2069 between children?
Remove the sensor from the patient, disconnect the lead from the monitor, wipe the whole sensor with a 70% isopropyl alcohol pad and air dry it thoroughly before the next patient.7 Do not immerse it, and do not sterilize it by irradiation, steam, autoclave or ethylene oxide.7
Is this a genuine Masimo 2069?
Yes. We are an authorized Masimo distributor. Every Masimo 2069 ships new in its original Masimo packaging.
How fast does the Masimo 2069 ship?
Most orders ship within 1 to 2 business days. Expedited and overnight shipping are available at checkout.
How do I order the Masimo 2069 or request a quote?
Add it to your cart on this page, or contact CustomerService@pacificbiomedical.com or 844.436.3526 with SKU MAS-2069. We support net terms for agencies and hospitals and ship to all 50 states.
References
- U.S. Food and Drug Administration. Global Unique Device Identification Database (GUDID), Masimo model 2069 record (device identifier 00843997001700). accessgudid.nlm.nih.gov.
- Masimo Sensor Cross Reference (Stryker/Physio-Control and Zoll catalog numbers), rev. January 2025, with Stryker and Zoll catalog checks, reviewed October 2026.
- Stryker. Masimo sensor selection guide for SpO2 and rainbow (SpO2, SpCO, SpMet), for use with LIFEPAK 15 monitor/defibrillators. GDR 3308460_H, 2019. stryker.com.
- Stryker. LIFEPAK 15 monitor/defibrillator accessories guide, 02/2025. stryker.com.
- Stryker. LIFEPAK 35 monitor/defibrillator accessories guide, 12/2025. stryker.com.
- Zoll. Zoll web store, X Series and Propaq MD pulse oximetry category, reviewed October 2026: Rainbow DCIp-8, 8 ft pediatric, 8000-0345, and Rainbow DCI-DC8, 8 ft adult, 8000-0343 (compatibility field: Propaq, X Series, X Series Advanced); Red DCIp-DC3, 3 ft pediatric, 8000-0333; no 3 ft rainbow direct connect item.
- Masimo. Rad-57 Signal Extraction Pulse CO-Oximeter Operator's Manual. LAB-9204A. techdocs.masimo.com.
- Masimo. Directions for Use, rainbow DC Series reusable SpCO, SpMet and SpO2 sensors (rainbow DCI and DCI-P). LAB-4869K. techdocs.masimo.com.
- U.S. Fire Administration. Emergency Incident Rehabilitation. FA-314, February 2008. usfa.fema.gov.
