Masimo 2201 rainbow DCI-dc3 Adult Direct Connect SpCO Sensor, 3 ft

This item requires a clinical attestation, confirmed in your cart.

SKU: MAS-2201

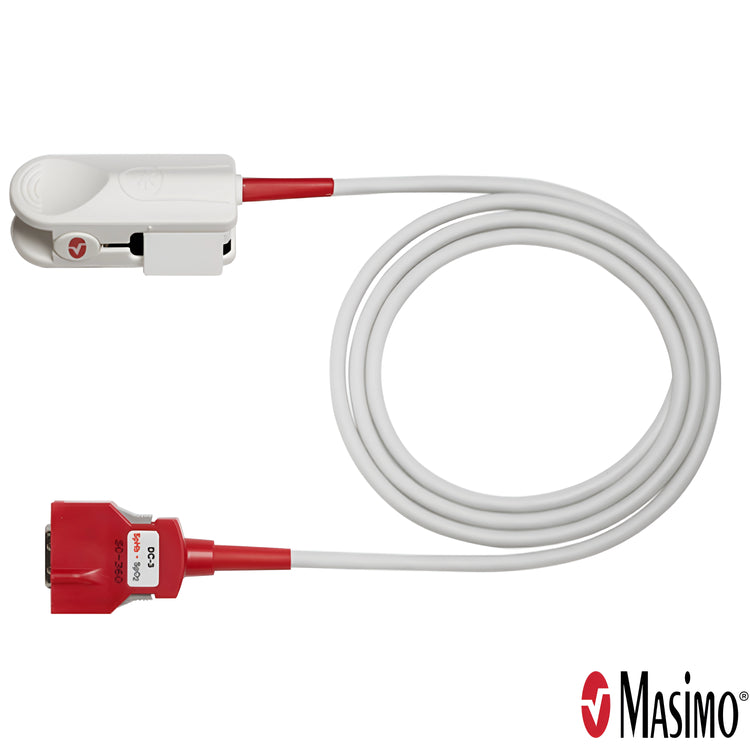

The Masimo 2201 rainbow DCI-dc3 is a reusable direct-connect finger-clip Pulse CO-Oximetry sensor for adult patients over 30 kg that measures SpO2, SpCO, SpMet and pulse rate.12 Its 3 ft lead plugs straight into the monitor, so no patient cable is needed, on the LIFEPAK 15 with SpCO and SpMet enabled.3 The Stryker/Physio-Control number is 11996-000335.4 We supply the genuine Masimo 2201.

The 2201 is the adult finger probe with the monitor plug built in. The 8 ft version is the 2407 and the pediatric 3 ft direct-connect sensor is the 2069. A finger clip on a separate cable is the 2696 for rainbow RC cables or the 4067 for RD rainbow SET cables.

Works With:

Patient Cable None needed: the monitor plug is built into the 3 ft sensor cable.3
Monitors LIFEPAK 15: adult direct connect rainbow sensor, 3 ft35
Stryker's online store files 11996-000335 under LIFEPAK 15 with the 2201's GTIN as its UPC.6
Not Listed For LIFEPAK 35: its 12/2025 guide lists no direct connect sensors, so use the 4067 on an RD cable.7
Stryker / Physio-Control Number 11996-0003354
Zoll Number None listed for the 2201. Zoll's web store lists only the 8 ft DCI-DC8, 8000-0343, which is the 2407.84
Cross-Reference See the Masimo 2201 row in the Masimo Part Number Cross-Reference

Product Highlights:

  • Lead lengths: Stryker lists the adult rainbow direct connect sensor in 3 ft (11996-000335, this 2201), 8 ft (11171-000032, the 2407) and, in its 2019 guide, 12 ft (11996-000336).53
  • Pediatric option: The 3 ft direct-connect sensor for 10 to 50 kg is the 2069.4
  • Spot checks and short monitoring: Reposition a reusable sensor at least every 4 hours unless its directions say otherwise.9 The directions for the cabled rainbow DCI add that a poorly perfused patient's site can need assessment as often as every hour.10
  • Reusable: Wipe with a 70% isopropyl alcohol pad between patients; do not immerse it or sterilize it by irradiation, steam, autoclave or ethylene oxide.9

Specifications:

Masimo Part Number 2201
SKU MAS-2201
Product Family rainbow DCI-dc31
Sensor Type Reusable direct-connect finger clip12
Parameters SpO2, SpCO, SpMet, pulse rate14
Patient Weight Adult, over 30 kg2
Cable Length 3 ft23

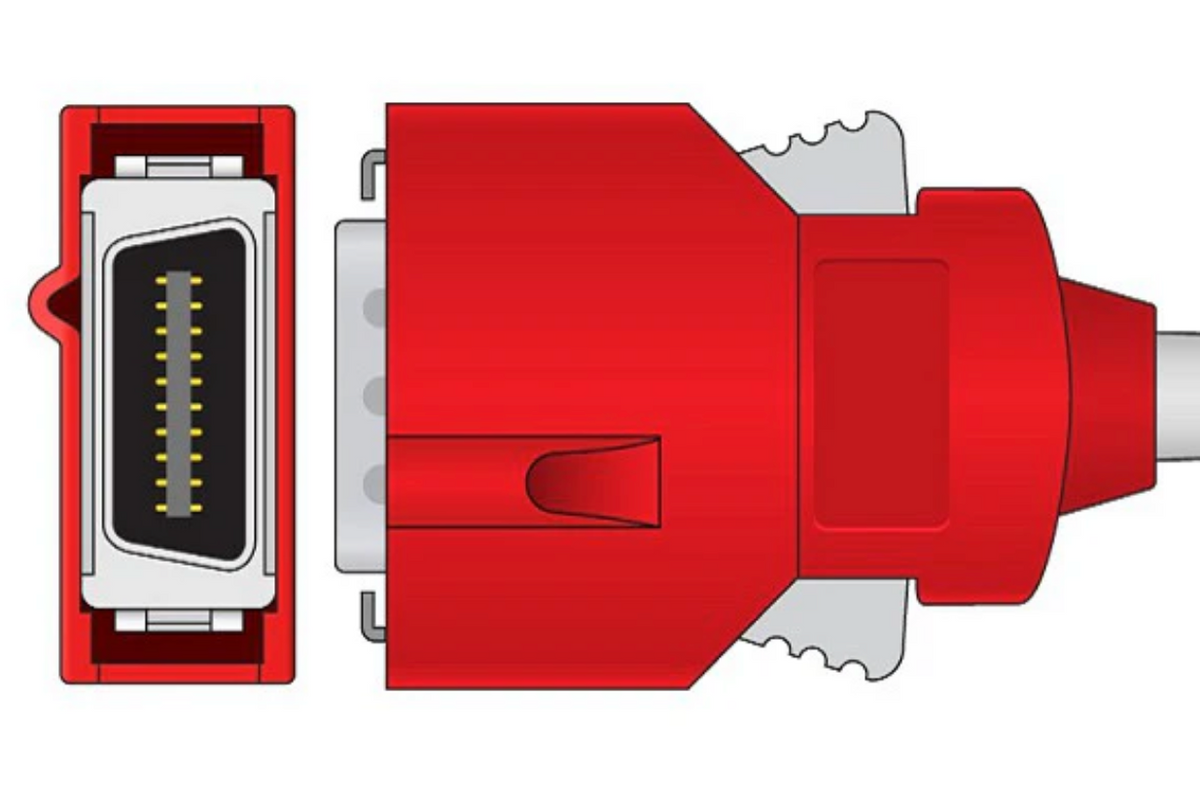

Connector Direct connect: the monitor plug is built into the sensor cable3
Use Reusable; wipe with 70% isopropyl alcohol between patients9
Natural Rubber Latex Not made with natural rubber latex1
Sterility Non-sterile1
GTIN 00843997001663

Who Uses This:

  • Fire Departments: Rehab entry vital signs include blood pressure, pulse and temperature,11 and a company on a LIFEPAK 15 adds SpCO and SpMet to a seated adult's check with the 2201.3
  • EMS Agencies: LIFEPAK 15 crews use the 2201 when the monitor sits within reach of the patient and the 8 ft 2407 when it does not.3
  • Flight and Critical Care Transport: Transport crews on a LIFEPAK 15 keep the cable count down by using the 2201 for adult CO and methemoglobin spot checks.3
  • Clinics and Urgent Care: Urgent care and clinic staff screen an adult after possible CO exposure with the 2201 at the bedside.3

Related Products:

Frequently Asked Questions:

Can I use a rainbow RC cable with the Masimo 2201?

No. An RC cable locks onto a sensor connector, and the 2201 has none: its lead ends in the monitor plug. Stryker lists it under direct connect rainbow sensors, apart from the RC patient cables (11171-000069, -000037, -000038, and the RC-4 EMS 11171-000082).5 For a finger clip that uses an RC cable, order the 2696.10

Which monitors is the Masimo 2201 listed for, and why is there no Zoll number?

The LIFEPAK 15: Stryker 11996-000335 appears in its 2019 and 02/2025 guides, and its online store files the listing under LIFEPAK 15.536 Zoll's web store carries no 3 ft rainbow direct connect sensor; it lists the 8 ft DCI-DC8 (8000-0343, the 2407) for the Propaq, X Series and X Series Advanced.84 The LIFEPAK 35 guide lists none.7

What is the difference between the Masimo 2201 DCI-dc3, the DCI-dc8 and the DCI-dc12?

Lead length only. The dc3 (2201) has a 3 ft lead, the dc8 (2407) 8 ft and the dc12 (Masimo 2202; ask us for the 2202) 12 ft. Stryker lists them as 11996-000335, 11171-000032 and 11996-000336; its 02/2025 LIFEPAK 15 guide keeps the 3 ft and 8 ft.534

Is the Masimo 2201 the same as the Red DCI-dc3?

No. The Red DCI-dc3 is an SpO2-only direct connect sensor; Stryker files it under direct connect SpO2 only sensors as 11996-000331 and Zoll sells it as 8000-0332.38 The rainbow 2201 adds SpCO and SpMet on a monitor with those parameters enabled, and the Rad-57 manual lists Red sensors for SpO2 and pulse rate only.9

Does the Masimo 2201 read SpCO on a Rad-57?

The Rad-57 manual lists rainbow direct connect sensors by length, DC-3 and DC-12 for adults over 30 kg, with SpO2 and SpMet accuracy and no SpCO figure, and prints no part numbers.9 For SpCO on a Rad-57, Masimo shows the 2696 with RC-1 and RC-4 cables.12

What do I use for a child with the Masimo 2201 setup?

The 2201 is for adults over 30 kg. A child from 10 to 50 kg takes the 3 ft pediatric direct connect 2069 on the same port.4 Under 10 kg needs an adhesive sensor, such as the R20-L (2220) for 3 to 30 kg on an RC cable.9

How often must the Masimo 2201 be moved to a new site?

At least every 4 hours, unless its directions say otherwise, and sooner if circulation or skin integrity is compromised.9 The cabled rainbow DCI directions say to assess the site as often as every hour on a poorly perfused patient;10 an adhesive sensor such as the 2221 R25 suits low perfusion.9

Is this a genuine Masimo 2201?

Yes. We are an authorized Masimo distributor. Every Masimo 2201 ships new in its original Masimo packaging.

How fast does the Masimo 2201 ship?

Most orders ship within 1 to 2 business days. Expedited and overnight shipping are available at checkout.

How do I order the Masimo 2201 or request a quote?

Add it to your cart on this page, or contact CustomerService@pacificbiomedical.com or 844.436.3526 with SKU MAS-2201. We support net terms for agencies and hospitals and ship to all 50 states.

References
  1. U.S. Food and Drug Administration. Global Unique Device Identification Database (GUDID), Masimo model 2201 record (device identifier 00843997001663). accessgudid.nlm.nih.gov.
  2. Masimo. rainbow Reusables: SpCO sensors for RD rainbow SET patient cables, and direct connect sensors (masimo.co.uk). masimo.co.uk.
  3. Stryker. LIFEPAK 15 monitor/defibrillator accessories guide, 02/2025. stryker.com.
  4. Masimo Sensor Cross Reference (Stryker/Physio-Control and Zoll catalog numbers), rev. January 2025, with Stryker and Zoll catalog checks, reviewed October 2026.
  5. Stryker. Masimo sensor selection guide for SpO2 and rainbow (SpO2, SpCO, SpMet), for use with LIFEPAK 15 monitor/defibrillators. GDR 3308460_H, 2019. stryker.com.
  6. Stryker. Emergency Care online shop, Masimo Rainbow DCI-DC3 Adult Reusable Direct Connect Sensor, 3 ft, catalog 11996-000335, filed under LIFEPAK 15 with UPC 00843997001663, reviewed October 2026.
  7. Stryker. LIFEPAK 35 monitor/defibrillator accessories guide, 12/2025. stryker.com.
  8. Zoll. Zoll web store, X Series and Propaq MD pulse oximetry category, reviewed October 2026: Rainbow DCI-DC8, 8 ft, 8000-0343, and Rainbow DCIp-8, 8 ft, 8000-0345 (compatibility field: Propaq, X Series, X Series Advanced); Red DCI-DC3, 3 ft, 8000-0332; Red DCIp-DC3, 3 ft, 8000-0333; no 3 ft rainbow direct connect item.
  9. Masimo. Rad-57 Signal Extraction Pulse CO-Oximeter Operator's Manual. LAB-9204A. techdocs.masimo.com.
  10. Masimo. Directions for Use, rainbow DC Series reusable SpCO, SpMet and SpO2 sensors (rainbow DCI and DCI-P). LAB-4869K. techdocs.masimo.com.
  11. U.S. Fire Administration. Emergency Incident Rehabilitation. FA-314, February 2008. usfa.fema.gov.
  12. Masimo. Rad-57 handheld Pulse CO-Oximeter, options and accessories (masimo.co.uk). masimo.co.uk.
