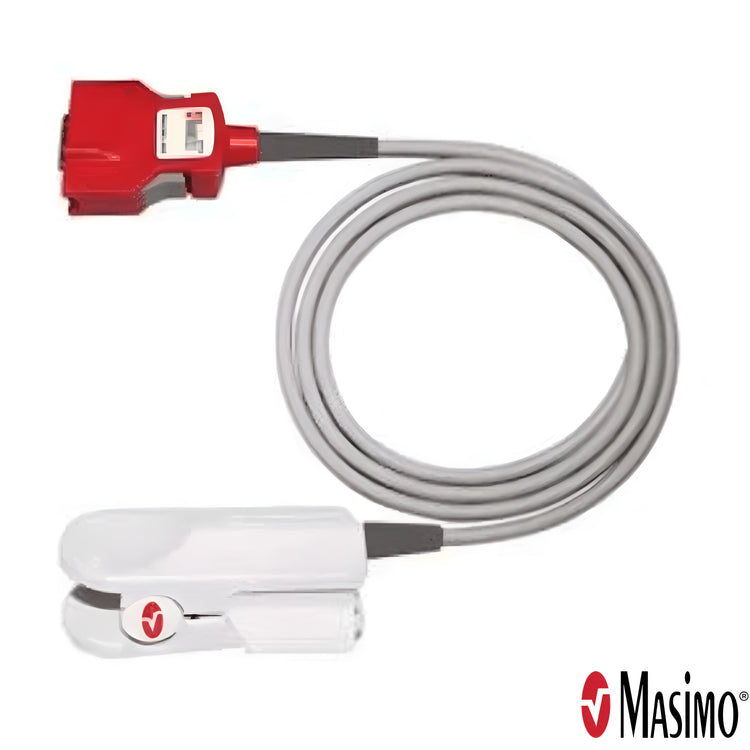

Masimo 2054 Red DCI-dc12 Adult Reusable Direct Connect SpO2 Sensor, 12 ft

This item requires a clinical attestation, confirmed in your cart.

SKU: MAS-2054
The Masimo 2054 Red DCI-dc12 is a reusable direct-connect finger clip sensor for adult patients over 30 kg that measures SpO2 and pulse rate.12 Its 12 ft lead plugs straight into the monitor, so no patient cable is needed, and Stryker's 2019 sensor selection guide lists it for the LIFEPAK 15.3 The Stryker/Physio-Control number is 11996-000332.34 We supply the genuine Masimo 2054.

The 2054 is the 12 ft Masimo finger probe in the Red line: DCI-dc12 means a 12 ft lead; the 3 ft version is the 2053.4 Zoll lists no 12 ft Red DCI, so there is no Zoll number for the 2054.5

Works With:

Patient Cable None needed: the monitor plug is built into the 12 ft sensor cable.36
Monitors LIFEPAK 15: Stryker's 2019 sensor selection guide lists the adult Red reusable sensor, 12 ft; the 02/2025 accessories guide lists the 3 ft 2053 instead, and Stryker's online store files 11996-000332 under LIFEPAK 15374
Masimo Rad-57: the Red DCI is in its sensor table; confirm your Rad-57 with us before ordering.6
Not Listed For Zoll Propaq, X Series and X Series Advanced: Zoll lists the 3 ft 2053 and no 12 ft Red DCI.5
LIFEPAK 35: its guide lists no direct connect sensors, so use the 4050 on the 12 ft RD cable.8
Stryker / Physio-Control Number 11996-000332 (adult, 12 ft)34
Zoll Number None listed for the 2054. Zoll lists the 3 ft Red DCI-DC3, 8000-0332, and no 12 ft Red DCI.5
Cross-Reference See the Masimo 2054 row in the Masimo Part Number Cross-Reference

Product Highlights:

  • Accuracy: With Masimo rainbow SET, SpO2 (70 to 100%) is within 2% Arms with no motion, 3% with motion and 2% in low perfusion; pulse rate is within 3 bpm with no motion, 5 bpm with motion and 3 bpm in low perfusion.1
  • Pick by reach: Stryker lists the adult Red clip in 3 ft (11996-000331) and 12 ft (11996-000332) leads; the 12 ft lead suits a monitor that sits beyond the 3 ft 2053.3
  • Weight range: The Red DCI is for patients over 30 kg; the Red DCI-P covers 10 to 50 kg.1
  • Short windows on still patients: The clip is contraindicated for mobile patients and prolonged use, so move it to a new site at least every 4 hours and assess the site at least every 2 hours on poorly perfused patients.1
  • Skin care: Assess the site at least every 4 hours and do not tape the clip, because tape can restrict blood flow and damage the skin or the sensor.1

Specifications:

Masimo Part Number 2054
SKU MAS-2054
Product Family Red DCI-dc1212
Sensor Type Reusable direct-connect finger clip12
Parameters SpO2 and pulse rate1
Patient Weight Adult, over 30 kg1
Cable Length 12 ft34

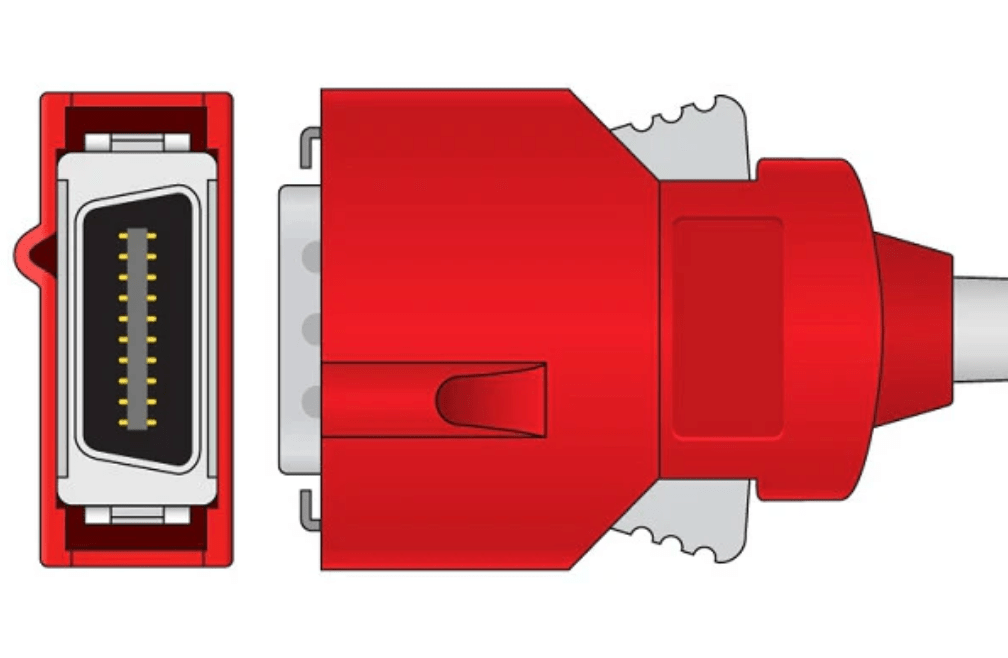

Connector Red direct connect: the monitor plug is built into the sensor cable63
Use Reusable; wipe with 70% isopropyl alcohol between patients1
Natural Rubber Latex Not made with natural rubber latex12
Sterility Non-sterile2
GTIN 00843997001243
Directions for Use Masimo LAB-4116J1

Who Uses This:

  • Fire Departments: Engine and rescue companies on a LIFEPAK 15 use the 12 ft lead for rehab and on-scene SpO2 and pulse rate checks on adults when the monitor sits beyond a 3 ft lead.3
  • EMS Agencies: Crews who find 3 ft too short for the monitor position use the 12 ft Red clip for adult spot checks.3
  • Flight and Critical Care Transport: Transport teams with the monitor mounted away from the patient's hand run the 12 ft lead with no patient cable to connect and use it for short adult SpO2 checks.3
  • Clinics and Urgent Care: Clinics and urgent care sites with a LIFEPAK 15 run adult SpO2 spot checks in a procedure bay where the monitor sits across the room from the stretcher.3

Related Products:

Frequently Asked Questions:

Is the Masimo 2054/12 the same as the 2054 Red DCI-dc12?

Yes. The 2054 is the 12 ft Red DCI-dc12.2 Stryker's web title for 11996-000332 reads DCI-DC3 with 12 FT, while its item description reads DCI-DC12, ADULT REUSE SENSOR, 12FT, so a DC3 title on a 12 ft listing is a title quirk, not a 3 ft sensor.4

Does the Masimo 2054 work on a LIFEPAK 15, and what is the Stryker number?

Yes. Stryker's 2019 sensor selection guide lists the adult Red reusable sensor, 12 ft, as 11996-000332 for the LIFEPAK 15.3 The 02/2025 accessories guide lists the 3 ft 11996-000331 and the 8 ft soft 11171-000053, not a 12 ft, so confirm the length you want before you order.7

Does the Masimo 2054 work on a Zoll X Series or Propaq?

Zoll lists no 12 ft Red DCI, so there is no Zoll number for the 2054.5 Zoll lists the 3 ft Red DCI-DC3, 8000-0332, for the Propaq, X Series and X Series Advanced, which is the 2053.9 Send us your monitor model and we confirm what to order.

Can the Masimo 2054 stay on for continuous monitoring during a long transport?

Not for prolonged use. It is indicated for spot checks or continuous monitoring but contraindicated for mobile patients and prolonged use.1 Move it to a different site at least every 4 hours, and assess the site at least every 2 hours on poorly perfused patients.1

What patient weight is the Masimo 2054 for, and is there a pediatric 12 ft?

Over 30 kg. The Red DCI is the adult clip. Patients from 10 to 50 kg take the Red DCI-P.1 The 2256 is the 3 ft version, and the 12 ft Red DCIP-dc12 is Stryker 11996-000334; ask us for the 2257.3

Can a LIFEPAK 35 use the Masimo 2054?

No. The LIFEPAK 35 guide lists no direct connect sensors.8 It lists the adult RD SET DCI, 11996-000456 (the 4050), on RD patient cables, including the 12 ft 11996-000457 for long reach.8

How long does the Masimo 2054 last, and when do I replace it?

Replace it when the monitor shows a replace-sensor message, when Low SIQ keeps showing on consecutive patients after troubleshooting, or when it has visible damage or exposed circuitry.1 On a Rad-57, RPL SeN means sensor life expired.6 X-Cal tracks monitoring time; no hour rating is printed for the Red DCI.1

Can the Masimo 2054 go on a toe?

Yes, on restrained patients or when the hands are unavailable: the great toe or the long toe next to it.1 The ring or middle finger of the non-dominant hand is the preferred site, and the site must be clean, dry and fully covered by the detector window.1

Is this a genuine Masimo 2054?

Yes. We are an authorized Masimo distributor. Every Masimo 2054 ships new in its original Masimo packaging.

How fast does the Masimo 2054 ship?

Most orders ship within 1 to 2 business days. Expedited and overnight shipping are available at checkout.

How do I order the Masimo 2054 or request a quote?

Add it to your cart on this page, or contact CustomerService@pacificbiomedical.com or 844.436.3526 with SKU MAS-2054. We support net terms for agencies and hospitals and ship to all 50 states.

References
  1. Masimo. Directions for Use, Red DCI and DCI-P adult and pediatric reusable SpO2 sensors. LAB-4116J. techdocs.masimo.com.
  2. U.S. Food and Drug Administration. Global Unique Device Identification Database (GUDID), Masimo model 2054 record (device identifier 00843997001243). accessgudid.nlm.nih.gov.
  3. Stryker. Masimo sensor selection guide for SpO2 and rainbow (SpO2, SpCO, SpMet), for use with LIFEPAK 15 monitor/defibrillators. GDR 3308460_H, 2019. stryker.com.
  4. Stryker. Online store listing, catalog 11996-000332, filed under LIFEPAK 15 equipment: web title 'Masimo RED DCI-DC3, Adult Reusable Direct Connect Sensor (12 FT)', item description 'RED DCI-DC12, ADULT REUSE SENSOR, 12FT, REF'. Reviewed October 2026.
  5. Zoll. Zoll web store searches for Red DCI, DC12, DBI and direct connect: the direct connect sensors are the 3 ft Red DCI-DC3 (8000-0332), the 3 ft Red DCIp-DC3 (8000-0333) and the Red Dbi-Dc8 (8000-0377); there is no 12 ft Red DCI item and no other DBI-dc8 item. Reviewed October 2026.
  6. Masimo. Rad-57 Signal Extraction Pulse CO-Oximeter Operator's Manual, sensor tables and troubleshooting. LAB-9204A. techdocs.masimo.com.
  7. Stryker. LIFEPAK 15 accessories guide, pulse oximetry accessories (02/2025), pages 8 and 9. stryker.com.
  8. Stryker. LIFEPAK 35 accessories guide, pulse oximetry accessories (12/2025). stryker.com.
  9. Zoll. X Series and Propaq MD/M pulse oximetry accessories, Zoll web store, item 8000-0332, Red DCI-DC3, 3 ft Adult Reusable Patient Cable/Sensor (compatibility field: Propaq, X Series, X Series Advanced). Reviewed October 2026.
