Masimo 2653 LNCS DBI Adult Soft Reusable Finger SpO2 Sensor, 3 ft

This item requires a clinical attestation, confirmed in your cart.

SKU: MAS-2653

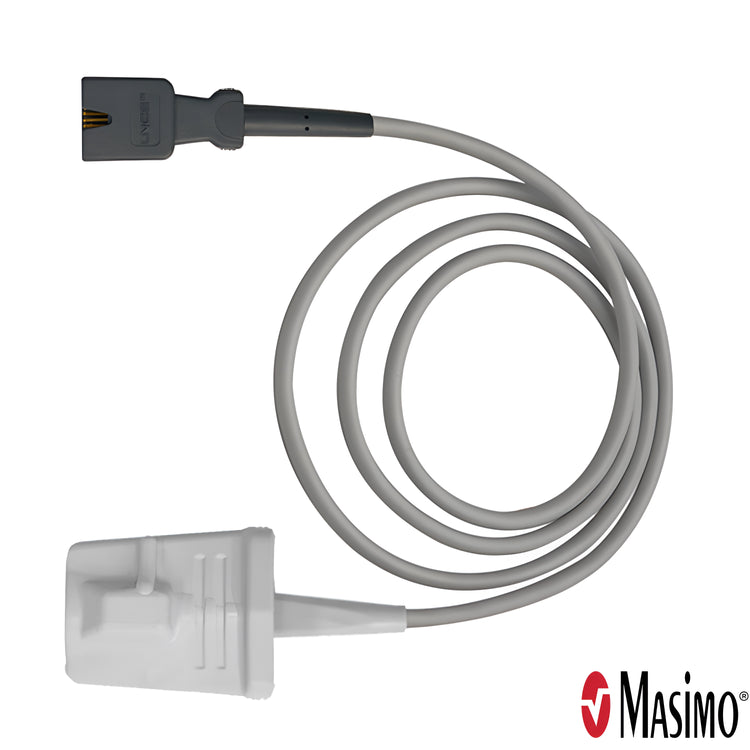

The Masimo 2653 LNCS DBI is a reusable soft finger sensor for adult and pediatric patients over 30 kg that measures SpO2 and pulse rate on patients who are not moving.1 Its 3 ft cable9 ends in an LNCS connector that plugs into an LNC or Red LNC patient cable: the Red LNC-04 (2055) on a LIFEPAK 15 or Zoll X Series347 and the LNC-4 (2017) on a LIFEPAK 20e.25 The Stryker/Physio-Control number is 11171-000052 and the Zoll number is 8000-0379.47 We supply the genuine Masimo 2653.

The 2653 is the LNCS version of the DBI soft sensor, the reusable soft finger probe for adults; the M-LNCS version is the 2507 and the RD SET version is the 4052.8 The direct-connect 2652 DBI-dc8 and 2644 Red DBI-dc8 plug into the monitor with no patient cable.1

Works With:

Patient Cable Red LNC cable (20-pin port: LIFEPAK 15, Zoll X Series, Propaq): 2055 Red LNC-04, 4 ft, 2056 Red LNC-10, 10 ft.37
LNC cable (LIFEPAK 20e): 2017 LNC-4, 4 ft, 1814 LNC-10, 10 ft.25
LIFEPAK 35: Stryker LNCS right angle cable 11996-000434.6
More: Masimo LNCS patient cables.
Monitors LIFEPAK 15 and 35: Stryker lists the LNCS reusable Soft sensor, 11171-000052.46
LIFEPAK 20e: Stryker lists 11171-000052.5
Zoll X Series, X Series Advanced, Propaq, R Series: Zoll lists 8000-0379, LNCS DBI (3 ft).7
Stryker / Physio-Control Number 11171-000052 (LNCS reusable Soft sensor, adult)456. Stryker's store UPC for it is 00843997003094, the 2653 GTIN.12
Zoll Number 8000-0379 (LNCS DBI, 3 ft). Zoll prints no Masimo number, so the match rests on the name and length.7
Cross-Reference See the Masimo 2653 row in the Masimo Part Number Cross-Reference

Product Highlights:

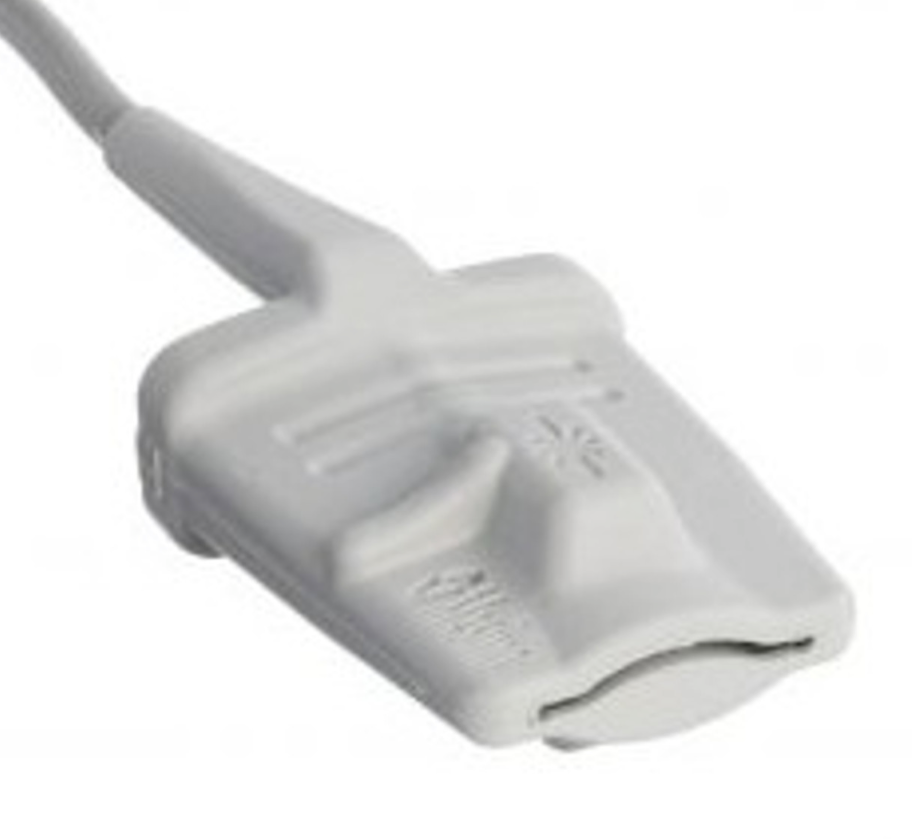

  • Soft finger boot: Press the sides open, slide in the middle or ring finger until the fingertip meets the digit stop, and run the cable toward the top of the hand. The detector must be completely covered.1
  • Accuracy: On Masimo SET, SpO2 is within 2% Arms and pulse rate within 3 bpm with no motion and in low perfusion. Accuracy during patient motion is not specified.1
  • No-motion sensor: Indicated for patients who are not moving and contraindicated for active patients and prolonged use; inspect the site at least every 4 hours.1
  • Clean and reuse: Wipe clean; do not soak or immerse. A 70% isopropyl alcohol pad between patients is the routine, and X-Cal provides up to 8,760 hours of monitoring time before replacement.1

Specifications:

Masimo Part Number 2653
SKU MAS-2653
Product Family LNCS DBI (Masimo SET)
Sensor Type Reusable soft finger sensor
Parameters SpO2 and pulse rate1
Patient Weight Adult and pediatric, over 30 kg; middle or ring finger1
Cable Length 3 ft9

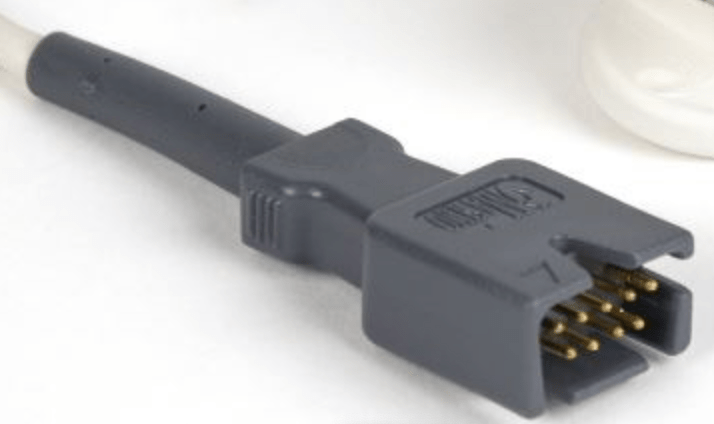

Connector LNCS (9-pin DB9), for LNC and Red LNC patient cables8
Use Reusable; wipe with 70% isopropyl alcohol between patients1
Natural Rubber Latex Not made with natural rubber latex1
Sterility Non-sterile1
GTIN 0084399700309410
Directions for Use Masimo LAB-6684C1

Who Uses This:

  • Fire Departments: Crews take no-motion spot checks on scene and in rehab from a LIFEPAK 15 or Zoll X Series and wipe the soft sensor clean between patients.47
  • EMS Agencies: Crews use the reusable adult sensor for readings on a still patient and keep the 1863 DCI clip, which has motion specifications, as the other reusable adult option.111
  • Flight and Critical Care Transport: Flight crews take adult readings on a still patient before flight and after landing.1
  • Clinics and Urgent Care: Exam-room staff take adult spot checks on monitors with LNC or Red LNC ports and wipe the sensor clean between patients.1

Related Products:

Frequently Asked Questions:

Which Stryker and Zoll numbers and which cable go with the Masimo 2653?

Stryker lists the 2653 as the LNCS reusable Soft sensor, 11171-000052, and Zoll lists 8000-0379.457 Run it on a Red LNC-04 (2055) or Red LNC-10 (2056) for a LIFEPAK 15 or Zoll X Series, or an LNC-4 (2017) or LNC-10 (1814) for a LIFEPAK 20e.235

Is the Masimo 2653 for adults only, and is there a pediatric DBI?

The 2653 is labeled for adult and pediatric patients over 30 kg, and every DBI sensor shares that weight limit, so no smaller DBI exists.19 For a child from 10 to 50 kg, the reusable LNCS option is the 1864 DCI-P finger clip.11 The site is the middle or ring finger.1

Is the Masimo 2653 DBI a finger clip or a soft sensor, and how do I put it on?

A soft sensor, not a hinged clip: Stryker files it as the LNCS reusable Soft sensor.4 Hold it with the star and cable on top, press the sides to open it, insert the finger until the tip touches the raised digit stop, point the cable toward the top of the hand, and release the sides. A long nail may extend through the end opening.1

DBI soft sensor or DCI clip: which reusable adult Masimo LNCS sensor should I buy?

Both are reusable LNCS sensors for patients over 30 kg with a 3 ft cable. The 2653 is a soft boot for the middle or ring finger, indicated for no motion conditions only. The 1863 DCI is a hinged clip for a finger or toe, indicated for no motion and motion conditions.111 Both are contraindicated for active patients and prolonged use, and both need site checks at least every 4 hours.111

What is the difference between the Masimo 2653 LNCS DBI, the 2507 M-LNCS DBI and the DBI-dc8 direct-connect sensors?

The 2653 and the 2507 are the same DBI soft sensor in two connectors: LNC or Red LNC cables for the 2653, M-LNC or rainbow RC cables for the 2507.18 The 2652 DBI-dc8 and 2644 Red DBI-dc8 connect directly to the device with no patient cable, so match the plug on the monitor.1

How do I clean and disinfect the Masimo 2653 DBI?

Wipe clean; do not soak or immerse. Disconnect it from the patient cable, wipe it with a 70% isopropyl alcohol pad and let it dry before the next patient.1 For low-level disinfection wipe sensor and cable with glutaraldehyde, an ammonium chloride wipe or 1:10 bleach and water, then with sterile or distilled water, and dry. Never immerse the connector, and never sterilize it by irradiation, steam, autoclave or ethylene oxide.1

Does the Masimo 2653 fit a LIFEPAK 35?

Yes. Stryker's LIFEPAK 35 accessories guide lists the LNCS reusable Soft sensor, 11171-000052, with the LNCS right angle patient cable, 11996-000434.6 The 2653 has the 9-pin LNCS connector that cable takes.8

Is this a genuine Masimo 2653?

Yes. We are an authorized Masimo distributor. Every Masimo 2653 ships new in its original Masimo packaging.

How fast does the Masimo 2653 ship?

Most orders ship within 1 to 2 business days. Expedited and overnight shipping are available at checkout.

How do I order the Masimo 2653 or request a quote?

Add it to your cart on this page, or contact CustomerService@pacificbiomedical.com or 844.436.3526 with SKU MAS-2653. We support net terms for agencies and hospitals and ship to all 50 states.

References
  1. Masimo. Directions for Use, DB-I Series reusable soft sensors (LNCS DBI, M-LNCS DBI, Red DBI-dc3 and DBI-dc8). LAB-6684C. techdocs.masimo.com.
  2. Masimo. Directions for Use, LNC patient cables. LAB-3490L. techdocs.masimo.com.
  3. Masimo. Directions for Use, Red patient cables (Red LNC and Red PC). LAB-3569P. techdocs.masimo.com.
  4. Stryker. LIFEPAK 15 accessories guide, pulse oximetry accessories (02/2025), page 8. stryker.com.
  5. Stryker. LIFEPAK 20e genuine accessories, GDR 3300292_K. stryker.com.
  6. Stryker. LIFEPAK 35 accessories guide, pulse oximetry accessories (12/2025), page 7. stryker.com.
  7. Zoll. Zoll web store, pulse oximetry: SpO2 LNCS DBI LNCS Reusable Sensor (3 Ft), item 8000-0379 (Propaq, R Series, X Series, X Series Advanced), and the Red LNC-4 and Red LNC-10 cables, items 8000-0330 and 8000-0331. Reviewed October 2026.
  8. Masimo. SET and rainbow Sensor and Cable Compatibility, with minimum software requirements. PLM-10747D, 2023. masimo.fr.
  9. Masimo. Product Catalog 2023 - Q2, Sensors and Cables and Accessories (public excerpt).
  10. U.S. Food and Drug Administration. Global Unique Device Identification Database (GUDID), device identifier 00843997003094, MasimoSET LNCS DBI SpO2 Adult Soft Reusable Sensor, model 2653. accessgudid.nlm.nih.gov.
  11. Masimo. Directions for Use, M-LNCS, LNCS Series DCI and DCI-P adult and pediatric reusable finger sensors. LAB-4888G. techdocs.masimo.com.
  12. Stryker. Online store, catalog 11171-000052 (descriptor DIGITBT LNCS DB1, ADT REUSABLE SNSR), UPC 00843997003094. Reviewed October 2026.
