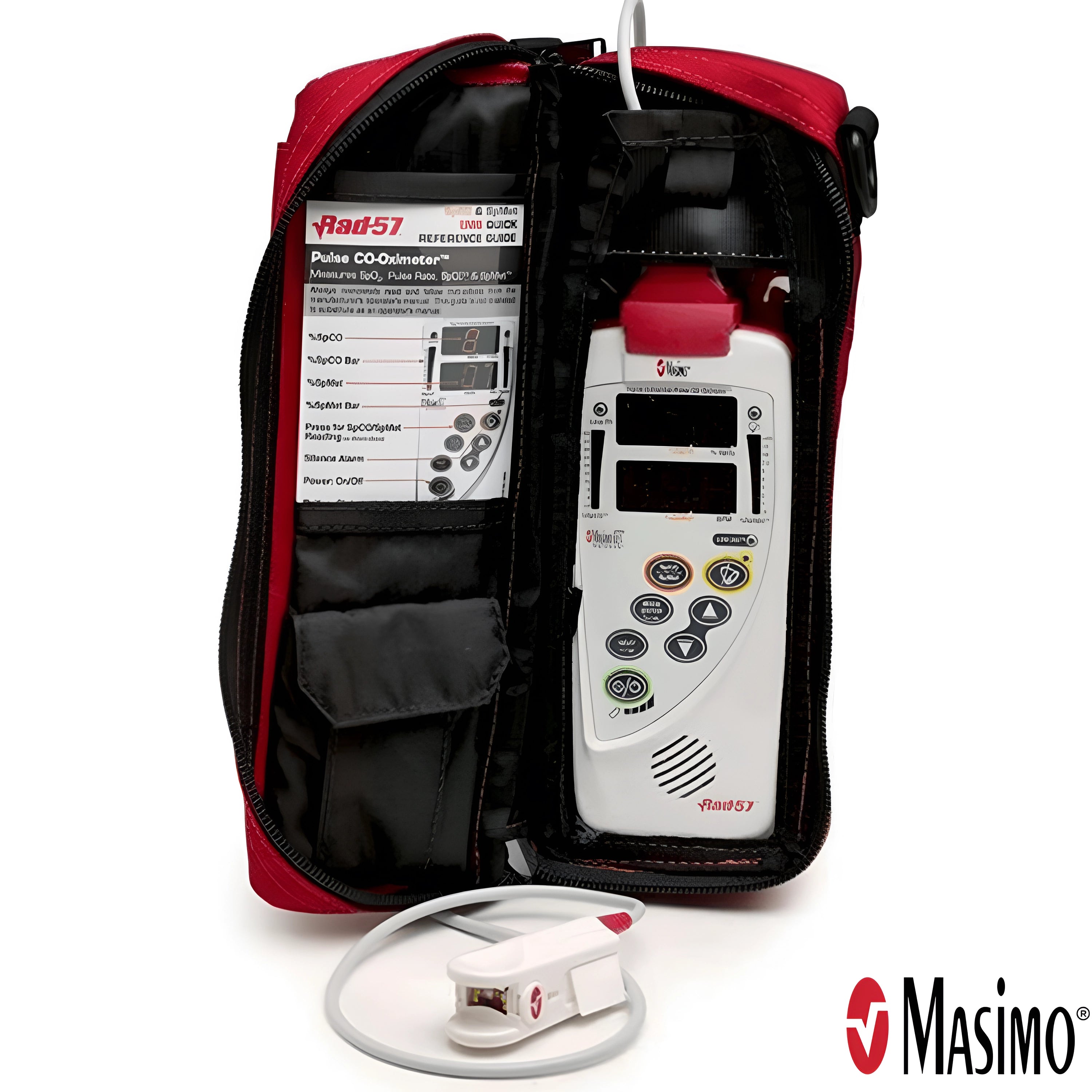

Masimo 9216-U Rad-57 Handheld Pulse Oximeter, SpO2, Upgradeable to SpCO and SpMet

This item requires a clinical attestation, confirmed in your cart.

SKU: MAS-9216-U
The Masimo 9216-U is the Rad-57 pulse oximeter in its SpO2-only configuration, for adult, pediatric and neonatal patients: it measures SpO2, pulse rate and perfusion index, and SpCO, SpMet, PVi and SpHb are available as parameter options.123 It takes LNCS sensors on a Red LNC cable, rainbow and M-LNCS sensors on a rainbow RC cable, or a direct-connect sensor with no cable.2 Masimo's kit table lists no sensor, patient cable or carry case with it, so order those separately.1 We supply the genuine Masimo 9216-U.

Of the five Masimo Rad-57 configurations, the 9216-U is the one built to take options later. The 3734 and 3735 ship with SpCO, the 3736 with SpCO and SpMet, and the 3737 with SpMet, each in a kit with rainbow sensors, an RC-01 cable and a red carry case.1

Works With:

In the Box Rad-57, SpO2-only configuration.1
The kit table lists no sensor, patient cable or carry case with the 9216-U, unlike the 3734 to 3737; order the sensor and cable you need.1
Batteries: four AA alkaline cells, not listed.12
Sensors SpO2 and pulse rate: LNCS sensors such as the 1863 adult finger clip and the 1859 adhesive.2
Rainbow sensors read SpCO or SpMet only after those options are installed.2
Direct-connect sensors plug in with no patient cable.2
Patient Cable Red LNC for LNCS sensors: 2055 (4 ft), 2056 (10 ft), 2365 (1 ft); see the cross-reference.2
Rainbow RC for rainbow and M-LNCS sensors: 2405 (1 ft), 2406 (4 ft), 4481 (EMS).245
Accessories SpCO option (2296); Rad-57 EMS carrying case (2208); data transfer download cable (2063) for the 72-hour trend memory.32
Not For SpCO and SpMet readings until the options are installed.2
Carbon monoxide screening as shipped: choose the 3734, 3735 or 3736.1

Product Highlights:

  • Upgradeable: SpCO, SpMet, PVi and SpHb are parameter options for the Rad-57, installed with Masimo's Field Upgrader Tool; SpCO and SpMet read only on a rainbow sensor.32
  • Accuracy: SpO2 2% over 70 to 100% without motion, 3% with motion and 2% in low perfusion; pulse rate 3 bpm without motion, 5 bpm with motion (ARMS).3
  • Measure-through motion: Masimo SET technology reads SpO2 and pulse rate in motion and low perfusion, and a Low Signal IQ indicator flags readings built on a weak signal.32
  • Alarms and trend: Alarms default to SpO2 low 90% and pulse rate 50 and 140 bpm, and 72 hours of trend data stay in memory.2
  • Transport or spot check: Four AA alkaline cells give over 8 hours of continuous use in a 13 oz handheld that runs as a transport monitor or for spot checks.23

Specifications:

Masimo Part Number 9216-U (also written 9216)63
SKU MAS-9216-U
Product Family Rad-57 Pulse CO-Oximeter6
Device Type Handheld Pulse CO-Oximeter, SpO2 configuration1
Parameters SpO2, pulse rate, perfusion index2
Parameter Options SpCO, SpMet, PVi, SpHb3
Battery 4 AA alkaline; up to 10 hours at lowest indicator brightness3
Display LED3
Dimensions 6.9 x 3 x 1.4 in (17.5 x 7.6 x 3.6 cm)3
Weight 13 oz with batteries3
Operating Temperature 0 to 129 F (-18 to 54 C)3
GTIN 00843997006163
Directions for Use Masimo LAB-9204A (Rad-57 Operator's Manual)2
Patients Adult, pediatric and neonatal1

Who Uses This:

  • Fire Departments: Fire companies that need SpO2 and pulse rate on the engine, and want carbon monoxide checks later, start with the 9216-U and add the SpCO option when rehab calls for it.3
  • EMS Agencies: EMS agencies get Masimo SET SpO2 and pulse rate in motion from a 13 oz handheld that stores 72 hours of trend data.23
  • Flight and Critical Care Transport: Flight and critical care teams use the Rad-57 as a transport monitor or a handheld spot check, with an operating range up to 18,000 ft.2
  • Clinics and Urgent Care: Clinics and urgent care sites take SpO2, pulse rate and perfusion index at triage with LNCS sensors on a Red LNC cable.2

Related Products:

Frequently Asked Questions:

What is the Masimo 9216-U, and what does the U mean?

The Masimo 9216-U is the Rad-57 configured for SpO2, pulse rate and perfusion index only, with the option to add rainbow parameters later.12 Masimo does not spell out the U. The barcode 00843997006163 is registered under Rad-57 model 9216, and the Rad-57 sheet prints PN 9216 for the base unit.63

Does the Masimo 9216-U read carbon monoxide?

Not as shipped. A standard SpO2 reading cannot separate carboxyhemoglobin from oxyhemoglobin, so elevated COHb can sit behind a normal-looking SpO2, and without the SpCO option the 9216-U cannot show it.27 For carbon monoxide checks choose the 3734, 3735 or 3736, or add the SpCO option (2296).

How do I add SpCO or SpMet to a Masimo 9216-U later?

Install the parameter option with Masimo's Field Upgrader Tool, following that tool's directions for use (part 31650); the Rad-57 then shows SpCO or SpMet once a rainbow sensor is on the patient.23 Send us the model and serial number and we will confirm the unit accepts the option before you order.

What sensor and cable do I order with the Masimo 9216-U?

For SpO2 and pulse rate, an LNCS sensor on a Red LNC cable: 1863 with 2055 is the usual starting pair.2 Rainbow and M-LNCS sensors need a rainbow RC cable such as the 2406, and they add SpCO or SpMet only after the options are installed.24

What is in the Masimo 9216-U box?

The 9216-U line in Masimo's kit table names the Rad-57 in its SpO2-only configuration and no sensor, cable or carry case, unlike the 3734 to 3737 kit lines.1 Order the sensor and patient cable you need with it, and have four AA alkaline batteries ready.2

Which alarms and trend memory does the Masimo 9216-U have?

Alarm defaults are SpO2 low 90%, SpO2 high off, and pulse rate 50 low and 140 high, all adjustable and kept after a power cycle except alarm silence.2 It stores 72 hours of SpO2, pulse rate and perfusion index at 2-second intervals, downloaded with the 2063 cable and TrendCom software.2

Which Rad-57 should I buy: the Masimo 9216-U or a kit?

Buy the 9216-U to start on SpO2 and add SpCO, SpMet, PVi or SpHb later, choosing your own sensors and cable.32 Buy a kit when you want the unit, rainbow sensors, an RC-01 cable and a red carry case together: the 3734 or 3735 for SpCO, the 3736 for SpCO and SpMet, the 3737 for SpMet.1 The Rad-57 runs as a transport monitor or a handheld spot-check unit either way.2

What batteries does the Masimo Rad-57 take, and how long do they last?

It runs on four AA alkaline batteries, and Masimo's kit table does not list them with the 9216-U.12 Masimo lists over 8 hours of continuous use, and up to 10 hours at the lowest indicator brightness.3

Is this a genuine Masimo 9216-U?

Yes. We are an authorized Masimo distributor. Every Masimo 9216-U ships new in its original Masimo packaging.

How fast does the Masimo 9216-U ship?

Most orders ship within 1 to 2 business days. Expedited and overnight shipping are available at checkout.

How do I order the Masimo 9216-U or request a quote?

Add it to your cart on this page, or contact CustomerService@pacificbiomedical.com or 844.436.3526 with SKU MAS-9216-U. We support net terms for agencies and hospitals and ship to all 50 states.

References
  1. Masimo. Rad-57 Pulse CO-Oximeter product page: options, accessories and kit lines (masimo.co.uk), reviewed October 2026. masimo.co.uk.
  2. Masimo. Rad-57 Signal Extraction Pulse CO-Oximeter Operator's Manual. LAB-9204A, 2016. techdocs.masimo.com.
  3. Masimo. Rad-57 Pulse CO-Oximeter product information, specifications and compatible accessories. PLM-10151C, 2022. masimo.com.
  4. Masimo. Directions for Use, rainbow Series patient cables. LAB-4523J. techdocs.masimo.com.
  5. Masimo. Directions for Use, rainbow Series patient cables, EMS. LAB-9877B. techdocs.masimo.com.
  6. U.S. Food and Drug Administration. Global Unique Device Identification Database (GUDID), Masimo model 9216, Rad-57 Pulse CO-Oximeter (device identifier 00843997006163). accessgudid.nlm.nih.gov.
  7. Masimo. Directions for Use, rainbow DC Series reusable SpCO, SpMet and SpO2 sensors (rainbow DCI and DCI-P). LAB-4869K. techdocs.masimo.com.
