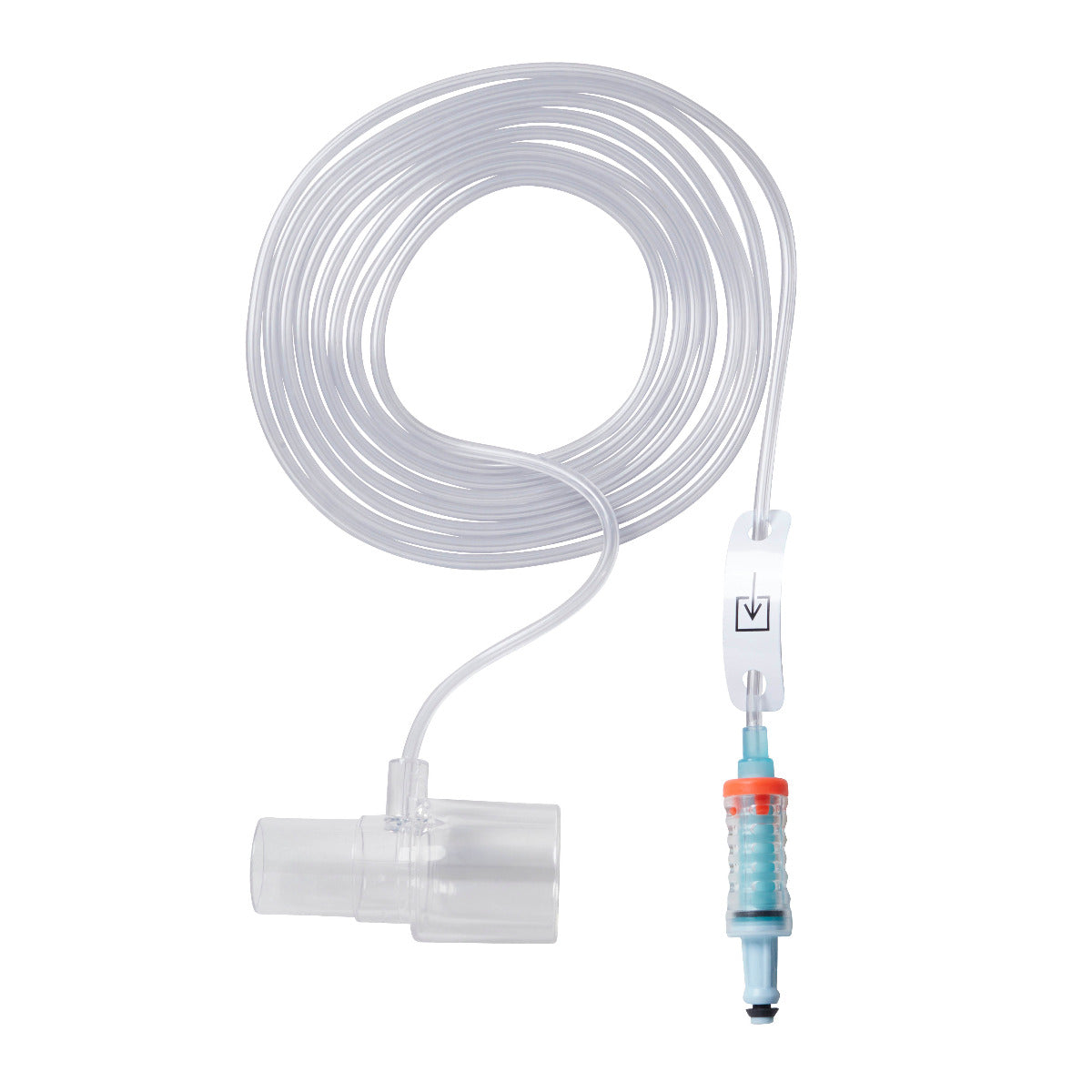

Masimo NomoLine LH Adult/Pediatric Airway Adapter Set PN 3814 — full sampling line with airway adapter and machine connection ends both visible, white background

NOMOLINE LH ADT/PED ARWY ADPT SET,25/BOX

.price-ui--loading { display: block !important; opacity: 1 !important; }

$187.00$0.00

SKU: MAS-3814

Masimo Corporation

The Masimo NomoLine LH Adult/Pediatric Airway Adapter Set (item 3814, 6.6 foot line, 25 per box) is the sidestream capnography consumable for an intubated adult or pediatric patient. Compatible with the ZOLL Zenix, item 8000-010115, "ADULT/PEDIATRIC NOMOLINE LH AIRWAY ADAPTER SET (BOX OF 25) REF 3814

Item Number3814

Pack25 per box

Line Length6.6 feet

PatientAdult/pediatric, intubated

Dead Space6 mL

ConnectionDirect to ISA inlet

Product Highlights

ZOLL Zenix part. ZOLL sells this set as item 8000-010115, "Adult/Pediatric NomoLine LH Airway Adapter Set (Box of 25), REF 3814,

Dead space 6 mL. Adult and pediatric only. Not for infants or neonates. The infant/neonatal set is part 4367 at 0.7 mL.1,3
Sampling flow 50 plus or minus 10 sml/min.4 Accurate from 0 to 150 breaths per minute at that rate.5
CO2 rise time 200 ms or less at 50 sml/min; total analyzer system response time under 3 seconds, specified with a 6.6 foot line.4,5
LH class. Collects water; short term applications with low humidity. HH (part 3827) removes aspirated and condensed water for long term applications with high humidity.1
No water trap. NomoLine no-moisture tubing with an inline hydrophobic bacterial filter.1

Single patient use. Maximum 14 days of use. Not made with natural rubber latex. Do not submerge or sterilize by any method.1
25 sets per box

Specifications and Compatibility

Specification	Detail
Manufacturer	Masimo Corporation
Item Number	3814
Pacific Biomedical SKU	MAS-3814
Product	NomoLine LH Adult/Pediatric Airway Adapter Set9
Patient Population	Intubated adult and pediatric patients. Not for infants or neonates.1
Humidity Class	LH (low humidity). Collects water; short term applications. HH (part 3827) removes aspirated and condensed water for long term, high humidity use.1
Sampling Line Length	6.6 feet (2 meters, as the Masimo catalog lists it)9
Connection Group	Group 2. Connects directly to the ISA gas inlet connector.
ZOLL Cross-Reference	ZOLL item 8000-010115, "Adult/Pediatric NomoLine LH Airway Adapter Set (Box of 25), REF 3814.2
Airway Adapter Dead Space	6 mL. The infant/neonatal set (part 4367) is 0.7 mL and is not interchangeable.1
Sampling Flow Rate	50 plus or minus 10 sml/min at the ISA analyzer4
CO2 Rise Time	200 ms or less at 50 sml/min sample flow4
System Response Time	Under 3 seconds, specified with a 6.6 foot sampling line5
Respiratory Rate Range	Accurate from 0 to 150 breaths per minute at a 50 mL/min sampling rate.5
Circuit Placement	Small diameter end to the Y-piece of the ventilation source, large end to the endotracheal tube.1 Position between the elbow and the ventilator circuit wye, not between the ET tube and the elbow; sampling tube exits the top.3
Moisture Handling	NomoLine no-moisture tubing with an inline hydrophobic bacterial filter. No water trap required.1
Reuse	Single patient use. Do not re-use; cross contamination risk.1
Cleaning and Sterilization	Do not submerge in any cleaning solution or attempt to sterilize by autoclave, irradiation, steam, gas, ethylene oxide, or any other method.1
Maximum Use Time	Replace for each new patient with a maximum of 14 days of use. Masimo's own footnote: the lifetime of the product depends on the application and product type.1
Latex	Not made with natural rubber latex1
Regulatory Status	Prescription device. See the Regulatory and Shipping section below.
Pack Size	25 per box
Related Part Numbers	4620 same set on a 13.1 foot line; 3827 HH adult/pediatric 6.6 ft; 4367 HH infant/neonatal 6.6 ft; 3820 adult nasal cannula with O2 for non-intubated patients9
Sterility	Not stated in the manufacturer's directions for use. Contact us if you need a written statement from Masimo for a bid or an infection control file, and we will get one rather than repeat something we cannot stand behind.

Complete the Capnography Setup

This set covers the intubated adult or pediatric patient on a Masimo ISA analyzer. Here is what Pacific Biomedical carries around it, with the honest note on where each one fits.

Same range, patient breathing on their own: NomoLine LH Adult Nasal CO2 Cannula with O2, 25/box (3820). Also a Group 2 direct-connect line, so it uses the same inlet. Swap the adapter set for the cannula when the patient is not tubed.
Mainstream instead of sidestream: Masimo 9632 EMMA Capnometer Kit with its EMMA Airway Adapters. EMMA measures in the airway with its own adapter and no sampling line at all. A useful standalone for a rig with no capnography head on the monitor.
Intubated patient on a non-Masimo sampling system: AirLife Adult/Pediatric Filtered EtCO2 Line with ETT Adapter, 6 ft. Use the line your monitor manufacturer specifies and do not mix brands on one analyzer.
Oxygenation on the same patient: Masimo 1863 LNCS DCI Adult SpO2 Sensor. Ventilation and oxygenation answer different questions, which is really what the clinical section above is about.

What's Included

25 Masimo NomoLine LH Adult/Pediatric Airway Adapter Sets (item 3814)
Each set is a single-patient-use airway adapter with an integrated 6.6 foot NomoLine sampling line, an inline hydrophobic bacterial filter, and a direct ISA gas inlet connector
No water trap, no multi-patient adapter, and no separate filter to buy
No oxygen tubing. This is an airway adapter set for intubated patients, not a cannula, and several competing listings confuse the two
The 13.1 foot version (4620), the HH version (3827), and the infant/neonatal set (4367) are made by Masimo. Contact us and we will quote them.

Who Uses This

Ground EMS & Ambulance

Post-intubation transports and working arrests on a Zenix or another ISA-equipped monitor, where the waveform is the only continuous proof the tube has not moved.

Critical Care & Interfacility Transport

Long ventilated moves where nobody wants to service a water trap or swap a fouled line in the back of a truck.

Emergency Department & Resuscitation

Airway bay and code cart stock, on the analyzer already in the room, with the adapter set that plugs straight into the inlet.

Biomed & Materials Management

One standard consumable across a Masimo ISA fleet, on a part number with published dead space, flow, and response time.

Frequently Asked Questions

LH or HH, which airway adapter set should I order?

Masimo's directions for use define it plainly: LH collects water and is for short term applications with low humidity; HH removes aspirated and condensed water and is for long term applications with high humidity. It describes the duty cycle and the gas you are sampling, not the climate of the room. Item 3814 is the LH adult/pediatric set. The HH equivalent is 3827.1

Does 3814 plug straight into the analyzer, or do I need the 3800 adapter?

Straight in. Masimo splits the range into two groups. Group 1 lines, 3801 through 3813 and 4368, connect through the NomoLine HH Multi-Patient Use Adapter 3800. Group 2 lines, 3814 through 3839 plus 4367 and 4369, are intended to connect directly to the ISA gas inlet connector. 3814 is Group 2, so nothing goes in between.1

Is this the right part for a ZOLL Zenix, and what else does it fit?

Yes. ZOLL's own webstore sells this set as item 8000-010115 against REF 3814, listed under Zenix,2 and the Zenix operator's guide instructs users to use only Masimo CO2 sampling lines.3 It also fits Masimo ISA gas analyzers and the platforms built on them, including Rad-97, Root, and Radical-7.9 Confirm against your device manual before standardizing.

Where exactly does the airway adapter go in the circuit?

Masimo says connect the small diameter end to the Y-piece of the ventilation source and the large diameter end to the endotracheal tube.1 ZOLL is more specific: put it between the elbow and the ventilator circuit wye, not between the ET tube and the elbow, because that lets secretions collect in the adapter. Keep the sampling tube exiting the top, and verify a proper waveform afterward to confirm the circuit is intact.3

Can I use this on an infant, and what is the dead space?

No. The adult/pediatric adapter adds 6 mL of dead space to the circuit, and both Masimo and ZOLL state it must not be used on infants or neonates for that reason. The infant and neonatal set is a separate part, 4367, at 0.7 mL, and it must not be run the other way on adults or pediatrics because it can cause excessive flow resistance.1,3

What do I do during nebulized medication or suctioning?

Remove the sampling line connector from the monitor during nebulization or suction on an intubated patient, so moisture does not build up and occlude the line.3 Do not run inhalers or nebulized medications through the set, because it can clog the bacteria filter.1 With a closed suction system, do not place the adapter between the suction catheter and the ET tube.3

What does a blinking red light at the gas inlet mean, and does this need calibration?

On the Masimo gas inlet, steady green means monitoring is running, blinking green means zeroing, steady red is a sensor error, and blinking red means check the sampling line for a possible occlusion.3 Replace the line whenever an occlusion alarm fires.1 The spectrometer needs no regular gas zeroing; it takes a room air reference when the line is disconnected.3

Is it single use, and can it be cleaned or sterilized?

Single patient use, and no. Masimo instructs that the line not be submerged in any cleaning solution or sterilized by autoclave, irradiation, steam, gas, ethylene oxide, or any other method, and not re-used because of cross contamination risk. Replace for each new patient with a maximum of 14 days of use, with Masimo's own caveat that lifetime depends on the application and product type. Not made with natural rubber latex.1

Is this an authentic Masimo product?

Yes. Pacific Biomedical supplies genuine, factory-fresh Masimo Corporation products sourced through authorized channels, shipped in original manufacturer packaging.

How fast does this ship?

In-stock orders typically ship within one business day. For expedited shipping, current lead times, or bulk orders, contact us at CustomerService@pacificbiomedical.com or 844.436.3526.

How do I place an order, request a quote, or set up an account?

Add the item to your cart to order online, or contact us for volume pricing, GPO or contract pricing, agency purchase orders, and net terms. Reach us at CustomerService@pacificbiomedical.com or 844.436.3526.

References

Masimo Corporation. NomoLine airway adapter sets and cannulas. Directions for use. LAB-9841A-eIFU. Accessed August 28, 2026. https://techdocs.masimo.com/globalassets/techdocs/pdf/lab-9841a-eifu.pdf
ZOLL Medical Corporation. Masimo NomoLine LH airway adapter set, adult/pediatric, box of 25. Item 8000-010115. ZOLL Webstore. Accessed August 28, 2026. https://zollwebstore.com/defib-and-monitors/zenix/ems/masimo-nomoline-lh-airway-adapter-set-adult-pediatric-box-of-25
ZOLL Medical Corporation. Zenix EMS operator's guide. 9650-000421-06 Rev. C. Accessed August 28, 2026. https://www.zoll.com/products/defibrillators
Masimo Corporation. NomoLine ISA CO2 sidestream gas analyzer operator's manual. LAB-10152A. Accessed August 28, 2026. https://techdocs.masimo.com/globalassets/techdocs/pdf/lab-10152a_master.pdf
Masimo Corporation. Masimo capnography and multi-gas monitoring. Whitepaper PLM-14382A. Accessed August 28, 2026. https://www.masimo.com/siteassets/us/documents/pdf/plm-14382a-whitepaper-masimo-infrared-spectrometry-global.pdf
Alenazi A, Alshibani A. Confirmatory methods for endotracheal tube placement in out-of-hospital settings: a systematic review of the literature. Heliyon. 2024;10(7):e28479. doi:10.1016/j.heliyon.2024.e28479
Warner KJ, Cuschieri J, Garland B, et al. The utility of early end-tidal capnography in monitoring ventilation status after severe injury. J Trauma. 2009;66(1):26-31. doi:10.1097/TA.0b013e3181957a25
Paiva EF, Paxton JH, O'Neil BJ. The use of end-tidal carbon dioxide (ETCO2) measurement to guide management of cardiac arrest: a systematic review. Resuscitation. 2018;123:1-7. doi:10.1016/j.resuscitation.2017.12.003
Masimo Corporation. NomoLine cannulas and airway adapter sets. Accessed August 28, 2026. https://www.masimo.com/products/sensors/nomoline/airway-adapters/

Peer-reviewed citations located via PubMed. This information supports product education and does not replace your agency's protocols, medical direction, or the manufacturer's Instructions for Use.
