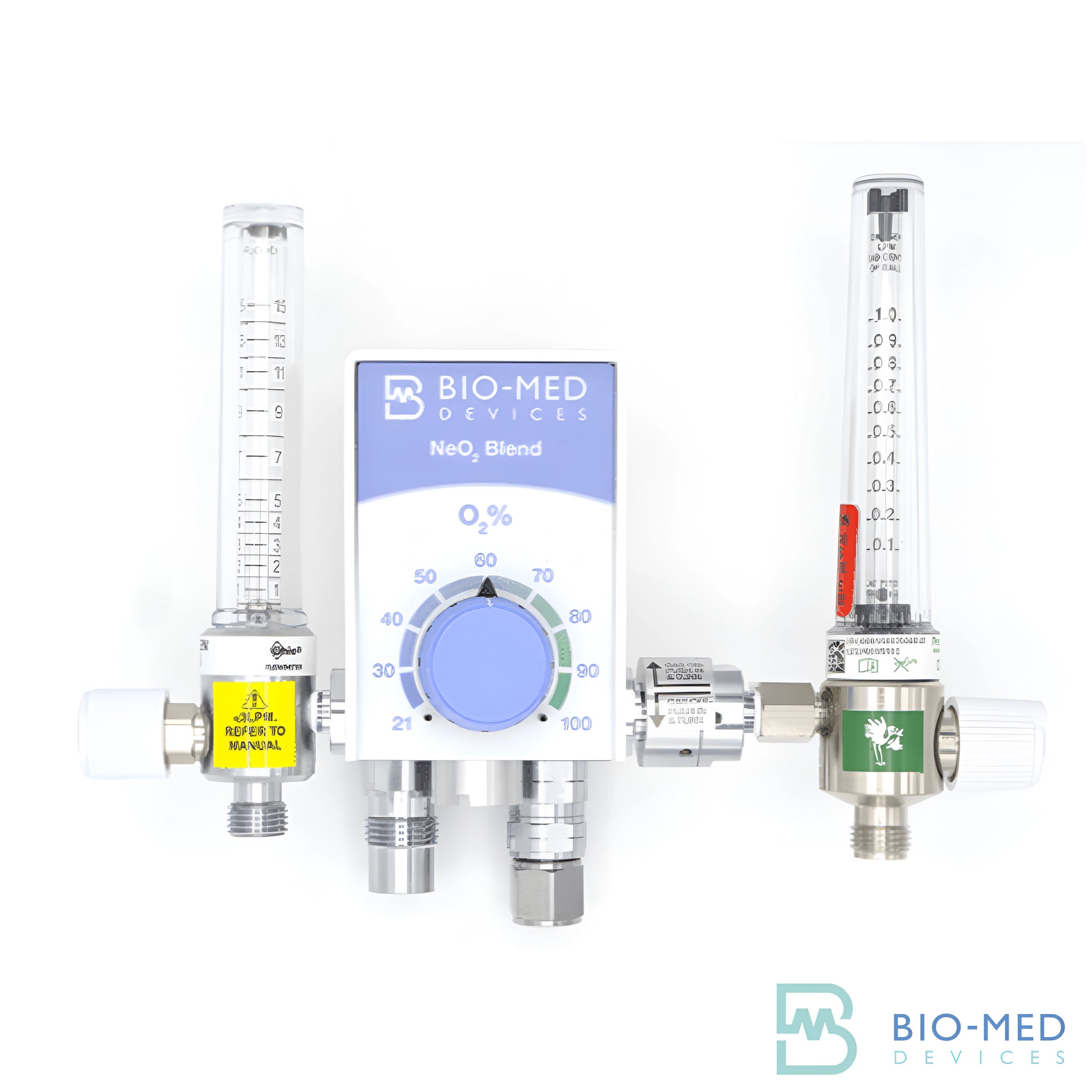

Bio-Med Devices Neo2 Low Flow Blender, 1 and 15 LPM, 2003FF1
The Bio-Med Devices 2003FF1 is a Low Flow Neo2 air/oxygen blender with 1 lpm and 15 lpm flowmeters.12 It is the Neo2 Blend model for the lowest flow reading on the right side, where the flowmeter also works as the bleed switch.3
Product Highlights:
- 1 lpm flowmeter: Right side flowmeter option in the Neo2 Blend series3
- 15 lpm flowmeter: Close mounted on the left, placed for resuscitation bag connection3
- Bleed switch: Rotate the right flowmeter forward to disable the bleed3
- Low Flow series: Maximum 30 lpm, bleed 3 lpm3
Specifications:
| Manufacturer | Bio-Med Devices, Inc.2 |
|---|---|
| Part number | 2003FF12 |
| Series | Low Flow, Neo2 Blend2 |
| Flowmeters | 1 lpm and 15 lpm1 |
| Maximum flow | 30 lpm3 |
| Bleed rate | 3 lpm3 |
| Range with bleed on | 0 to 30 lpm3 |
| Range with bleed off | 3 to 30 lpm3 |
Related Products:
- Low Flow Neo2 Blender, 2003FF
- Neo2 Blender, Dual 15 LPM, 2003FF15
- OxyMinder Oxygen Monitor, 10300
- 1 in Pole Mount Bracket, 2013B
- Blender Hose Kit, 3 ft, 20063
- Blender Maintenance Kit, 2008
- Oxygen Blenders collection
Product Guides and Documents:
- Air/Oxygen and Neo2 Blenders page3
- Blender Gallery Product Sheet (PDF)4
- The Mystery of Blender Bleeds Unraveled (PDF)5
- Product Listing with Part Numbers (PDF)2
Frequently Asked Questions:
What flowmeters does the 2003FF1 have?
1 lpm and 15 lpm.1
Can the right flowmeter be changed?
The Neo2 Blend right side flowmeter comes as 0 to 1, 0 to 3.5 or 1 to 15 lpm. The 2003FF1 is the 1 lpm version.31
What is an oxygen blender used for?
Oxygen administration, bubble CPAP therapy and HFNC therapy.4
What is bleed flow on an air/oxygen blender?
A blender needs a minimum flow of gas passing through it to stay accurate. The bleed supplies that flow by releasing gas to atmosphere.5
When does the blender bleed need to be on?
Whenever total flow through the blender is below 3 lpm on Low Flow, 6 lpm on Mid-Flow or 15 lpm on High/Low Flow. That is total flow, not per port.5
What is the normal range for an oxygen flow meter?
On the 2003FF1 the flowmeters read to 1 lpm and 15 lpm.1
Is the 2003FF1 MRI safe?
No. The FDA device record lists 2003FF1 as MR Unsafe.6 Bio-Med Devices lists separate MRI blenders, including 2003M.2
Which Bio-Med Devices blender series fits which flow?
Maximum flow is 30 lpm for Low Flow, 50 lpm for Mid Flow and 120 lpm for High Flow. Bleed rates are 3, 6 and 12 lpm.3
Manufacturer Sources
- Bio-Med Devices. 2003FF blender page (accessed 2026-11-04). biomeddevices.com.
- Bio-Med Devices. Product Listing with Part Numbers, REV060326 (accessed 2026-11-04). biomeddevices.com.
- Bio-Med Devices. Air/Oxygen and Neo2 Blenders page (accessed 2026-11-04). biomeddevices.com.
- Bio-Med Devices. Blender Gallery Product Sheet, DDOC063 Rev031925 (accessed 2026-11-04). biomeddevices.com.
- Bio-Med Devices. The Mystery of Blender Bleeds Unraveled (accessed 2026-11-04). biomeddevices.com.
- FDA AccessGUDID. Device record 2003FF1, DI 00813841020218 (accessed 2026-11-04). accessgudid.nlm.nih.gov.
Specifications are from Bio-Med Devices documents. Use only as directed in Bio-Med Devices labeling.2
