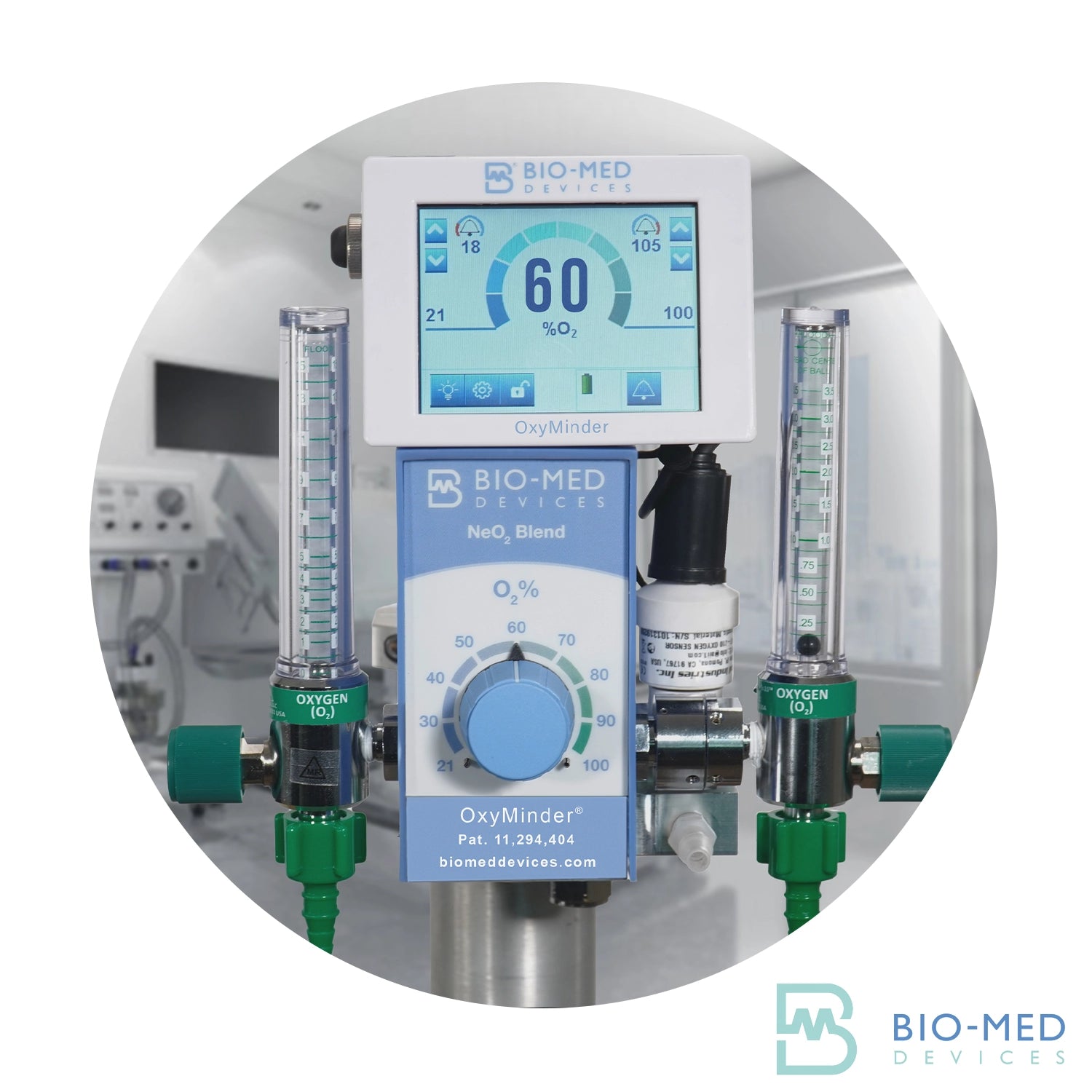

Bio-Med Devices OxyMinder Oxygen Monitor, 10300
The Bio-Med Devices OxyMinder 10300 is an oxygen monitor designed to operate with air/oxygen blenders, confirming the blender delivers the prescribed oxygen concentration.1 It integrates with the full Bio-Med Devices blender line and has a color touchscreen with low and high oxygen alarms.2
Product Highlights:
- Blender fit: Integrates with the full Bio-Med Devices line of blenders2
- Auto Purge: User selectable, aimed at preventing gas supply line contamination2
- Alarms: Selectable low and high oxygen alarm levels2
- Two setups: Buy with a blender installed, or field install on a properly configured blender2
- Battery: 15 hours at 100% brightness1
Specifications:
| Manufacturer | Bio-Med Devices, Inc.3 |
|---|---|
| Part number | 103003 |
| Measurement range | 18 to 100% O21 |
| Accuracy and linearity | +/-1% of full scale at constant temperature and pressure1 |
| Response time | 90% of final value in about 6 seconds1 |
| Unit weight | Under 1.5 lb (0.68 kg)1 |
| Dimensions | 7.86 in W x 8.12 in H x 4.39 in D1 |
| Power | Rechargeable lithium-ion battery, charger included1 |
| Battery life | 15 hours at 100% brightness1 |
| Alarm volume | 55 dB1 |
| Operating temperature | 0 to 45 C1 |
| Replacement sensor | PRT100033 |
Related Products:
- Low Flow Neo2 Blender, 2003FF
- Neo2 Blender, Dual 15 LPM, 2003FF15
- High-Low Flow Blender with 70 and 15 LPM flowmeters, 2004F7015
- High-Low Flow Blender with 3 outlet ports, 2004
- 2 in Pole Mount Bracket, 2013BH
- Oxygen Blenders collection
Product Guides and Documents:
Frequently Asked Questions:
What does the OxyMinder do?
It monitors oxygen concentration on an air/oxygen blender so you can confirm the blender is delivering the prescribed concentration.1
Does the OxyMinder fit an existing blender?
Yes. Buy a complete unit with a Bio-Med Devices blender installed, or field install on a properly configured blender already owned by the facility.2
What is Auto Purge?
A patented, user selectable feature aimed at eliminating contamination of gas supply lines.2
How long does the oxygen sensor last?
21 months at 60% oxygen, 12 months at 100% oxygen and 60 months at 21% oxygen. PRT10003 is the replacement sensor.13
How long does the battery last?
15 hours at 100% brightness, on a rechargeable lithium-ion battery with charger included.1
What does an air/oxygen blender do?
It mixes medical grade air and oxygen to any concentration from 21% to 100% oxygen and delivers the mix to respiratory care devices.4
Is the OxyMinder MRI safe?
No. The FDA device record lists 10300 as MR Unsafe.5
Manufacturer Sources
- Bio-Med Devices. OxyMinder brochure, DDOC039 (accessed 2026-11-04). biomeddevices.com.
- Bio-Med Devices. OxyMinder page (accessed 2026-11-04). biomeddevices.com.
- Bio-Med Devices. Product Listing with Part Numbers, REV060326 (accessed 2026-11-04). biomeddevices.com.
- Bio-Med Devices. Air/Oxygen Blender Service Manual, Catalog #2121, Rev 032709, archived copy of the manufacturer document (accessed 2026-11-04). frankshospitalworkshop.com.
- FDA AccessGUDID. Device record 10300, DI 00813841022281 (accessed 2026-11-04). accessgudid.nlm.nih.gov.
Specifications are from Bio-Med Devices documents. Use only as directed in Bio-Med Devices labeling.3
