Olympic Smart Scale Model 65, Infant Scale with Roll-Around Base
Olympic Smart Scale Model 65, Infant Scale with Roll-Around Base (MPN 56365)
Product Highlights:
- Weight locks on the display: The final weight is computed to the nearest gram and locked on the display, and it remains locked even after the baby is removed from the scale, so staff can finish care and chart the weight when convenient.2
- Built for active babies: Averaging handles a moving baby, so weighing does not depend on watching changing numbers settle.12

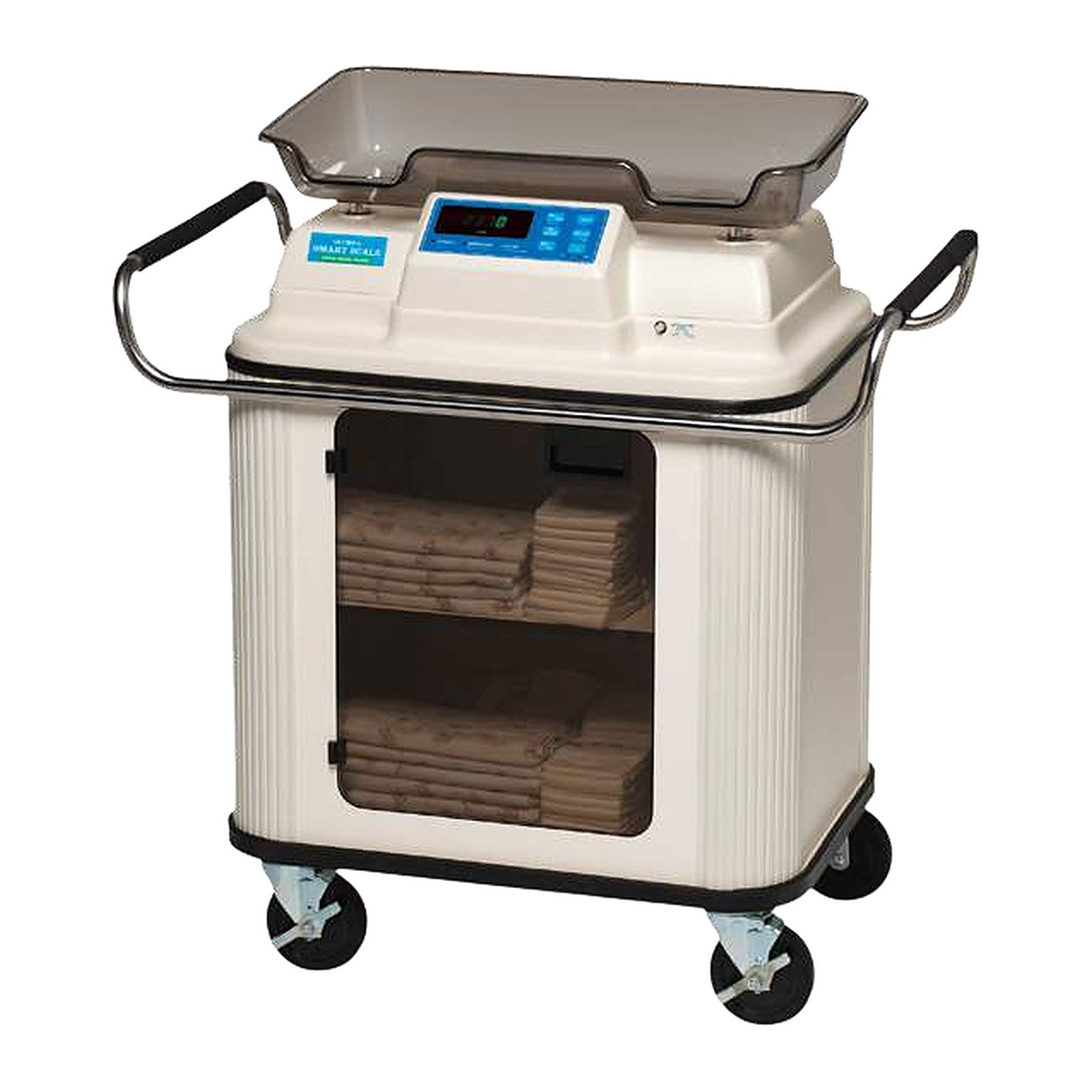

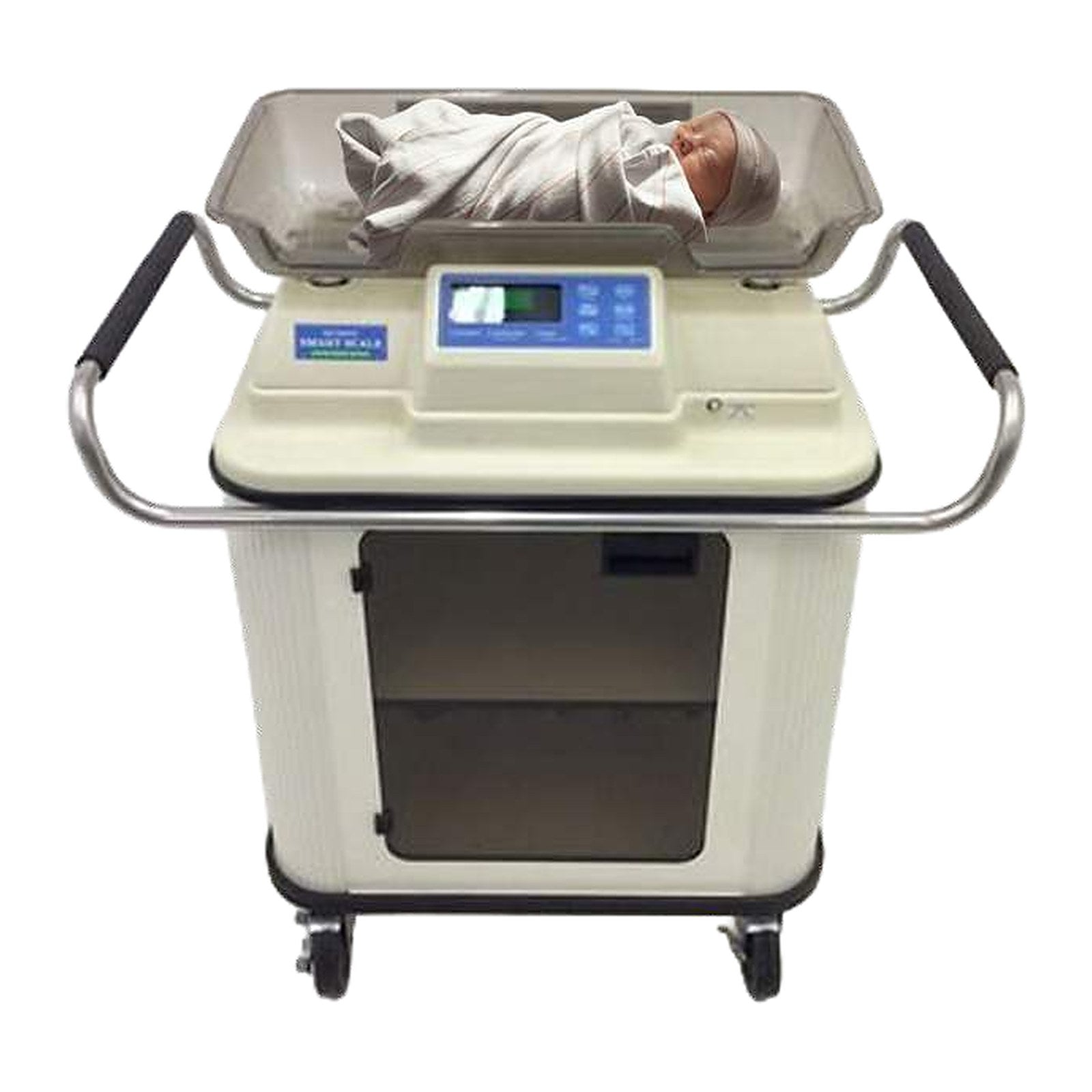

- Roll-around base, fully assembled: Model 65 is the Smart Scale mounted on a mobile base and ships fully assembled. Model 60 is the same scale as a table-top unit.1

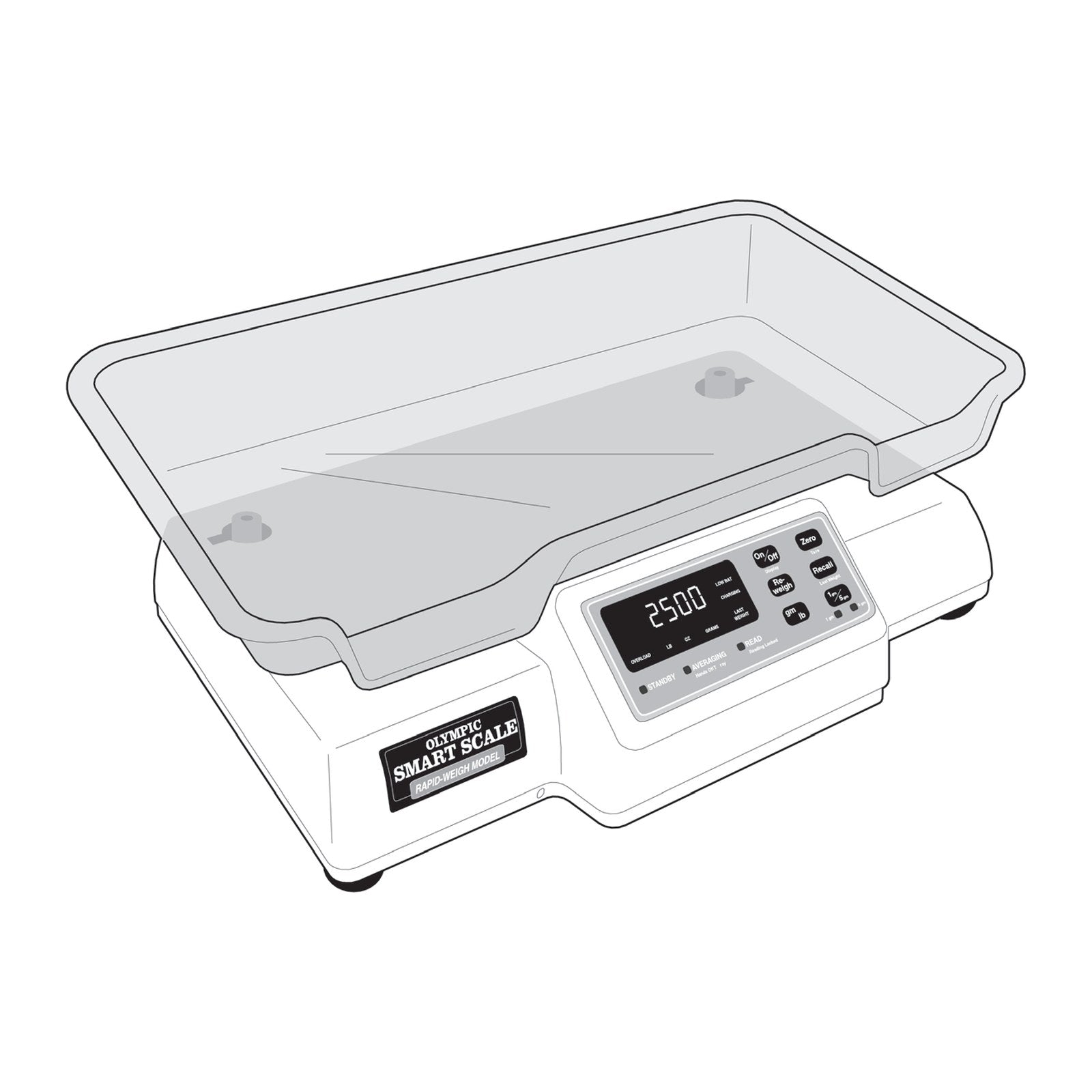

- Four-sided Easy-Lift tray: The four-sided tray is designed to be safer for babies during weighing, and it is a replaceable part (SS60 tray, 56306).2
- Grams or pounds and ounces: The display reads in grams or pounds and ounces, with a gram and pound disabling switch on the underside when a unit needs to be locked out.1

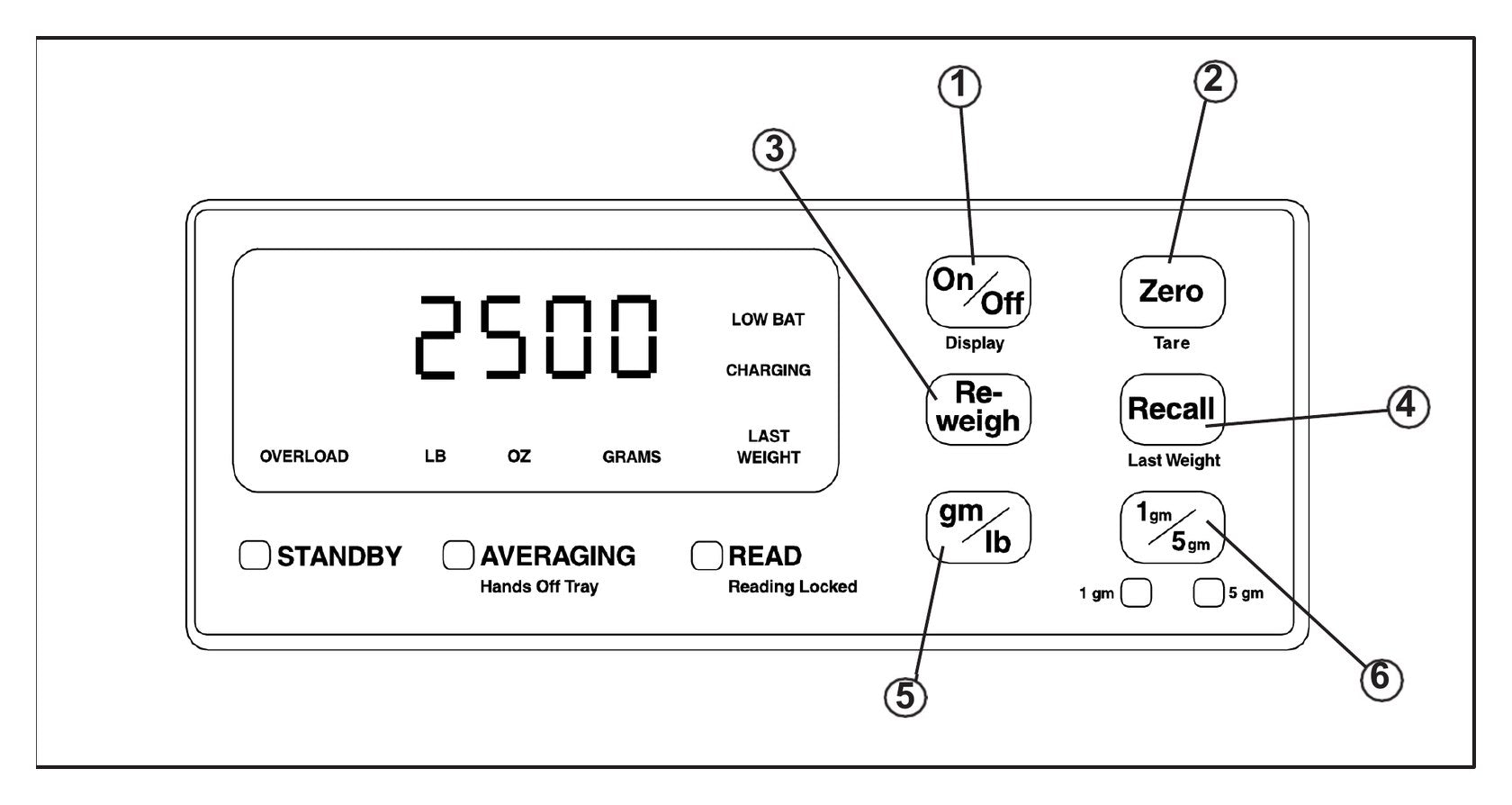

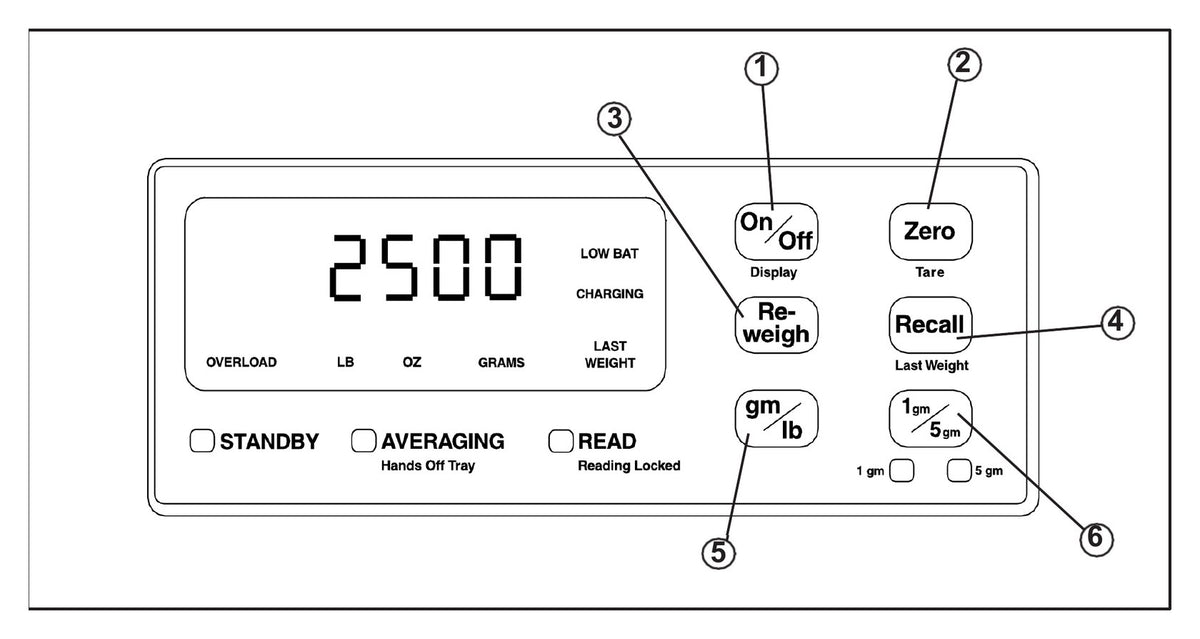

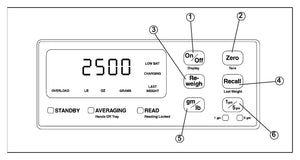

- Tare, reweigh and recall: Tare removes the weight of a blanket or other item, reweigh repeats a reading, and the scale recalls the last computed weight.1
- Line or battery power: Runs from a standard outlet at 120 Vac, 60 Hz, 0.2 amps, and from an internal rechargeable battery pack that charges whenever the scale is plugged in.1
What's Included:
- 1 x Olympic Smart Scale Model 65, scale on roll-around mobile base, shipped fully assembled (56365)1
- Nursery tray2
- Rechargeable batteries (internal pack)2
Specifications:
| Brand | Olympic Smart Scale |
|---|---|
| Supplied in the USA by | CHS USA Inc. (Canadian Hospital Specialties) |
| Model | Model 65, roll-around |
| Manufacturer part number (MPN) | 56365 |
| Pacific Biomedical SKU | CHS-56365 |
| Scale type | Electronic infant scale on a roll-around mobile base1 |
| Capacity | Babies up to 33 pounds (14.8 kg)1 |
| Weight readout | Computed to the nearest gram and locked on the display2 |
| Units | Grams or pounds and ounces, with a gram and pound disabling switch on the underside1 |
| Functions | Tare, averaging for active babies, weight lock, reweigh, recall of last weight, overload indication1 |
| Tray | Four-sided Easy-Lift nursery tray, replaceable (SS60 tray, part 56306)2 |
| Electrical | 120 Vac, 60 Hz, 0.2 amps1 |
| Battery | Internal rechargeable pack, charges whenever the scale is connected to an outlet1 |
| Assembly | Ships fully assembled1 |
| Calibration | Calibrated at the factory, and recalibration before initial use is directed because of movement in shipping1 |
| Calibration weight | 7500 plus or minus 1 gram nickel plated steel, part 56315, sold separately2 |
| Related part numbers | 56360 Model 60 table-top, 56319 roll-around base for Model 60, 56306 replacement Easy-Lift tray, 56315 calibration weight2 |
Use Cases:
- Daily weights in a newborn nursery, where the scale rolls between bassinets
- NICU and special care nursery weights where a gram-level reading is charted
- Pediatric units and clinics weighing infants up to 33 pounds
- Departments that want one scale shared across rooms rather than a fixed table-top unit
Related products:
- Olympic Smart Scale SS60 Easy-Lift Infant Tray, replacement tray (56306)
- Olympic Circumstraint Infant Restraint Board
- Olympic Papoose Board Patient Immobilizer
- Olympic Papoose Board, Small, infants to 24 months
- MiniMuffs Neonatal Noise Attenuators, box of 36 pairs
- JollyPop Hospital Pacifiers, Micro-Preemie, Preemie and Newborn
- Neonatal Positioning & Comfort Care collection
Frequently Asked Questions:
What is the difference between the Olympic Smart Scale Model 60 and Model 65?
The Model 65 is the same electronic baby scale attached to a roll-around mobile base, while the Model 60 is the table-top version. The Model 65 ships fully assembled, and apart from the base both models are operated and serviced the same way.1 A roll-around base is also sold on its own for a Model 60, as part 56319.2
How much weight can the Olympic Smart Scale Model 65 hold?
Up to 33 pounds (14.8 kg). That figure applies to both the Model 60 and the Model 65.1
How precise is the weight reading?
The final weight is automatically computed to the nearest gram and locked on the display.2 Confirm the reading against your facility's calibration schedule, using the 7500 gram calibration weight, part 56315.2
Can it weigh a baby who will not stay still?
Yes. The scale averages the reading for active babies, then locks the final weight on the display, so changing numbers do not have to be tracked by eye.12
Does the weight stay on the screen after the baby is lifted off?
Yes. The weight remains locked on the display even once the baby has been removed, which lets staff finish care and chart the number afterwards.2 The scale also recalls the last computed weight.1
Does it run on batteries or does it need to stay plugged in?
Both. It runs from a standard outlet at 120 Vac, 60 Hz, 0.2 amps, and from an internal rechargeable battery pack that recharges automatically whenever the scale is connected to an outlet.1
Does it arrive assembled, and does it need calibration first?
The Model 65 ships fully assembled. The scale is calibrated at the factory, and it is recalibrated before initial use because of movement during shipping.1
Can the display switch between grams and pounds?
Yes. Readings are available in grams or in pounds and ounces, and a gram and pound disabling switch on the underside can lock the scale to one unit when a facility wants a single standard.1
What comes with part number 56365?
The scale on its roll-around base, a nursery tray and rechargeable batteries.2 The 7500 gram calibration weight (56315) and spare Easy-Lift trays (56306) are ordered separately.2
Is the tray replaceable?
Yes. The four-sided Easy-Lift tray is a stocked replacement part, listed as the SS60 tray, part 56306.2
Is this the same scale that was sold under the Natus name?
Yes. The Olympic Smart Scale line was documented and cataloged by Natus Medical, and the Model 60 and Model 65 instruction manual is Natus branded.12 The line is supplied in the United States today by CHS USA Inc.
How do I order by purchase order or get facility pricing?
Add it to your cart on this page, or contact CustomerService@pacificbiomedical.com or 844.436.3526 for a purchase order, freight quote or facility pricing.
References
- Natus Medical Incorporated. Olympic Smart Scale Model 60 and Model 65 Instruction Manual, 602017C (capacity 33 lb and 14.8 kg, Model 65 on a roll-around base shipped fully assembled, tare, averaging, weight lock, reweigh, recall, gram and pound switch, electrical rating, rechargeable battery pack, factory calibration and recalibration before initial use, handling cautions). ifixit.com.
- Natus Medical. Newborn Care catalog, Nursery Essentials, Olympic Smart Scale page (weight computed to the nearest gram and locked on the display, weight remains locked after the baby is removed, four-sided Easy-Lift trays, table-top and roll-around models, ordering numbers 56360, 56365, 56315, 56306 and 56319, Model 65 includes nursery tray and rechargeable batteries). conferenceharvester.com.
Follow the Olympic Smart Scale instruction manual and your facility's policy. Never lift the scale by the tray, never leave a baby unattended on the scale, lock the casters before weighing, and unplug the power cord before cleaning or servicing.
