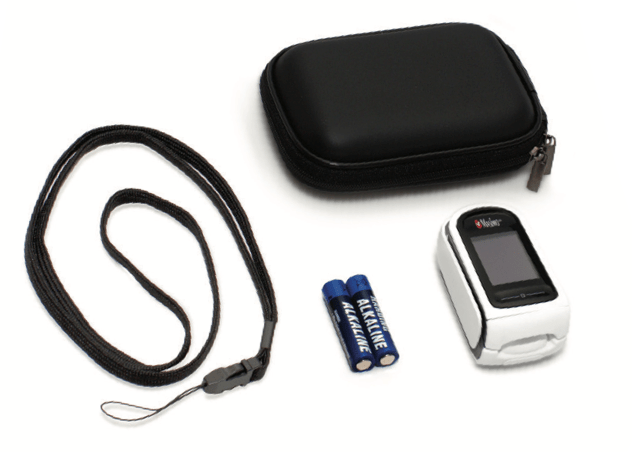

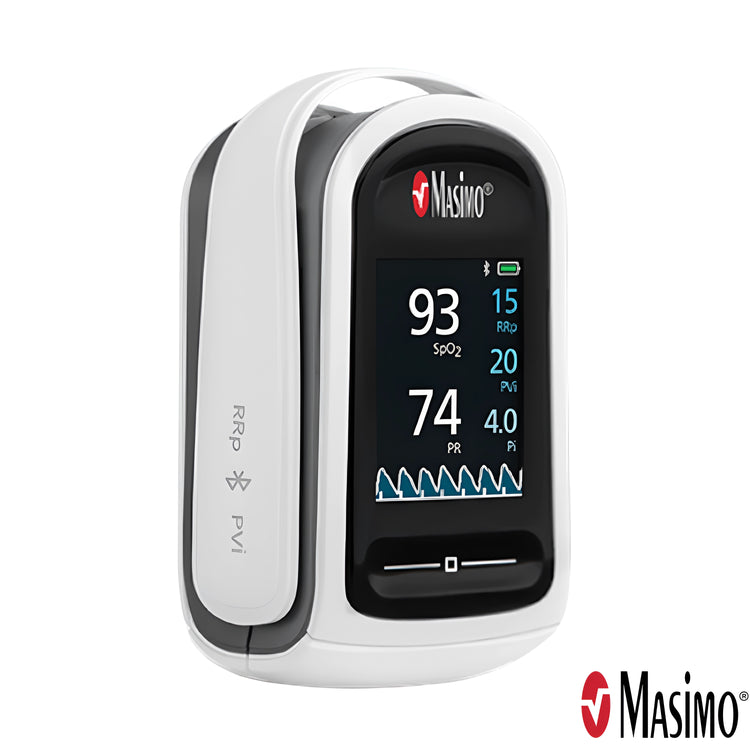

MightySat Rx Model 9941 with PVi and RRp Fingertip Pulse Oximter

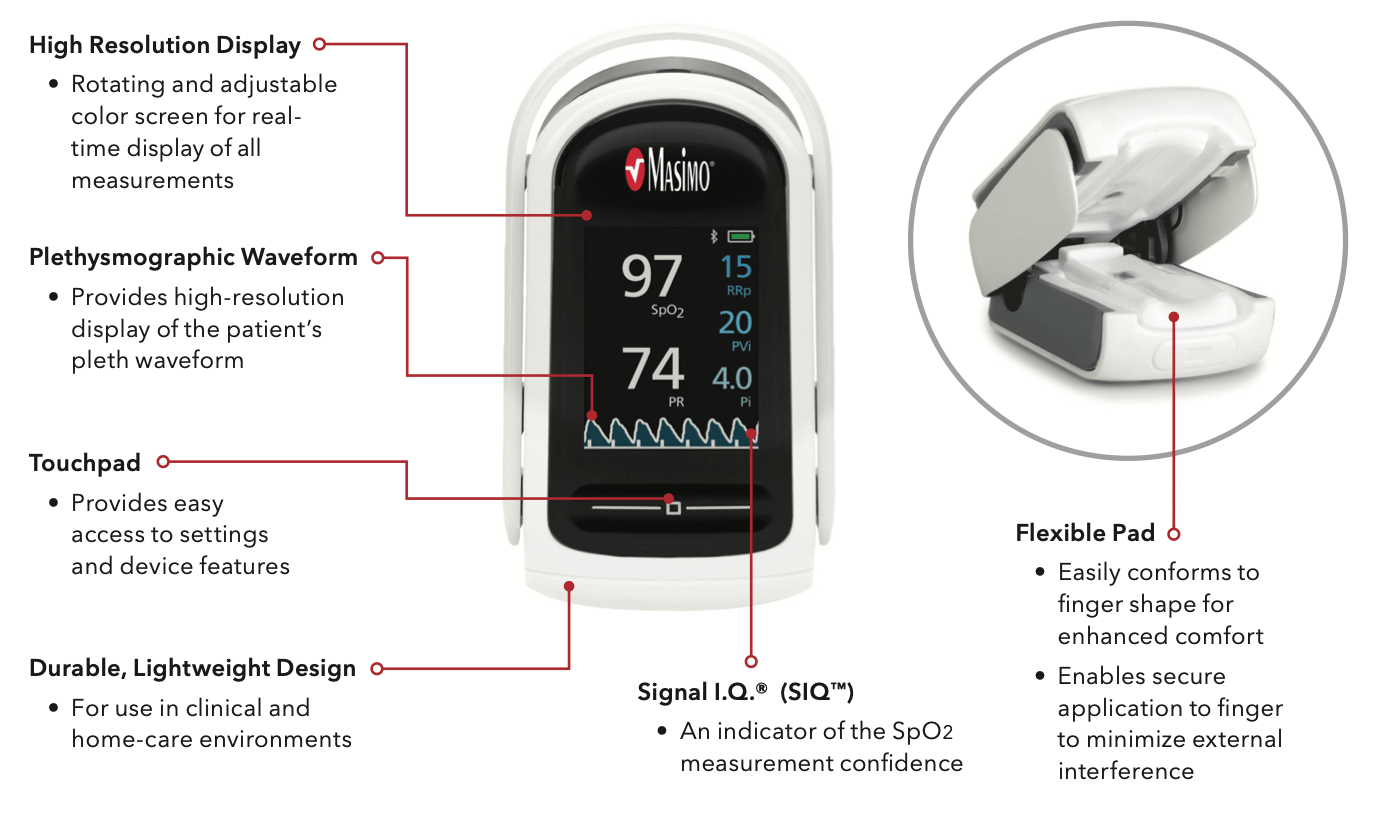

Features:

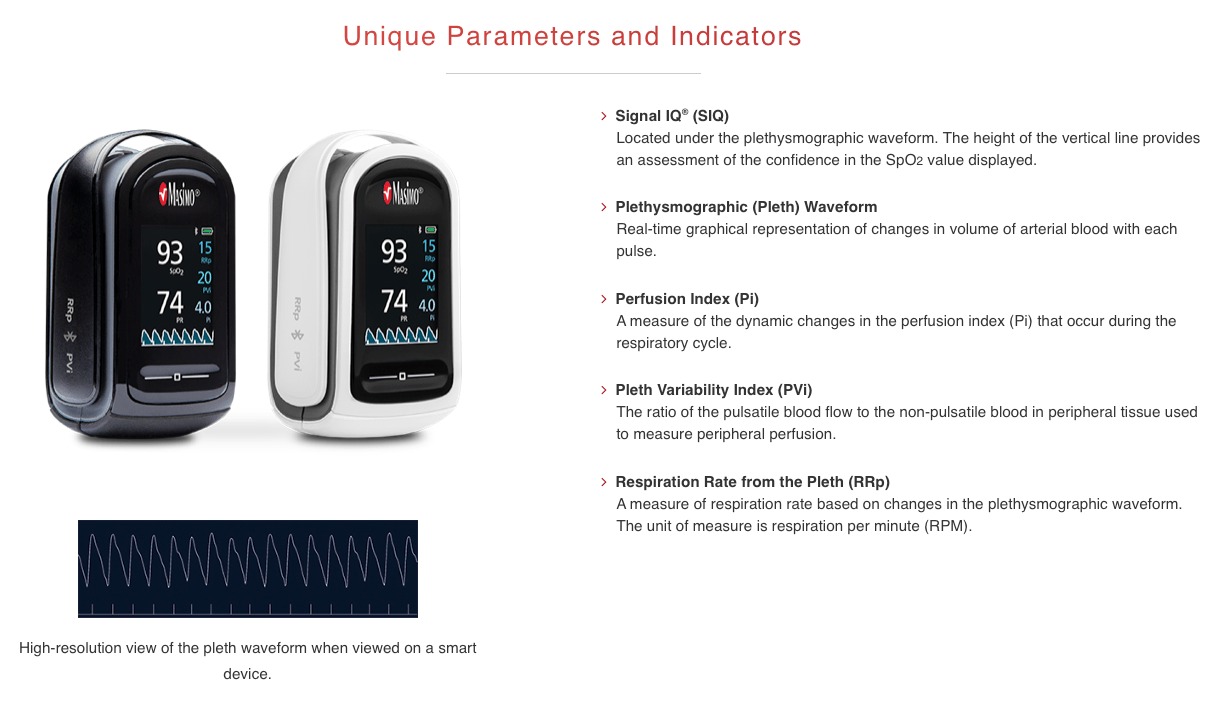

• SpO₂ and PR featuring Masimo Signal Extraction Technology^® (SET^®)
• PR (Pulse Rate)
• Pi (Perfusion Index)
• RRp (Respiration Rate)
• Pleth Waveform
• PVi (Pleth Variability Index)
• 150-Degree Viewing Angle
• Rotational Screen
• Four-Year Limited Warranty

Specifications:

DISPLAY RANGE
Functional Oxygen Saturation (SpO2): 0–100%
Pulse Rate (PR): 25–240 bpm
Perfusion Index (Pi): 0.02–20%

ACCURACY – (ARMS)4
Oxygen Saturation (%SpO2) Accuracy Range: 70–100%
-No Motion: 2%
-Motion: 3%
-Low Perfusion: 2%
Pulse Rate (PR) Accuracy Range: 25–240 bpm
-No Motion: 3 bpm
-Motion: 5 bpm
-Low Perfusion: 3 bpm

Respiration Rate (RRp) Accuracy Range: 4–70 rpm
-RRp: 3 rpm
-RRp Mean Error: ± 1 rpm

PATIENT WEIGHT
Adult and Pediatric Patients: >30 kg (66 lbs)

MEASUREMENT RESOLUTION
Oxygen Saturation (%SpO2): 1%
Pulse Rate (PR): 1 bpm
Pleth Variability Index (PVi): 1%

ENVIRONMENTAL
Operating Temperature: 5 to 40˚ C (41 to 104˚ F)
Storage Temperature: -40 to 70˚ C (-40 to 158˚ F)
Operating Humidity: 10 to 95%, non-condensing
Atmospheric Pressure: 540 to 1060 mBar

PHYSICAL CHARACTERISTICS
Weight with Battery: 73 g (0.16 lbs)
Dimensions: 7.4 cm x 4.1 cm x 3.0 cm (2.9” x 1.6” x 1.2”)

ALARMS
No alarms on this product

CLASSIFICATION PER IEC 60601-1
EMC Classification: Class B
Degree of Protection: Type BF-Applied Part
Enclosure Degree of Ingress Protection: IP23
Mode of Operation: Continuous Operation

COMPLIANCE
Safety: UL 60601-1, CSA C22.2 No. 601.1, IEC 60601-1, EN 60601-1
EMC: EN 60601-1-2, Class B
Pulse Oximeter: ISO 80601-2-61
Conformity to EU MDD 93/42/EEC: CE Marked
