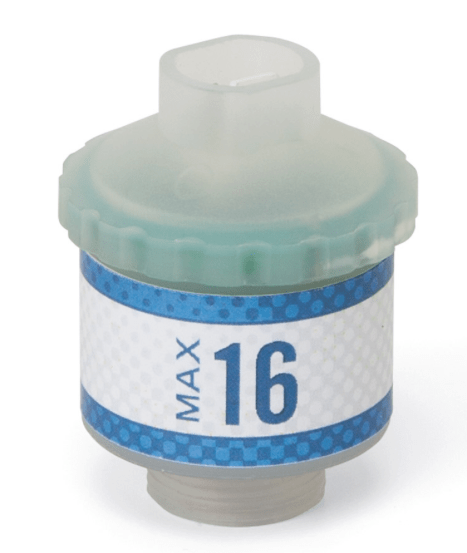

MAX 16, R114P70 Oxygen Sensor, Puritan-Bennet
The Maxtec MAX-16 medical oxygen sensor (R114P70) is a replacement FiO2 sensor that measures 0 to 100% oxygen, cross-referenced by Maxtec for Puritan Bennett equipment.1
Maxtec lists an output range of 9.0 to 16.0 mV and an expected lifetime of over 1,000,000 %O2 hours.1
Specifications:
| Manufacturer | Maxtec12 |
|---|---|
| Part number | MAX-16 (R114P70)1 |
| Range of measurement | 0 to 100% O21 |
| Output range | 9.0 to 16.0 mV1 |
| Response time | 12 seconds or less1 |
| Linearity | 3% or better1 |
| Expected lifetime | over 1,000,000 %O2 hours1 |
| Temperature compensation | NTC1 |
| Operating temperature | 10 to 40 C1 |
| Storage temperature | -20 to 50 C1 |
| Humidity range | 0% to 99% RH, non-condensing1 |
| Ambient pressure range | 700 to 1250 mbar1 |
| Interference | Per EN ISO 80601-2-551 |
| Electrical interface | 3-pin Molex1 |
Compatibility (Maxtec Cross Reference):
- Covidien / Puritan Bennett 4-072214-00, 980, 840, 760 and 740 ventilators1
- CareFusion 68289, Avea and SiPAP1
- Maquet 6419332 and Servo 900; Siemens Servo 3001
- Versamed M1161179 and iVent 2011
- Check the part number in your device manual against the Maxtec cross reference before ordering.1
Related Products:
- Maxtec MAX-1 (R113P90)
- Maxtec MAX-10 (R112P10)
- Maxtec MAX-11 (R113P10)
- Maxtec MAX-13 (R115P10)
- Oxygen analyzers
Frequently Asked Questions:
What does the Maxtec MAX-16 replace?
Maxtec cross-references the MAX-16 (R114P70) to sensors including Covidien / Puritan Bennett 4-072214-00, 980, 840, 760 and 740 ventilators.1
How long does a Maxtec MAX-16 oxygen sensor last?
Maxtec lists an expected lifetime of over 1,000,000 %O2 hours.1
What is the MAX-16 response time?
12 seconds or less, per Maxtec.1
What output does the MAX-16 produce?
9.0 to 16.0 mV across a 0 to 100% O2 measurement range.1
What connector does the MAX-16 use?
3-pin Molex, per Maxtec.1
Is the Maxtec MAX-16 listed in FDA AccessGUDID?
Yes. AccessGUDID lists the Maxtec MAX-16 medical oxygen sensor.2
Manufacturer Sources
- Maxtec. Max-16 Medical oxygen sensor (R114P70), product page with cross reference and specifications, read 2026-11-09. https://shop.maxtec.com/product/biomed-and-service/fio2/medical-oxygen-sensor/max-16/
- FDA AccessGUDID. Maxtec MAX-16 oxygen sensor, DI 00853061006975, read 2026-11-09. https://accessgudid.nlm.nih.gov/devices/00853061006975
Sourced from Maxtec product documentation and FDA AccessGUDID.
