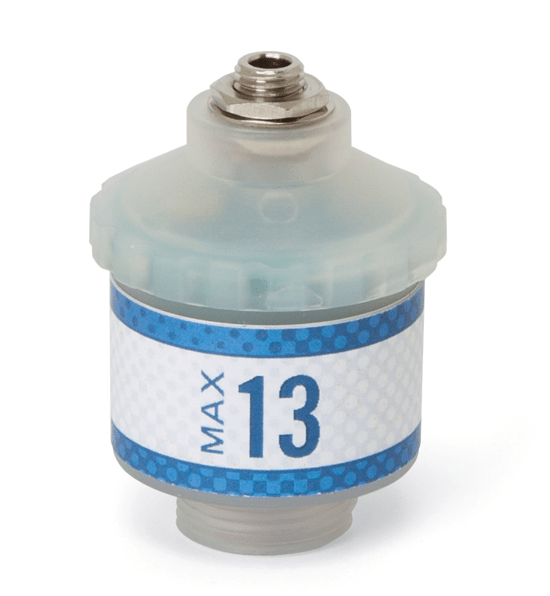

MAX 13, R115P10 Oxygen Sensor, MSA

SKU: MAX-13

The Maxtec MAX-13 medical oxygen sensor (R115P10) is a replacement FiO2 sensor that measures 0 to 100% oxygen, cross-referenced by Maxtec for MSA equipment.1

Maxtec lists an output range of 13.0 to 16.5 mV and an expected lifetime of over 1,000,000 %O2 hours.1

Specifications:

Manufacturer Maxtec12
Part number MAX-13 (R115P10)1
Range of measurement 0 to 100% O21
Output range 13.0 to 16.5 mV1
Response time 12 seconds or less1
Linearity 3% or better1
Expected lifetime over 1,000,000 %O2 hours1
Temperature compensation NTC1
Operating temperature 10 to 40 C1
Storage temperature -20 to 50 C1
Humidity range 0% to 99% RH, non-condensing1
Ambient pressure range 700 to 1250 mbar1
Interference Per EN ISO 80601-2-551
Electrical interface 3.5 mm mono jack1

Compatibility (Maxtec Cross Reference):

  • MSA 406931 and MiniOX I, II, III and 30001
  • Covidien 4-020933-00, 7820 monitor and 7200 vent1
  • Viasys 66030 sensor and 6400, 8400 and VIP vents1
  • Precision Medical PM5900 and Teledyne R17MED1
  • Check the part number in your device manual against the Maxtec cross reference before ordering.1

Related Products:

Frequently Asked Questions:

What does the Maxtec MAX-13 replace?

Maxtec cross-references the MAX-13 (R115P10) to sensors including MSA 406931 and MiniOX I, II, III and 3000.1

How long does a Maxtec MAX-13 oxygen sensor last?

Maxtec lists an expected lifetime of over 1,000,000 %O2 hours.1

What is the MAX-13 response time?

12 seconds or less, per Maxtec.1

What output does the MAX-13 produce?

13.0 to 16.5 mV across a 0 to 100% O2 measurement range.1

What connector does the MAX-13 use?

3.5 mm mono jack, per Maxtec.1

Is the Maxtec MAX-13 listed in FDA AccessGUDID?

Yes. AccessGUDID lists the Maxtec MAX-13 medical oxygen sensor.2

Manufacturer Sources
  1. Maxtec. Max-13 Medical oxygen sensor (R115P10), product page with cross reference and specifications, read 2026-11-09. https://shop.maxtec.com/product/biomed-and-service/fio2/medical-oxygen-sensor/max-13/
  2. FDA AccessGUDID. Maxtec MAX-13 oxygen sensor, DI 00817770020080, read 2026-11-09. https://accessgudid.nlm.nih.gov/devices/00817770020080

Sourced from Maxtec product documentation and FDA AccessGUDID.
