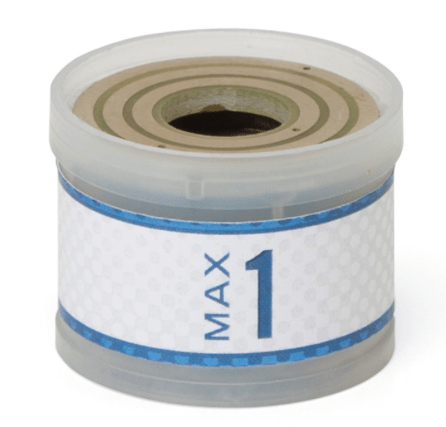

MAX 1, R113P90 Oxygen Sensor, GE/Ohmeda
The Maxtec MAX-1 medical oxygen sensor (R113P90) is a replacement FiO2 sensor that measures 0 to 100% oxygen, cross-referenced by Maxtec for GE/Ohmeda equipment.1
Maxtec lists an output range of 14 to 20 mV and an expected lifetime of over 500,000 %O2 hours.1
Specifications:
| Manufacturer | Maxtec12 |
|---|---|
| Part number | MAX-1 (R113P90)1 |
| Range of measurement | 0 to 100% O21 |
| Output range | 14 to 20 mV1 |
| Response time | 17 seconds or less1 |
| Linearity | 3% full scale or better1 |
| Expected lifetime | over 500,000 %O2 hours1 |
| Temperature compensation | None1 |
| Operating temperature | 10 to 40 C1 |
| Storage temperature | -20 to 50 C1 |
| Humidity range | 0% to 90% RH, non-condensing1 |
| Ambient pressure range | 700 to 1250 mbar1 |
| Interference | Per EN ISO 80601-2-551 |
| Electrical interface | Gold-plated slip rings1 |
Compatibility (Maxtec Cross Reference):
- GE (Datex-Ohmeda) 0237-2034-700, Excel Modulus, 5250 RGM and 5150 handheld monitor1
- GE (Ohmeda) 5100, 5120, 5125, 4700 Oxicap and 78001
- Hudson RCI 5556, Mercury Medical 10-103-07, Teledyne R-15 and Analytical Industries PSR-11-9151
- Check the part number in your device manual against the Maxtec cross reference before ordering.1
Related Products:
- Maxtec MAX-10 (R112P10)
- Maxtec MAX-11 (R113P10)
- Maxtec MAX-13 (R115P10)
- Maxtec MAX-16 (R114P70)
- Oxygen analyzers
Frequently Asked Questions:
What does the Maxtec MAX-1 replace?
Maxtec cross-references the MAX-1 (R113P90) to sensors including GE (Datex-Ohmeda) 0237-2034-700, Excel Modulus, 5250 RGM and 5150 handheld monitor.1
How long does a Maxtec MAX-1 oxygen sensor last?
Maxtec lists an expected lifetime of over 500,000 %O2 hours.1
What is the MAX-1 response time?
17 seconds or less, per Maxtec.1
What output does the MAX-1 produce?
14 to 20 mV across a 0 to 100% O2 measurement range.1
What connector does the MAX-1 use?
Gold-plated slip rings, per Maxtec.1
Is the Maxtec MAX-1 listed in FDA AccessGUDID?
Yes. AccessGUDID lists the Maxtec MAX-1 medical oxygen sensor.2
Manufacturer Sources
- Maxtec. Max-1 Medical oxygen sensor (R113P90), product page with cross reference and specifications, read 2026-11-09. https://shop.maxtec.com/product/biomed-and-service/fio2/medical-oxygen-sensor/max-1/
- FDA AccessGUDID. Maxtec MAX-1 oxygen sensor, DI 00817770020004, read 2026-11-09. https://accessgudid.nlm.nih.gov/devices/00817770020004
Sourced from Maxtec product documentation and FDA AccessGUDID.
