SAM Junctional Tourniquet Deluxe, SJT, JT400-EN
Rx Item: Approval Needed Before Checkout
Available to healthcare organizations, licensed prescribers and buyers with a signed medical director authorization form.
How to Qualify
- Agency or facility: sign up with your work email. It's the fastest way to be verified.
- Licensed prescriber: add your 10-digit NPI number or upload your license.
- Working under a medical director: we email them our authorization form to sign online, or you can upload a signed copy.
We review accounts within 1 business day.
You can add it to your cart now and check out once you're approved.
Already have an account? Sign In

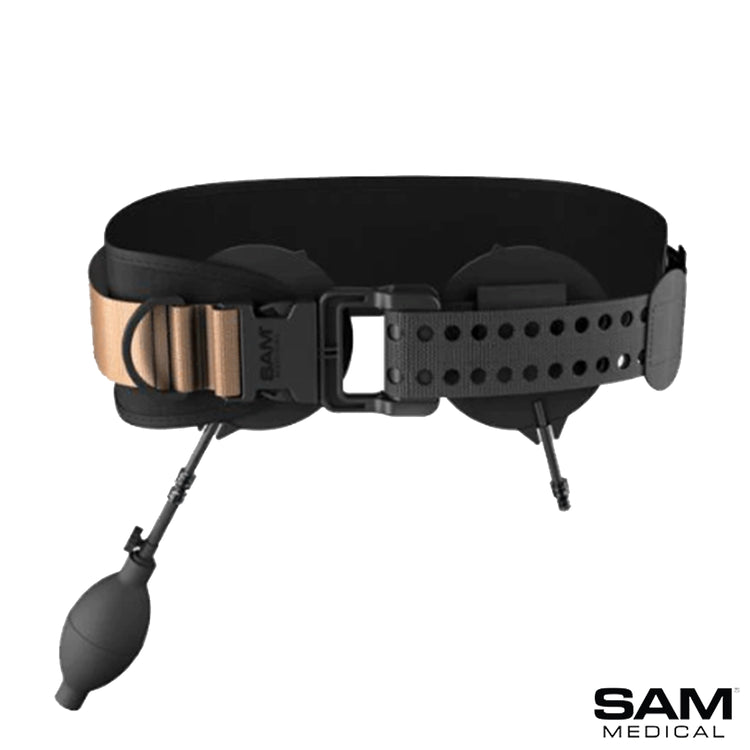

The SAM Medical JT400-EN is the SAM Junctional Tourniquet (SJT) Deluxe: a belt with two inflatable Target Compression Devices that controls severe bleeding in the inguinal or axilla areas where standard tourniquets cannot be used, and also immobilizes pelvic fractures.12 It applies in under 25 seconds and may stay on for up to four hours.12 We supply it with the other tourniquets.
Product Highlights:
- Indications: difficult bleeds in the inguinal area and the axilla, and pelvic fracture immobilization.2
- Fast: applies in under 25 seconds.1
- Target Compression Device: inflates up to 3.2 in with the removable hand pump or any luer lock syringe; two TCDs occlude flow bilaterally.1
- AUTOSTOP buckle: clicks at 150 N of circumferential pressure and removes slack before TCD inflation.1
- Axillary kit: TCD Extender for subclavicular anatomy and an auxiliary strap for three-point axillary application.1
- Duration: intended to stay on for up to four hours.2
What Is in the Box:
- 1 SJT belt with AUTOSTOP buckle.23
- 2 Target Compression Devices (TCD).2
- 1 TCD Extender.2
- 1 hand pump.2
- 1 auxiliary strap.2

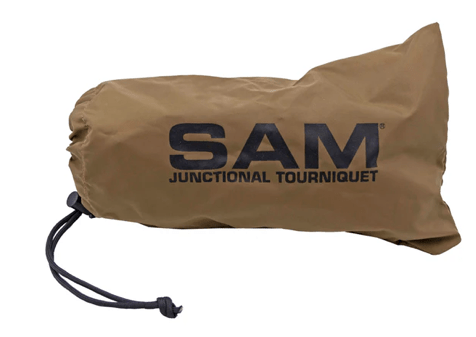

- 1 bag.3
Specifications:
| Manufacturer | SAM Medical Products |
|---|---|
| Brand | SAM Junctional Tourniquet (SJT) |
| Part number | JT400-EN2 |
| GUDID device identifier | 008220450003533 |
| NSN | 6515-01-618-74752 |
| Application time | Under 25 seconds1 |
| Maximum wear time | Up to 4 hours2 |
| TCD inflation | Up to 3.2 in1 |
| Operating principle | 150 N circumferential pressure at the AUTOSTOP buckle1 |
| Packaged size | 4.75 x 4.75 x 8.875 in (12.1 x 12.1 x 22.5 cm)1 |
| Packaged weight | 24 oz (680 g)1 |
| Imaging | Radiolucent except the buckle's two stainless steel springs; MR Conditional when used as a pelvic sling14 |
| Single use | Yes2 |
| FDA 510(k) | K1315613 |
| Pack | 1 kit |
SJT Models:
| JT400-EN (this kit) | SJT belt, 2 TCD, TCD Extender, hand pump, auxiliary strap2 |
|---|---|
| JT401-EN | SJT belt, 1 TCD, hand pump; no Extender or auxiliary strap21 |
Related Products:
- SAM XT Extremity Tourniquet, Hi-Viz Orange
- SAM XT700 Extremity Tourniquet, Tactical Black
- ChitoSAM 100 Z-Fold Hemostatic Dressing, 3 in x 4 ft
- SAM Pelvic Sling II, Force-Controlled Pelvic Belt
Product Guides and Documents:
Frequently Asked Questions:
What is the JT400-EN SAM Junctional Tourniquet?
The SAM Junctional Tourniquet (SJT) is a belt with inflatable Target Compression Devices that controls severe bleeding in the inguinal or axilla areas where standard tourniquets cannot be applied, and immobilizes pelvic fractures.12
What is an SJT tourniquet on JT400-EN?
SJT is short for SAM Junctional Tourniquet; JT400-EN is the Deluxe kit with two TCDs, a TCD Extender, hand pump and auxiliary strap.52
How long does the JT400-EN Junctional Tourniquet take to apply?
Under 25 seconds.1
How long can the SJT stay on?
JT400-EN: Up to four hours.2
What is the difference between the SAM XT and the SAM Junctional Tourniquet on JT400-EN?
The SAM XT is for bleeding in the arms and legs; the SAM Junctional Tourniquet is for the groin and armpit, where a standard tourniquet cannot be applied.6
How do you apply the SJT for inguinal bleeding?
JT400-EN: Slide the belt under the patient with the TCD over the area to compress, connect the buckle, pull the brown handles apart until the buckle clicks, fasten the excess belt, then pump the TCD until the hemorrhage stops.2
Can the SJT be used in the axilla?

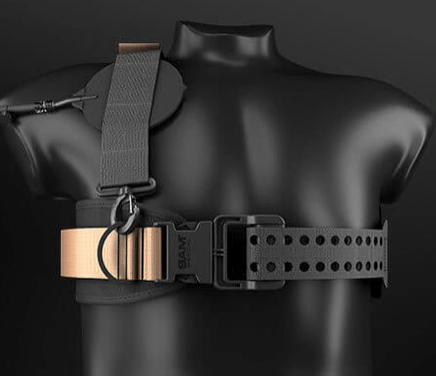

JT400-EN: Yes. Apply it under the arms as high as possible with the D-ring on the injured side, attach the TCD Extender, connect the auxiliary strap, tighten and inflate the TCD.2
Can the SJT stabilize a pelvic fracture on JT400-EN?
Yes. Without the TCD, slide the belt under the patient at the level of the trochanters, connect the buckle and pull the brown handles until it clicks.2

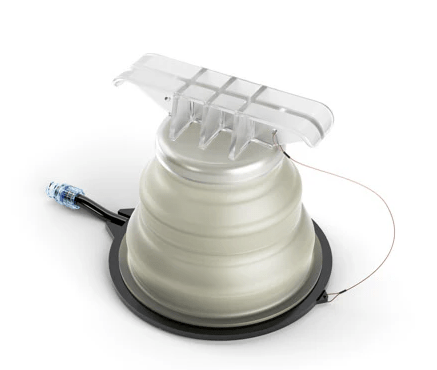

How is the Target Compression Device inflated?
JT400-EN: With the removable hand pump or any luer lock syringe. If altitude change is a concern, a syringe can fill the TCD with water, saline or another non-compressible fluid.12
Is the SAM Junctional Tourniquet reusable on JT400-EN?
No. It is a single-use device.2
Is there a SAM Junctional Tourniquet trainer on JT400-EN?
Yes. SAM Medical offers the SJT in Deluxe and Trainer versions.5
Manufacturer Sources
- SAM Medical Products. SAM Junctional Tourniquet Product Overview, SJT-SS-05 (accessed 2026-11-07). sammedical.box.com.
- SAM Medical Products. SAM Junctional Tourniquet Instructions for Use, JT-IS-EN-05 (issue 2025-08) (accessed 2026-11-07). sammedical.box.com.
- U.S. Food and Drug Administration. AccessGUDID: SAM Medical JT400-EN, SAM Junctional Tourniquet, SJT Belt with 2 TCDs, Auxiliary Strap, Extender, Hand Pump and Bag, DI 00822045000353 (accessed 2026-11-07). accessgudid.nlm.nih.gov.
- SAM Medical Products. MR Safety Information for SAM Medical Products, SAM-MRI-sup-2 (accessed 2026-11-07). sammedical.box.com.
- SAM Medical Products. SAM Junctional Tourniquet product page (accessed 2026-11-07). sammedical.com.
- SAM Medical Products. Hemorrhage Control collection and FAQ (accessed 2026-11-07). sammedical.com.
Specifications are from SAM Medical and FDA GUDID records. Tourniquet application may cause considerable pain and may cause skin, muscle, vessel or nerve damage; monitor the patient during transport and adjust the device if needed.2
| Item # | Image | Price | Quantity |
|---|---|---|---|
|
SAM Junctional Tourniquet Deluxe, SJT, JT400-EN SM-JT400-EN |
$299.00 ea
|
|
| Item # | Image | Description | Quantity |
|---|
