SAM Pelvic Sling II, Force-Controlled Pelvic Binder, 3 Sizes

This item requires a clinical attestation, confirmed in your cart.

The SAM Pelvic Sling II is a force-controlled circumferential pelvic belt, made by SAM Medical in Small (PS300-OB-EN), Standard (PS301-OB-EN) and Large (PS302-OB-EN).1 It is used to stabilize pelvic ring fractures during transport, and its AUTOSTOP buckle clicks at 150 N so the sling is neither over- nor under-tightened.21

Product Highlights:

  • Three sizes: Small fits hip circumference 27 to 45 in (69 to 114 cm), Standard 32 to 50 in (81 to 127 cm) and Large 36 to 54 in (91 to 137 cm).2
  • Force control: AUTOSTOP buckle with tactile and audible click at 150 N; Precision Strap and hook and loop closure.1
  • Transfers: Low-friction posterior slider eases transfers after severe trauma.1
  • Access: Narrow tapered front allows catheterization, interventional radiology, external fixation and abdominal surgery without removal.1
  • Imaging: Radiolucent except two stainless steel buckle springs; MR Conditional at 3 T or less.12

What Is in the Box:

One SAM Pelvic Sling II in the size selected (Small, Standard or Large).1

Specifications:

Models Small PS300-OB-EN, Standard PS301-OB-EN, Large PS302-OB-EN; Military Standard PS301-OD-EN1
Small Hip 27 to 45 in (69 to 114 cm)2
Standard Hip 32 to 50 in (81 to 127 cm)2
Large Hip 36 to 54 in (91 to 137 cm)2
GUDID DIs Small 00822045428621, Standard 00822045428638, Large 00822045428645345
Brand SAM Pelvic Sling II4
Operating principle 150 N circumferential pressure engages the AUTOSTOP buckle1
Imaging Radiolucent except two stainless steel buckle springs; MR Conditional, 3 T or less12
Packaged size 5.5 x 7.5 x 3.75 in (14 x 19 x 9.5 cm)1
Packaged weight 8.6 to 9.2 oz (244 to 250 g), varies by size1
Use Single use2
Sterile No4
FDA product code IPW4

How to Choose a Size:

Measure hip circumference at the level of the trochanters. Small fits hip circumference 27 to 45 in (69 to 114 cm), Standard 32 to 50 in (81 to 127 cm) and Large 36 to 54 in (91 to 137 cm).2 The Standard size fits 95 percent of the population.1

Related Products:

Product Guides and Documents:

Frequently Asked Questions:

Which SAM Pelvic Sling II size do I need (PS301-OB-EN)?

Small fits hip circumference 27 to 45 in (69 to 114 cm), Standard 32 to 50 in (81 to 127 cm) and Large 36 to 54 in (91 to 137 cm).2 The Standard size fits 95 percent of the population.1

What does the SAM Pelvic Sling treat (PS301-OB-EN)?

It stabilizes suspected unstable pelvic fractures after trauma.7 It is a non-invasive circumferential pelvic belt to stabilize pelvic fractures during transport, for people who have or are suspected of having a pelvic ring fracture where hemorrhage might occur.2

Is a pelvic sling the same as a pelvic binder (PS301-OB-EN)?

Yes, for this device the terms describe the same job. SAM calls it a circumferential pelvic belt, and the FDA device record classifies it as a single-use pelvic fracture binder.24

How do you apply the SAM Pelvic Sling II (PS301-OB-EN)?

Place it black side up under the patient at the level of the trochanters, pass the black strap through the buckle, pull until you hear and feel the click, then press the black strap down to secure it.2

How do you remove the SAM Pelvic Sling II (PS301-OB-EN)?

Lift the black strap by pulling upward, maintain tension and slowly let the sling loosen.2

Can X-rays, CT or MRI be done with the sling on (PS301-OB-EN)?

All materials are radiolucent except the buckle's two stainless steel springs, so X-rays and CT scans can be taken without removal. The sling is MR Conditional at 3 Tesla or less; it must stay firmly attached and must not be repositioned or removed near the magnet.12

Is there a military version of the SAM Pelvic Sling II (PS301-OB-EN)?

Yes. The Standard size comes in OD green and black as PS301-OD-EN, NSN 6515-01-509-6866.12

Manufacturer Sources
  1. SAM Medical. SAM Pelvic Sling II product overview, AFSLI-C-SS-05 (PDF) (accessed 2026-11-07). sammedical.box.com.
  2. SAM Medical. SAM Pelvic Sling II instructions for use, PS-IS-EN-4 (PDF) (accessed 2026-11-07). sammedical.box.com.
  3. U.S. FDA. AccessGUDID record, DI 00822045428621, SAM Pelvic Sling Small, PS300-OB-EN (accessed 2026-11-07). accessgudid.nlm.nih.gov.
  4. U.S. FDA. AccessGUDID record, DI 00822045428638, SAM Pelvic Sling Standard, PS301-OB-EN (accessed 2026-11-07). accessgudid.nlm.nih.gov.
  5. U.S. FDA. AccessGUDID record, DI 00822045428645, SAM Pelvic Sling Large, PS302-OB-EN (accessed 2026-11-07). accessgudid.nlm.nih.gov.
  6. SAM Medical. SAM Pelvic Sling product page (accessed 2026-11-07). sammedical.com.
  7. SAM Medical. Fracture management collection page and FAQ (accessed 2026-11-07). sammedical.com.

Single use only; reuse may cause illness or injury. Monitor the patient's skin for pressure injury while in use.2

Item # Image Quantity

SAM Pelvic Sling II, Small, 27-45 in, PS300-OB-EN

SM-PS300-OB-EN

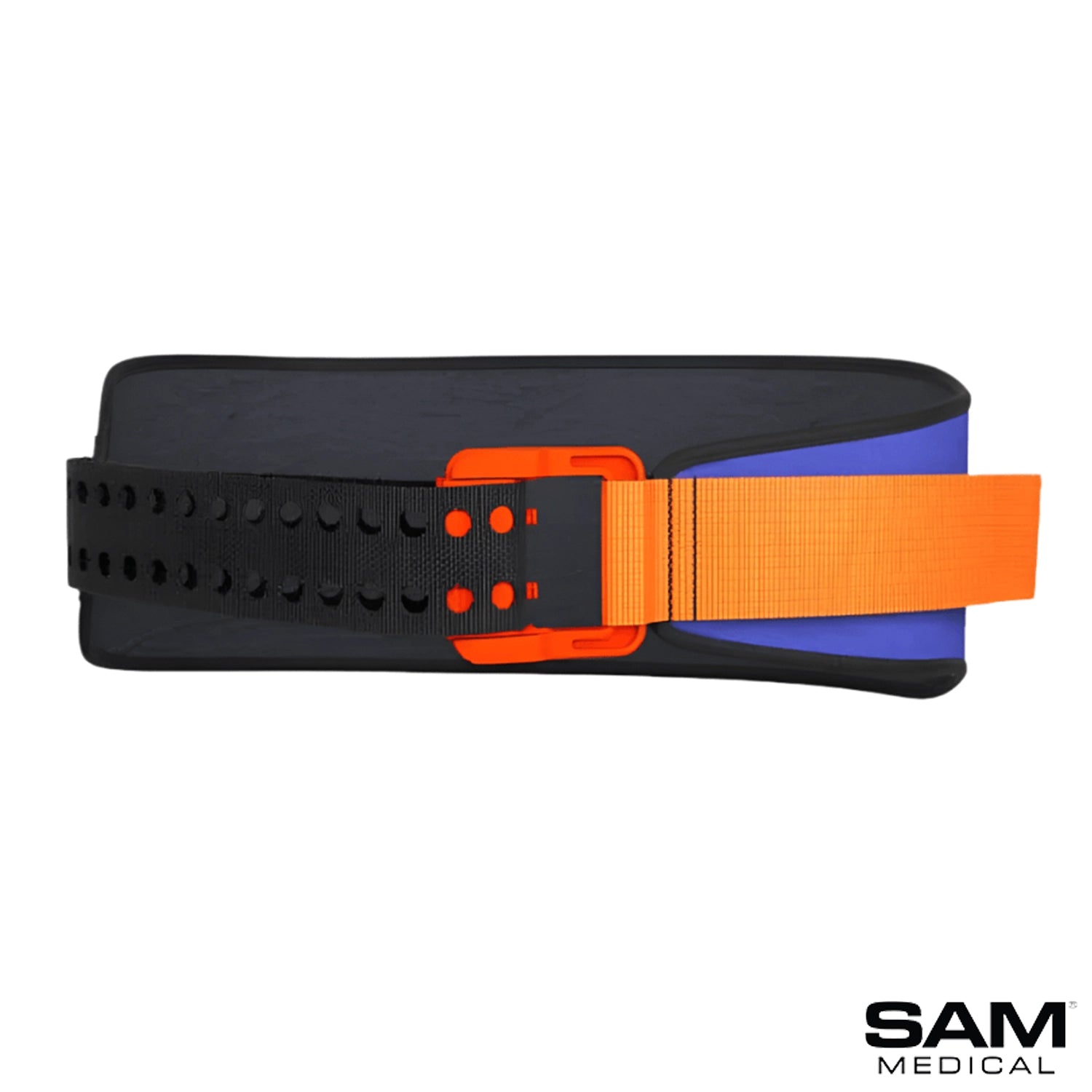

SAM Pelvic Sling II pelvic binder, orange and blue belt with AUTOSTOP buckle, front view

$70.25

ea

SAM Pelvic Sling II, Standard, 32-50 in Hip, PS301-OB-EN

SM-PS301-OB-EN

SAM Pelvic Sling II pelvic binder, orange and blue belt with AUTOSTOP buckle, front view

$70.25

ea

SAM Pelvic Sling II, Large, 36-54 in, PS302-OB-EN

SM-PS302-OB-EN

SAM Pelvic Sling II pelvic binder, orange and blue belt with AUTOSTOP buckle, front view

$70.25

ea
