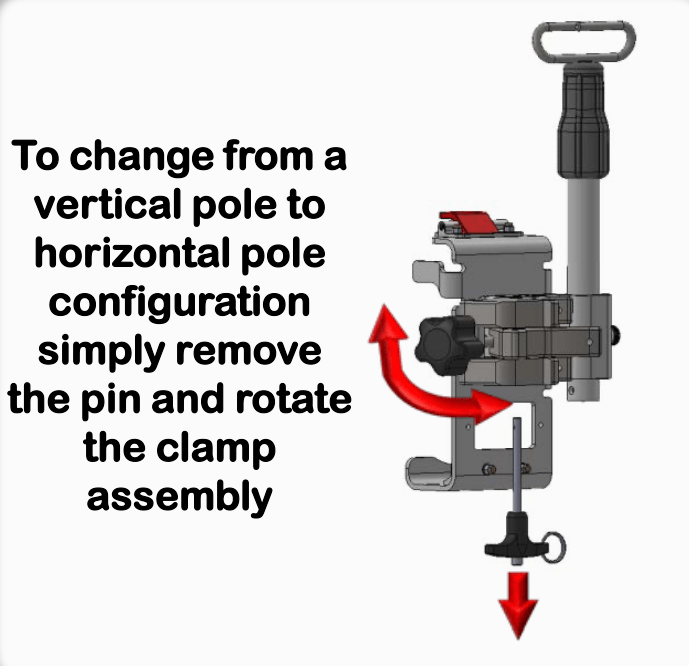

Ferno Sapphire IV Pump Mounts are the Ferno Sapphire IV Pump UPC family for the Sapphire infusion pump. Ferno makes the UPC in single, double and triple unit configurations.1 An integrated swivel secures the assembly to vertical or horizontal tubing, and a quick release allows rapid installation or removal of the pumps.1

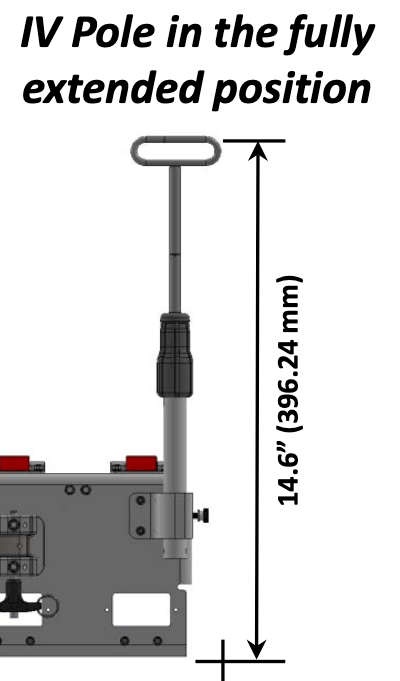

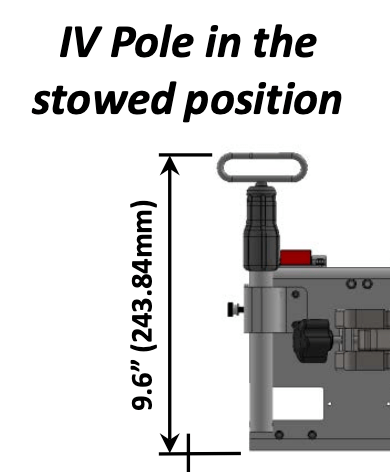

Each configuration includes an extendable IV pole.1 Ferno Aviation also lists bridge versions of the 2 and 3 unit mounts.2
This page covers the whole Ferno Sapphire mount family. The single mount and the standard triple mount also have their own listings, linked under Related Products.
Product Highlights:
-
Tested to meet and surpass FAA 20.G (rotary and fixed wing) airworthiness standards, Canadian ground ambulance standards and SAE J3043. Tested to EN1789.1
-
Universal Pole Clamp fits pole diameters up to 1.5 in.1
- Compatible with the Sapphire Multi-Therapy IV pump and the Sapphire Epidural pump.2
- Bridge versions of the 2 and 3 unit mounts space the pumps further apart for aviation, so the administration cassette can be reached without removing the pump.2
Ferno Sapphire Mount Family:

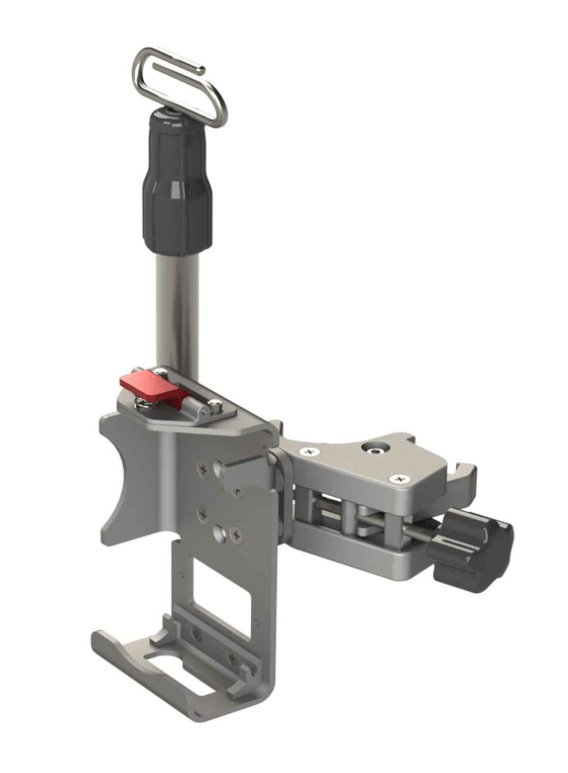

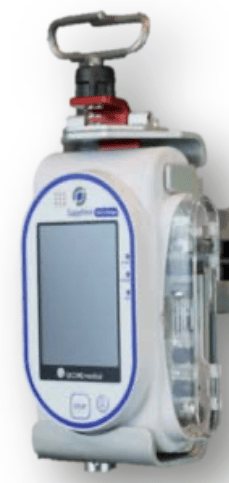

| Single |
FA910A67012
|

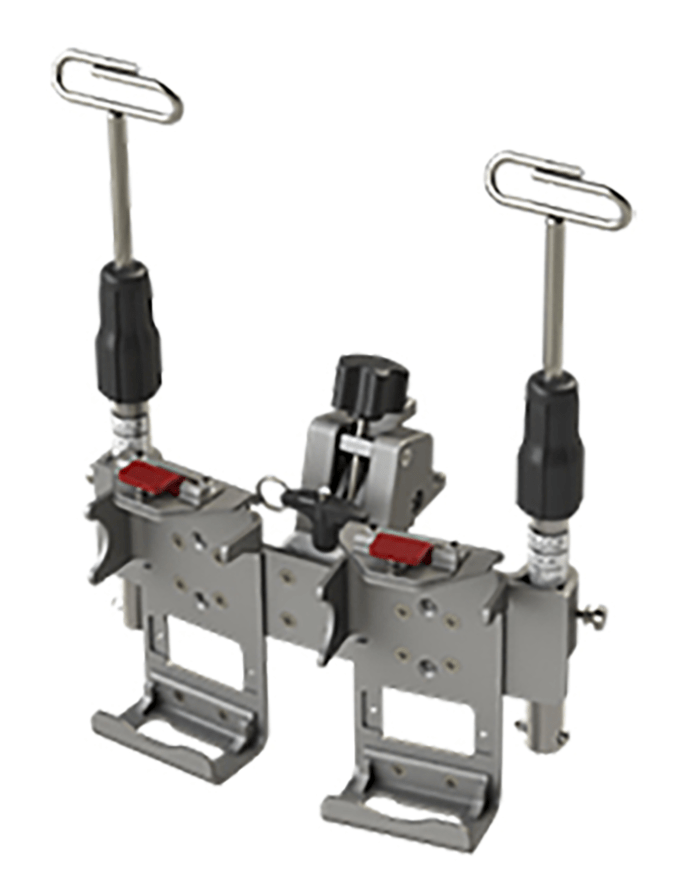

| Double, standard |
FA910A6642
|

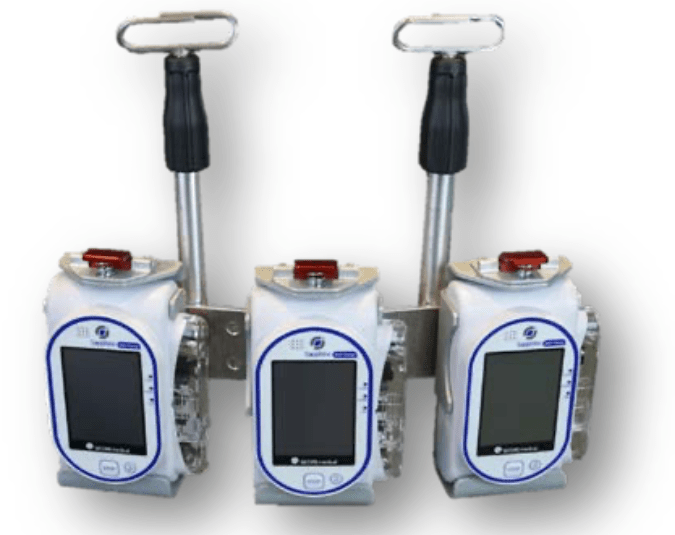

| Triple, standard |
FA910A6552
|

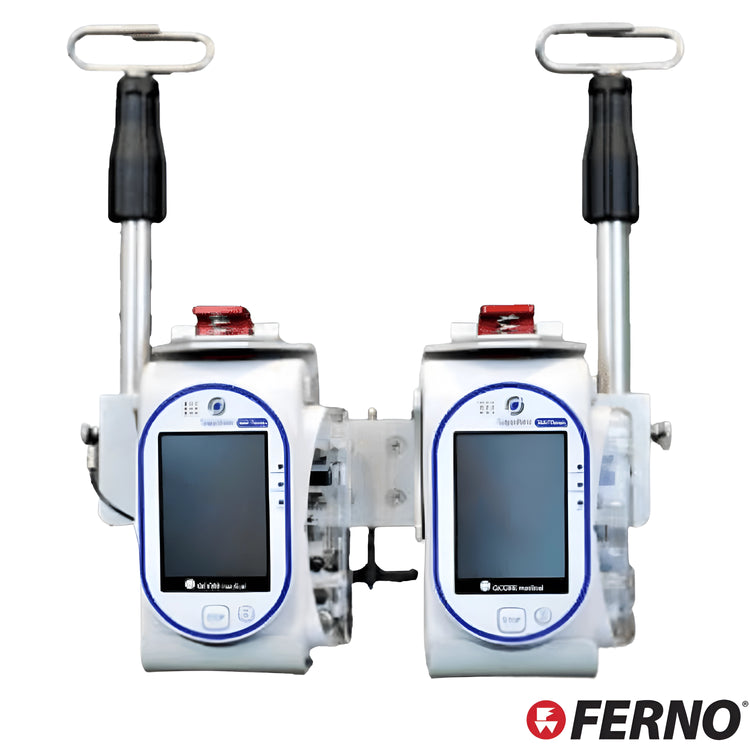

| Double, bridge |
FA911A14012
|

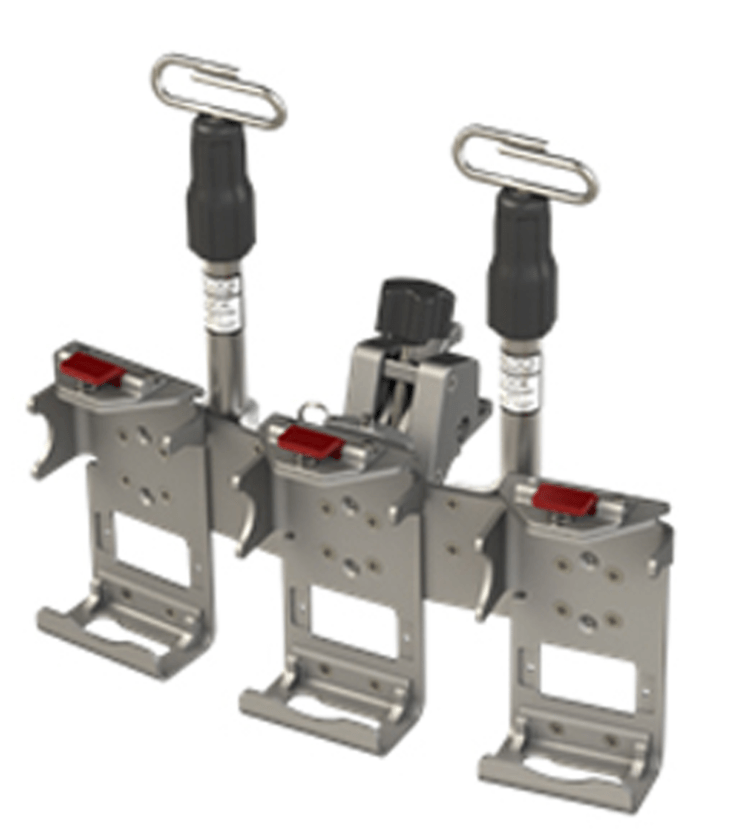

| Triple, bridge |
FA911A14512
|
| Single size |
5.20 in H x 7.5 in W x 2 in D1
|
| Double size |
6.56 in H x 12.26 in W x 2 in D1
|
Related Products:
Frequently Asked Questions:
What pole sizes does the mount fit?
Ferno says the Universal Pole Clamp fits pole diameters up to 1.5 in. Its datasheet lists .75 in to 1.5 in.12
Is the mount tested for aircraft?
Ferno says it is tested to meet and surpass FAA 20.G airworthiness standards for rotary and fixed wing, and SAE J3043.1
Which configurations are in the Ferno Sapphire mount family?
Ferno lists the Sapphire IV Pump UPC in single, double and triple unit configurations.1 Ferno Aviation lists part numbers FA910A670 (single), FA910A664 (double), FA910A655 (triple), FA911A140 (double bridge) and FA911A145 (triple bridge).2
What is the bridge version?
Ferno Aviation says the bridge design spaces the pumps further apart so the administration cassette can be accessed without removing the pump.2
Manufacturer Sources
Sourced from Ferno product documentation.
