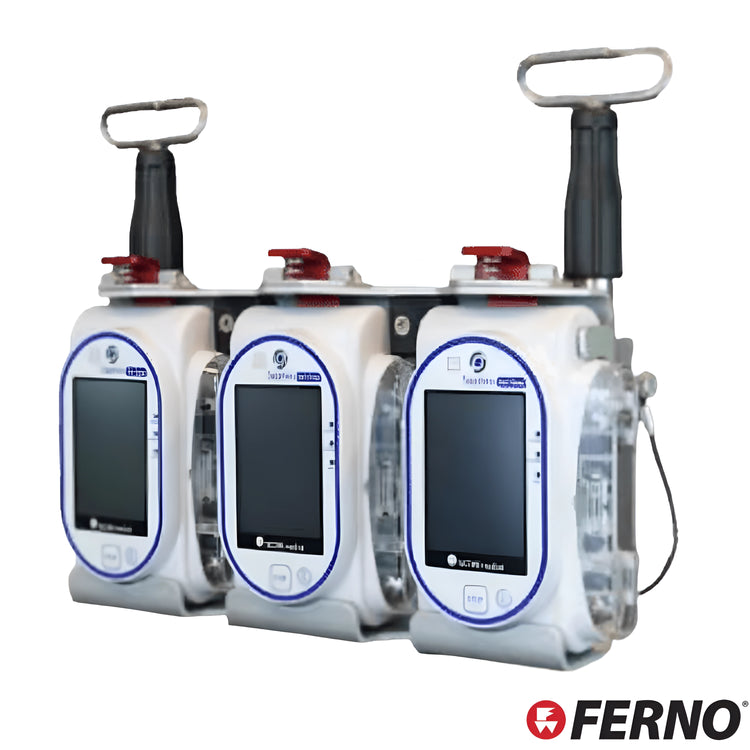

Ferno Triple Sapphire Mount UPC, Standard Design

About

Our new Sapphire IV Pump UPC for Sapphire Infusion Pump is available in a single, double, or triple unit configuration. An integrated swivel feature allows end-users to secure the self-contained assembly to vertical or horizontal tubing. A quick-release allows for rapid installation or removal of Sapphire units as needed. Each configuration includes an extendable IV Pole. Tested to meet and surpass FAA 20.G (rotary & fixed wing) Airworthiness Standards, Canadian Ground Ambulance Standards and SAE J3043. R.O.H.S. compliant.  Tested to EN1789

Features

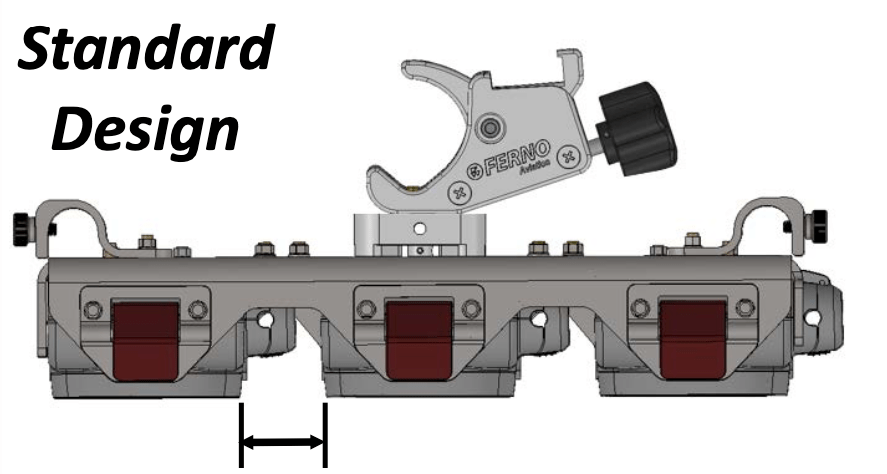

• Universal Clamp for an array of pole diameters up to 1.5"

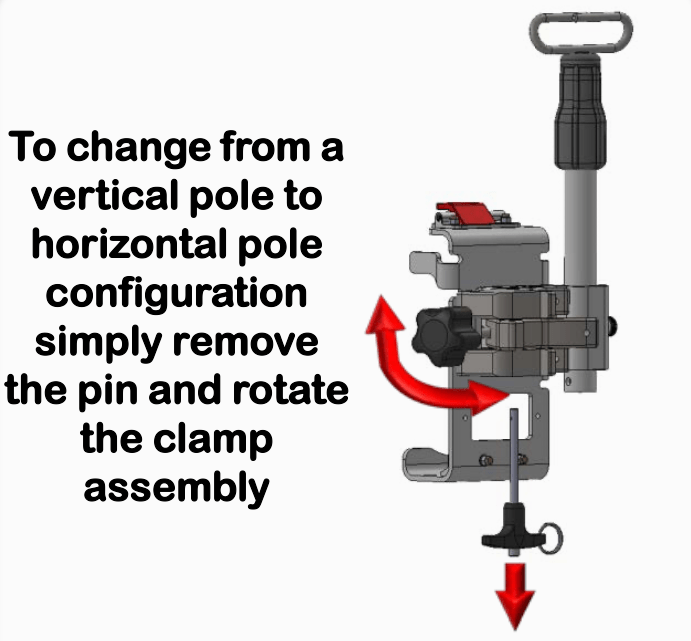

• Accommodates vertical and horizontal poles
• Allows rapid install and removal of Sapphire IV Pumps to equipment poles

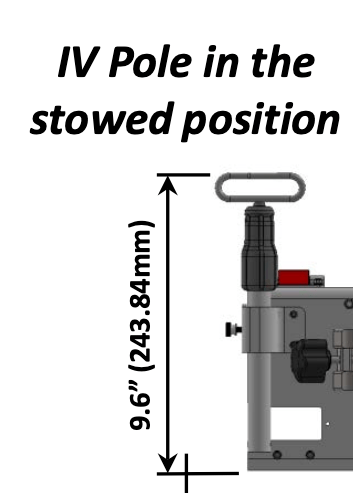

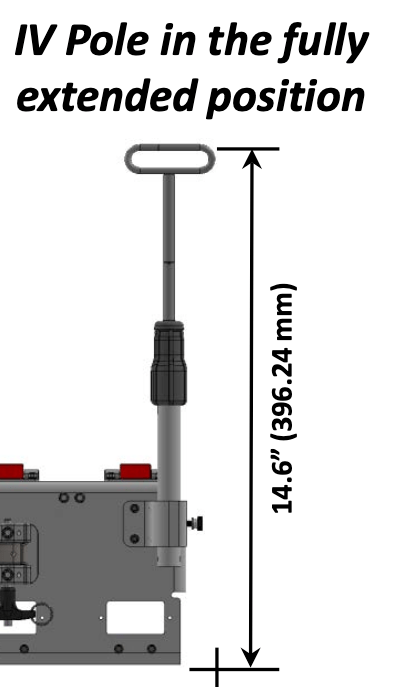

• Integrated but removable IV Pole(s)
• Allows for through the base charging of Sapphire IV Pump
• Stainless steel hardware
• Anodized finish for durability and protection
• Lever action to allow for quick removal of device

Compliance

• 20.G tested for FAA rotary and fixed wing air worthiness
• Tested to SAE J3043
• Tested to EN1789
• Static Pull Tested in accordance with:
• FAR23.561 – Airworthiness Standards: Normal, Utility, Acrobatic, and Commuter category airplanes
• FAR 25.561 – Airworthiness Standards: Transport Category Airplanes
• FAR27.561 – Airworthiness Standards: Normal Category Rotorcraft
• FAR29.561 – Airworthiness Standards: Transport Category Rotorcraft
• FAA form 8110—3 is available with supporting data to cover installations in specific aircraft

Specs

• Total weight: with 3 - 500ml. IV bags and 3 pumps – 10.33 lbs. (4.7 Kg)

***Contact Ferno Aviation for SSD, ICA, or 8110-3 for validation documentation if purchase is intended for aircraft use.
