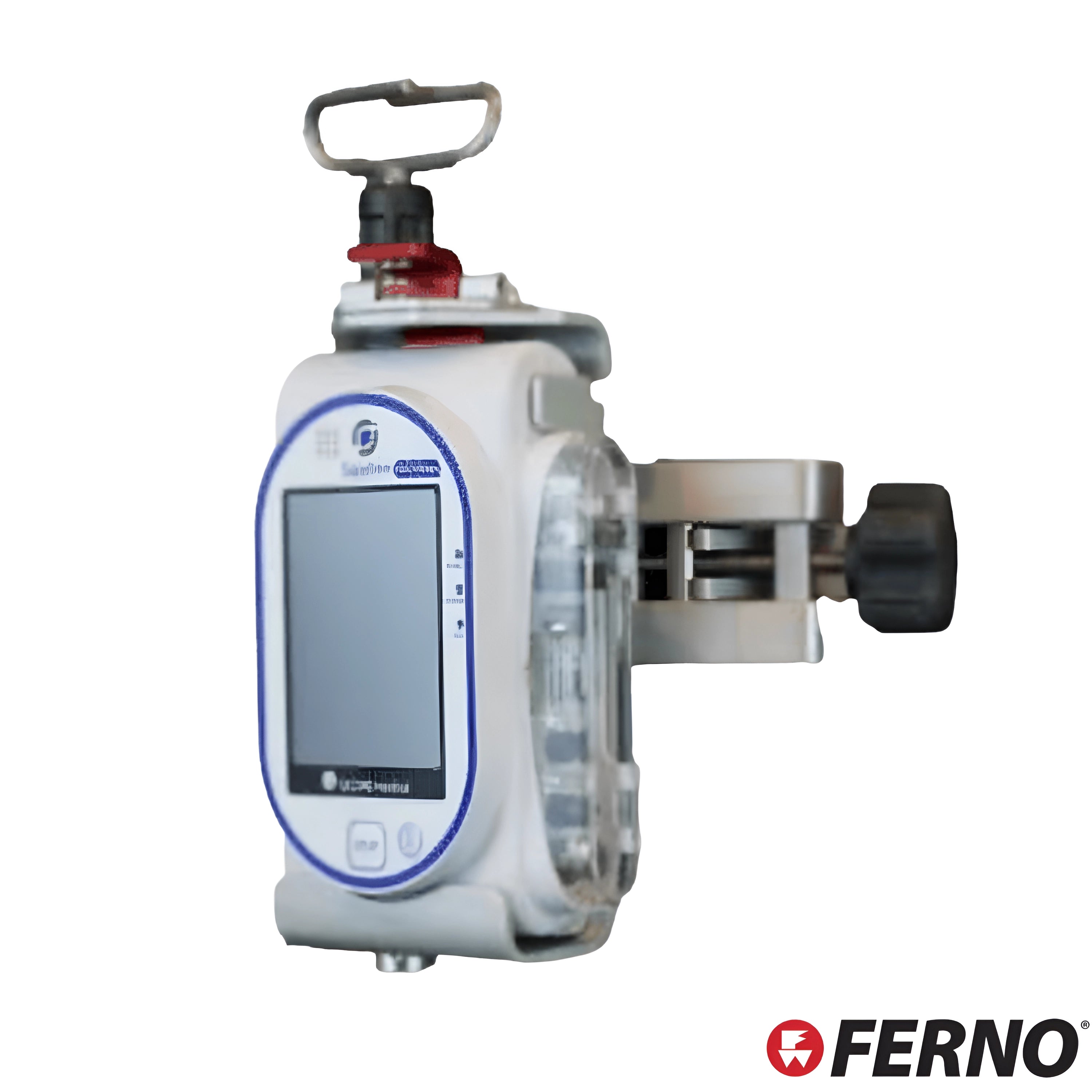

Single Sapphire Mount, with Universal Pole Mount, and 1 Telescoping IV Pole

SKU: FA-FA910A670

About

Our new Single Sapphire IV Pump mount with Universal Pole Mount is made for extreme environments. An integrated swivel feature allows end-users to secure the self-contained assembly to vertical or horizontal tubing. A quick-release allows for rapid installation or removal of Sapphire units as needed. This configuration includes an extendable IV Pole. Tested to meet and surpass FAA 20.G (rotary & fixed wing) Airworthiness Standards, Canadian Ground Ambulance Standards and SAE J3043. R.O.H.S. compliant.  Tested to EN1789

Features:

  • Universal Clamp for an array of pole diameters up to 1.5"

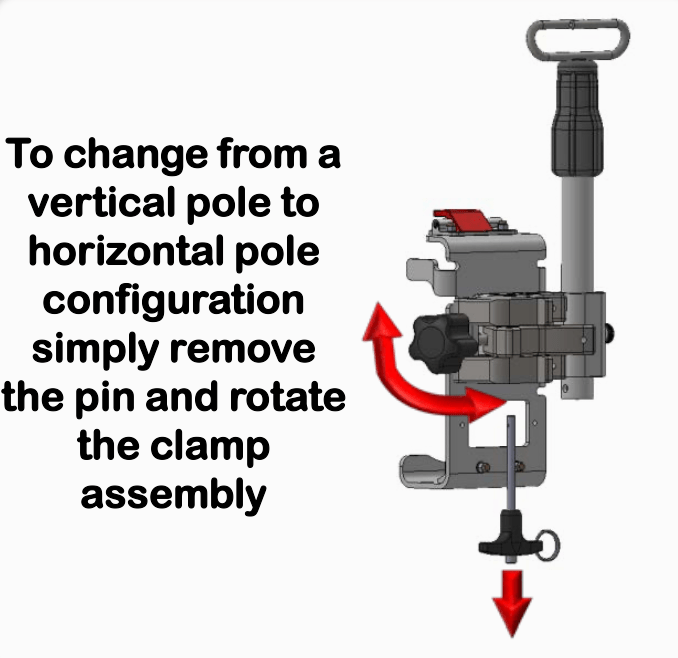

  • Accommodates vertical and horizontal poles
  • Allows rapid install and removal of Sapphire IV Pumps to equipment poles
  • Integrated but removable IV Pole(s)
  • Allows for through the base charging of Sapphire IV Pump
  • Stainless steel hardware
  • Anodized finish for durability and protection
  • Lever action to allow for quick removal of device

Compliance:

  • 20.G tested for FAA rotary and fixed wing air worthiness
  • Tested to SAE J3043
  • Tested to EN1789
  • Static Pull Tested in accordance with:
  • FAR23.561 – Airworthiness Standards: Normal, Utility, Acrobatic, and Commuter category airplanes
  • FAR 25.561 – Airworthiness Standards: Transport Category Airplanes
  • FAR27.561 – Airworthiness Standards: Normal Category Rotorcraft
  • FAR29.561 – Airworthiness Standards: Transport Category Rotorcraft
  • FAA form 8110—3 is available with supporting data to cover installations in specific aircraft

Specs:

  • Total weight: with 1 - 500 ml. IV bag and 1 pump – 4.42 lbs. (2.0 Kg)
Item # In Stock Price Quantity

Single Sapphire Mount, with Universal Pole Mount, and 1 Telescoping IV Pole

FA-FA910A670

Sapphire IV pump in a single mount that is very durable from Ferno Aviation

$1,040.00

ea
