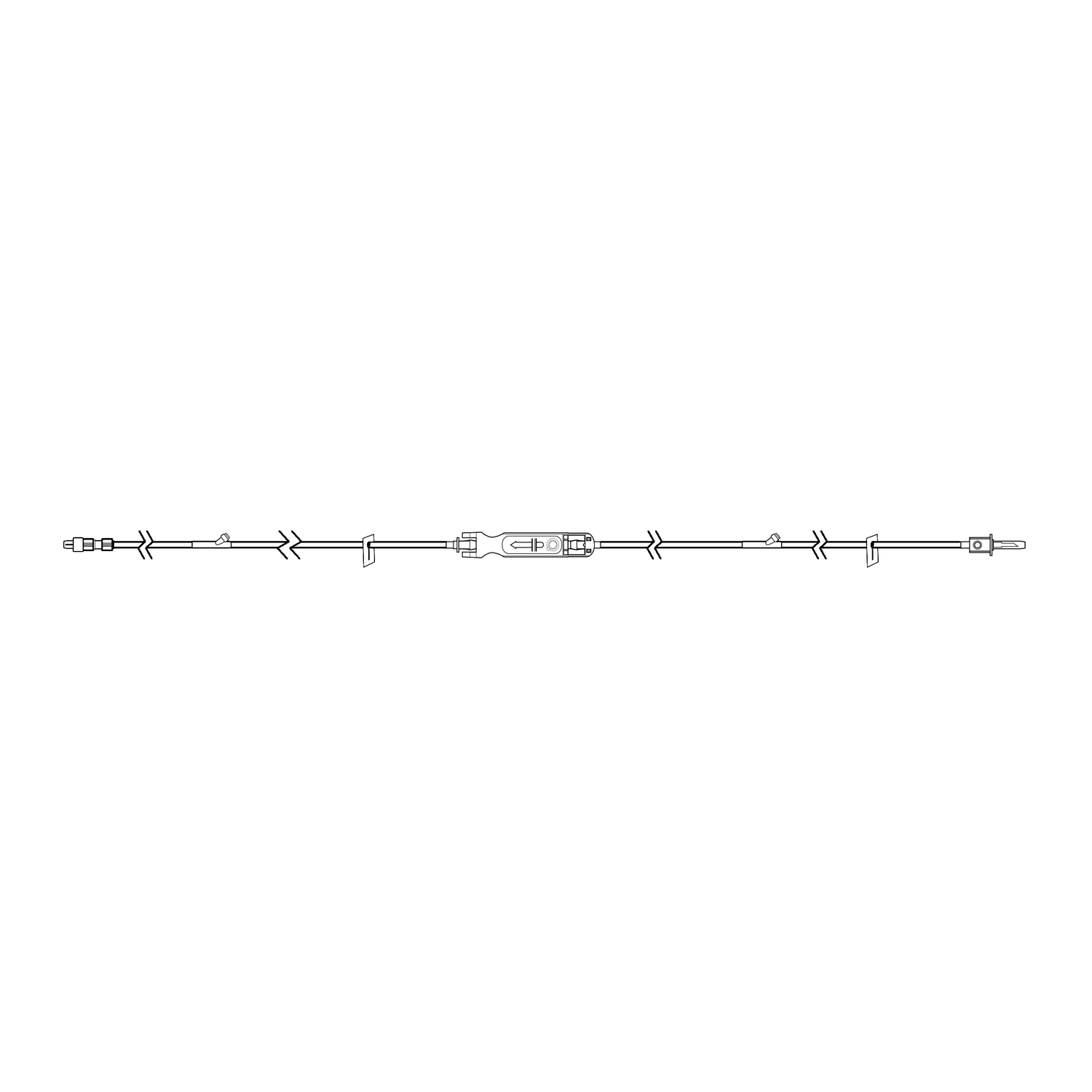

Eitan Medical Sapphire AP-411 macrobore IV set (AP411-01, PN 12003-000-0078) line drawing: about 72 in, vented/non-vented spike, 2 needleless Y-sites, 2 slide clamps, FX cassette, spin male luer lock

Eitan Medical Sapphire AP-411 Macrobore IV Set, box of 30

SKU: EG-AP-411-01-CS

Eitan Medical

The Eitan Medical Sapphire AP-411 Macrobore IV Set (AP-411-01 / P/N 12003-000-0078) is the OEM Sapphire macrobore administration set with a vented/non-vented spike and 2 needleless Y-sites. At about 72 in with about 13 mL prime, it is the short spike-style Sapphire IV pump set. Pair with the Sapphire Multi-Therapy Infusion Pump. Shop IV Tubing and IV Pumps & Accessories.

Sapphire Set Family Map:

  • AP-433 - simple set with 1 Y-site for most prehospital infusions.
  • AP-409 - 2 Y-sites; enables a piggyback medication drip or multiple combinations of compatible medications into the same line.
  • AP-416 - half set that converts upstream hospital tubing into a configuration compatible with the Sapphire pump, then can be converted back at the receiving facility; preserves continuity of care and preserves as much of the medication intended for the patient as possible.

Product Highlights:

  • 2 needleless Y-sites, each with a slide clamp, one on each side of the FX cassette
  • Macrobore Sapphire IV set with vented/non-vented spike (no drip chamber), slide clamps, FX cassette, spin male luer
  • Length about 72 in (183 cm); priming volume about 13 mL; 30 units per box
  • Key facts: PN 12003-000-0078; ~13 mL prime; ~72 in; 2 Y-sites; 30/box

Specifications:

Manufacturer Eitan Medical
Set name AP-411-01
Manufacturer part number (MPN) 12003-000-0078
SKU EG-AP-411-01-CS
What it is for Short macrobore Sapphire IV pump set with a spike (no drip chamber) and 2 Y-sites
Length About 72 in (183 cm)
Priming volume About 13 mL
Units per box 30
Pump compatibility Eitan Medical Sapphire Multi-Therapy Infusion Pump
Condition New, sterile (single use)

Related products:

Frequently Asked Questions:

Which Sapphire set should I choose: AP-433, AP-409, or AP-416?
Choose AP-433 for most prehospital infusions (1 Y-site). Choose AP-409 when you need 2 Y-sites for a piggyback medication drip or multiple combinations of compatible medications in the same line. Choose AP-416 when you must convert upstream hospital tubing to run on the Sapphire pump and convert back at the receiving facility.
What is the Eitan Sapphire AP-411 macrobore IV set?
AP-411 (AP411-01, P/N 12003-000-0078) is the Eitan Medical macrobore administration set for the Sapphire infusion pump: vented/non-vented spike, 2 needleless Y-sites with slide clamps, FX administration cassette, and spin male luer lock. It is about 72 in (183 cm) long with about 13 mL priming volume.
How is AP-411 different from AP-409?
Both have 2 Y-sites. AP-411 is a shorter macrobore set (about 72 in, about 13 mL prime) with a vented/non-vented spike and no drip chamber. AP-409 (about 109 in, about 23 mL prime) has a vented/non-vented drip chamber, back check valve, and roller clamp.
Is AP-411 a macrobore or microbore Sapphire set?
The Eitan Medical Sapphire catalog lists AP-411 as a macrobore set. For a microbore Sapphire set, see AP-403 (about 6 mL prime).
Can AP-411 be used on Sapphire pumps in EMS?
AP-411 is an Eitan administration set for the Sapphire Multi-Therapy Infusion Pump. Eitan Medical lists that pump for hospital, ambulatory, and EMS settings, and approved for air and ground medical transport in the US. Follow your agency protocols and the set instructions for use.
What is the priming volume and length?
About 13 mL priming volume and about 72 in (183 cm) length per the Eitan Medical catalog.
Is AP-411 sterile and single use?
Yes. The FDA GUDID record for AP411-01 (12003-000-0078) lists it as sterile and single use, with storage at 5 to 30 °C.
How many sets are in a box?
30 sets per box.
References
  1. Eitan Medical. Sapphire Infusion Platform product catalog (AP-411-01, P/N 12003-000-0078). eitanmedical.com Sapphire product catalog.
  2. Eitan Medical. Sapphire Multi-Therapy infusion pump. eitanmedical.com Sapphire Multi-Therapy.
  3. U.S. FDA. AccessGUDID device record, AP411-01, model 12003-000-0078.
Item # Image Price Quantity

Eitan Medical Sapphire AP-411 Macrobore IV Set, box of 30

EG-AP-411-01-CS

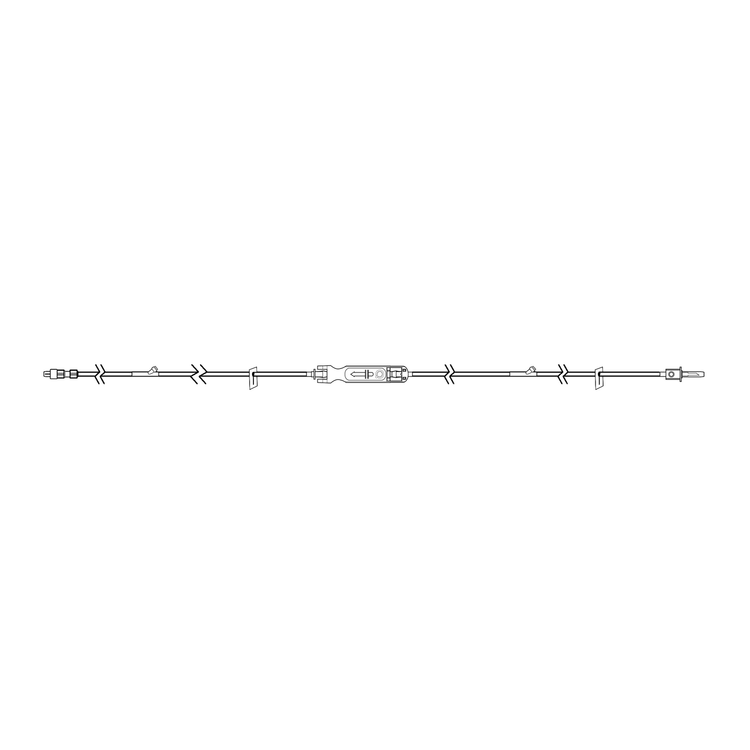

 Eitan Medical Sapphire AP-411 macrobore IV set (AP411-01, PN 12003-000-0078) line drawing: about 72 in, vented/non-vented spike, 2 needleless Y-sites, 2 slide clamps, FX cassette, spin male luer lock
