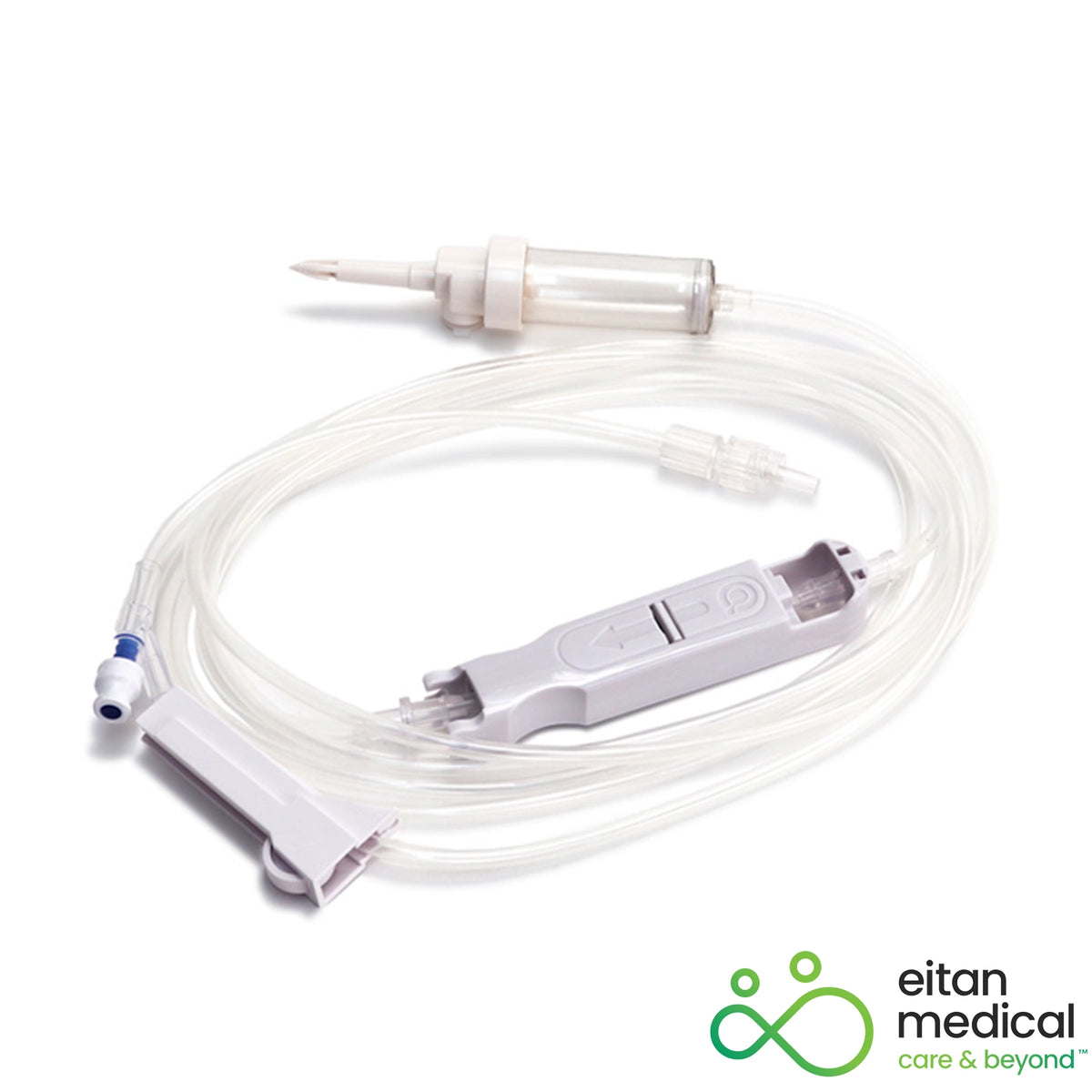

Sapphire AP-433-01 macrobore infusion set, PN 12000-000-0044, with drip chamber spike, cassette, clamp and Y-site

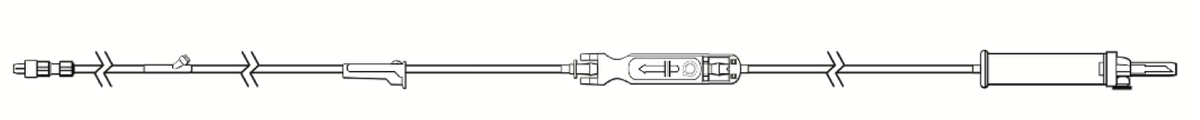

Line drawing of the Sapphire AP-433-01 macrobore infusion set with drip chamber, cassette and Y-site
Sapphire AP-433-01 macrobore infusion set, PN 12000-000-0044, with drip chamber spike, cassette, clamp and Y-site
Line drawing of the Sapphire AP-433-01 macrobore infusion set with drip chamber, cassette and Y-site

Eitan Medical Sapphire AP-433 Infusion Set, box of 20

SKU: EG-AP-433-01-CS

Eitan Medical

The Eitan Medical Sapphire AP-433 Infusion Set (AP-433-01 / P/N 12000-000-0044) is the simple OEM Sapphire administration set with 1 Y-site for most prehospital infusions. Pair with the Sapphire Multi-Therapy Infusion Pump. Shop IV Tubing and IV Pumps & Accessories.

Sapphire Set Family Map:

  • AP-433 - simple set with 1 Y-site for most prehospital infusions.
  • AP-409 - 2 Y-sites; enables a piggyback medication drip or multiple combinations of compatible medications into the same line.
  • AP-416 - half set that converts upstream hospital tubing into a configuration compatible with the Sapphire pump, then can be converted back at the receiving facility; preserves continuity of care and preserves as much of the medication intended for the patient as possible.

Product Highlights:

  • Simple primary set with 1 needleless Y-site for most prehospital infusions
  • Macrobore set with vented/non-vented drip chamber, roller clamp, FX cassette, spin male luer
  • Length about 113 in (286 cm); priming volume about 22 mL; 20 units per box
  • Key facts: PN 12000-000-0044; ~22 mL prime; ~113 in; 1 Y-site; 20/box

Specifications:

Manufacturer Eitan Medical
Set name AP-433-01
Manufacturer part number (MPN) 12000-000-0044
SKU EG-AP-433-01-CS
What it is for Most prehospital infusions on Sapphire (1 Y-site)
Length About 113 in (286 cm)
Priming volume About 22 mL
Units per box 20
Pump compatibility Eitan Medical Sapphire Multi-Therapy Infusion Pump
Condition New, sterile (single use)

Related products:

Frequently Asked Questions:

Which Sapphire set should I choose: AP-433, AP-409, or AP-416?
Choose AP-433 for most prehospital infusions (1 Y-site). Choose AP-409 when you need 2 Y-sites for a piggyback medication drip or multiple combinations of compatible medications in the same line. Choose AP-416 when you must convert upstream hospital tubing to run on the Sapphire pump and convert back at the receiving facility.
What is the AP-433 used for?
AP-433 is the simple Sapphire set with 1 Y-site for most prehospital infusions.
What is the priming volume and length?
About 22 mL priming volume and about 113 in (286 cm) length per the Eitan Medical catalog.
How many sets are in a box?
20 sets per box.
References
  1. Eitan Medical. Sapphire Infusion Platform product catalog (AP-433-01, P/N 12000-000-0044). eitanmedical.com Sapphire product catalog.
