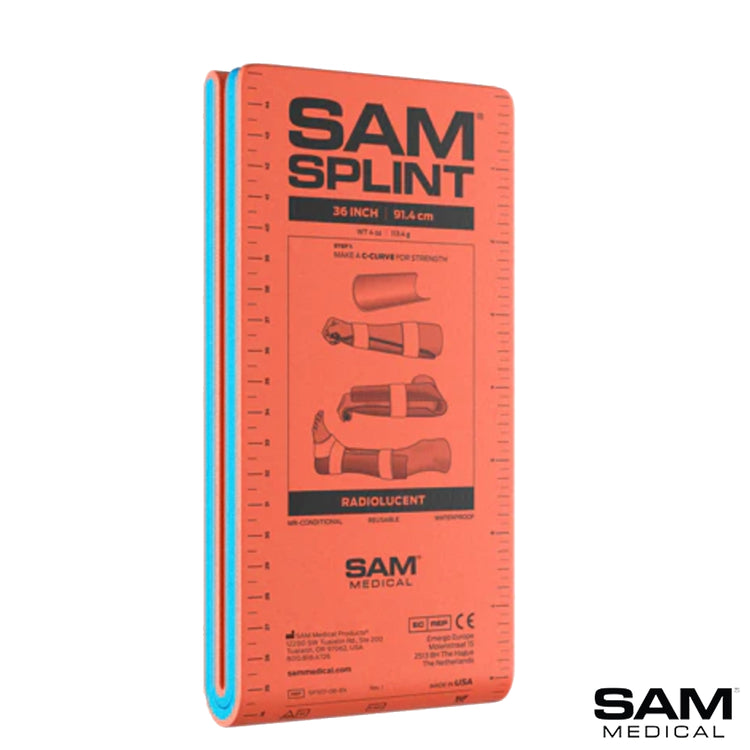

SAM Splint 36 in Fold, Blue/Orange, 36 x 4.25 in, SP507-OB-EN
This item requires a clinical attestation, confirmed in your cart.
The SAM Splint 36 inch fold, SAM part SP507-OB-EN, is a 36 x 4.25 in moldable splint of closed-cell foam over flat aluminum, folded flat for storage.12 Shaped into a C-curve it immobilizes arm, leg and ankle injuries for transport.3
Product Highlights:
- Size: 36 in long, 4.25 in standard width, folded flat.12
- Moldable: Two layers of closed-cell foam surround a flat O-temper aluminum core; bending it into a C-curve, reverse C-curve or T-curve makes it rigid.13
- Cut to size: Cuts with ordinary scissors.1
- Imaging: Radiolucent; MR Conditional at 1.5 or 3 T.13
- Weather resistant: Designed to work across global temperature extremes.1
What Is in the Box:
One SAM Splint, 36 in, folded, blue and orange, SP507-OB-EN.1
Specifications:
| Manufacturer | SAM Medical Products1 |
|---|---|
| Part number | SP507-OB-EN1 |
| Size | 36 in long x 4.25 in wide, fold (flat)1 |
| GUDID DI | 00822045428676 (case of 60: 10822045428673)2 |
| Construction | Closed-cell foam over flat O-temper aluminum1 |
| Imaging | Radiolucent; MR Conditional at 1.5 or 3 T13 |
| Latex | Not made with natural rubber latex2 |
| Reusable | Yes, after cleaning and disinfection3 |
| Sterile | No2 |
| FDA product code | NOC2 |
Size and Compatibility:
SAM Splint comes as 9 in, 18 in, 36 in roll, 36 in fold, 36 in XL, finger and industrial models. Standard width is 4.25 in and XL width is 5.5 in.1 The 36 in fold is SP507-OB-EN in blue/orange, SP507-CH-EN in charcoal and SP507-OD-EN in OD green; the same length is also made as a roll (SP506-OB-EN).1
Related Products:
- SAM Splint 36 in Roll, SP506-OB-EN
- SAM Splint XL 36 in, SP508-OB-EN
- SAM Splint 18 in, SP502-OB-EN
- Slishman Traction Splint Gen 2, 10-5000
- Immobilization and Splinting collection
Product Guides and Documents:
Frequently Asked Questions:
What is the difference between the SAM Splint 36 in fold and roll (SP507-OB-EN)?
Both are 36 x 4.25 in. The fold model (SP507-OB-EN) is stored flat; the roll model (SP506-OB-EN) is stored rolled. The rolled form is offered for 36 in splints only.14
What is a SAM splint used for (SP507-OB-EN)?
It temporarily immobilizes extremities after traumatic injury and is indicated for short-term prehospital care of sprains, strains, contusions and fractures, to prevent further damage during transport.3
Can a SAM Splint be used on multiple bones (SP507-OB-EN)?
Yes. The instructions show finger, thumb, hand, wrist, forearm, elbow, upper arm, upper leg, knee, lower leg and ankle applications for the same splint.3
How do you make a SAM Splint rigid (SP507-OB-EN)?
Two layers of closed-cell foam surround a flat O-temper aluminum core; bending it into a C-curve, reverse C-curve or T-curve makes it rigid.13
Can a SAM Splint be cut (SP507-OB-EN)?
Yes. It cuts with ordinary scissors (not a serrated blade); cover any cut end with tape or fold it under so no sharp edge is exposed.13
Is a SAM Splint reusable (SP507-OB-EN)?
Yes, it is reusable. Clean off gross soil with soap and water, immerse 10 minutes in bleach diluted to 0.625 to 0.7 percent sodium hypochlorite, rinse and dry. Discard it if aluminum is exposed.3
What is the difference between a SAM splint and a traction splint (SP507-OB-EN)?
A SAM Splint is a moldable splint for fractures, sprains and soft tissue injuries; a traction splint applies inline traction for mid-shaft femur fractures.5
Manufacturer Sources
- SAM Medical. SAM Splint product overview, SPL-SS-04 (PDF) (accessed 2026-11-07). sammedical.box.com.
- U.S. FDA. AccessGUDID record, DI 00822045428676, SAM Splint 36 in Flat Orange/Blue, SP507-OB-EN (accessed 2026-11-07). accessgudid.nlm.nih.gov.
- SAM Medical. SAM Splint instructions for use, SP-IS-EN-2 (PDF) (accessed 2026-11-07). sammedical.box.com.
- SAM Medical. SAM Splint product page (accessed 2026-11-07). sammedical.com.
- SAM Medical. Fracture management collection page and FAQ (accessed 2026-11-07). sammedical.com.
If the splint is cut, cover the cut end with protective tape or fold it under, and discard the splint if aluminum is exposed.3
| Item # | Image | Price | Quantity |
|---|---|---|---|
|
SAM Splint 36 in Fold, Blue/Orange, 36 x 4.25 in, SP507-OB-EN |
$9.73 ea
|
|
| Item # | Image | Description | Quantity |
|---|
