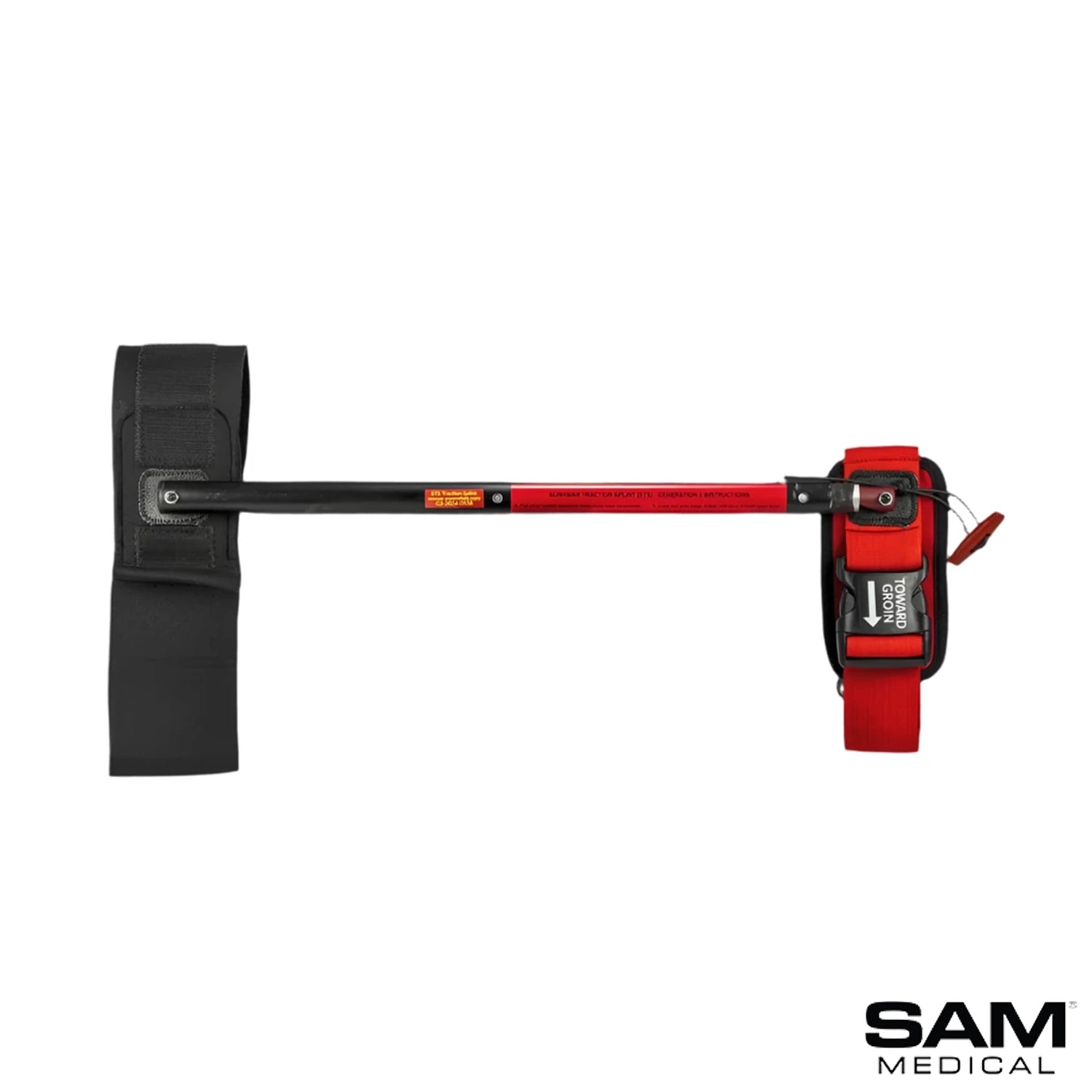

Slishman Traction Splint Gen 2 10-5000, one-size radiolucent femur traction splint, front view
Slishman Traction Splint Gen 2 applied to an adult leg, traction from the hip, in-use view
Slishman Traction Splint Gen 2 applied to a pediatric patient, in-use view
Slishman Traction Splint Gen 2 stowed in its carry case with PALS loops, case view
Slishman Traction Splint Gen 2 red padded groin strap and buckle, detail view
Slishman Pressure Wrap binding both feet for rotational stability, detail view
Slishman Traction Splint Gen 2 10-5000, one-size radiolucent femur traction splint, front view
Slishman Traction Splint Gen 2 applied to an adult leg, traction from the hip, in-use view
Slishman Traction Splint Gen 2 applied to a pediatric patient, in-use view
Slishman Traction Splint Gen 2 stowed in its carry case with PALS loops, case view
Slishman Traction Splint Gen 2 red padded groin strap and buckle, detail view
Slishman Pressure Wrap binding both feet for rotational stability, detail view

Slishman Traction Splint Gen 2 (STS), One Size, 10-5000

SKU: SM-10-5000-EA

SAM Medical Inc.

The Slishman Traction Splint Generation 2 (STS Gen 2), part 10-5000, applies traction from the hip to stabilize fractured femurs, in one size that fits small children to large adults.12 It applies in under a minute with no assembly, does not extend beyond the foot, and is radiolucent.1

Product Highlights:

  • One size: Fits small children to large adults.1
  • Fast: Applies in under a minute with minimal training; no assembly.1
  • Transport: No extension beyond the foot.1
  • Imaging: Radiolucent.1
  • Lower leg trauma: Can still be applied, with the ankle strap placed proximal to the calf or patella.12

What Is in the Box:

Slishman Traction Splint Gen 2 with neoprene outer tube strap, padded groin strap, red-handled traction cord, Slishman Pressure Wrap and carry case with PALS loops.21

Specifications:

Brand Slishman Traction Splint (STS)1
Distributor SAM Medical1
Part number 10-5000 (STS Gen 2)1
Packaged size 22 x 3 x 3 in (55.9 x 7.6 x 7.6 cm)1
Packaged weight 18 oz (0.51 kg)1
Patient range Small children to large adults1
Traction From the hip; cord locks in a V-notch12
Imaging Radiolucent1
Latex Not made with natural rubber latex2
Patents U.S. 10,517,750 and 11,324,6241

Gen 2 vs STS-C:

Both fit pediatric and adult patients. STS Gen 2 (10-5000) is 22 in packaged at 18 oz and its length keeps it from extending beyond the foot; STS-C (10-1270) is 14 in at 15.5 oz, for packed and remote use, with proximal calf placement only.1

Related Products:

Product Guides and Documents:

Frequently Asked Questions:

When is the Slishman Traction Splint used (10-5000)?

For stabilization and traction of fractured femurs; it can also be used as a simple splint for any extremity fracture, strain or sprain.2

How do you apply a Slishman Traction Splint (10-5000)?

For patients over 5 ft, extend the middle tube; strap the neoprene outer tube strap at the ankle (or proximal to the calf with lower leg injury); fasten the red groin strap; pull the cord until pain is relieved; lock it in the V-notch; wrap the loose end on the cleat wings; then pad, stabilize and monitor circulation, sensation and motor function.2

When should you not use traction with this splint (10-5000)?

Avoid traction for grossly open and contaminated fractures, where traction may pull contaminants into the body. Traction may be considered for hip, pelvis or humerus fractures only if a test pull gives immediate pain relief or restored perfusion.2

What is the difference between the STS Gen 2 and the STS-C (10-5000)?

STS Gen 2 is 22 in and 18 oz packaged and does not extend beyond the foot; STS-C is 14 in and 15.5 oz for remote use and is placed at the proximal calf only.1

What is the difference between a SAM splint and a traction splint (10-5000)?

A SAM Splint is moldable for fractures, sprains and soft tissue injuries; a traction splint applies inline traction for mid-shaft femur fractures.4

What does the Slishman Pressure Wrap do (10-5000)?

It buddy-wraps the feet for rotational stability, can apply bleeding control pressure, and can secure other splints.12

How do you clean the Slishman Traction Splint (10-5000)?

Inspect it, wash with water and disinfectant and wipe down; do not use bleach, do not loosen straps, and wipe the neoprene strap rather than using hot water.2

Manufacturer Sources
  1. SAM Medical. Slishman Traction Splint (STS Gen 2 / STS-C) product overview, AF-STS-SS-02 (PDF) (accessed 2026-11-07). sammedical.box.com.
  2. Slishman Traction Splint (STS) Generation 2 instructions for use, 10-1271R2 (PDF, SAM Medical document library) (accessed 2026-11-07). sammedical.box.com.
  3. SAM Medical. STS Gen 2 product page (accessed 2026-11-07). sammedical.com.
  4. SAM Medical. Fracture management collection page and FAQ (accessed 2026-11-07). sammedical.com.

For use by healthcare professionals. Monitor circulation, sensation and motor function closely and adjust as needed.2
