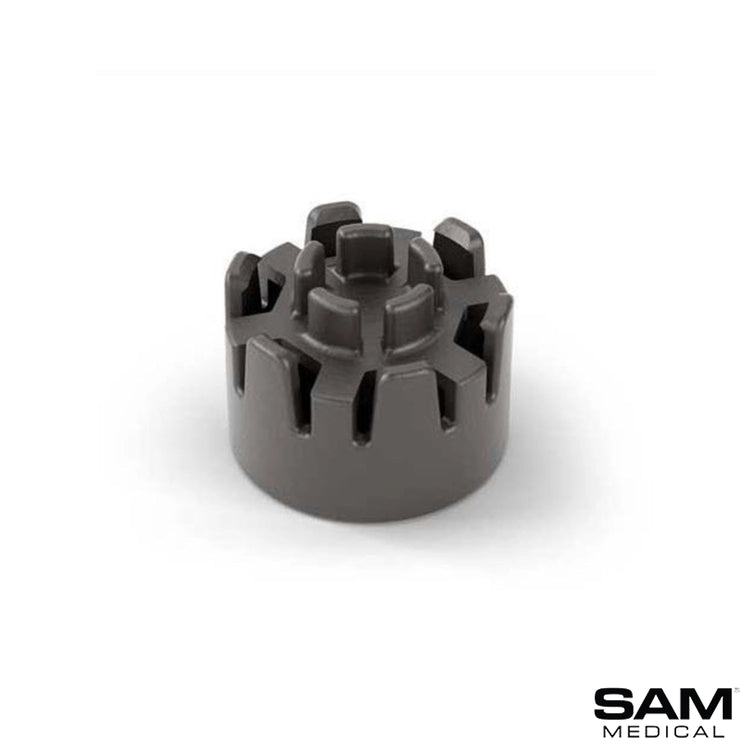

SAM IO Needle Adaptor for Arrow EZ-IO Needles, IO742-EN
The SAM IO Needle Adaptor (needle adapter), SAM part IO742-EN, attaches to the manual SAM IO Driver so the driver can place Arrow EZ-IO needles.1 It is a non-sterile, one-pack component of the SAM IO Intraosseous Access System.2
Product Highlights:
- Job: Accommodates Arrow EZ-IO needles on the SAM IO Driver.1
- Driver: The SAM IO Driver is manual and battery-free, a 2.5 oz reusable polycarbonate handpiece.1
- Opposite direction: SAM IO Adaptor2 (IO842) is a different part: it lets an Arrow EZ-IO Power Driver use SAM IO needles.3
- Packaging: One adaptor per pack; 10 packs per case.2
- Sterility: Non-sterile.2
What Is in the Box:
One SAM IO Needle Adaptor, IO742-EN. The SAM IO Driver and needles are sold separately.21
Specifications:
| Manufacturer | SAM Medical Products2 |
|---|---|
| Part number | IO742-EN1 |
| GUDID DI | 00822045000322 (case of 10: 10822045000329)2 |
| Fits | SAM IO Driver, IO7001 |
| Accepts | Arrow EZ-IO needles1 |
| Sterile | No2 |
| FDA product code | FMI2 |
| System needles | 15-gauge, 15, 25 and 45 mm1 |
How It Fits the SAM IO System:
The adaptor attaches to the SAM IO Driver to accommodate Arrow EZ-IO needles. SAM IO needles, the SAM IO Stabilizer and extension tubing are the other parts of the system.1 To run SAM IO needles on an Arrow EZ-IO Power Driver instead, SAM offers Adaptor2 (IO842).3
Related Products:
- SAM IO Driver, IO700-EN
- SAM IO Stabilizer, 1-Pack, IO740-1P-EN
- SAM IO Needle Set, 15 mm
- SAM IO Field Storage Case, IO744-EN
- Intraosseous Access collection
Product Guides and Documents:
Frequently Asked Questions:
What does the SAM IO Needle Adaptor do (IO742-EN)?
It attaches to the SAM IO Driver so the manual driver can place Arrow EZ-IO needles.1
Which needles does the IO742-EN adaptor accept (IO742-EN)?
Arrow EZ-IO needles. SAM IO needles are the system's own 15-gauge needles in 15, 25 and 45 mm.1
How is the SAM IO Adaptor different from SAM IO Adaptor2 (IO742-EN)?
The IO742 adaptor puts EZ-IO needles on the SAM IO Driver. Adaptor2 (IO842) works the other way: it is compatible with the Arrow EZ-IO Power Driver and lets that driver use SAM IO needles.13
What needle sizes and gauge does SAM IO use (IO742-EN)?
SAM IO needles are 15-gauge and come in 15 mm, 25 mm and 45 mm lengths, each as a sterile stylet and catheter assembly with a NeedleVise sharps block.1
Is the SAM IO adaptor sterile (IO742-EN)?
No. The adaptor is a non-sterile device; the SAM IO needles are the sterile components.21
How does the SAM IO driver place a needle (IO742-EN)?
SAM IO is a manually operated, battery-free intraosseous access system. Repeated, full trigger actuation spins the needle assembly; combined with gentle downward pressure, this places the IO needle under manual control.1
What is the SAM IO driver made of (IO742-EN)?
Rugged polycarbonate. It weighs 2.5 oz (70.9 g) and measures 5.5 x 1 x 4.25 in.1
Manufacturer Sources
- SAM Medical. SAM IO product overview, AF-IO-SS-EN-05 (PDF) (accessed 2026-11-07). sammedical.box.com.
- U.S. FDA. AccessGUDID record, DI 00822045000322, SAM IO Adaptor 1 Pack, IO742-EN (accessed 2026-11-07). accessgudid.nlm.nih.gov.
- SAM Medical. SAM IO Adaptor2 product page (accessed 2026-11-07). sammedical.com.
- SAM Medical. SAM IO product page (accessed 2026-11-07). sammedical.com.
- SAM Medical. SAM IO training resources page (accessed 2026-11-07). sammedical.com.
For trained clinicians placing intraosseous access with the SAM IO system. Read the SAM IO driver, needle and adaptor instructions before use.4
