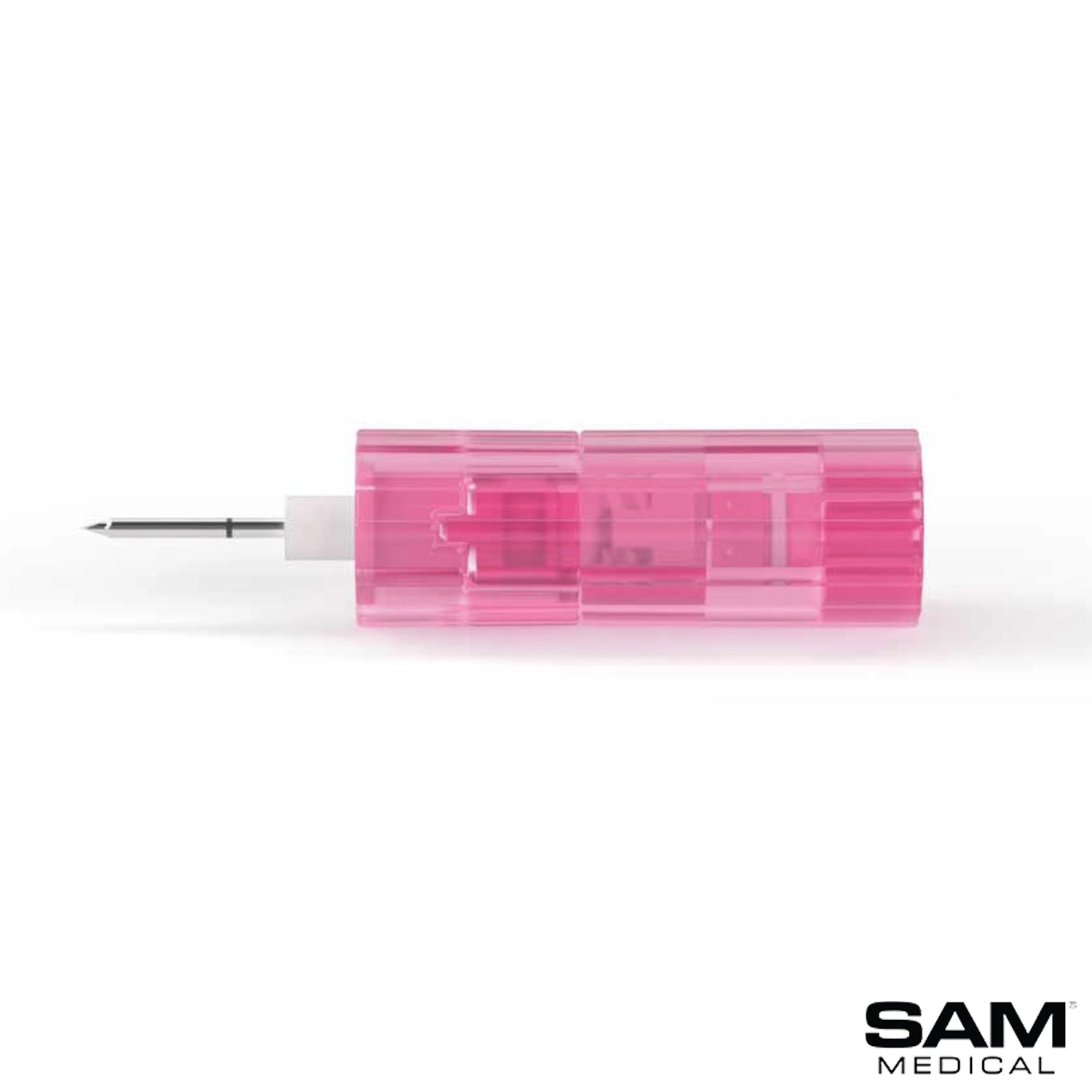

SAM IO Needle Set, 15 mm, Pink Hub, 1-Pack, IO705-1P-EN
The SAM Medical IO705-1P-EN is one needle set for the SAM IO intraosseous access system: a sterile, single-use, 15-gauge, 15 mm needle assembly with a pink hub that runs on the manual SAM IO Driver.12 The 15 mm length is for adult and pediatric patients with non-existent to limited overlying adipose tissue.3 Pacific Biomedical supplies it with the other intraosseous access products.
Product Highlights:
- Needle: 15 gauge, 15 mm stylet and catheter assembly secured by a press-fit connection.4
- Hub color: pink, the 15 mm hub shown in SAM Medical product images.1
- Sterile, single use: each needle assembly is sterile and for one patient.2
- Sharps containment: a NeedleVISE block is included in every SAM IO needle set to hold the stylet after removal.4
- Driver: runs on the SAM IO Driver (IO700), a manual, battery-free, multi-use driver.4
- Depth check: at least 5 mm of catheter (the first black line) should stay visible above the skin before driving the needle into bone.3
What Is in the Box:
- 1 SAM IO needle set: 15 mm, 15-gauge needle assembly (stylet and catheter), pink hub, part IO705-1P-EN.12
- 1 NeedleVISE block for stylet sharps containment.4
Specifications:
| Manufacturer | SAM Medical Products |
|---|---|
| Brand | SAM IO |
| Part number | IO705-1P-EN1 |
| GUDID device identifier | 008220450002782 |
| Needle gauge | 15 gauge1 |
| Needle length | 15 mm1 |
| Hub color | Pink1 |
| Tissue guidance | Adult and pediatric patients with non-existent to limited overlying adipose tissue3 |
| Sterile | Yes2 |
| Single use | Yes2 |
| FDA product code | FMI2 |
| FDA 510(k) | K1914882 |
| Pack | 1 needle set |
SAM IO Needle Lengths:
Every SAM IO needle is 15 gauge; the length is chosen by the tissue over the site, then confirmed with the black depth marker line.13
| 15 mm, pink hub | 15 gauge; 1-pack IO705-1P-EN, 5-pack IO705-5P-EN; for patients with non-existent to limited overlying adipose tissue3 |
|---|---|
| 25 mm, blue hub | 15 gauge; 1-pack IO706-1P-EN, 5-pack IO706-5P-EN; for patients with minimal to moderate overlying adipose tissue3 |
| 45 mm, yellow hub | 15 gauge; 1-pack IO707-1P-EN, 5-pack IO707-5P-EN; for patients with moderate to excessive overlying adipose tissue3 |
Related Products:
- SAM IO Needle Set, 15 mm, Pink Hub, 5-Pack
- SAM IO Driver, Manual Intraosseous Access System
- SAM IO Stabilizer, 1-Pack
- SAM IO Needle Set, 25 mm, Blue Hub, 1-Pack
- SAM IO Needle Set, 45 mm, Yellow Hub, 1-Pack
Product Guides and Documents:
- SAM IO product page1
- SAM IO GEN II Product Overview (PDF)4
- SAM IO Quick Reference Training Guide (PDF)3
Frequently Asked Questions:
What size is the IO705-1P-EN pink-hub IO needle?
The pink-hub SAM IO needle is the 15 mm length, 15 gauge (SAM part IO705-1P-EN as a 1-pack, IO705-5P-EN as a 5-pack).1 SAM Medical recommends it for adult and pediatric patients with non-existent to limited overlying adipose tissue.3
What gauge is the IO705-1P-EN needle?
All SAM IO needles are 15 gauge.1
When is the IO705-1P-EN needle length the one to choose?
Start from the tissue over the site: 15 mm for non-existent to limited overlying adipose tissue, 25 mm for minimal to moderate, and 45 mm for moderate to excessive. The true depth is confirmed with the black depth marker line: at least 5 mm of catheter should stay visible above the skin when the tip rests on the periosteum.3
What is the IO705-1P-EN IO needle used for?
A SAM IO needle places a catheter in the medullary space of bone for intraosseous access. After placement the stylet is removed to expose a standard Luer-lock for an extension set, and aspiration verification, flushing and selected treatments can begin.1
How do I know the IO705-1P-EN needle has reached the medullary space?
A subtle "give" or "pop" signals entry into the medullary space. The stylet is then removed with the driver and placed in the NeedleVISE block, and placement is confirmed before flushing.3
What comes in the IO705-1P-EN needle set?
A 15 mm needle assembly (stylet and catheter) plus a NeedleVISE block for stylet sharps containment.4 The driver, stabilizer and extension tubing are separate SAM IO parts.4
Is the IO705-1P-EN needle sterile?
Yes. The IO705-1P-EN needle assembly is sterile and single use.2
Which FDA clearance covers IO705-1P-EN?
The FDA GUDID record for IO705-1P-EN carries premarket submission K191488 and product code FMI.2
Where are the instructions and training videos for IO705-1P-EN?
SAM Medical publishes the SAM IO instructions for use, the Quick Reference Training Guide and training videos on its SAM IO product and training pages.15
Manufacturer Sources
- SAM Medical Products. SAM IO product page: description, specifications and available parts (accessed 2026-11-07). sammedical.com.
- U.S. Food and Drug Administration. AccessGUDID: SAM Medical IO705-1P-EN, SAM IO 15 mm Needle Assembly, 1 Pack, DI 00822045000278 (accessed 2026-11-07). accessgudid.nlm.nih.gov.
- SAM Medical Products. SAM IO Quick Reference Training Guide, AF-IO-QRTG-EN-03 (accessed 2026-11-07). sammedical.box.com.
- SAM Medical Products. SAM IO GEN II Product Overview, AF-IO-SS-EN-05 (accessed 2026-11-07). sammedical.box.com.
- SAM Medical Products. SAM IO training page (accessed 2026-11-07). sammedical.com.
Specifications are from SAM Medical and FDA GUDID records. Use SAM IO needles only as directed in the SAM IO instructions for use and your institutional protocol; the Quick Reference Training Guide does not replace the IFU.3
