Mounting Unit for Warrior Lite
Secure, Adjustable Mounting Solution
for QinFlow Warrior Lite System

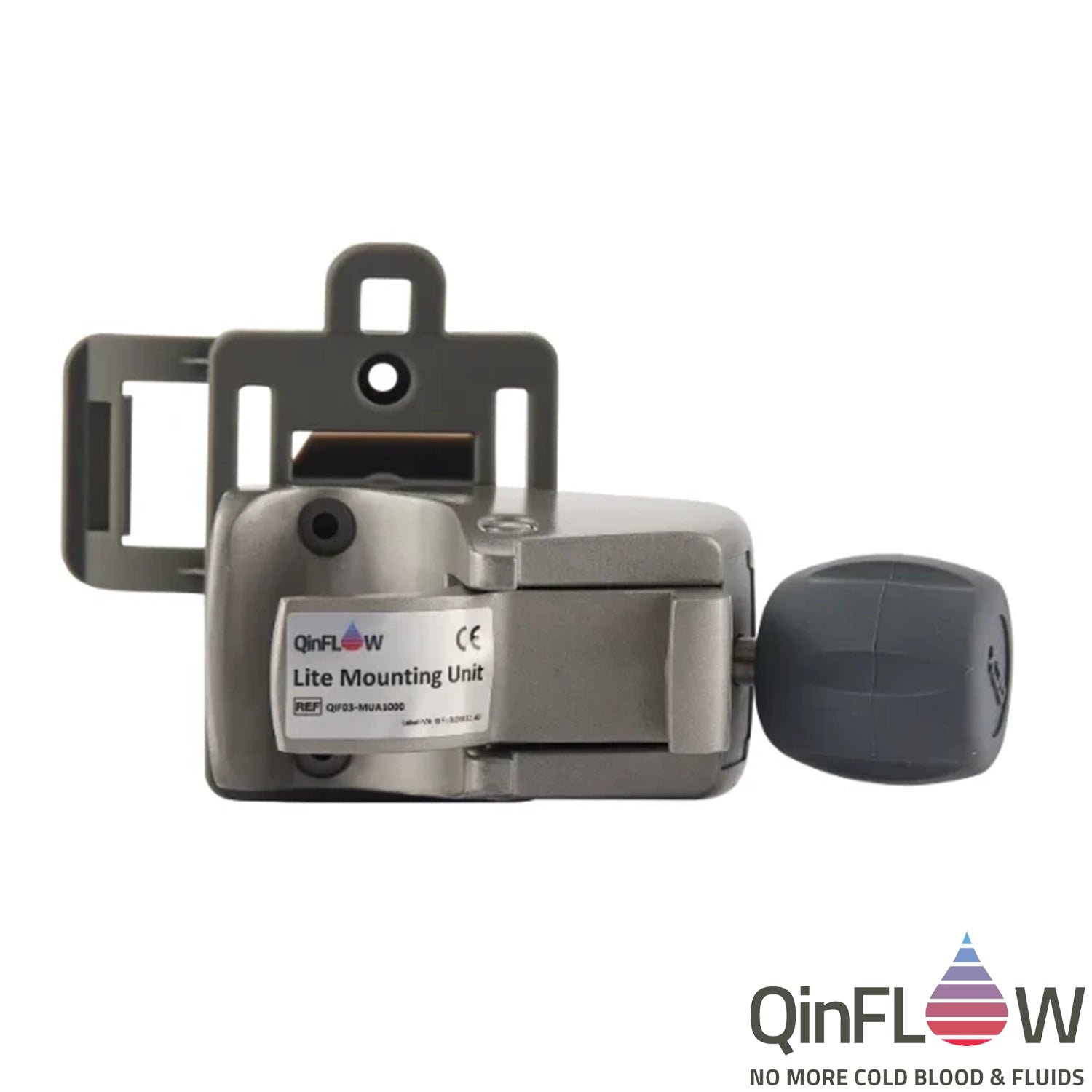

The QinFlow Warrior Lite Mounting Unit (QIF03-MUA1000) provides a robust, versatile mounting solution for securing your Warrior Lite blood warming system to IV poles, bed rails, stretcher frames, and aircraft fixtures. Engineered for medical environments from ambulances to operating rooms, this adjustable mount ensures your life-saving equipment remains accessible and secure during critical interventions.
- • Universal Compatibility: Fits standard IV poles and bed rails (0.75" to 1.5" diameter)

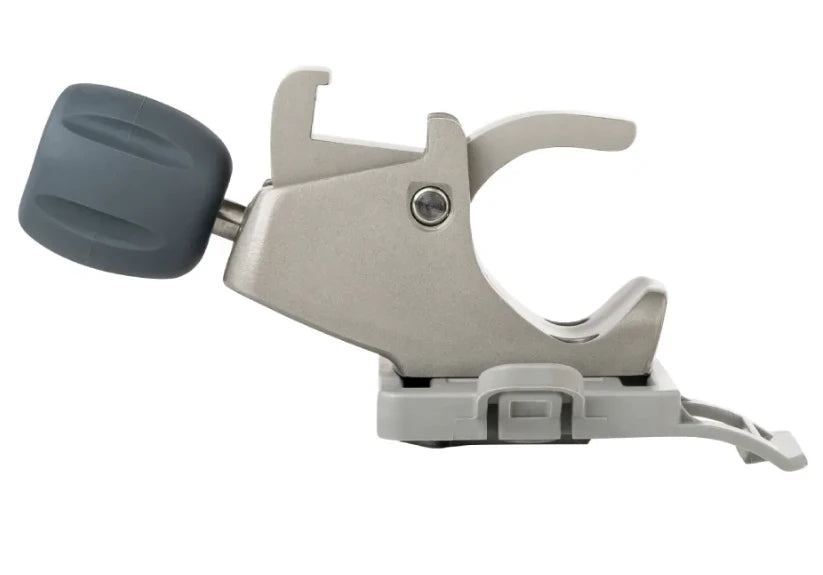

- • 360° Adjustability: Full rotation with 4-screw orientation adjustment system
- • Air-Worthy Certified: Passed all applicable aviation safety testing for HEMS use
- • Quick Release Design: Tool-free attachment and removal for rapid deployment
- • Secure Locking: Fixation snap system with optional M4x8 screw for permanent mounting
- • Durable Construction: Medical-grade materials withstand repeated cleaning cycles
Technical Specifications:
| Pacific Biomedical SKU: | QF-MUA1000 |
| Manufacturer Part: | QIF03-MUA1000 |
| Compatible Models: | All Warrior Lite configurations (QIF03-BUA1000) |
| Mounting Range: | 0.75" to 1.5" diameter poles/rails (19-38mm) |
| Adjustment: | 360° rotation, multi-angle orientation |
| Attachment Method: | Clamp mechanism with fixation snap lock |
| Materials: | Medical-grade polymer and stainless steel hardware |
| Certifications: | Air-worthiness tested, MIL-STD compliant |
| Cleaning: | Compatible with Deconex® SOLARSEPT and standard disinfectants |
| Weight Capacity: | Supports full Warrior Lite system (up to 2.4 lbs) |
| Operating Temp: | -20°C to 50°C (-4°F to 122°F) |
| Warranty: | 12 months manufacturer warranty |
Installation & System Compatibility
Compatible Warrior Lite Systems:
- Warrior Lite Intro Set (Lite Battery)
- Warrior Lite Extra Power Set
- Warrior Lite AC Configuration
- All Warrior Lite base units (QIF03-BUA1000)
Mounting Surfaces:
- Standard IV poles
- Hospital bed rails
- Stretcher frames
- Ambulance fixtures
- Aircraft medical rails
- Trauma bay equipment stands

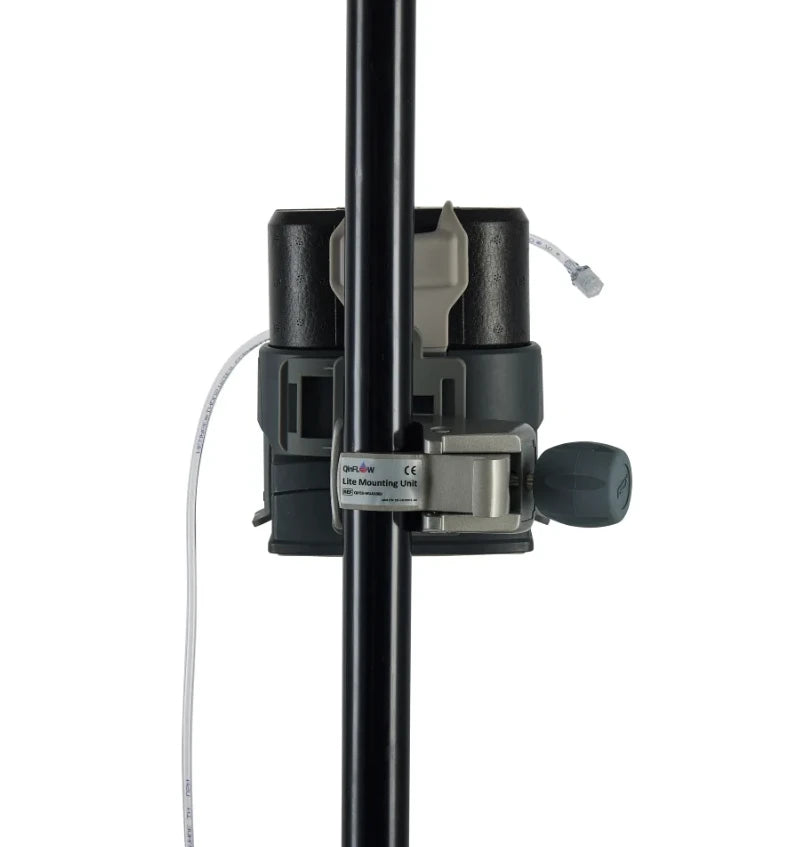

Installation Process:
- Attach mount adapter (QIF-MCH00111) to back of Warrior Lite base unit
- Open clamp mechanism and position on pole/rail
- Close clamp and verify secure attachment
- Slide mount adapter left until fixation snap locks
- Adjust orientation using 4-screw system as needed
- Optional: Secure permanently with M4x8 screw for fixed installations
Clinical Environment Applications:
Emergency Department:
Mount Warrior Lite units on trauma bay IV poles for immediate access during resuscitations. The 360° adjustability allows optimal positioning regardless of patient orientation, while quick-release design enables rapid redeployment between bays.
Air Medical Transport (HEMS):
Air-worthy certification ensures safe helicopter operations. The secure locking mechanism withstands vibration and G-forces during flight operations, while the compact profile maintains valuable cabin space. Compatible with standard aircraft medical rail systems.
Ground Ambulance:
Secure mounting to ambulance fixtures keeps the Warrior Lite accessible yet out of the way during patient care. The adjustable orientation accommodates various ambulance configurations, from Type I to Type III vehicles.
Operating Room:
Mount to anesthesia machine poles or dedicated IV stands for consistent positioning during surgical procedures. The ability to rotate and adjust ensures the display remains visible to anesthesia providers while maintaining sterile field boundaries.
ICU & Critical Care:
Bed rail mounting keeps warming systems within reach during continuous renal replacement therapy, ECMO support, or massive transfusion protocols. The mount's durability withstands frequent repositioning during prolonged ICU stays.
Military Field Operations:
Robust construction meets military specifications for field hospital deployment. Compatible with NATO standard medical equipment rails and portable treatment stations. Withstands extreme environmental conditions.
Engineering Excellence:
Safety & Certification
- Air-Worthiness Testing: Meets aviation safety standards for medical equipment
- Vibration Resistance: Tested for ambulance and helicopter environments
- Load Testing: Exceeds weight requirements with safety margin
- Drop Testing: Survives impacts from standard mounting heights
Design Advantages:
- Universal Clamp Design: Single mount fits wide range of pole/rail diameters without adapters
- Tool-Free Operation: Emergency-ready deployment without special equipment
- Fixation Snap Lock: Audible and tactile confirmation of secure attachment
- Low Profile: Minimal extension from mounting surface preserves workspace
- Chemical Resistant: Withstands hospital-grade disinfectants and cleaning agents
Maintenance & Durability:
- Reusable Design: Engineered for thousands of attachment cycles
- Easy Cleaning: Smooth surfaces prevent contamination buildup
- Corrosion Resistant: Stainless steel hardware prevents degradation
- UV Stable: Materials resist degradation from sunlight exposure
Why Choose Pacific Biomedical
Price Leadership
| Pacific Biomedical: | $189.00 |
| PennCare: | $225.00 |
| BoundTree: | Contact for pricing |
| Your Savings: | $36+ |
Service Excellence
- • 24-hour shipping standard
- • Free shipping over $100
- • Expert technical support
- • Bulk fleet discounts
- • 30-day satisfaction guarantee
Fleet Orders: Equipping multiple vehicles or departments?
Call 844.436.3526 for volume pricing and configuration assistance
Cleaning & Maintenance Guidelines:
Routine Cleaning (After Each Use)
- Wipe external surfaces with damp cloth and approved disinfectant
- Recommended: Deconex® SOLARSEPT solution or equivalent
- Allow to air dry completely before storage
- Do not submerge, autoclave, or sterilize
Periodic Maintenance:
- Inspect clamp mechanism for smooth operation monthly
- Check all screws for tightness quarterly
- Verify fixation snap engagement before each use
- Replace if any cracks or damage observed
Ordering Information
Product: QinFlow Warrior Lite Mounting Unit
Pacific Biomedical SKU: QF-MUA1000
Manufacturer Part: QIF03-MUA1000
Availability: In Stock - Ships within 24 hours
Shipping: FREE on orders over $100
Warranty: 12 months manufacturer warranty
Note: Mount adapter (QIF-MCH00111) connects to the back of Warrior Lite base units. Verify your base unit model for compatibility. All current Warrior Lite systems include the necessary adapter interface.
Frequently Asked Questions
Will this mount fit my existing IV poles and bed rails?
Yes, the QIF03-MUA1000 mounting unit accommodates poles and rails from 0.75" to 1.5" diameter (19-38mm), covering virtually all standard medical equipment in hospitals, ambulances, and aircraft.
Is the mount certified for helicopter air medical use?
Yes, the mounting unit has passed all applicable air-worthiness testing and is certified for use in helicopter emergency medical services (HEMS) and fixed-wing aircraft medical transport.
Can I adjust the mount position after installation?
Absolutely. The mount offers 360° rotation and multi-angle adjustment via a 4-screw system, allowing you to reposition the Warrior Lite for optimal visibility and access without removing the mount.
How quickly can I move the Warrior Lite between locations?
The tool-free quick-release design allows attachment or removal in under 10 seconds. The fixation snap provides immediate confirmation of secure attachment for rapid deployment scenarios.
What cleaning products are safe for the mounting unit?
The mount is compatible with standard hospital disinfectants including Deconex® SOLARSEPT, CaviWipes, and quaternary ammonium compounds. Do not autoclave or submerge in liquid.
Is this the same mount used for regular Warrior models?
No, this QIF03-MUA1000 is specifically designed for Warrior Lite models. Standard Warrior and Warrior Extreme models use a different mounting system. Contact us at 844.436.3526 to verify compatibility.
