QinFlow Warrior Lite Intro Set, Blood and Fluid Warmer
$3,800.00$0.00
SKU:
QF-Q1301S0000
Warrior Lite Intro Set – Q1301S0000

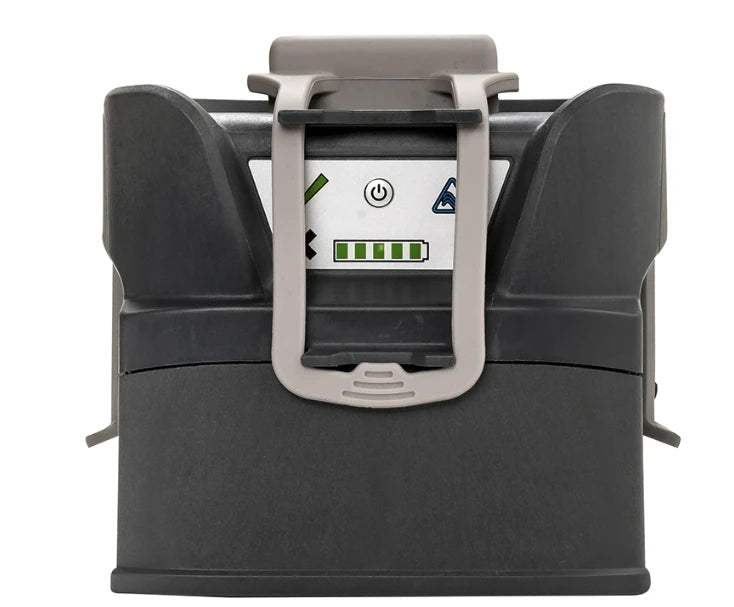

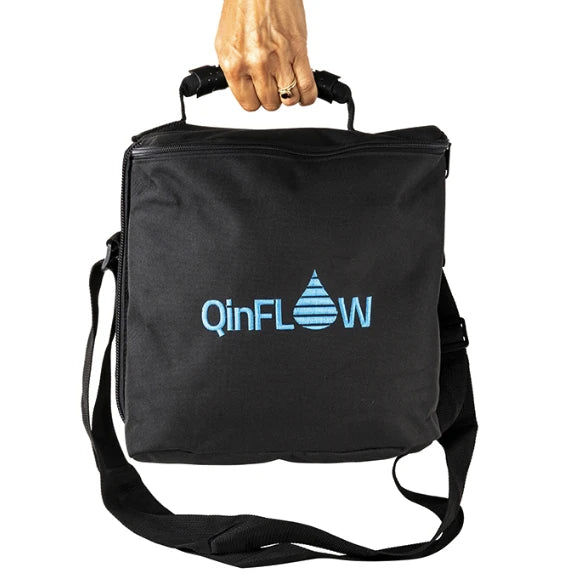

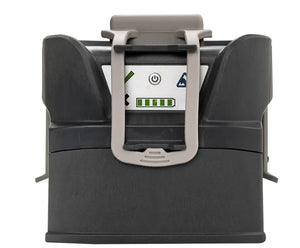

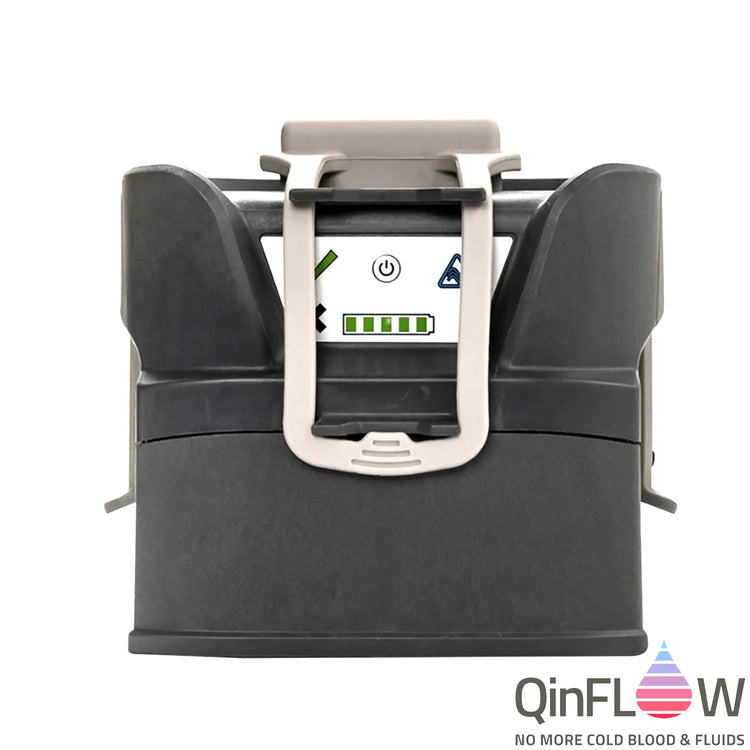

The Warrior Lite® Intro Set (PN Q1301S0000) by QinFlow is a complete compact warming kit, featuring the base unit, one Lite battery (1.3 L capacity), charger with adapter, and a durable carrying bag. Weighing just 0.8 kg (1.76 lb) and measuring 3.3 × 3.5 × 4.5 in (8.4 × 8.8 × 11.5 cm), it warms blood or IV fluids to 38 °C (100.4 °F) in under 11 seconds at flow rates up to 170 ml/min.
Key Benefits & Performance:
- Instant Warm-Up: Heats fluids to 38 °C (100.4 °F) ± 2 °C (± 3.6 °F) in under 11 s at 4 °C (39.2 °F) inlet
- High Flow Capacity: Up to 170 ml/min at 4 °C (39.2 °F) and 250 ml/min at 20 °C (68 °F) inlet

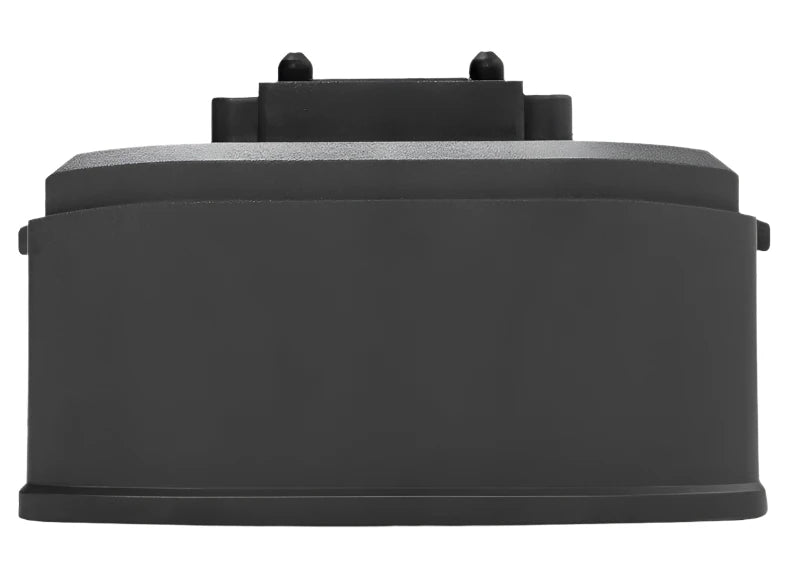

- Battery Performance: Lite battery (18 V, 3.0 Ah, 54 Wh) warms up to 1.3 L at 4 °C; Extra Power option warms up to 3 L at 180 ml/min
- Compact & Portable: Weighs 0.8 kg (1.76 lb); dimensions 3.3 × 3.5 × 4.5 in (8.4 × 8.8 × 11.5 cm)
- Rugged & Field-Proven: IP56-rated, defibrillator-safe, night-vision goggle compatible
- Smart Warming Tech: Microprocessor-controlled, auto-adjusting real-time temperature sensing with audio/visual alerts
- Low Maintenance: No calibration required; 5-year service interval
- Regulatory Certified: IEC 60601‑1‑12, IEC 60601‑1‑2, MIL‑STD 461G compliant
Specifications:
| Metric | Detail |
|---|---|
| Set Includes | Base unit, Lite battery, charger, adapter, carrying bag |
| Set-Point Temp. | 38 °C (100.4 °F) ± 2 °C (± 3.6 °F) |
| Warming Time | Up to 11 s |
| Min. Delivery Rate | KVO or 2 ml/min |
| Max Delivery Rate (4 °C inlet) |
170 ml/min |
| Max Delivery Rate (20 °C inlet) |
250 ml/min |
| Battery Capacity (4 °C inlet) |
Up to 1.3 L |
| Battery Capacity (20 °C inlet) |
Up to 2.5 L |
| Extra Power Battery | Warms up to 3 L at 180 ml/min |
| Battery Specs | Li‑ion, 18 V, 3.0 Ah, 54 Wh; 100–240 VAC charger |
| Dimensions (HxWxL) | 3.3 × 3.5 × 4.5 in (8.4 × 8.8 × 11.5 cm) |
| Weight | 0.8 kg (1.76 lb) |
| Operating Temp. | -5 °C (23 °F) to 50 °C (122 °F); RH 90% |
| Storage Temp. | -20 °C (‑4 °F) to 70 °C (158 °F); RH 93% |
| Transient Conditions | -20 °C (‑4 °F) to 50 °C (122 °F); RH 90% |
| Altitude | -1,312 to 15,000 ft (-400 to 4,572 m); 549–1,060 hPa |
| Ingress Protection | IP56 |
How to Use:
- Open carrying bag; unpack all components.

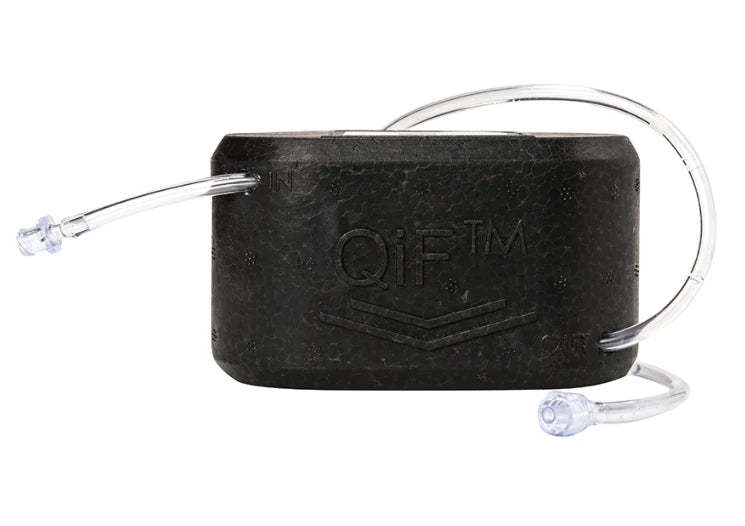

- Attach disposable fluid path to base unit.
- Insert Lite battery into unit; optional Extra Power battery.
- Power on; wait for LED to turn green at 38 °C (100.4 °F).
- Begin infusion; monitor temp and flow on display.
- After use, remove and dispose cartridge; recharge battery as needed.
Order your Warrior lite® Intro Set today—complete warming kit for no more cold blood & fluids. Free US shipping & expert support.
