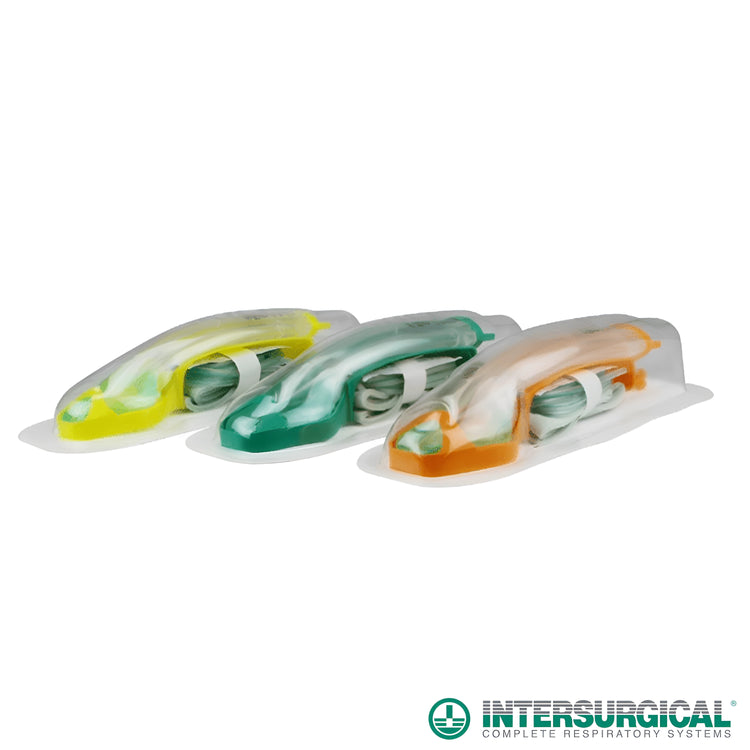

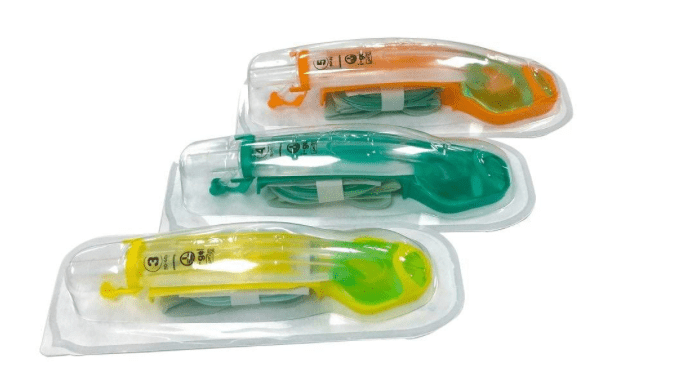

The Intersurgical i-gel O2 Resus Pack puts an i-gel O2 supraglottic airway, a sachet of lubricant and an airway support strap in one clear, sterile, rigid pack, in three adult sizes: 8703030 (size 3, yellow), 8704030 (size 4, green) and 8705030 (size 5, orange).12 The i-gel is a single use, latex free supraglottic airway with a non-inflatable gel cuff;3 the i-gel O2 version adds a supplementary oxygen port and a hook ring for the strap.1
Product Highlights:
-
Three in one: Airway, lubricant and strap to prepare, insert and secure the i-gel O21
-
Three adult sizes: Size 3 for 30 to 60 kg, size 4 for 50 to 90 kg, size 5 for 90 kg and over1
-
Oxygen port: Passive oxygenation within a cardiocerebral resuscitation protocol2
-
Gastric channel: Early warning of regurgitation, nasogastric tube passage and venting4
-
Strap fixation: Ideal where tape is unsuitable, such as on patients with facial hair1

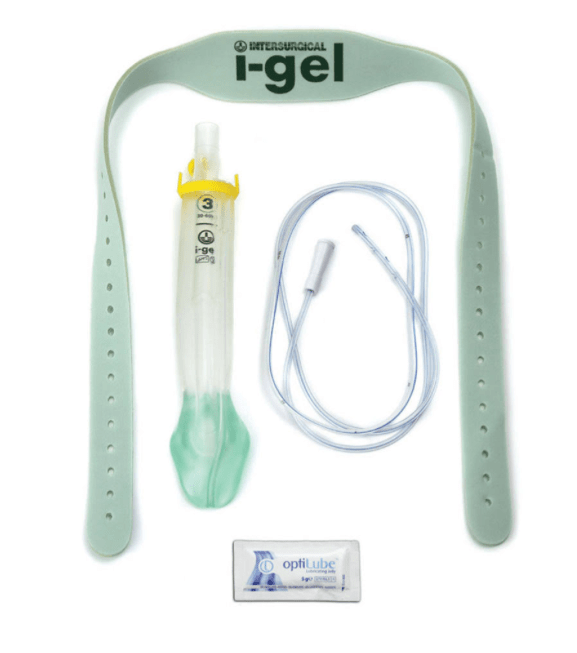

What Is in the Box:
- 1 i-gel O2 supraglottic airway in the size chosen, with color coded hook ring1
- 1 sachet of lubricant1
- 1 airway support strap1
Specifications:
| Manufacturer |
Intersurgical1
|
| Part numbers |
8703030, 8704030, 87050301
|
| Airway |
i-gel O2 supraglottic airway1
|
| Packaging |
Clear, sterile, rigid pack2
|
| Single use |
Yes5
|
| Natural rubber latex |
Not made with natural rubber latex5
|
| Box quantity (Intersurgical) |
6 per part number1
|
| Sold as |
Each pack, by size |
Size and Weight Chart:
| Size 3, 8703030 |
Small adult, 30 to 60 kg (65 to 130 lbs), yellow hook ring1
|
| Size 4, 8704030 |
Medium adult, 50 to 90 kg (110 to 200 lbs), green hook ring1
|
| Size 5, 8705030 |
Large adult, 90 kg and over (200 lbs and over), orange hook ring1
|
| i-gel airway alone |
Seven sizes from size 1 (2 to 5 kg) to size 5 (90 kg and over)4
|
Related Products:
Product Guides and Documents:
Frequently Asked Questions:
What is an i-gel airway (8703030, 8704030, 8705030)?
A single use, latex and PVC free second generation supraglottic airway made from medical grade thermoplastic elastomer, with a non-inflatable cuff that seals over the pharyngeal, laryngeal and perilaryngeal structures.3
What is in the i-gel O2 Resus Pack (8703030, 8704030, 8705030)?
An i-gel O2 supraglottic airway, a sachet of lubricant and an airway support strap.1
What is an i-gel used for (8703030, 8704030, 8705030)?
Securing and maintaining a patient airway in routine and emergency anesthetics of fasted patients, during spontaneous or positive pressure ventilation and during resuscitation of the unconscious patient, and as a conduit for fiberoptic-guided intubation, by suitably trained personnel.4
Is an i-gel considered intubation (8703030, 8704030, 8705030)?

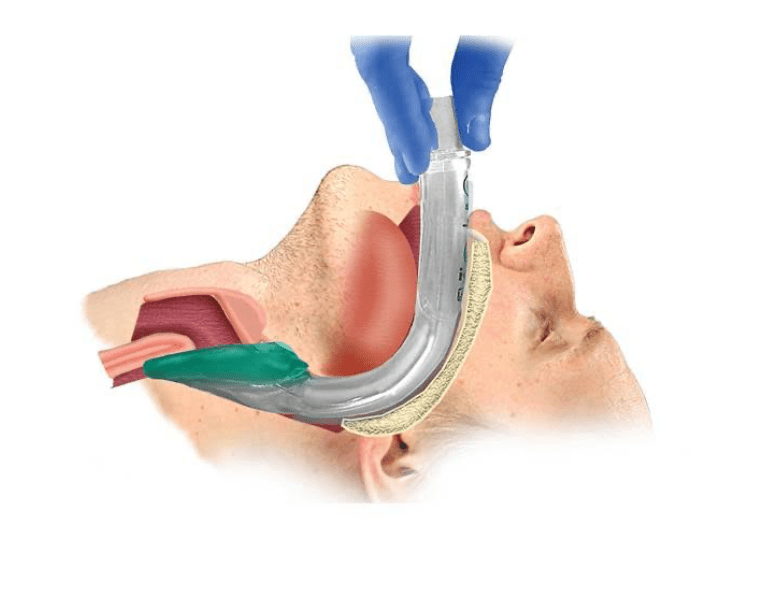

No. The i-gel is a supraglottic airway: its tip sits in the upper esophageal opening and its cuff against the laryngeal framework, not in the trachea. The adult sizes can also act as a conduit for fiberoptic-guided intubation.8
Which i-gel O2 Resus Pack size do I need (8703030, 8704030, 8705030)?
Size 3 (yellow) for 30 to 60 kg, size 4 (green) for 50 to 90 kg and size 5 (orange) for 90 kg and over.1
What is the suction port on an i-gel for (8703030, 8704030, 8705030)?
The gastric channel gives early warning of regurgitation, lets a nasogastric tube empty the stomach and allows venting.4 Sizes 3 and 4 take up to a 12 FG tube and size 5 up to 14 FG.8
What is the oxygen port on the i-gel O2 for (8703030, 8704030, 8705030)?
Passive oxygenation (Passive Airway Management) as part of an appropriate cardiocerebral resuscitation protocol; it is also designed for ventilation in standard AHA and ERC protocols.1
How is the i-gel strap attached (8703030, 8704030, 8705030)?
The strap slides under the neck and hooks over the lug of the hook ring on each side of the bite block, tight enough to hold the airway without excess pressure.6
How long does i-gel insertion take (8703030, 8704030, 8705030)?
Insertion can normally be achieved in less than 5 seconds, without putting fingers or thumbs in the patient's mouth.1
What is the difference between the i-gel O2 and i-gel Plus Resus Pack (8703030, 8704030, 8705030)?
The i-gel Plus has a larger gastric channel (16 FG at size 3, 18 FG at sizes 4 and 5 versus 12, 12 and 14 FG), an intubation ramp and a longer cuff tip.9
Is the i-gel O2 Resus Pack sterile, and how many come in a box (8703030, 8704030, 8705030)?
Yes, the contents come in a clear, sterile, rigid pack.2 Intersurgical boxes hold 6 packs of each size.1
Sources:
Manufacturer Sources
- Intersurgical. i-gel O2 Resus Pack product page (accessed 2026-11-07). intersurgicalinc.com.
- Intersurgical. i-gel O2 Resus Pack information sheet, U.S. Lit No. 100.5, Issue 10 (accessed 2026-11-07). intersurgicalinc.com.
- Intersurgical. i-gel supraglottic airway product page (accessed 2026-11-07). intersurgicalinc.com.
- Intersurgical. i-gel supraglottic airway information sheet, U.S. Lit No. 44.14, Issue 17.1 (accessed 2026-11-07). intersurgicalinc.com.
- U.S. FDA. AccessGUDID record, DI 05030267103423, I-GEL O2 RESUS PACK, SIZE 4 (accessed 2026-11-07). accessgudid.nlm.nih.gov.
- Intersurgical. Using the i-gel O2 Resus Pack poster, I-GELO2POSTER_US issue 2 (accessed 2026-11-07). intersurgicalinc.com.
- Intersurgical. Resuscitation and Emergency Care catalog, USCAT 146.11 (accessed 2026-11-07). intersurgicalinc.com.
- Intersurgical. Using the i-gel supraglottic airway poster, IGELPOSTER issue 3 (accessed 2026-11-07). intersurgicalinc.com.
- Intersurgical. i-gel Plus Resus Pack information sheet, U.S. Lit No. 295.1, Issue 1 (accessed 2026-11-07). intersurgicalinc.com.
Specifications are from Intersurgical documents and the FDA GUDID record. Use only as directed in Intersurgical labeling.1
