Cables and Sensors S203S-01P0 Nellcor Compatible Infant SpO2
This item requires a clinical attestation, confirmed in your cart.

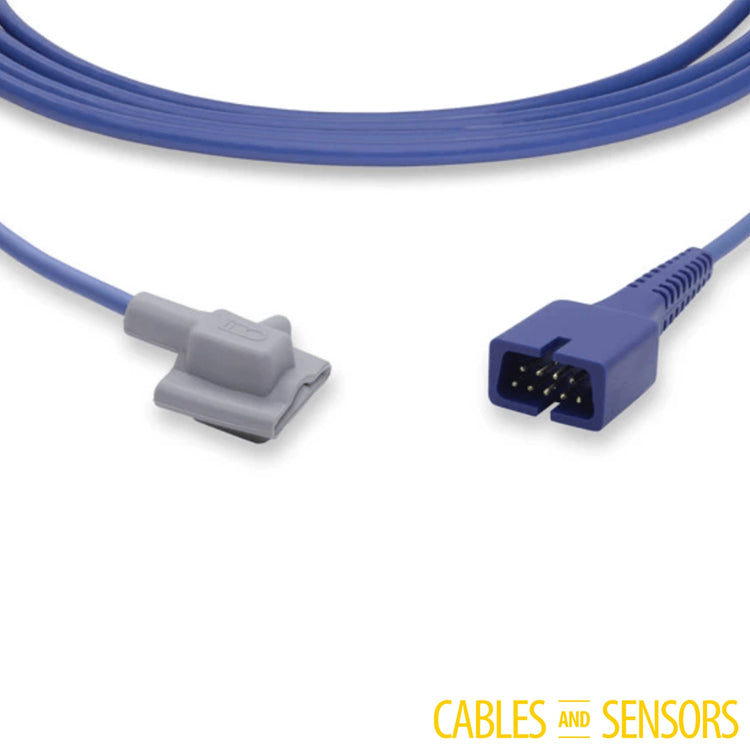

Cables and Sensors S203S-01P0 is a short infant soft SpO2 sensor compatible with Covidien Nellcor monitors, built with Nellcor OxiMax technology for infants of 3 to 15 kg.1 Its 3.5 ft cable ends in a purple, dual-keyed male 9-pin connector for Nellcor OxiMax monitors or an OxiMax adapter cable.12
Product Highlights:
- Patient size: Infant, 3 to 15 kg.1
- Sensor: Infant soft.1
- Cable: 3.5 ft, gray, 4 mm splitting to 2 x 2.5 mm.1
- Connector: Male 9-pin D-sub, purple, dual keyed; Nellcor OxiMax technology.1
- Latex: Latex-free; non-sterile.1
What Is in the Box:
One Cables and Sensors S203S-01P0 short infant soft SpO2 sensor.1
Specifications:
| Manufacturer | Cables and Sensors1 |
|---|---|
| Part number | S203S-01P01 |
| Patient size | Infant, 3 to 15 kg1 |
| Sensor end | Infant soft1 |
| Connector | Male 9-pin D-sub, purple, dual keyed1 |
| SpO2 technology | Nellcor OxiMax1 |
| Cable | 3.5 ft, gray1 |
| Latex-free | Yes1 |
| Sterile | No1 |
| Certifications | FDA, CE, ISO 80601-2-61:2011, ISO 10993-1, 5, 101 |
Monitor Compatibility:
Compatible monitors include Covidien Nellcor N-560, N-600, N-600x, NPB-40, PM10N, PM100N and PM1000N; Philips IntelliVue, SureSigns VS2 and VS3 and Avalon FM20 to FM50; Medtronic Capnostream 35; and Stryker Physio-Control LIFEPAK 12 and 15.1 On Philips monitors, the E710P-430 adapter accepts this purple 9-pin connector.2
Related Products:
- Philips Compatible SpO2 Adapter Cable, E710P-430
- Nellcor MAX-N Compatible Disposable SpO2 Sensor, S543-01P0
- Nellcor Compatible Adult Soft SpO2 Sensor, S410S-01P0
- Pulse Oximeter Probes collection
Product Guides and Documents:
Frequently Asked Questions:
What patients does the S203S-01P0 fit (S203S-01P0)?
Infants of 3 to 15 kg.1
Can a compatible SpO2 sensor work on a Nellcor OxiMax monitor (S203S-01P0)?
Yes, when the sensor carries the digital chip that OxiMax monitors require and meets ISO 80601-2-61.3
What is the difference between Nellcor and Masimo SpO2 sensors (S203S-01P0)?
They use different technologies and connectors: this sensor uses Nellcor OxiMax with a dual-keyed purple 9-pin connector, while Masimo-compatible sensors such as S403-490 use a triple-keyed 9-pin connector.14
Which monitors work with the S203S-01P0 (S203S-01P0)?
Nellcor OxiMax monitors such as N-600x and PM100N, Philips IntelliVue and SureSigns VS2 and VS3, Capnostream 35, and LIFEPAK 12 and 15.1
How long is the S203S-01P0 cable (S203S-01P0)?
3.5 ft; it is a short sensor.1
How do I clean a reusable SpO2 finger sensor without damaging it (S203S-01P0)?
Wipe it with a cloth dampened, not soaked, with 70 percent isopropyl alcohol. Do not submerge the sensor or connector, do not autoclave, and avoid bleach stronger than 10 percent.3
Why does a monitor show Sensor Off or No Sensor with a new sensor (S203S-01P0)?
Usually a break in the internal wiring or a bent pin in the 9-pin connector; check the monitor port for debris or pushed-back pins.3
Manufacturer Sources
- Cables and Sensors. Covidien Nellcor Compatible Short SpO2 Sensor, Infant Soft, part S203S-01P0, product page (accessed 2026-11-07). cablesandsensors.com.
- Cables and Sensors. Philips Compatible SpO2 Adapter Cable M1943NL, part E710P-430, product page (accessed 2026-11-07). cablesandsensors.com.
- Cables and Sensors. A Clinician's Guide to Reusable SpO2 Sensors, FAQ (accessed 2026-11-07). cablesandsensors.com.
- Cables and Sensors. Masimo Compatible Short SpO2 Sensor 1863, part S403-490, product page (accessed 2026-11-07). cablesandsensors.com.
Compatible replacement made by Cables and Sensors; Covidien, Nellcor and OxiMax are named only to identify compatibility.
