Cables and Sensors E710P-430 Philips M1943NL Compatible Cable
This item requires a clinical attestation, confirmed in your cart.

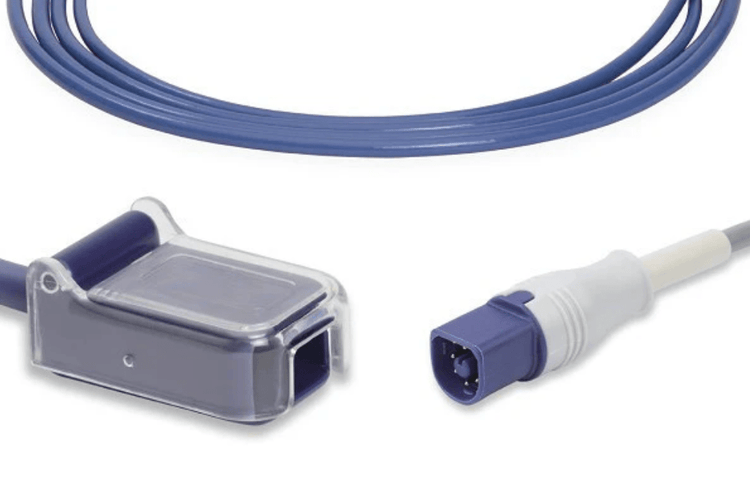

Cables and Sensors E710P-430 is a 10 ft SpO2 adapter cable compatible with Philips M1943NL (989803136591).1 It connects a Philips 8-pin D-shaped monitor port to a female purple 9-pin Nellcor OxiMax sensor connector.12
Product Highlights:
- Compatible with: Philips M1943NL, 989803136591.1
- Monitor end: Philips 8-pin D-shaped male connector.1
- Sensor end: Female 9-pin D-sub, purple; Nellcor OxiMax technology.1
- Length: 10 ft, blue, 4 mm.1
- Latex: Latex-free; non-sterile.1
What Is in the Box:
One Cables and Sensors E710P-430 SpO2 adapter cable, 10 ft.1
Specifications:
| Manufacturer | Cables and Sensors1 |
|---|---|
| Part number | E710P-4301 |
| Compatible with | Philips M1943NL, 9898031365911 |
| Monitor connector | Philips 8-pin D-shaped male1 |
| Sensor connector | Female 9-pin D-sub, purple1 |
| SpO2 technology | Nellcor OxiMax1 |
| Length | 10 ft (3.0 m)12 |
| Cable | Blue, 4 mm1 |
| Latex-free | Yes1 |
| Sterile | No1 |
| GUDID DI | 06945664893244, product code DSA2 |
Monitor and Sensor Fit:
Compatible Philips monitors include IntelliVue MP2, MP30, MP70 and MX450, M3001A, M3002A MMS X2, M8102A and M8105A, Heartstream XL, and SureSigns VS2, VS3, VS4 and VM4.1 Its purple 9-pin socket accepts OxiMax sensors with a purple 9-pin plug, such as S543-01P0, S203S-01P0 and S410S-01P0.345
Related Products:
- Nellcor Compatible Short Infant SpO2 Sensor, S203S-01P0
- Nellcor MAX-N Compatible Disposable SpO2 Sensor, S543-01P0
- Nellcor Compatible Adult Soft SpO2 Sensor, S410S-01P0
- Philips Compatible 5-Lead ECG Leadwire, LPA5-90P0
- Pulse Oximeter Probes collection
Product Guides and Documents:
Frequently Asked Questions:
Which Philips cable does the E710P-430 replace (E710P-430)?
It is compatible with Philips M1943NL, part 989803136591.1
Which Philips monitors does the E710P-430 fit (E710P-430)?
IntelliVue MP2, MP30, MP70 and MX450, M3001A, MMS X2, Heartstream XL and SureSigns VS2, VS3, VS4 and VM4, among others.1
Which sensors plug into the E710P-430 (E710P-430)?
Sensors with a purple 9-pin Nellcor OxiMax plug, such as S543-01P0, S203S-01P0 and S410S-01P0.134
What connectors are on the E710P-430 (E710P-430)?
A Philips 8-pin D-shaped male plug at the monitor and a female purple 9-pin D-sub socket at the sensor.1
Is the E710P-430 latex-free (E710P-430)?
Yes. It is latex-free and non-sterile.1
Manufacturer Sources
- Cables and Sensors. Philips Compatible SpO2 Adapter Cable M1943NL, part E710P-430, product page (accessed 2026-11-07). cablesandsensors.com.
- U.S. FDA. AccessGUDID record, DI 06945664893244, SpO2 adapter cable, model E710P-430 (accessed 2026-11-07). accessgudid.nlm.nih.gov.
- Cables and Sensors. Covidien Nellcor Compatible Disposable SpO2 Sensor, MAX-N variant S543-01P0, product page (accessed 2026-11-07). cablesandsensors.com.
- Cables and Sensors. Covidien Nellcor Compatible Short SpO2 Sensor, Infant Soft, part S203S-01P0, product page (accessed 2026-11-07). cablesandsensors.com.
- Cables and Sensors. Covidien Nellcor Compatible Direct-Connect SpO2 Sensor, Adult Soft, part S410S-01P0, product page (accessed 2026-11-07). cablesandsensors.com.
Compatible replacement made by Cables and Sensors; Philips, Nellcor and OxiMax are named only to identify compatibility.
