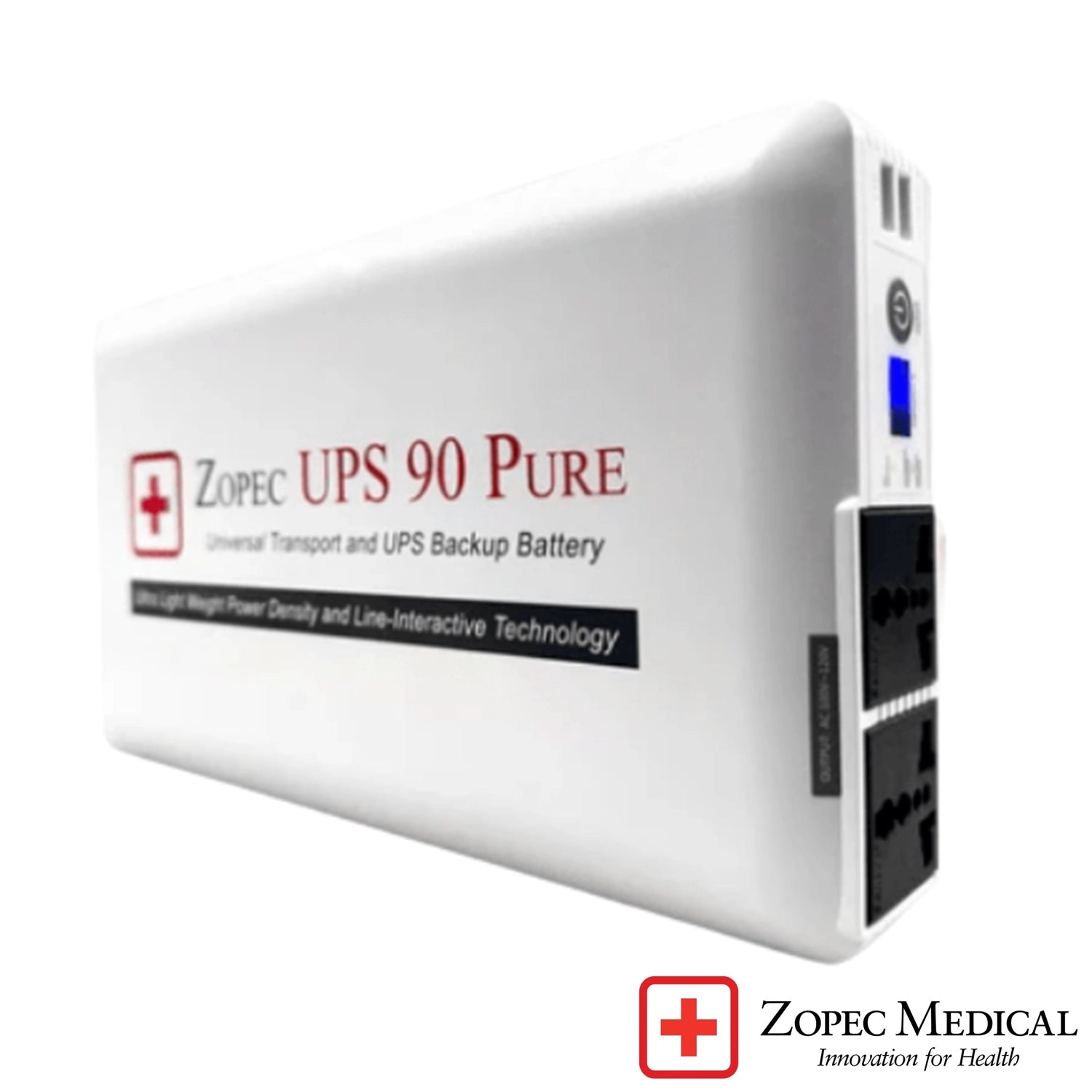

UPS 90 Pure 120V Transport System

About

World’s Smallest and Most Powerful Medical Grade UPS Battery

The UPS 90 Pure was designed from the voices of RT’s, nurses and paramedics. Hospitals and Emergency Transport Teams have been struggling with large, heavy, short run time, and high maintenance UPS batteries. They are hard to mount and transport with. It is very desirable to have a small and powerful battery for critical care. Introducing the UPS 90 Pure by Zopec Medical. It is 5 lbs. and dimensions are only 11.5” x 6.5” x 2”! It solves the challenges and is a game changer.

Available in 120V, 230V, and 100V versions to use worldwide. Comes with Universal Outlet for plugs in all countries.

Universal Applications for Transport and Power Backup. Extra Long Run Time for Safety Margins and Better Patient Safety.

Kit Contains:

• UPS 90 Pure Battery
• Mounting Adapter
• Silicone Cover
• User Manual
• Power Cord
• Re-usable zip ties (10X, red color)
• Velcro Straps (2X)

Device Run Time Examples

• HFNC (F&P Airvo2 / Massimo softFlow): ~90 min at 37°C and 60 LPM
• Heated Humidifiers (F&P 810/850/950, Hamilton H900, Neptune, Vapotherm I): ~70 min at 37°C and 60 LPM
• HFOV Oscillator 3100A: ~120 min at average settings. Back up for power outage, generator maintenance or emergency transport.
• Tecotherm NEO: ~4 hours at 33.5 °C
• Blood Gas Analyzers: 2 - 3 hours
• Air Medical Equip Backup: Airborne Isolette, Nitric Oxide, vents, ECMO pumps, monitors, etc.
• Aerogen Nebulizer (AC or USB controller): Can use simultaneously. Does not impact run times.
• Other Hospital/EMS Applications (Contact Zopec for updates)

 Features

• Models: HF110UPS90 Pure (Choose options: 100-120V, 220-240V or 90-110V)
• Medical Grade: IEC 60601-1, IEC 62133-2, UL94 V0 compliant.
• Pure Sine Wave: Compatible most biomedical equipment (i.e. heated humidifiers)
• Super Lightweight: 5 lbs. (2.3 kg)
• Small Size: 11.5” x 6.5” x 2.0” inches (29 cm x 16.5 cm x 5 cm)
• Line-Interactive UPS: Runs the device while charging the battery. Most biomedical devices will not reset with power interruptions (i.e. F&P Airvo2 and Oscillator 3100A).
• Integrated Mounting Adapter: Very easy to mount with the standard mounting adapter. (i.e. fits the F&P Airvo 2 cart built-in bracket. (Note: Locking bracket available for a separate purchase.)
• Low Battery Alarms: 3-stages at 20%, 10%, and 5% (audibly different).
• Digital Battery Capacity Display
• Low Battery Warning Lights: Battery power LED light visible from 6 feet away (green >25%, yellow 11% to 25% and red ≤10%).
• Unlimited Linking: Can connect batteries in series to get as much run time as needed.
• Powers Aerogen Simultaneously: Extra AC outlet and USB-A ports for both types of controllers.
• Prevents Unplugging: Secure plugs with locking loops using zip ties. Red reusable zip ties included.
• Silent Operation: Solid state cooling with no fan noise and no fan vent opening to trap germs.
• Starts F&P Airvo 2 without plugging in the wall
• Silicone cover (IP22 rated): Protect from liquid, dust, bumping and dropping damages.
• Easy Disinfection: Disinfect with hospital wet wipes.
• Maintenance Free: No preventative maintenance. Need to plug-in and charge battery when not in use.
• Carry Bag: Available for a separate purchase
• Warranty: 2 years
