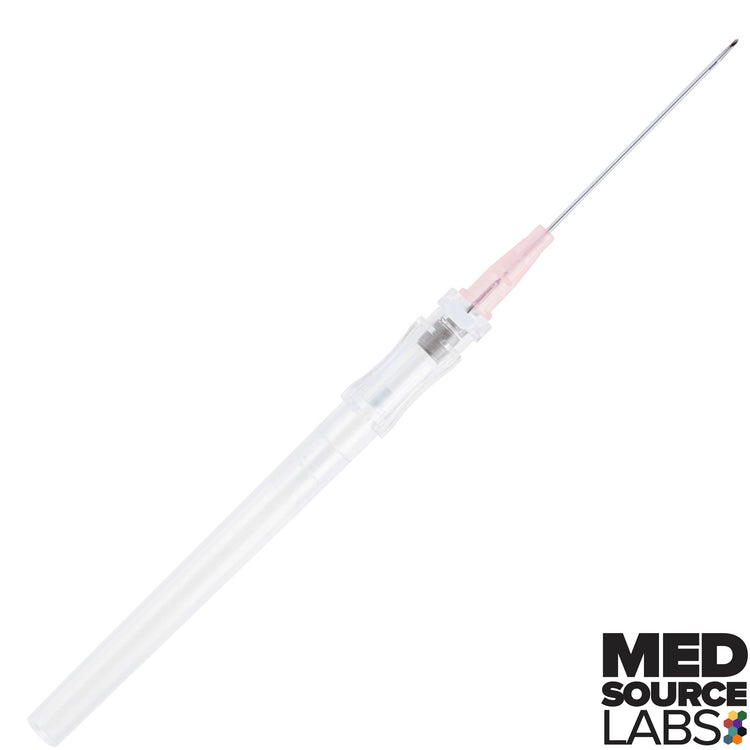

MedSource TrueSafe Comfort 20G x 1.16 in IV Catheter, 50/Box
Rx Item: Approval Needed Before Checkout
Available to healthcare organizations, licensed prescribers and buyers with a signed medical director authorization form.
How to Qualify
- Agency or facility: sign up with your work email. It's the fastest way to be verified.
- Licensed prescriber: add your 10-digit NPI number or upload your license.
- Working under a medical director: we email them our authorization form to sign online, or you can upload a signed copy.
We review accounts within 1 business day.
You can add it to your cart now and check out once you're approved.
Already have an account? Sign In
Product Highlights:
- Blood control: Active check valve technology inhibits blood flow when the valve is activated.1
- Needle safety: Push button style retraction pulls the needle fully into the catheter body, with an audible click lock.1
- Gauge and length: 20G x 1.16 in, gravity flow 61 mL/min.1
- Hub color: Color-coded catheter hub: Pink marks 20G on the IFU legend.2
- Flashback chamber: Allows for clear visual confirmation of successful venipuncture.1
- Materials: VenaPUR catheter material, radiopaque, not made with natural rubber latex or DEHP.1
What Is in the Box:
- 50 TrueSafe Comfort BC 20G x 1.16 in safety IV catheters (MS-86420). Each unopened package is sterile, non-toxic and non-pyrogenic.2
- This listing is one box of 50 catheters (50 EA/BX).1
Specifications:
| Manufacturer | MedSource Labs3 |
|---|---|
| Brand | TrueSafe Comfort BC3 |
| Part number (MPN) | MS-864201 |
| Gauge | 20G1 |
| Catheter length | 1.16 in1 |
| Catheter ID | 0.78 mm1 |
| Catheter OD | 1.1 mm1 |
| Gravity flow rate | 61 mL/min1 |
| Hub color | Pink (ISO color coding)2 |
| Catheter material | VenaPUR (PUR), radiopaque1 |
| Needle | Ground stainless steel, triple-facet back cut bevel1 |
| Safety mechanism | Push button style needle retraction1 |
| Hub | Straight hub1 |
| Latex and DEHP | Not made with natural rubber latex; not made with DEHP1 |
| Compliance | Needlestick Safety and Prevention Act (NSPA) of 2000 compliant1 |
| Pack | 50 per box (50 EA/BX)1 |
| Device identifier (box of 50) | 008401554097054 |
| Use | Single use, short-term peripheral use2 |
Size and Compatibility:
| MPN | Gauge | Length | Flow (mL/min) | Hub color |
|---|---|---|---|---|
| MS-86414 | 14G | 1.75 in | 2971 | orange2 |
| MS-86416 | 16G | 1.77 in | 2201 | gray2 |
| MS-86418 | 18G | 1.16 in | 941 | green2 |
| MS-86420 | 20G | 1.16 in | 611 | pink (this item)2 |
| MS-86422 | 22G | 1 in | 361 | blue2 |
| MS-86424 | 24G | 0.75 in | 201 | yellow2 |
Only MS-86420 is sold on this page; the other gauges are listed for size comparison.1
Related Products:
- MedSource TrueSafe Comfort 18G x 1.16 in IV Catheter, 50/Box
- MedSource TrueSafe Comfort 22G x 1 in IV Catheter, 50/Box
- MedSource ClearSafe Comfort BC 20G x 1.25 in IV Catheter, 50/Box
- MedSource IV Start Kit with Site-Loc Dressing, MS-80063
- All IV catheters
Product Guides and Documents:
- TrueSafe Comfort BC specification and flow rate sheet, Rev.06 (PDF) (medsourcelabs.com)
- TrueSafe Comfort Blood Control Instructions for Use (PDF) (medsourcelabs.com)
- TrueSafe Comfort BC product page (medsourcelabs.com)
- AccessGUDID record 00840155409705 (box of 50) (accessgudid.nlm.nih.gov)
Frequently Asked Questions:
What is the MedSource MS-86420?
It is the TrueSafe Comfort BC 20G x 1.16 in push button style safety IV catheter with blood control, in a box of 50.1
What is the flow rate of the 20G catheter?
The manufacturer lists a gravity flow rate of 61 mL/min for the 20G x 1.16 in size.1
What color is the 20G IV catheter hub?
The hub is color-coded pink for 20G; the IFU legend lists ORANGE 14G, GREY 16G, GREEN 18G, PINK 20G, BLUE 22G and YELLOW 24G.2
How long is the 20G catheter?
The catheter is 1.16 in long, with an ID of 0.78 mm and an OD of 1.1 mm.1
How does blood control work on this 20G catheter?
An active check valve inhibits blood flow when the valve is activated.1
How does the needle safety mechanism work?
The push button retracts the needle fully into the catheter body, and an audible click confirms the needle is encapsulated.1
What is VenaPUR?
VenaPUR is MedSource proprietary PUR catheter material designed to remain kink-free and soften within the body.1
How many 20G IV catheters are in a box?
Each box holds 50 catheters; this listing is one box of 50.1
Is this 20G IV cannula latex free?
It is not made with natural rubber latex and not made with DEHP.1
Can I buy a single 20G catheter?
This store sells the TrueSafe Comfort BC 20G by the box of 50 only; the old single catheter page redirects here.1
Manufacturer Sources
- MedSource Labs. TrueSafe Comfort BC Push Button Style Safety IV Catheter with VenaPUR, specification sheet, Rev.06 (PDF) (accessed 2026-11-01). medsourcelabs.com.
- MedSource Labs. TrueSafe Comfort Blood Control Safety I.V. Catheter, Instructions for Use, Rev 1 (PDF) (accessed 2026-11-01). medsourcelabs.com.
- MedSource Labs. TrueSafe Comfort BC Safety IV Catheter, product page (accessed 2026-11-01). medsourcelabs.com.
- U.S. National Library of Medicine, AccessGUDID. Device record 00840155409705, MS-86420, TrueSafe Comfort 20G x 1.16 in, box of 50 (accessed 2026-11-12). accessgudid.nlm.nih.gov.
Rx Only. Single use. Read the Instructions for Use before use; never reinsert the introducer needle into the catheter, and discard the needle into an approved sharps container.
