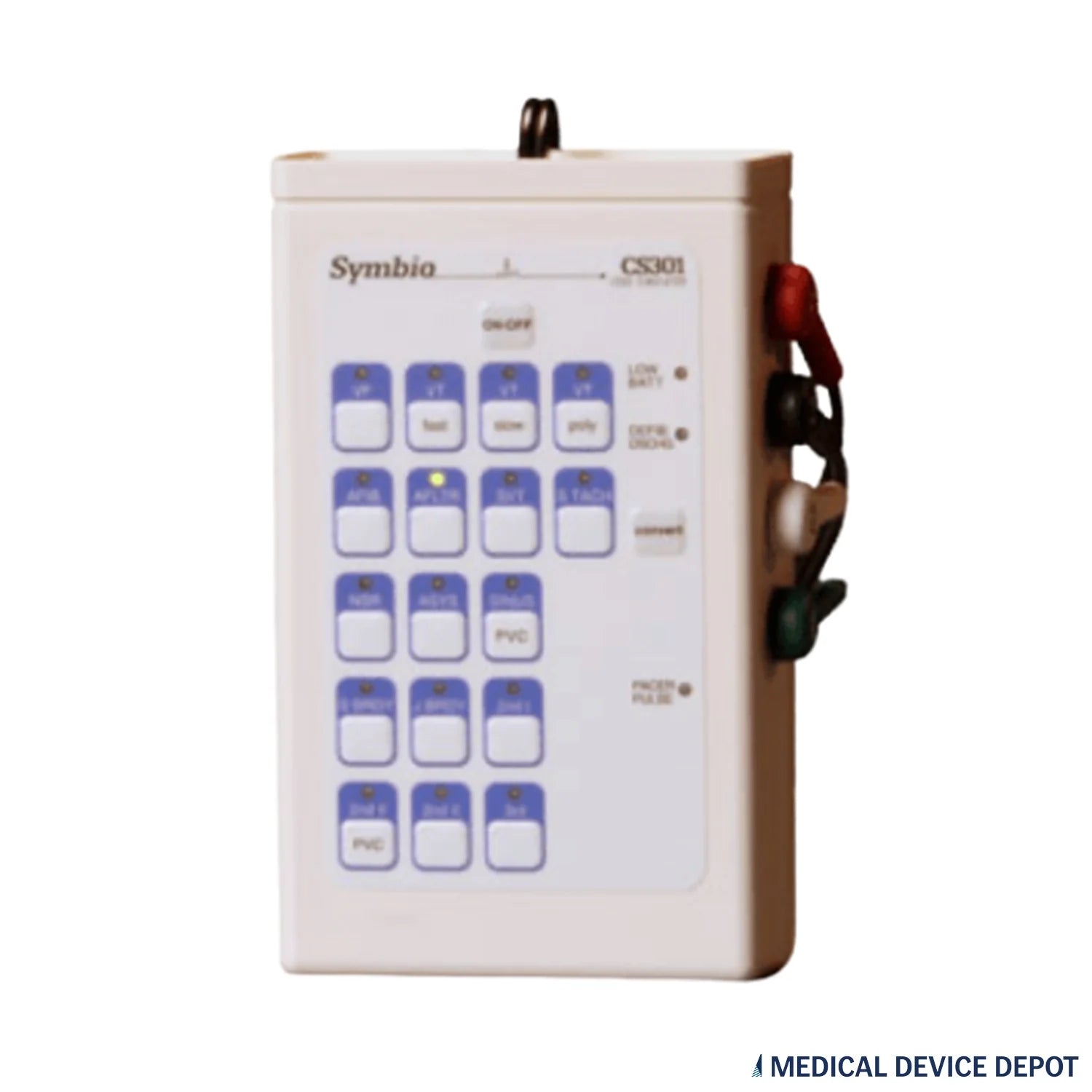

Symbio CS301 3-Lead EKG Heart Rhythm Simulator with Zoll Connector

SKU: MDD-9801-00

The Symbio CS301 is a 3-lead EKG rhythm simulator, sold here in the Zoll connector version, Symbio part 9801-000. Connect a monitor/defibrillator and external pacer to it to practice defibrillation, cardioversion, pacing and rhythm recognition with 17 rhythms.124

It has RA, LA, LL and RL ECG snaps plus a PADS connection, and runs on one 9 volt alkaline battery.34

Product Highlights:

  • 17 rhythms: VF, VT fast, VT slow, VT poly, AFIB, AFLTR, SVT, S TACH, NSR, ASYS, SINUS PVC, S BRDY, J BRDY, 2nd I, 2nd II PVC, 2nd II and 3rd.23
  • Defib discharge detection: the DEFIB DSCHG indicator lights for two seconds when a defibrillator set to 50 J or more discharges into the simulator.2
  • Convert: pick a waiting rhythm, and it becomes the running rhythm when a 50 J or greater discharge is detected. An unfinished convert cancels after two minutes.2
  • Paced beats: five capture settings, 70, 80, 90 or 100 mA, or ignore. The default at power on is 70 mA.2
  • Battery saver: powers off 30 minutes after the last key press or detected defib or pacer energy. A LOW BATT indicator shows when to replace the battery.2

Specifications:

Manufacturer Symbio Corporation2
Model CS301 3-Lead Simulator1
Manufacturer part 9801-000, Zoll connector version34
SKU MDD-9801-00
ECG connections RA, LA, LL, RL; works with a 3 or 4 lead ECG cable4
Defibrillator connection PADS3
Rhythms 172
Rates NSR 72 bpm, S TACH 120 bpm, VT fast 185 bpm, VT slow 140 bpm, SVT 216 bpm, AFLTR 150 bpm, AFIB 120 to 160 bpm, S BRDY 40 bpm, J BRDY 42 bpm, 3rd degree AV block ventricular rate 37 bpm2
Defib detection 50 J or more2
Pacing capture 70, 80, 90 or 100 mA, or ignore; 70 mA default2
Power One 9 V alkaline battery3
Warranty Three years, material and workmanship, from date of purchase2

Related Products:

Frequently Asked Questions:

Is the CS301 a 3-lead or a 12-lead simulator?

3-lead. Symbio lists the CS301 as its 3-Lead Simulator and the CS1201 as its 12-Lead Simulator. The CS301 has RA, LA, LL and RL snaps and takes a 3 or 4 lead ECG cable.14

Which defibrillator connector does this CS301 have?

This listing is the Zoll version, part 9801-000. Symbio makes separate CS301 versions for Physio-Control/Mindray (9801-001) and Philips (9801-008).34

How does the convert feature work?

Press convert, then press the rhythm you want after the shock. When a defibrillator set to 50 J or more discharges, that rhythm becomes the running rhythm.2

What pacer current produces paced beats?

Pick a capture level of 70, 80, 90 or 100 mA. Paced beats show when the pacer current is above that level and the pacer rate is above the rhythm rate. Paced beats are not generated while VF is selected.2

How much energy can it take?

Symbio says never discharge more than 360 joules into the simulator, and no more than three times within one minute.2

What battery does it use?

One 9 volt alkaline battery. Symbio recommends removing the battery between uses, since battery acid damage is not covered by the warranty.23

Manufacturer Sources
  1. Symbio Corporation. Simulators: CS301 3-Lead Simulator, read 2026-11-10. http://www.symbiocorp.com/simulators
  2. Symbio Corporation. CS301 Operating Instructions, read 2026-11-10. http://www.symbiocorp.com/assets/docs/CS301-Op-Guide.pdf
  3. Medical Shipment. Symbio CS301 3-Lead ECG Simulator with Zoll Connector, 9801-000, read 2026-11-09. https://www.medicalshipment.com/product-details/864/symbio-cs301-3-lead-ecg-simulator-with-zoll-connector-1each
  4. SakoMed. Symbio CS301 3-Lead ECG Simulator, part numbers by defibrillator brand, read 2026-11-09. https://sakomed.com/products/biomedical-test-equipment/symbio-3-lead-ecg-simulator/

Product facts from Symbio Corporation documents and Symbio distributor listings.
