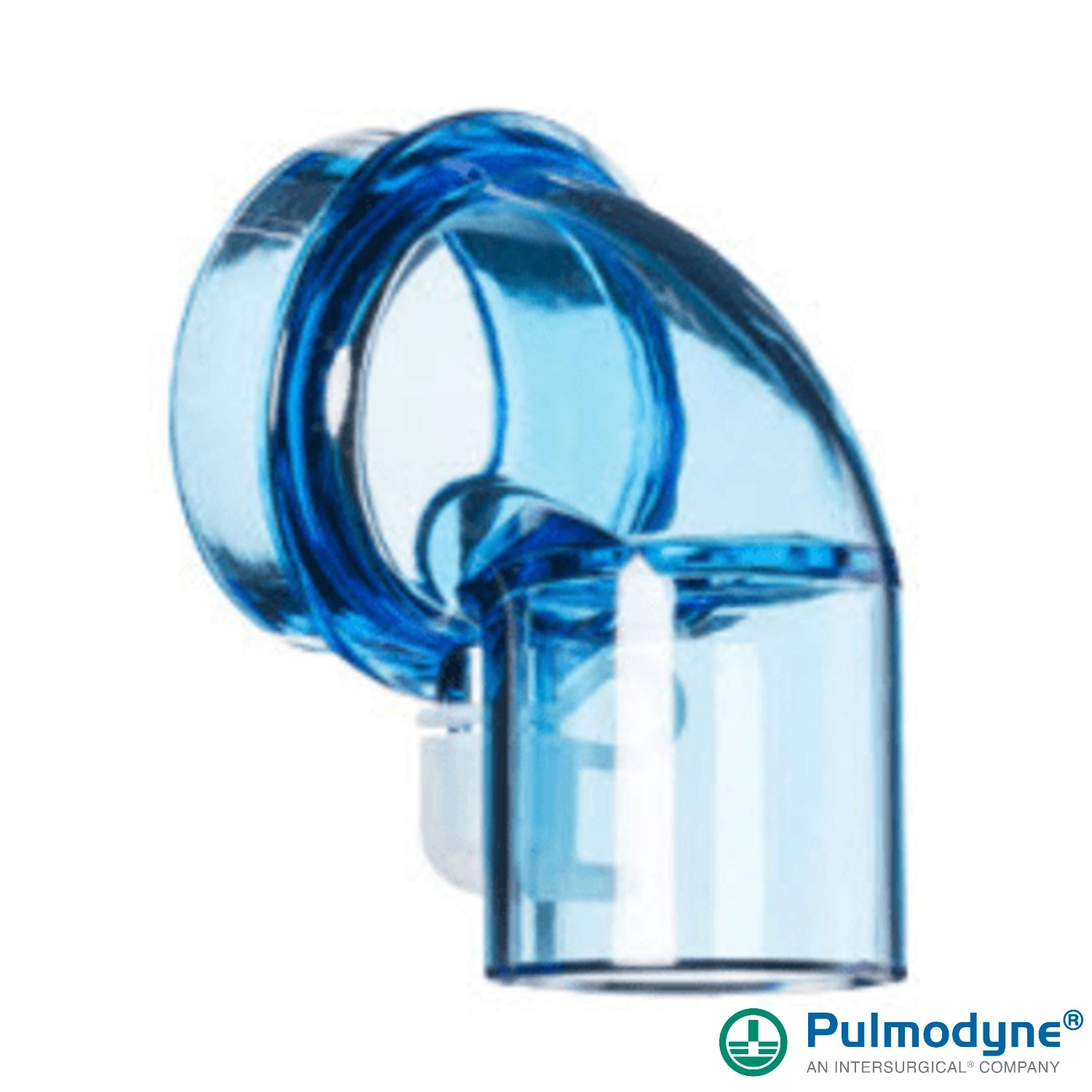

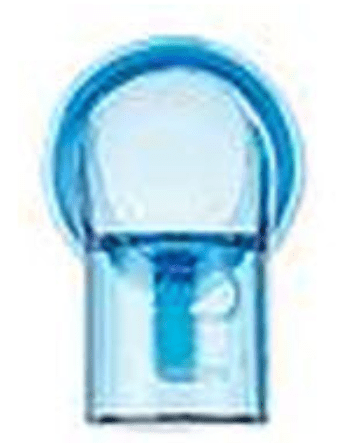

Pulmodyne BiTrac Standard Elbow, Interchangeable, 22mm F, 10/bx
The Pulmodyne BiTrac Interchangeable Standard Elbow, part number 313-9599, is a 22mm female standard elbow for the BiTrac Select Full Face and BiTrac MaxShield Select masks.1 It has no anti-asphyxia valve and no integral leak port.1 Sold 10/bx.2
Product Highlights:
- Fits Select masks: Only for use with BiTrac Select Full Face and MaxShield Select interchangeable elbow masks1
- Standard elbow: No anti-asphyxia valve; use only with a ventilator that has adequate alarms and safety systems1
- No integral leak port: A separate exhalation device must be part of the circuit1
- Bayonet lock: Twist and press into the mask adapter ring until fully seated1
- Single use, Rx: AccessGUDID lists it as single use and prescription only3
What's in the Box:
- 10 BiTrac interchangeable standard elbows2
Specifications:
| Manufacturer | Pulmodyne3 |
|---|---|
| Part number (MPN) | 313-95993 |
| Type | Interchangeable standard elbow, 22mm female1 |
| Anti-asphyxia valve | No1 |
| Leak port | No integral leak port; use a separate exhalation device1 |
| Fits | BiTrac Select Full Face and MaxShield Select masks1 |
| Operating range | 5 C to 40 C1 |
| Use | Single use; Rx; not sterile3 |
| GTIN | 108414701093603 |
| Pack | 10/bx3 |
Interchangeable Elbow Options:
| Part number | Elbow | Box qty |
|---|---|---|
| 313-9599 | Standard | 10 |
| 313-9598 | Anti-asphyxia | 10 |
| 313-9593 | Anti-asphyxia with leak | 10 |
| 313-9595 | Standard nebulizer | 10 |
| 313-9594 | Anti-asphyxia nebulizer | 10 |
| 313-9597 | Standard bronchoscopy | 10 |
| 313-9596 | Anti-asphyxia bronchoscopy | 10 |
Source: part list4. Interchangeable elbows are also sold individually.
Related Products:
- BiTrac Select Interchangeable Anti-Asphyxia Elbow, 313-9598
- Pulmodyne BiTrac Select NIV Mask, SE Elbow, Adult Medium, 313-9507
- Pulmodyne BiTrac Select NIV Mask, SE Elbow, Adult Large, 313-9508
- Ventilation Circuit Accessories collection
Product Guides and Documents:
Frequently Asked Questions:
Is this elbow single use?
Yes. The AccessGUDID record lists it as single use.3
Does this elbow require a prescription?
Yes. The AccessGUDID record lists it as a prescription (Rx) device.3
Is this elbow sterile?
No. The AccessGUDID record lists it as not sterile, with no sterilization before use.3
How many come in a box?
10 elbows per box.3
Which masks does this elbow fit?
It is only for use with BiTrac Select Full Face and BiTrac MaxShield Select interchangeable elbow masks.1
Which circuit goes with this elbow?
Pulmodyne's FAQ says a standard elbow is used with dual limb circuits.6
Does the standard elbow have an anti-asphyxia valve or leak port?
No. It has no anti-asphyxia valve and no integral leak port, so a separate exhalation device must be part of the circuit. Use it only with a ventilator that has adequate alarms and safety systems.1
What is an elbow?
On BiTrac Select masks the elbow is the interchangeable connector between the mask and the circuit. It locks into the mask adapter ring with a bayonet lock.1
How do I change the interchangeable elbow?
Hold the adapter ring and twist the elbow counter clockwise to release the bayonet lock, pull it out, then press the new elbow into the ring and turn it clockwise until fully seated.1
Why use interchangeable elbows?
Pulmodyne says different therapies, such as bronchoscopy or nebulization, can be done without changing the whole mask.6
Manufacturer Sources
- Pulmodyne. Instructions for Use 3883, BiTrac SE Select Interchangeable Standard Elbow 22mm Female (accessed 2026-11-02). pulmodyne.com.
- Pulmodyne. BiTrac NIV Masks and Circuits product brochure 3881F-05-10-2022 (accessed 2026-11-02). pulmodyne.com.
- U.S. National Library of Medicine. AccessGUDID device record, package DI 10841470109360, model 313-9599 (accessed 2026-11-02). accessgudid.nlm.nih.gov.
- Pulmodyne. BiTrac NIV mask catalog, part lists (accessed 2026-11-02). pulmodyne.com.
- Pulmodyne. NIV Accessories product page (accessed 2026-11-02). pulmodyne.com.
- Pulmodyne. BiTrac NIV FAQ (accessed 2026-11-02). pulmodyne.com.
Use this elbow as directed in Pulmodyne's Instructions for Use and by the prescribing clinician.1
