Onyx® Vantage 9590 Fingertip Pulse Oximeter

This item requires a clinical attestation, confirmed in your cart.

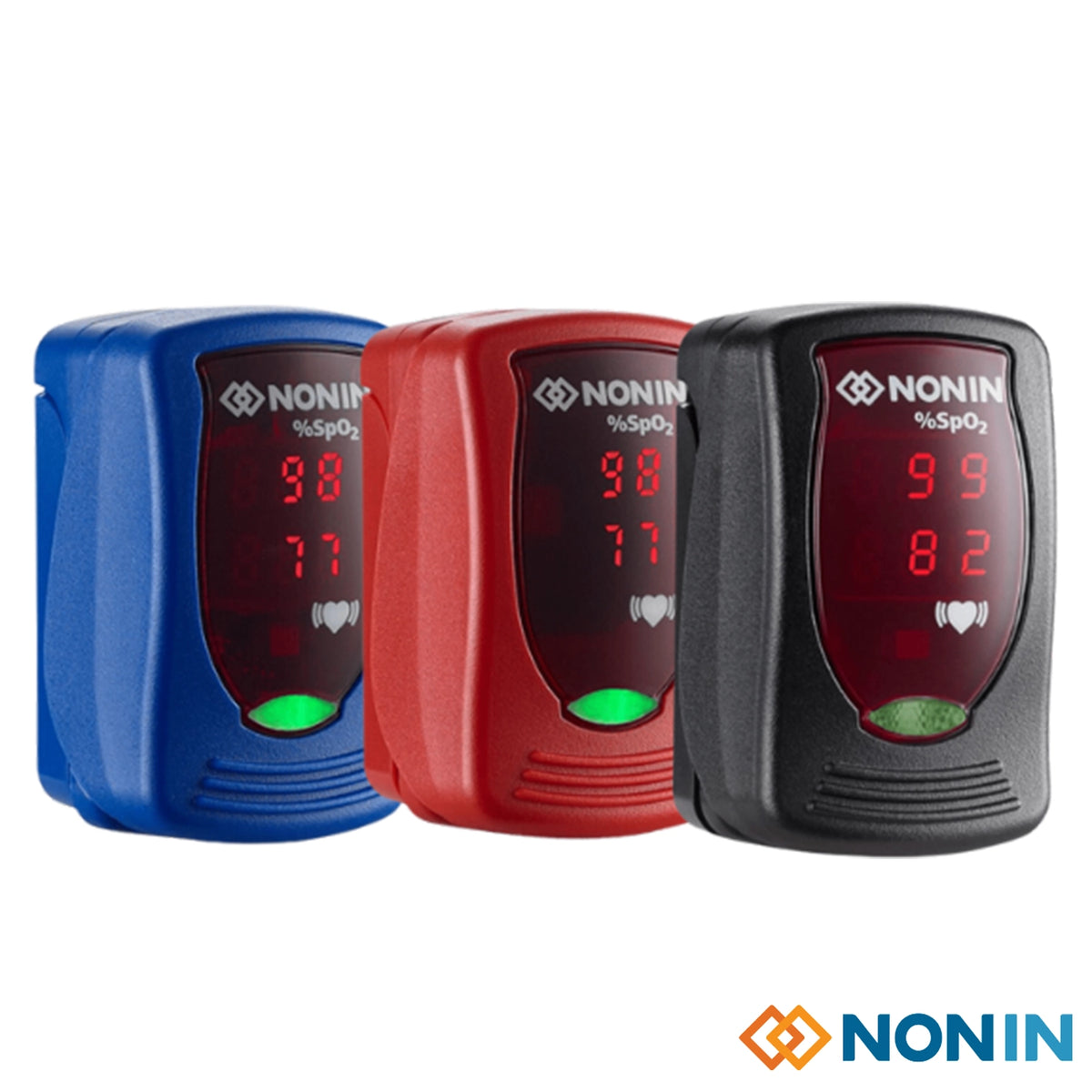

This Nonin pulse oximeter is built for EMS and fire spot-checks of SpO2 and pulse rate. The Nonin Onyx Vantage 9590 is an FDA-cleared fingertip pulse oximeter (510(k) K112843) for spot-checking SpO2 and pulse rate on adult and pediatric patients in EMS, fire, and clinic settings. It runs about 6,000 spot checks on two AAA batteries, works on fingers, thumbs, and toes, and stores from -40 °F to 158 °F. We stock it in Blue (8340-001), Red (8340-002), or Black (8340-004), with the hard case (3802-000) or soft case (2003-102).1

Why EMS and Fire Crews Carry the 9590:

  • Built for the field. Emergency medical services is a listed use environment, along with hospitals and clinics. It is built to survive at least 50 drops and passes IP33 spray testing.1, 3
  • Ready from a cold truck. Storage is rated -40 °F to 158 °F. It takes 3 minutes to warm from -40 °C to operating temperature, and it operates from 23 °F to 104 °F.1
  • Reads poor perfusion. SpO2 accuracy is 70 to 100% ±2 digits at low perfusion, the same as a warm finger. PureSAT pulse-by-pulse filtering targets low perfusion and darker skin tones.1, 3
  • No buttons. Insert a finger and it turns on. Remove it and it shuts off in about 10 seconds.1
  • Air and flight use. It operates up to 13,123 ft (4,000 m) and up to 4 atmospheres hyperbaric pressure.1
  • Low upkeep. It needs no calibration. The expected service life is 5 years, and the warranty is 4 years.1

Part Numbers:

Item Nonin Part Number
Onyx Vantage 9590, Blue 8340-001
Onyx Vantage 9590, Red 8340-002
Onyx Vantage 9590, Black 8340-004
Hard Protective Case 3802-000
Soft Carrying Case 2003-102

Specifications:

Specification Onyx Vantage 9590
Manufacturer Nonin Medical
Model Onyx Vantage 9590 finger pulse oximeter
FDA 510(k) K112843
Use Spot-check only. No audible alarms. Not for continuous monitoring.1
Patients Adult and pediatric, well or poorly perfused. Not neonatal.1
Application Site Finger, thumb, or toe, 0.3 to 1.0 inch (0.8 to 2.5 cm) thick1
SpO2 Accuracy, Finger and Thumb 70 to 100% ±2 Arms, non-motion1
SpO2 Accuracy, Toe 70 to 100% ±3 Arms, non-motion1
Low Perfusion SpO2 70 to 100% ±2 digits1
Pulse Rate Accuracy 20 to 250 BPM ±3 digits. Low perfusion 40 to 240 BPM ±3 digits.1
Display Range SpO2 0% to 100%. Pulse rate 18 to 321 BPM.1
Display Red numeric LEDs plus a green, yellow, and red pulse quality light1
Power Two 1.5 V AAA alkaline batteries, included1
Battery Life About 6,000 spot checks or 36 hours with new alkaline batteries1
Operating Temperature 23 °F to 104 °F (-5 °C to 40 °C)1
Storage Temperature -40 °F to 158 °F (-40 °C to 70 °C). 3 minutes to warm from -40 °C.1
Altitude and Pressure Up to 13,123 ft (4,000 m). Hyperbaric up to 4 atmospheres.1
Ingress IP33 per IEC 605291
Durability Minimum of 50 drops3
Size and Weight 2.2 x 1.3 x 1.27 in (5.59 x 3.3 x 3.23 cm). Under 2 oz.3
Wavelengths Red 660 nm at 0.8 mW max average. Infrared 910 nm at 1.2 mW max average.1
Applied Part Type BF1
Latex Not made with natural rubber latex1
Service Life 5 years. No calibration needed.1
Warranty 4 years from purchase. Excludes batteries, spring, lanyard, and lanyard lock.1
In the Box Oximeter, lanyard, two AAA alkaline batteries1

How to Take a Reading:

  1. Clean the device before each patient.1

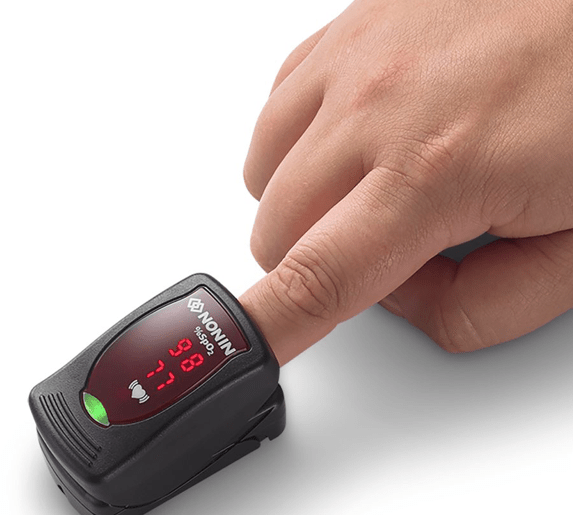

  2. Insert the finger nail side up until the fingertip touches the stop. Keep the finger flat and centered, at heart or chest level.1
  3. Do not squeeze the device or press it against a surface. The spring sets the right pressure.1
  4. Wait for about 4 seconds of steady green on the pulse quality light before you trust the number. On yellow or red, try another finger.1

What Throws a Reading Off:

Nail polish or artificial nails, a blood pressure cuff or IV on the same arm, bright light, motion, anemia, intravascular dyes, and dried blood or dirt in the light path all affect accuracy.1 Carboxyhemoglobin and methemoglobin do too. On smoke and carbon monoxide calls, a standard SpO2 number can read falsely high. The Masimo Rad-57, part 3735, reads SpCO.

Related Products:

Frequently Asked Questions:

Is the Nonin Onyx Vantage 9590 FDA cleared?

Yes. The Onyx Vantage 9590 is FDA cleared under 510(k) K112843. You can look the number up in FDA's premarket database. How a cleared fingertip oximeter differs from an unreviewed one is in FDA-Cleared vs Over-the-Counter Pulse Oximeters.

Can EMS and fire departments use the 9590?

Yes. Emergency medical services is one of the 9590's listed use environments, along with hospitals, clinics, long-term care, skilled nursing, and home health. It is intended for use by health professionals.1, 3

When should EMS spot-check SpO2?

On every altered patient, check pulse oximetry first, then blood glucose, then the cardiac monitor. The full sequence is in the AEIOU-TIPS altered mental status guide.

Will the 9590 work after sitting in a cold truck?

Yes, after a short warm-up. It stores from -40 °F to 158 °F and operates from 23 °F to 104 °F. From -40 °C it takes about 3 minutes to reach operating temperature, and from 70 °C it takes about 5 minutes to cool.1

How do I turn the 9590 on and off?

There is no power button. Insert a finger and the 9590 turns on. It shuts off about 10 seconds after the finger is removed, or after 2 minutes of inadequate pulse signal.1

How do I replace the batteries?

Make sure the device is off and not on a finger. Press the battery tray upward, then pull it outward slightly to release it. Insert two new 1.5 V AAA batteries, matching the + and - markings. Guide the tray back on, press down, and push it in. It fits only one way, so do not force it.1

How long do the batteries last, and how do I know they are low?

New alkaline AAA batteries give about 6,000 spot checks or 36 hours of use. When batteries are low, the numbers flash once per second. Remove the batteries if the device will be stored for more than 30 days. Rechargeable batteries work but need replacing more often.1

How accurate is the 9590?

Finger and thumb SpO2 accuracy is 70 to 100% ±2 Arms, and the same ±2 at low perfusion. Toe accuracy is ±3 Arms. Accuracy was tested in induced hypoxia studies on light-to-dark-skinned adults against arterial blood samples.1

Does the 9590 need calibration?

No. It needs no calibration or periodic maintenance other than batteries. The expected service life is 5 years. Do not open the case; that voids the warranty. A functional tester cannot check pulse oximeter accuracy.1

How do I clean the 9590?

Wipe it with a soft cloth dampened with mild detergent or a 10% bleach solution, then dry it. Do not use isopropyl alcohol, ammonium chloride cleaners, or undiluted bleach. Never immerse, spray, or autoclave it.1

Does the 9590 have alarms?

No. It has no audible alarms and is for spot checks, not continuous monitoring. The pulse quality light shows green for a good signal, yellow for marginal, and red for inadequate.1

What do dashes or a minus sign on the display mean?

Dashes appear when the signal is inadequate for 10 seconds. A minus sign in the SpO2 display means the finger was removed.1

Can the 9590 be used on infants or in an MRI?

No. Do not use it on neonatal patients, in an MR environment, or in an explosive atmosphere.1

Where is the 9590 manual?

The Onyx Vantage 9590 instructions for use are on nonin.com.1

What warranty comes with the 9590?

4 years from purchase. It excludes the batteries, spring, lanyard, and lanyard lock.1

Which color should I order?

Blue (8340-001), Red (8340-002), and Black (8340-004) are the same model 9590. Choose a color in the order table above.

Which carrying case fits the 9590?

The hard case 3802-000 is the rigid Justice Mark II case. The soft case 2003-102 is the belt-clip case.

Is this a genuine Nonin device?

Yes. Supplied through an authorized Nonin distributor (USA).

How do I order for an agency?

Choose colors and cases in the order table above, or contact us at CustomerService@pacificbiomedical.com or 844.436.3526.

Manufacturer Sources
  1. Nonin Medical. Onyx Vantage 9590 Finger Pulse Oximeter Instructions for Use, 113634-001-01. nonin.com.
  2. Nonin Medical. Onyx Vantage 9590 product page. nonin.com.
  3. Nonin Medical. Onyx Vantage 9590 specification sheet, P/N 8529-001-02. nonin.com.

How FDA clearance differs from an unreviewed fingertip oximeter, and what this meter publishes for accuracy, is in FDA-Cleared vs Over-the-Counter Pulse Oximeters.

Item # Image Quantity

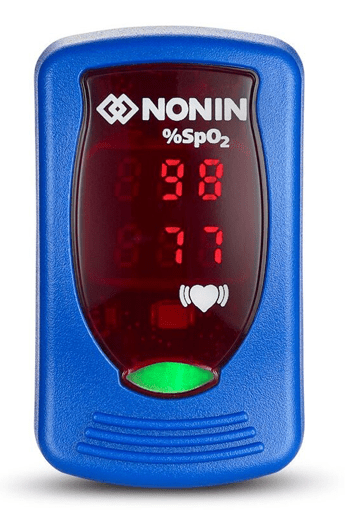

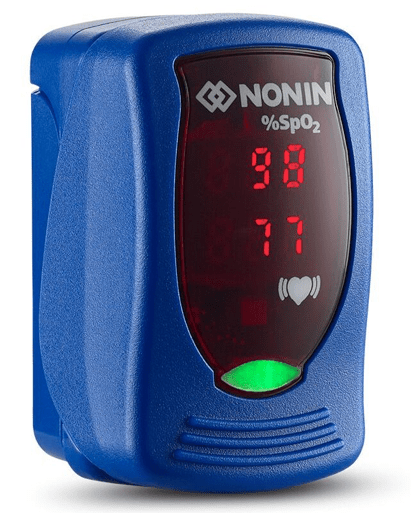

Onyx® Vantage 9590 Fingertip Pulse Oximeter, Blue

NON-8340-001

Nonin Onyx Vantage 9590 fingertip pulse oximeter, 8340-001, blue, angled view

$199.00

ea

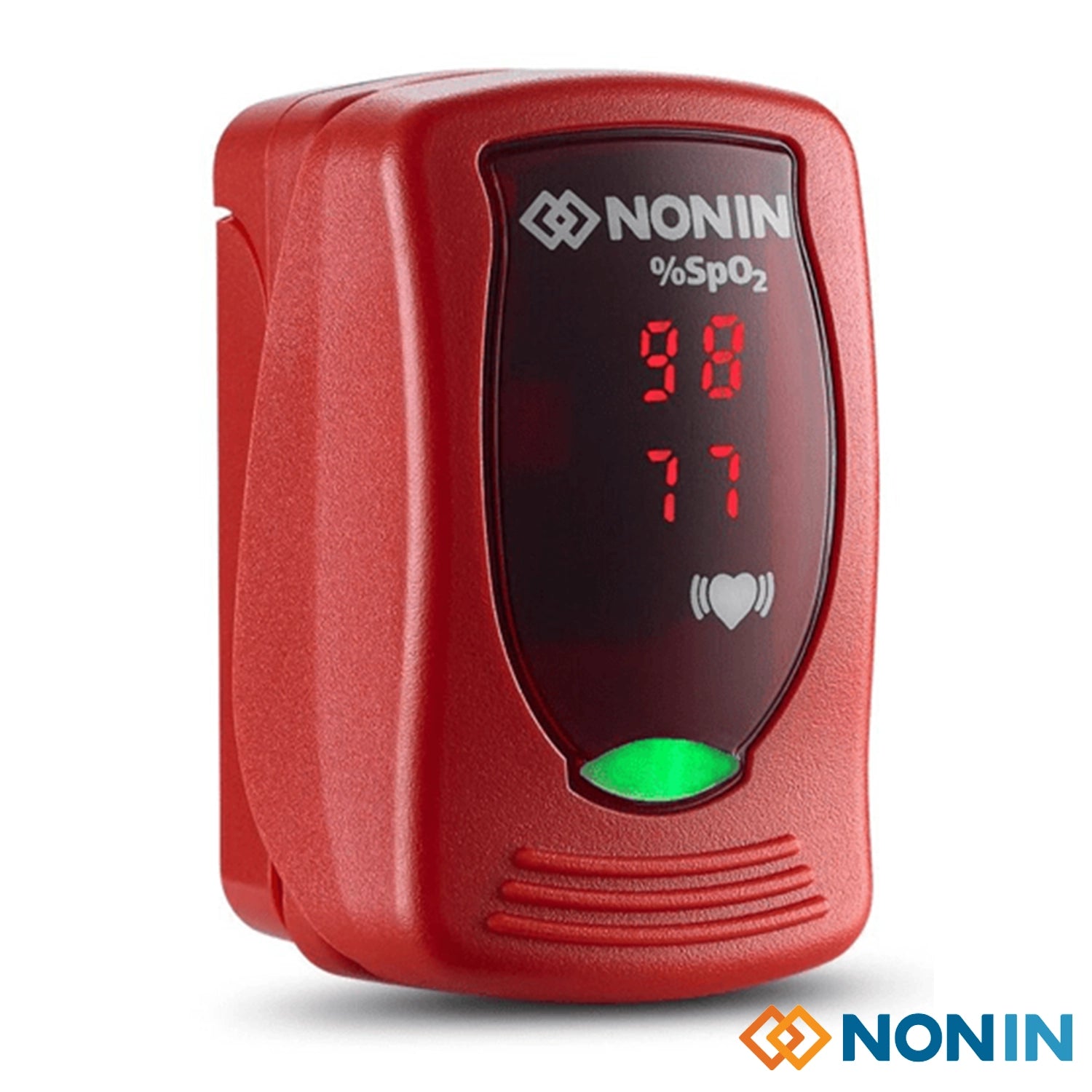

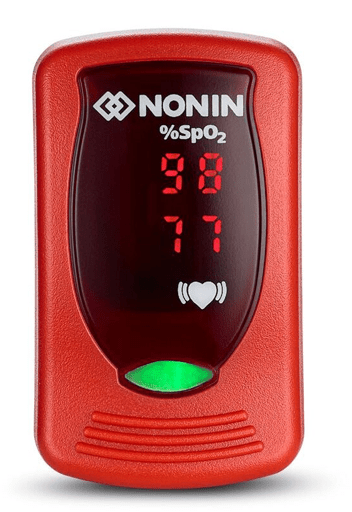

Onyx® Vantage 9590 Fingertip Pulse Oximeter, Red

NON-8340-002

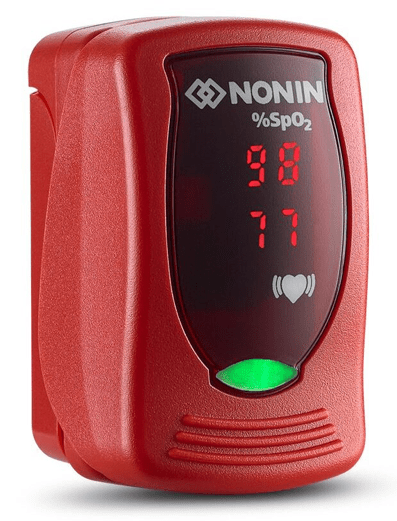

Nonin Onyx Vantage 9590 fingertip pulse oximeter, 8340-002, red, angled view

$199.00

ea

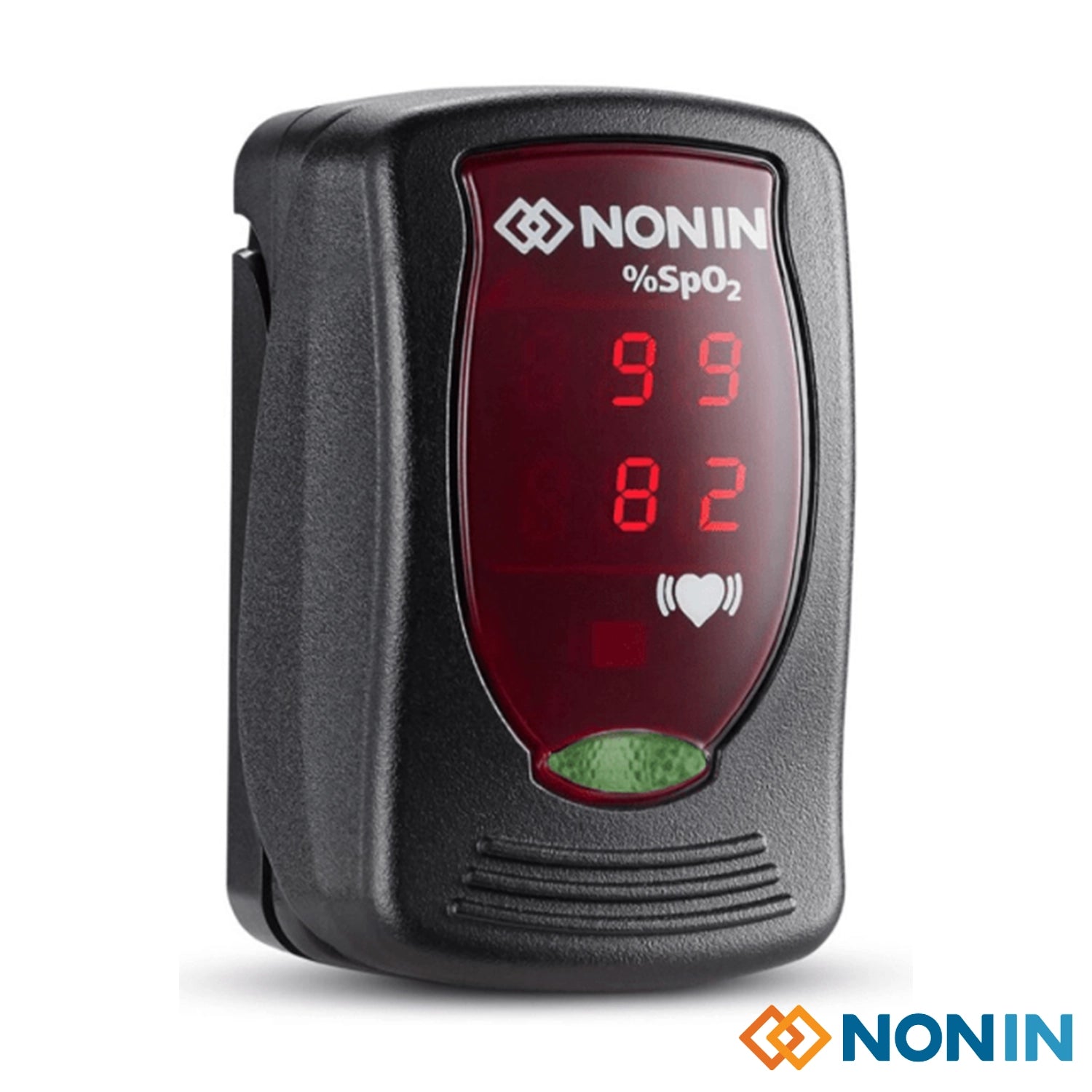

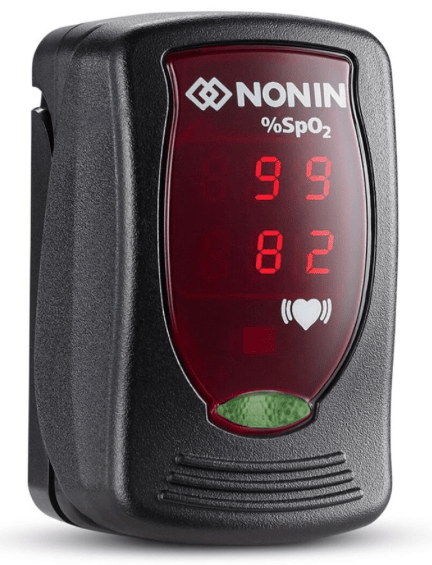

Onyx® Vantage 9590 Fingertip Pulse Oximeter, Black
