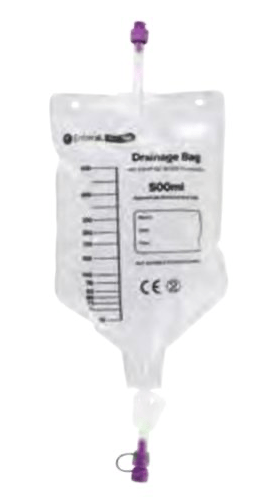

GBUK 500 mL ENFit Drainage Bag, Non-Sterile PVC, DBP-500, 50/bx

SKU: MA-DBP-500

The GBUK DBP-500 is a 500 mL single-use PVC enteral drainage bag for passive gravity drainage of gastric fluid through a feeding or drainage tube fitted with ENFit connectors (ISO 80369-3).1 Its distal end is an ENFit connector, and is sold 50 per box.23

Product Highlights:

  • Capacity: 500 mL with printed measuring graduations.13
  • ENFit connection: Female ENFit connector on the proximal end twists onto the patient tube a half turn clockwise to lock.1
  • Outlet: ENFit connector at the distal end; open it to empty the bag without disconnecting from the tube.12
  • Material: PVC, DEHP and latex free.12
  • Sterility: Non-sterile.13

What Is in the Box:

50 individually packed GBUK DBP-500 500 mL PVC enteral drainage bags.23

Specifications:

Manufacturer GBUK Group Ltd (GBUK Enteral)3
Part number DBP-5003
Capacity 500 mL1
Material PVC, DEHP and latex free1
Patient connector Female ENFit, ISO 80369-31
Distal end ENFit connector2
Sterility Non-sterile1
Use Single use1
Pack 50 per box; 4 boxes per case3
GTIN (box) 050605908808383
FDA product code FFD3

How to Use the Drainage Bag:

Attach the bag only to feeding or drainage tubes fitted with ENFit connectors. Close the cap on the distal end, twist the female ENFit connector onto the tube a half turn clockwise, and hang or place the bag below stomach level so contents drain by gravity.1 Empty it every four to eight hours, or sooner if it fills, by opening the distal connector. Do not leave the bag full. Once disconnected from the tube, discard it.1

The bag is for passive drainage only. It is not for re-feeding, not for high-volume decompression in emergencies, and not for viscous fluid other than gastric secretions.1 PVC bags are the non-sterile GBUK range; the EVA bags are the sterile range.1

Related Products:

Product Guides and Documents:

Frequently Asked Questions:

Does the GBUK DBP-500 drainage bag fit ENFit feeding and drainage tubes?

Yes. The bag is designed for use only with feeding or drainage tubes fitted with ENFit connectors built to ISO 80369-3. Twist its female ENFit connector onto the tube a half turn clockwise to lock.1

How often should the GBUK DBP-500 drainage bag be emptied?

Every four to eight hours, and more often if the bag becomes full. Empty it before it reaches capacity so drainage is not slowed.1

When should the GBUK DBP-500 drainage bag be discarded?

The bag is single use. Once it is disconnected from the feeding or drainage tube, discard it and use a new bag. Reuse can reduce performance and cause infection.1

Where should the GBUK DBP-500 drainage bag hang?

Below the level of the stomach, so stomach contents flow into the bag by gravity.1

Can the GBUK DBP-500 drainage bag be emptied without disconnecting it from the tube?

Yes. Open the distal connector to empty the bag. It does not need to be disconnected from the feeding or drainage tube.1

What is the GBUK DBP-500 enteral drainage bag used for?

Passive drainage of gastric fluid for patients who need gastric drainage. It is not for re-feeding, for high-volume decompression in emergencies, or for viscous fluid other than gastric secretions.1

How does the GBUK DBP-500 differ from other GBUK EVA and PVC drainage bags?

This page is the GBUK DBP-500: a 500 mL non-sterile PVC bag whose distal end is an ENFit connector, sold 50 per box. Both are single use, DEHP and latex free, and fitted with ENFit connectors. The EVA bags are sterilised with ethylene oxide; the PVC bags are supplied non-sterile.1 EVA bags come 20 per box; PVC bags come 50 per box, and PVC bags with hooks 20 per box.425

Is the GBUK DBP-500 drainage bag the same as a vent bag?

No. The GBUK enteral vent bag is a separate closed system for venting unwanted air from the stomach and is hung above the patient's head. A drainage bag hangs below the stomach for gravity drainage.21

Sources:

Manufacturer Sources
  1. GBUK Group. Enteral Drainage Bags EVA and PVC, Instructions for Use (PDF) (accessed 2026-11-07). gbukgroup.com.
  2. GBUK Group. PVC drainage bags product page (accessed 2026-11-07). gbukgroup.com.
  3. U.S. FDA. AccessGUDID record, DI 05060590880821, Enteral PVC drainage bag 500 ml, DBP-500 (accessed 2026-11-07). accessgudid.nlm.nih.gov.
  4. GBUK Group. EVA drainage bags product page (accessed 2026-11-07). gbukgroup.com.
  5. GBUK Group. PVC drainage bags with hooks product page (accessed 2026-11-07). gbukgroup.com.

For trained healthcare professionals managing gastric drainage. Read the GBUK instructions for use before use.1
